E89
Local E89
CONCHAS LAKE
PublicPUB

1 miles SW of CONCHAS DAM, NM, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 22' 04"N 104° 10' 50"W
Elevation
4232' MSL
Pattern Alt
5232' MSL
Mag Variation
7°E
Declination
10°E
Fuel
None Listed
FSS
ALBUQUERQUE (ABQ)
Sectional
ALBUQUERQUE
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
6/11/26-7/9/26
KTCC (31nm) VFR
2:53 PM MDT
Few 12,000'
10sm
98°F
47°F
29.87"Hg
240° 16kts
Gusts 26kts
AO2 PK WND 28034/2012 SLP040 T03670083 58028
METAR KTCC 252053Z AUTO 24016G26KT 10SM FEW120 37/08 A2987 RMK AO2 PK WND 28034/2012 SLP040 T03670083 58028
+ Add Your Business

E89 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT ODALS RWY 09 & 27 - CTAF.

Flight Service

Flight Service 122.6
(ABQ)

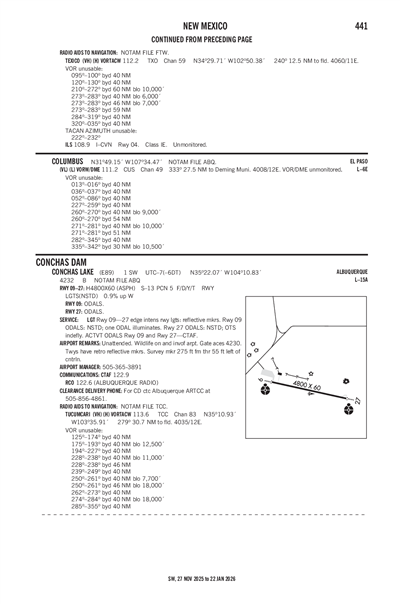

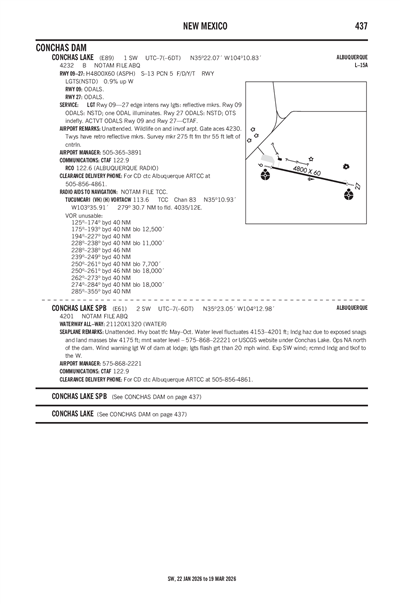

FAA A/FD Pages

Terminal Area Forecast

KCVS (73nm)
Thu, 6/25 12:00 PM MDT
Thu, 6/25 12:00 PM MDT - Fri, 6/26 6:00 PM MDT
VFR
12:00 PM MDT - 4:00 PM MDT
Few 19,000'
6sm
30.00"Hg
250° 15kts
VFR
Becoming 4:00 PM MDT - 6:00 PM MDT
Light Thunderstorm and Rain
Overcast 14,000'
6sm
29.94"Hg
280° 15kts
VFR
Becoming 6:00 PM MDT - 11:00 PM MDT
Light Thunderstorm and Rain
Overcast 12,000'
6sm
29.91"Hg
210° 20kts
VFR
Temporary 7:00 PM MDT - 8:00 PM MDT
Light Thunderstorm and Rain
Broken 10,000'
5.59sm
260° 35kts
Gusts 45kts
VFR
Becoming 11:00 PM MDT - 8:00 AM MDT
Broken 15,000'
6sm
29.94"Hg
260° 12kts
VFR
Becoming 8:00 AM MDT - 6:00 PM MDT
Few 10,000'
6sm
30.03"Hg
VRB° 6kts
TAF KCVS 251800Z 2518/2624 25015KT 9999 FEW190 QNH3001INS
   BECMG 2522/2523 28015KT 9999 -TSRA OVC140CB QNH2993INS
   BECMG 2600/2601 21020KT 9999 -TSRA OVC120CB QNH2992INS
   TEMPO 2601/2602 26035G45KT 9000 -TSRA BKN100CB
   BECMG 2605/2606 26012KT 9999 NSW BKN150 QNH2995INS
   BECMG 2614/2615 VRB06KT 9999 FEW100 QNH3002INS TX33/2521Z TN19/2611Z
E89
EffectiveExpiresCategoryNOTAM
Domestic
6/15/26
0249Z
10/13/26
0249Z
!ABQ 06/190 E89 OBST TOWER LGT (ASR 1005145) 350357.70N1041448.90W (18.3NM S E89) 4978.0FT (415.0FT AGL) U/S 2606150249-2610130249
No
UNATNDD
NM DOT - AVIATION DIVISION
3501 ACCESS ROAD C
ALBUQUERQUE, NM 87119
Phone: 505-365-3891
JANE LUCERO
3501 ACCESS RD C PO BOX 9830
ALBUQUERQUE, NM 87106
Phone: 505-365-3891
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
ABQ
--
ACTVT ODALS RWY 09 & 27 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 09/27

4800 ft. x 60 ft.
ASPH
Good
NONE
NSTD
5/F/D/Y/T
13,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 102°282°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 35° 22' 09"N 35° 21' 59"N
Longitude 104° 11' 18"W 104° 10' 21"W
Elevation 4,232' 4,187'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights ODALS ODALS
Centerline Lights
Runway End Identifier Lights
A110-1TWYS HAVE RETRO REFLECTIVE MKRS.
A110-2WILDLIFE ON & INVOF ARPT.
A110-3GATE ACES 4230.
A110-4FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A30A-27SURVEY MKR 275 FT FM THR 55 FT L OF CNTRLN.
A40-09/27REFLECTIVE MKRS.
A49-09NSTD; ONE ODAL ILLUMINATES.
A49-27NSTD; OTS INDEFLY.
A58-09+5 FT SURVEY MKR 75 FT FM RWY END 52 FT L OF CNTRLN.
A58-27+4 FT BRUSH 35 FT FM THR 110 FT R OF CNTRLN; 2-4 FT BRUSH 175 FT FM THR 75-125 FT L OF CNTRLN.
A81-APTACTVT ODALS RWY 09 & 27 - CTAF.
CONCHAS LAKE (IATA: E89) is a public airport located in CONCHAS DAM, NM, US.
