E91
CHINLE MUNI
PublicPUB

3 miles SW of CHINLE, AZ
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 06' 33"N 109° 34' 32"W
5550' MSL
6550' MSL
11E
None Listed
PRESCOTT (PRC)
DENVER
DENVER (ZDV)
6/16/22-7/14/22
KRQE (37nm) VFR
1:53 AM MDT
Clear
10sm
65°F
45°F
30.32"Hg
Calm
AO2 SLP133 T01830072
KRQE 300753Z AUTO 00000KT 10SM CLR 18/07 A3032 RMK AO2 SLP133 T01830072

E91 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

E91 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

E91 Hotels

No hotels are listed for this airport.

E91 Restaurants

No restaurants are listed for this airport.

E91 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

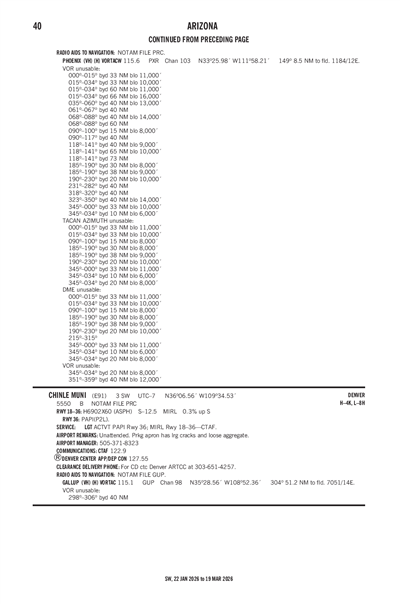

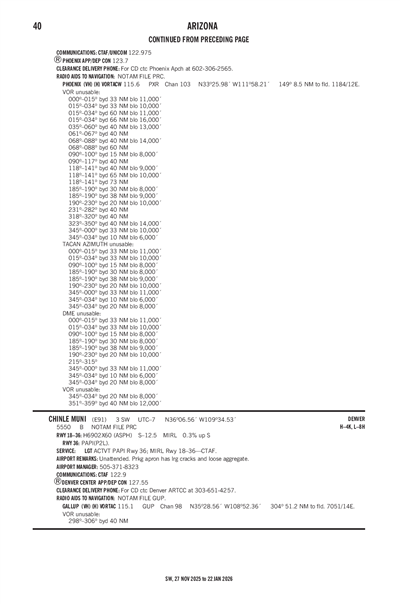

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KGUP (52nm)
Wed, 6/29 11:20 PM MDT
Thu, 6/30 12:00 AM MDT - Fri, 7/1 12:00 AM MDT
VFR
12:00 AM MDT - 12:00 PM MDT
Broken 11,000'
> 6sm
VRB° 5kts
VFR
12:00 PM MDT - 2:00 PM MDT
Broken 8,000'
> 6sm
250° 10kts
VFR
2:00 PM MDT - 8:00 PM MDT
Showers in vicinity
Broken 8,000'
> 6sm
280° 10kts
VFR
Temporary 4:00 PM MDT - 7:00 PM MDT
Light Thunderstorm and Rain
Broken 6,000'
N/A
VRB° 15kts
Gusts 25kts
VFR
8:00 PM MDT - 12:00 AM MDT
Broken 8,000'
> 6sm
250° 9kts
KGUP 300520Z 3006/0106 VRB05KT P6SM BKN110
   FM301800 25010KT P6SM BKN080
   FM302000 28010KT P6SM VCSH BKN080
   TEMPO 3022/0101 VRB15G25KT -TSRA BKN060CB
   FM010200 25009KT P6SM BKN080
E91
Domestic
3/9/222301Z !PRC 03/076 E91 RWY 36 FST 500FT CLSD EXC TAX 2203092301-2207102359
3/9/222301Z !PRC 03/075 E91 RWY 18 FST 500FT CLSD EXC TAX 2203092301-2207102359
FDC
12/6/211620Z !FDC 1/7038 E91 IAP CHINLE MUNI, CHINLE, AZ.
RNAV (GPS) RWY 18, ORIG...
CIRCLING CAT A MDA 6060/HAA 510, CIRCLING CAT B MDA 6240/HAA 690, CIRCLING CAT C MDA 6380/HAA 830, CIRCLING CAT C VISIBILITY 3 SM, CIRCLING CAT D MDA 6740/HAA 1190, CIRCLING CAT D VISIBILITY 3 SM. CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED USE WINDOW ROCK ALTIMETER SETTING AND INCREASE ALL MDA 500 FT AND LNAV VISIBILITY CAT A 1/4 SM, CAT B 1/2 SM, CAT C AND D 1 5/8 SM; CIRCLING CAT A 1/4 SM, CAT B 1/2 SM, CAT C 1/2 SM.
2112061620-2207181620EST
No
UNATNDD
NAVAJO NATION
P.O. BOX 9000
WINDOW ROCK, AZ 86515
Phone: 505-371-8325
RAINEY CRAWFORD
P.O. BOX 4620
WINDOW ROCK, AZ 86515
Phone: (505) 728-2804
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
ACTVT PAPI RWY 36; MIRL RWY 18/36 - CTAF.
Green Only
Yes - Lighted
Yes
No
Tie-Down
No
0
0
0
0
0
0
None
None
None
None
Air Ambulance

Runway 18/36

6902 ft. x 60 ft.
ASPH
Fair

MED

12,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 187°
Traffic Pattern
Markings NPI NPI
Markings Condition POOR POOR
Latitude 36° 07' 07"N 36° 05' 60"N
Longitude 109° 34' 26"W 109° 34' 37"W
Elevation 5,526' 5,550'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1PRKG APRON HAS LRG CRACKS & LOOSE AGGREGATE.
A110-2FOR CD CTC DENVER ARTCC AT 303-651-4257.
A110-3GATE CODE 5550.
CHINLE MUNI (IATA: E91) is a public airport located in CHINLE, AZ.
