iFlightPlanner



...
BENSON MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

E95
BENSON MUNI
PublicPUB

3 miles NW of BENSON, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 59' 58"N 110° 21' 29"W
3831' MSL
4831' MSL
12E
Jet A, 100LL
PRESCOTT (PRC)
PHOENIX
ALBUQUERQUE (ZAB)
6/16/22-7/14/22
KALK (24nm) VFR
10:56 PM MST
Clear
10sm
74°F
46°F
30.15"Hg
220° 9kts
AO2 SLP110 T02330078 10311 20228 51012
KALK 060556Z AUTO 22009KT 10SM CLR 23/08 A3015 RMK AO2 SLP110 T02330078 10311 20228 51012
List Your Business

E95 FBOs, Flight Schools and Ground Support

Promote Listing
Southwestern Aviation
Freq: 122.8
Phone: (520) 586-3262
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 6/30
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.95 7.25

E95 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

E95 Hotels

No hotels are listed for this airport.

E95 Restaurants

No restaurants are listed for this airport.

E95 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
520-265-5232
 118.475

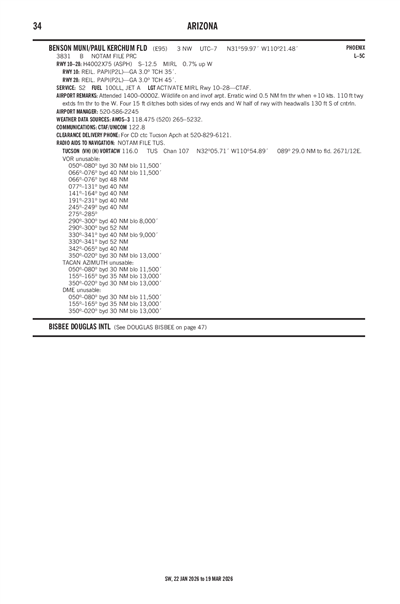

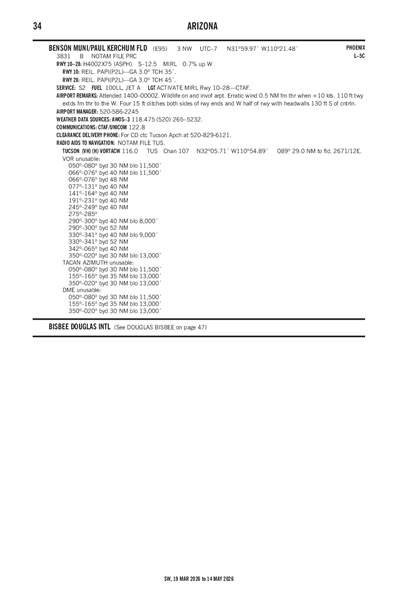

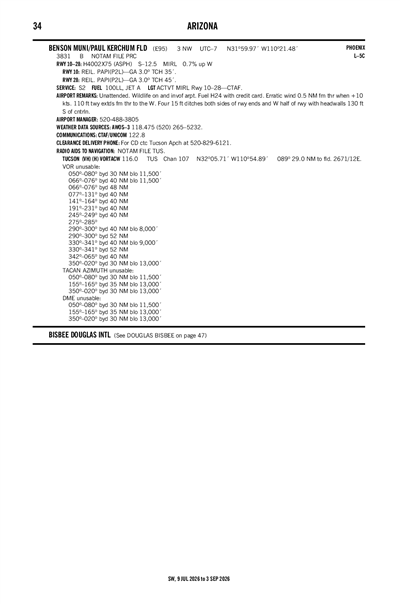

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KFHU (25nm)
Tue, 7/5 11:00 PM MST
Tue, 7/5 11:00 PM MST - Thu, 7/7 5:00 AM MST
VFR
11:00 PM MST - 9:00 AM MST
Sky Clear
> 6sm
30.12"Hg
220° 12kts
VFR
Becoming 9:00 AM MST - 1:00 PM MST
Few 9,500'
> 6sm
30.12"Hg
030° 9kts
VFR
Becoming 1:00 PM MST - 7:00 PM MST
Scattered 9,500'
> 6sm
30.06"Hg
320° 9kts
VFR
Becoming 7:00 PM MST - 5:00 AM MST
Scattered 8,000'
> 6sm
30.09"Hg
250° 9kts
TAF KFHU 060600Z 0606/0712 22012KT 9999 SKC QNH3013INS
   BECMG 0616/0617 03009KT 9999 FEW095 QNH3012INS
   BECMG 0620/0621 32009KT 9999 SCT095 QNH3007INS
   BECMG 0702/0703 25009KT 9999 SCT080 QNH3010INS TX32/0621Z TN19/0611Z
E95
Domestic
7/8/221300Z !PRC 07/061 E95 AIRSPACE PJE WI AN AREA DEFINED AS 5NM RADIUS OF E95 SFC-12000FT AGL 2207081300-2207082100
No
ALL
CITY OF BENSON
P.O BOX 2223
BENSON, AZ 85602
Phone: 520-586-2245
BRAD HAMILTON
P.O BOX 2223
BENSON, AZ 85602
Phone: 520-586-2245
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
ACTVT PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
Clear-Green
Yes - Lighted
Yes
No
Tie-Down
No
15
0
0
1
0
2
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 10/28

4002 ft. x 75 ft.
ASPH
Good

MED

12,000lbs
--
--
--
  Runway 10 Runway 28
True Heading 101°281°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 32° 00' 02"N 31° 59' 54"N
Longitude 110° 21' 51"W 110° 21' 06"W
Elevation 3,831' 3,804'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1RY 10 HAS FOUR 15 FT DITCHES BOTH SIDES OF RY ENDS & WEST HALF OF RY WITH HEADWALLS 130 FT SOUTH OF CENTERLINE.
A110-2RY 10, 110 FT TWY EXTENDS FM RY THRESHOLD TO WEST.
A110-3LIVESTOCK ON OR INVOF AIRPORT.
A110-4ERRATIC WIND CURRENTS .5 NM FM THRESHOLD WHEN WINDS ARE IN EXCESS OF 10 KTS.
A110-5FOR CD CTC TUCSON APCH AT 520-829-6121.
BENSON MUNI (IATA: E95) is a public airport located in BENSON, AZ.
