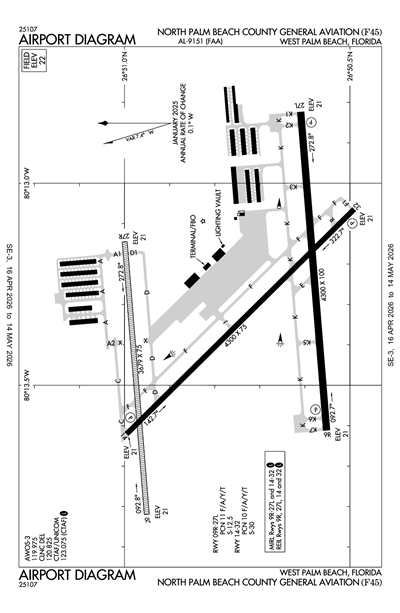

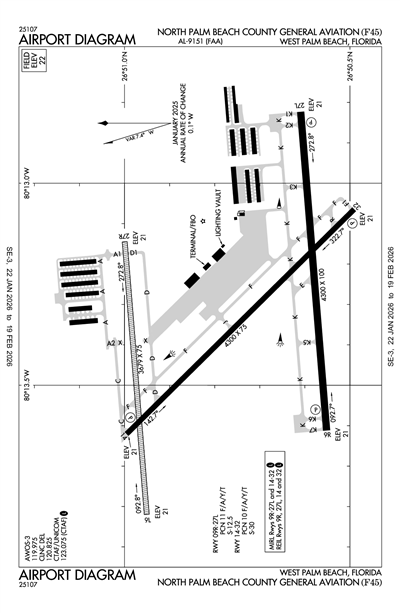

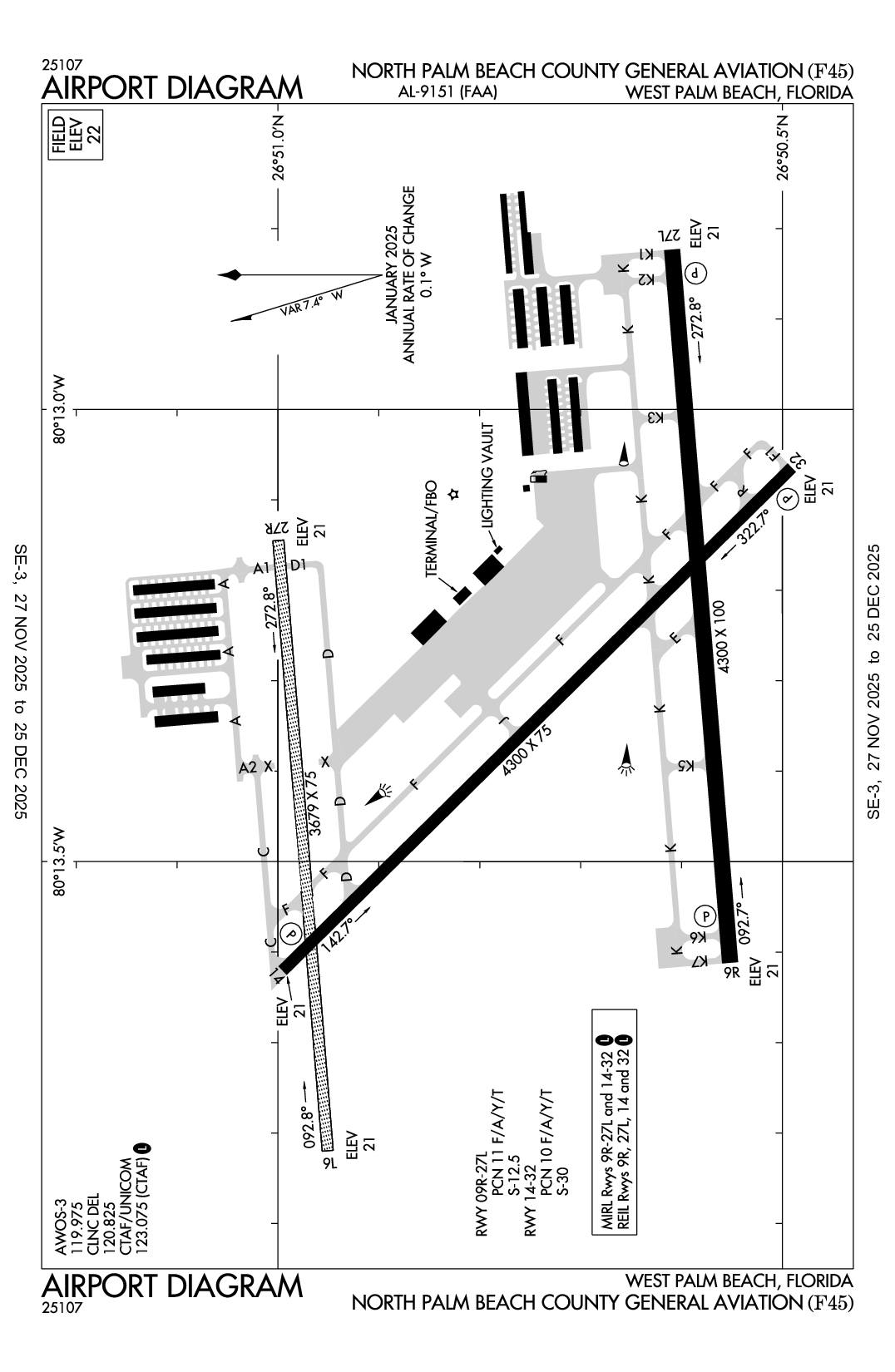

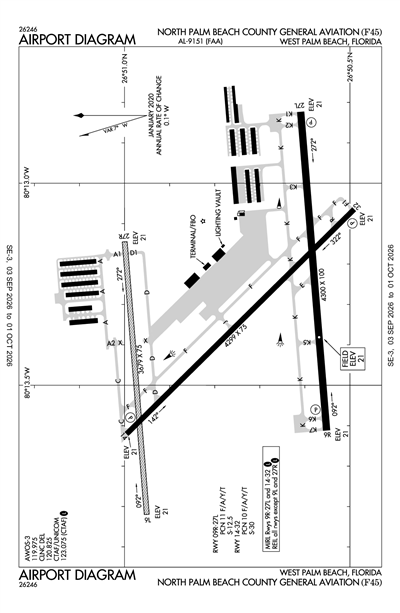

NORTH PALM BEACH COUNTY GENERAL AVIATION - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

F45
NORTH PALM BEACH COUNTY GENERAL AVIATION
PublicPUB

12 miles NW of WEST PALM BEACH, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
26° 50' 45"N 80° 13' 20"W
22' MSL
1022' MSL
07W
Jet A, 100LL
MIAMI (MIA)
MIAMI
MIAMI (ZMA)
11/30/23-12/28/23
KPBI (12nm) VFR
1:53 PM EST
Broken 25,000'
10sm
78°F
54°F
30.04"Hg
310° 7kts
AO2 SLP171 T02560122 $
KPBI 051853Z 31007KT 10SM BKN250 26/12 A3004 RMK AO2 SLP171 T02560122 $
List Your Business

F45 FBOs, Flight Schools and Ground Support

Promote Listing
Signature Flight Support
Freq: 131.25
Phone: (561) 626-9799
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 11/30
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.65
Full Serve 7.58 8.48

F45 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

F45 Hotels

No hotels are listed for this airport.

F45 Restaurants

No restaurants are listed for this airport.

F45 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.075 123.075

AWOS-3

AWOS-3
561-630-6932
 119.975

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KPBI (12nm)
Tue, 12/5 12:20 PM EST
Tue, 12/5 1:00 PM EST - Wed, 12/6 1:00 PM EST
VFR
1:00 PM EST - 7:00 PM EST
Broken 25,000'
Scattered 3,000'
6sm
340° 10kts
VFR
7:00 PM EST - 1:00 AM EST
Scattered 25,000'
Few 5,000'
6sm
310° 7kts
VFR
1:00 AM EST - 9:00 AM EST
Scattered 25,000'
Few 5,000'
6sm
320° 10kts
VFR
9:00 AM EST - 1:00 PM EST
Scattered 5,000'
Few 3,000'
6sm
320° 11kts
Gusts 18kts
KPBI 051720Z 0518/0618 34010KT P6SM SCT030 BKN250
   FM060000 31007KT P6SM FEW050 SCT250
   FM060600 32010KT P6SM FEW050 SCT250
   FM061400 32011G18KT P6SM FEW030 SCT050
F45
Domestic
12/5/231800Z !MIA 12/040 F45 RWY 09L/27R CLSD 2312051800-2312052000
12/1/231938Z !MIA 12/011 F45 AD AP ABN U/S 2312011938-2312082200
12/1/231806Z !MIA 12/009 F45 TWY A2 EDGE LGT NOT STD 2312011806-2401312359
11/12/231716Z !MIA 11/251 F45 OBST TOWER LGT (ASR 1022907) 264551.00N0801215.00W (4.9NM S F45) 225.1FT (206.0FT AGL) U/S 2311121716-2312271715
11/12/231446Z !MIA 11/248 F45 OBST TOWER LGT (ASR 1022908) 264551.20N0801216.70W (4.9NM S F45) 225.1FT (206.0FT AGL) U/S 2311121446-2312271445
11/12/231416Z !MIA 11/247 F45 OBST TOWER LGT (ASR 1022910) 264550.00N0801219.00W (4.9NM S F45) 225.1FT (206.0FT AGL) U/S 2311121416-2312271415
10/30/231826Z !MIA 10/518 F45 SVC AUTOMATED WX BCST SYSTEM PRESENT WX UNREL 2310301826-2312292000EST
10/30/231223Z !MIA 10/493 F45 TWY C BTN TWY A2 AND TWY C1 CLSD 2310301223-2312292359
6/21/231027Z !MIA 06/305 F45 AIRSPACE SEE PBI 06/093 UAS DLY SR-SS
2306211027-2406190017
2/27/232355Z !MIA 02/340 F45 SVC AUTOMATED WX BCST SYSTEM TS U/S 2302272355-2312312359
FDC
10/25/231753Z !FDC 3/1043 F45 IAP NORTH PALM BEACH COUNTY GENERAL AVIATION, WEST PALM BEACH, FL.
ILS OR LOC RWY 9R, AMDT 2...
CIRCLING CAT A/B MDA 520/HAA 498. XEJZI FIX MINIMUMS: CIRCLING CAT A/B MDA 520/HAA 498. TEMPORARY CRANES UP TO 218 MSL BEGINNING 5069FT E OF RWY 27L (2022-ASO-7505 THRU 7519-OE, 2022-ASO-36965/6-OE).
2310251753-2312301753EST
10/25/231753Z !FDC 3/1042 F45 IAP NORTH PALM BEACH COUNTY GENERAL AVIATION, WEST PALM BEACH, FL.
RNAV (GPS) RWY 14, AMDT 1A...
RNAV (GPS) RWY 9R, AMDT 2...
CIRCLING CAT A/B MDA 520/HAA 498. TEMPORARY CRANES UP TO 218 MSL BEGINNING 5069FT E OF RWY 27L (2022-ASO-7505 THRU 7519-OE, 2022-ASO-36965/6-OE).
2310251753-2312301753EST
10/25/231753Z !FDC 3/1041 F45 IAP NORTH PALM BEACH COUNTY GENERAL AVIATION, WEST PALM BEACH, FL.
RNAV (GPS) RWY 27L, AMDT 2...
LNAV/VNAV DA 514/HAT 492 ALL CATS, VIS ALL CATS 1 3/8. LNAV MDA 480/HAT 458 ALL CATS, VIS CAT C/D 1 3/8. CIRCLING CAT A/B MDA 520/HAA 498. VDP 1.3 NM TO RW27L. CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE PALM BEACH INTL SETTING AND INCREASE LPV DA TO 369 FEET AND ALL VISIBILITIES 1/8 SM; INCREASE LNAV/VNAV DA TO 542 FEET AND ALL VISIBILITIES 1/8 SM; INCREASE ALL MDA 40 FEET AND CAT C/D VISIBILITY 1/8 SM. TEMPORARY CRANES UP TO 218 MSL BEGINNING 5069FT E OF RWY 27L (2022-ASO-7505 THRU 7519-OE, 2022-ASO-36965/6-OE).
2310251753-2312301753EST
10/25/231753Z !FDC 3/1040 F45 ODP NORTH PALM BEACH COUNTY GENERAL AVIATION, WEST PALM BEACH, FL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKEOFF MINIMUMS: RWY 9R, 300-1 1/2 OR STANDARD WITH MINIMUM CLIMB OF 322 FT PER NM TO 300. ADD TAKEOFF OBSTACLE NOTE: RWY 9R, TEMPORARY CRANE 4908FT FROM DER, 1276FT RIGHT OF CENTERLINE, 130FT AGL/ 146FT MSL (2022-ASO-36965-OE). TEMPORARY CRANES UP TO 218 MSL BEGINNING 5069FT E OF RWY 27L (2022-ASO-7505 THRU 7519-OE, 2022-ASO-36965/6-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2310251753-2312301753EST
7/12/231330Z !FDC 3/4986 F45 STAR NORTH PALM BEACH COUNTY GENERAL AVIATION ARPT,
WEST PALM BEACH, FL. TTYLR THREE ARRIVAL..PIE TRANSITION: REMOVE
RESTRICTION AT 3000. 2307121330-2407110900
No
0600-2200
SVC AFR HRS - 561-626-9799
PALM BEACH COUNTY
DEPARTMENT OF AIRPORTS, 846 PBIA
WEST PALM BEACH, FL 33406-1470
Phone: 561-471-7420
LAURA BEEBE
846 PALM BEACH INTL AIRPORT
WEST PALM BEACH, FL 33406-1470
Phone: (561) 471-7420
MIAMI FSS (MIA)
Toll Free: 1-800-WX-BRIEF
MIA
--
DUSK-2100; AFT 2100 ACTVT REIL RWY 09R, 14, 27L, & 32; MIRL RWY 09R/27L & 14/32 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
144
32
5
11
0
0
Major
Major
None
None
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 09L/27R

3679 ft. x 75 ft.
TURF
Good
NONE


--
--
--
--
  Runway 09L Runway 27R
True Heading 85°265°
Traffic Pattern Right
Markings
Markings Condition
Latitude 26° 50' 57"N 26° 50' 60"N
Longitude 80° 13' 49"W 80° 13' 09"W
Elevation 21' 21'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 09R/27L

4300 ft. x 100 ft.
ASPH
Good
NONE
MED
11 /F/A/Y/T
12,000lbs
--
--
--
  Runway 09R Runway 27L
True Heading 85°265°
Traffic Pattern Right
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 26° 50' 33"N 26° 50' 37"N
Longitude 80° 13' 37"W 80° 12' 49"W
Elevation 21' 21'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 14/32

4300 ft. x 75 ft.
ASPH
Good
NONE
MED
10 /F/A/Y/T
30,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 135°315°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 26° 50' 60"N 26° 50' 29"N
Longitude 80° 13' 37"W 80° 13' 04"W
Elevation 21' 21'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1NOISE ABATEMENT PROC; RWY 14/32 PREFERRED NGT RWY; H24 NOISE ABATEMENT MNTG - (561) 626-7631.
A110-10ARPT SFC COND NOT RPRTD FOR ALL RWYS.
A110-11FOR CD CTC PALM BEACH APCH AT 561-684-9047.
A110-12FBO SVC FEE MAY APPLY.
A110-13RWY 9R TDZ MRKGS NOT STD.
A110-5BIRD ACT INVOF ARPT.
A110-8EXTSV FLT TRNG MULT RWYS. PRACTICE APCH RWY 9R/27L MNT CTAF & YIELD TO TFC PAT.
A110-9TWY G1 CLSD.
NORTH PALM BEACH COUNTY GENERAL AVIATION (IATA: F45) is a public airport located in WEST PALM BEACH, FL.
