FRANKLIN COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

F53
FRANKLIN COUNTY
PublicPUB

2 miles NW of MOUNT VERNON, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 12' 55"N 95° 14' 14"W
412' MSL
1412' MSL
06E
None Listed
FORT WORTH (FTW)
DALLAS-FT WORTH
FORT WORTH (ZFW)
6/16/22-7/14/22
KOSA (15nm) VFR
9:30 AM CDT
Clear
10sm
85°F
73°F
30.05"Hg
220° 7kts
AO2 T02970227
KOSA 051430Z AUTO 22007KT 10SM CLR 30/23 A3005 RMK AO2 T02970227
List Your Business

F53 FBOs, Flight Schools and Ground Support

Promote Listing
Franklin County Airport
Freq: 123.0
Phone: (903) 767-0602
Other: (903) 537-2342
No Rating Available
0 Reviews (Read | Sign In To Write)

F53 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

F53 Hotels

No hotels are listed for this airport.

F53 Restaurants

No restaurants are listed for this airport.

F53 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

No communication frequencies available for this airport.

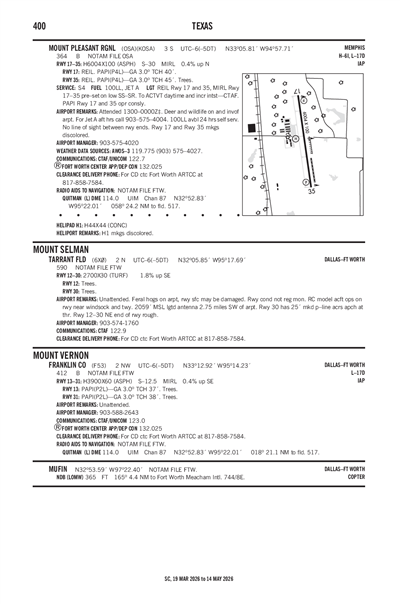

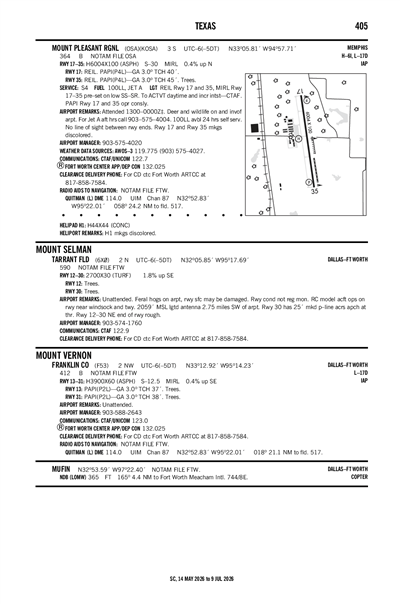

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KTYR (51nm)
Tue, 7/5 6:20 AM CDT
Tue, 7/5 7:00 AM CDT - Wed, 7/6 7:00 AM CDT
VFR
7:00 AM CDT - 9:00 AM CDT
Scattered 25,000'
> 6sm
210° 8kts
MVFR
Temporary 7:00 AM CDT - 9:00 AM CDT
Broken 1,500'
N/A
Calm
VFR
9:00 AM CDT - 11:00 AM CDT
Scattered 25,000'
Scattered 1,500'
> 6sm
200° 8kts
VFR
11:00 AM CDT - 7:00 PM CDT
Scattered 25,000'
Few 3,000'
> 6sm
210° 10kts
VFR
7:00 PM CDT - 3:00 AM CDT
Sky Clear
> 6sm
160° 7kts
VFR
3:00 AM CDT - 7:00 AM CDT
Sky Clear
> 6sm
180° 7kts
KTYR 051120Z 0512/0612 21008KT P6SM SCT250
   TEMPO 0512/0514 BKN015
   FM051400 20008KT P6SM SCT015 SCT250
   FM051600 21010KT P6SM FEW030 SCT250
   FM060000 16007KT P6SM SKC
   FM060800 18007KT P6SM SKC
F53
Domestic
6/30/221528Z !FTW 06/724 F53 OBST TOWER LGT (ASR 1216241) 331016.70N0951241.90W (2.9NM SSE F53) 792.0FT (309.1FT AGL) U/S 2206301528-2207301528
6/26/221329Z !FTW 06/638 F53 OBST TOWER LGT (ASR 1050755) 331005.90N0950750.70W (6.1NM ESE F53) 878.9FT (424.9FT AGL) U/S 2206261329-2207261329
6/22/220521Z !FTW 06/537 F53 OBST TOWER LGT (ASR 1052583) 330734.40N0951508.90W (5.4NM S F53) 1027.2FT (495.1FT AGL) U/S 2206220521-2207070421
No
UNATND
FRANKLIN COUNTY
200 N. KAUFMAN
MOUNT VERNON, TX 75457
Phone: 903-537-2342
JOHN GANDY
PO BOX 989
MOUNT VERNON, TX 75457
Phone: (903) 588-2643
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
FTW
Sunset to Sunrise
--
Clear-Green
Yes - Lighted
Yes
No
Tie-Down
No
15
0
0
1
0
0
None
None
None
None
None

Runway 13/31

3900 ft. x 60 ft.
ASPH
Excellent

MED

12,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 136°316°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 13' 09"N 33° 12' 41"N
Longitude 95° 14' 30"W 95° 13' 58"W
Elevation 396' 412'
Threshold Crossing Height 37 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
FRANKLIN COUNTY (IATA: F53) is a public airport located in MOUNT VERNON, TX.
