iFlightPlanner



...
VINITA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

H04
Local H04
VINITA MUNI
PublicPUB

2 miles SE of VINITA, OK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 36' 53"N 95° 09' 06"W
Elevation
695' MSL
Pattern Alt
1695' MSL
Mag Variation
2°E
Declination
5°E
Fuel
100LL
FSS
MC ALESTER (MLC)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
4/16/26-5/14/26
K1K8 (8nm) VFR
9:55 AM CDT
Clear
10sm
66°F
63°F
29.81"Hg
VRB° 5kts
AO2
METAR K1K8 251455Z AUTO VRB05KT 10SM CLR 19/17 A2981 RMK AO2
+ Add Your Business

H04 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT MIRL RWY 17/35 - CTAF.

Center

KANSAS CITY CENTER 128.6
LOW, APCH/DEP CTL SVC PRVDD BY KANSAS CITY ARTCC (ZKC) ON 128.6/282.325 (EDNA RCAG).

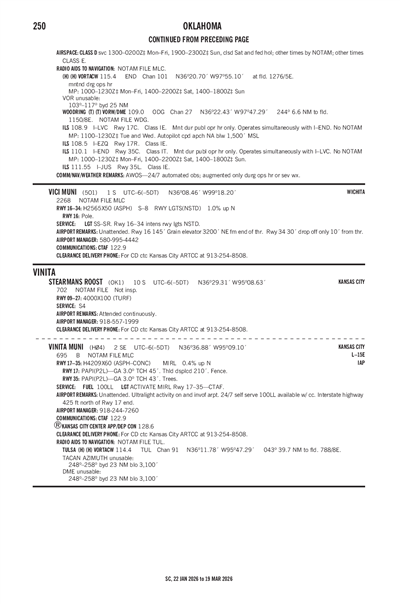

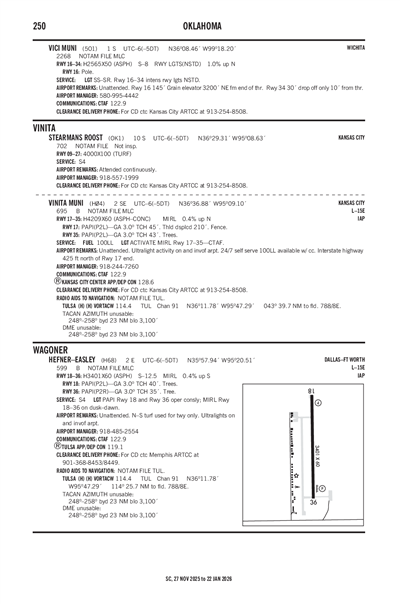

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KBVO (43nm)
Sat, 4/25 8:28 AM CDT
Sat, 4/25 8:00 AM CDT - Sun, 4/26 7:00 AM CDT
IFR
8:00 AM CDT - 11:00 AM CDT
Broken 700'
6sm
110° 7kts
MVFR
11:00 AM CDT - 1:00 PM CDT
Broken 1,500'
6sm
130° 10kts
VFR
1:00 PM CDT - 4:00 PM CDT
Broken 15,000'
Scattered 2,500'
6sm
110° 10kts
VFR
4:00 PM CDT - 11:00 PM CDT
Broken 8,000'
Broken 4,500'
Scattered 3,500'
6sm
120° 11kts
IFR
5:00 PM CDT - 11:00 PM CDT
Heavy Thunderstorm and Rain
Broken 2,500'
2sm
Calm
MVFR
11:00 PM CDT - 2:00 AM CDT
Light Thunderstorm and Rain
Broken 3,500'
4sm
Calm
VFR
11:00 PM CDT - 4:00 AM CDT
Scattered 15,000'
Scattered 4,000'
6sm
130° 6kts
VFR
4:00 AM CDT - 7:00 AM CDT
Broken 15,000'
Scattered 1,200'
6sm
100° 4kts
TAF KBVO 251328Z 2513/2612 11007KT P6SM BKN007
   FM251600 13010KT P6SM BKN015
   FM251800 11010KT P6SM SCT025 BKN150
   FM252100 12011KT P6SM SCT035 BKN045 BKN080
   PROB30 2522/2604 2SM +TSRA BKN025CB
   FM260400 13006KT P6SM SCT040 SCT150
   PROB30 2604/2607 4SM -TSRA BKN035CB
   FM260900 10004KT P6SM SCT012 BKN150
H04
EffectiveExpiresCategoryNOTAM
Domestic
4/24/26
0704Z
5/26/26
1200Z
!MLC 04/368 H04 OBST TOWER LGT (ASR 1058501) 363236.20N0952247.10W (11.8NM WSW H04) 1115.2FT (306.1FT AGL) U/S 2604240704-2605261200
3/30/26
1816Z
!MLC 03/459 H04 OBST TOWER LGT (ASR 1265321) 364431.30N0950616.60W (8.0NM NNE H04) 1175.9FT (346.1FT AGL) U/S 2603301816-2604292359EST
3/20/26
2149Z
6/19/26
2148Z
!MLC 03/322 H04 OBST TOWER LGT (ASR 1010512) 363811.30N0950736.80W (1.8NM NE H04) 996.7FT (298.6FT AGL) U/S 2603202149-2606192148
No
UNATNDD
CITY OF VINITA
104 E. ILLINOIS PO BOX 329
VINITA, OK 74301
Phone: 918-256-6468
BRIAN PRINCE
747 E. AIRPORT ROAD 104 E. ILLINOIS
VINITA, OK 74301
Phone: 918-244-7260
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
MLC
--
ACTVT MIRL RWY 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting

Runway 17/35

4209 ft. x 60 ft.
ASPH CONC
Good
NONE
MED

--
--
--
--
  Runway 17 Runway 35
True Heading 179°359°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 36° 37' 13"N 36° 36' 32"N
Longitude 95° 09' 06"W 95° 09' 06"W
Elevation 695' 679'
Threshold Crossing Height 45 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ULTRALIGHT ACTVTY ON & INVOF ARPT.
A110-2INTERSTATE HWY 425 FT NORTH OF RY 17 END.
A110-3FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
A14DIRECTOR OF OPERATIONS. ARPT ATTENDANT: TERRY WILLIAMS 918-397-0193.
A57-17RWY 17; 47 FT TREE 757 FT FM THLD, 120 FT RIGHT OF EXTDD CNTRLN. APCH SLOPE 20:1 TO DTHR.
A70-100LL24/7 SELF SERVE 100LL AVAILABLE W/ CC
A81-APTACTVT MIRL RWY 17/35 - CTAF.
VINITA MUNI (IATA: H04) is a public airport located in VINITA, OK, US.
