H96
BENTON MUNI
Public
PUB
1 miles W of BENTON, IL
View on
Map
Status
Operational
Coordinates
38° 00' 31"N
88° 56' 04"W
Elevation
444' MSL
Pattern Alt
1444' MSL
Mag Variation
02W
Fuel
100LL
FSS
SAINT LOUIS (STL)
Sectional
ST LOUIS
ARTCC
KANSAS CITY (ZKC)
Data Effective
3/21/24-4/18/24
KMWA (16nm)
VFR
3:45 PM CDT
RAW
Clear
Viz
20sm
Temp
84°F
Dew
45°F
Pres
29.86"Hg
Wind
280° 14kts
Gusts 22kts
KMWA 172045Z 28014G22KT 20SM CLR 29/07 A2986
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
H96 FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
H96 Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
H96 Hotels
No hotels are listed for this airport.
H96 Restaurants
No restaurants are listed for this airport.
H96 Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.8
CTAF
122.8
No communication frequencies available for this airport.
FAA A/FD Pages
FAA A/FD Page

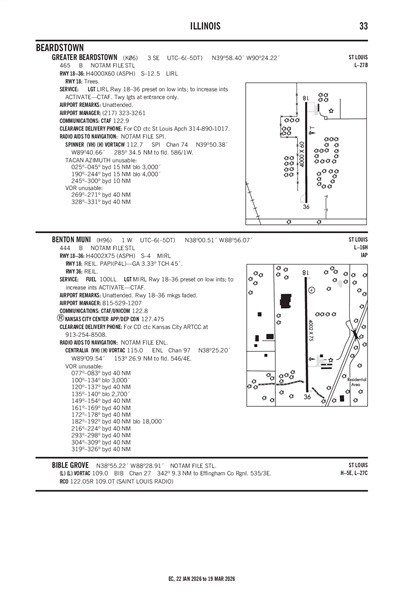

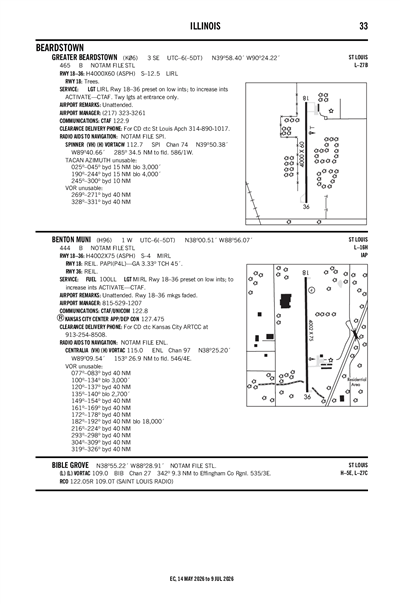

Airport Diagrams
No Documents
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 18
Terminal Area Forecast
KMVN (20nm)
RAW
Reported
Wed, 4/17 12:20 PM CDT
Valid
Wed, 4/17 1:00 PM CDT - Thu, 4/18 1:00 PM CDT
VFR
1:00 PM CDT - 5:00 PM CDT
Few 5,000'
Viz
6sm
Wind
250° 15kts
Gusts 25kts
VFR
5:00 PM CDT - 8:00 PM CDT
Few 25,000'
Viz
6sm
Wind
250° 13kts
Gusts 20kts
VFR
8:00 PM CDT - 9:00 AM CDT
Sky Clear
Viz
6sm
Wind
VRB° 3kts
VFR
9:00 AM CDT - 12:00 PM CDT
Scattered 25,000'
Viz
6sm
Wind
160° 7kts
VFR
12:00 PM CDT - 1:00 PM CDT
Scattered 4,000'
Viz
6sm
Wind
180° 9kts
KMVN 171720Z 1718/1818 25015G25KT P6SM FEW050
FM172200 25013G20KT P6SM FEW250
FM180100 VRB03KT P6SM SKC
FM181400 16007KT P6SM SCT250
FM181700 18009KT P6SM SCT040
H96
Domestic
4/12/24
1757Z
!STL 04/276 H96 OBST TOWER LGT (ASR 1285998) 380510.00N0885421.50W (4.9NM NNE H96) 710.0FT (274.9FT AGL) U/S 2404121757-2408101757
3/24/24
0025Z
!STL 03/429 H96 OBST TOWER LGT (ASR 1009421) 375937.00N0885455.00W (1.3NM SE H96) 622.0FT (149.9FT AGL) U/S 2403240025-2406242359
ATC Tower
No
Attendance
UNATTND
Owner
CITY OF BENTON
P.O. BOX 640, 1403 SOUTH MAIN ST
BENTON, IL 62812
Phone: 618-439-6131
Manager
MATTHEW HARRISON
P.O. BOX 640
BENTON, IL 62812
Phone: 815-529-1207
FSS
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
NOTAM
STL
Light Schedule
--
Lights
MIRL RY 18/36 PRESET ON LOW INTST; TO INCR INTST ACTVT - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
No
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
9
# Multi Engine
1
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Pilot Instruction
Aircraft Rental
Aircraft Sales
Runway 18/36
Dimensions
4002 ft. x 75 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
4,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 18
Runway 36
True Heading
179°
359°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
POOR
POOR
Latitude
38° 00' 50"N
38° 00' 11"N
Longitude
88° 56' 04"W
88° 56' 04"W
Elevation
439'
444'
Threshold Crossing Height
45 ft. AGL
--
Visual Glide Path Angle
3.33°
--
Visual Slope Indicator
P4L
--
Approach Lights
Centerline Lights
No
No
Runway End Identifier Lights
Yes
Yes
A110-1
FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
BENTON MUNI (IATA: H96) is a public airport located in BENTON, IL.
