PAWNEE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

H97
Local H97
PAWNEE MUNI
PublicPUB

2 miles N of PAWNEE, OK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 22' 38"N 96° 48' 19"W
Elevation
875' MSL
Pattern Alt
1875' MSL
Mag Variation
3°E
Declination
6°E
Fuel
None Listed
FSS
MC ALESTER (MLC)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
5/14/26-6/11/26
KSWO (19nm) VFR
12:53 AM CDT
Clear
10sm
75°F
63°F
29.77"Hg
170° 14kts
AO2 SLP068 T02390172 10294 20239 403170167 58003
METAR KSWO 150553Z AUTO 17014KT 10SM CLR 24/17 A2977 RMK AO2 SLP068 T02390172 10294 20239 403170167 58003
+ Add Your Business

H97 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

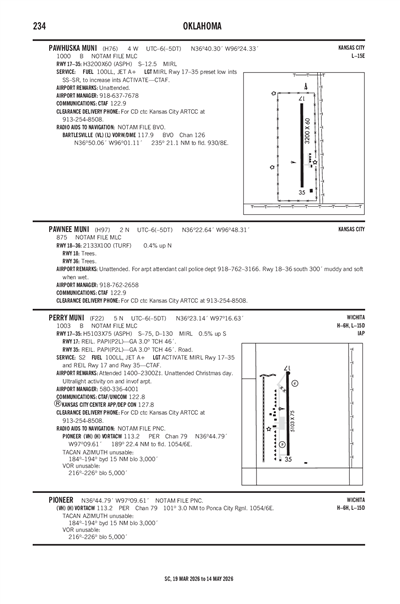

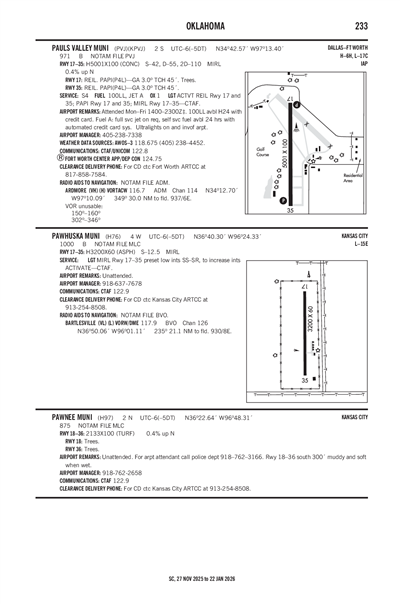

FAA A/FD Pages

Terminal Area Forecast

KSWO (19nm)
Fri, 5/15 12:20 AM CDT
Fri, 5/15 1:00 AM CDT - Sat, 5/16 1:00 AM CDT
VFR
1:00 AM CDT - 8:00 AM CDT
Broken 15,000'
6sm
170° 12kts
Gusts 19kts
VFR
8:00 AM CDT - 10:00 PM CDT
Broken 15,000'
6sm
180° 16kts
Gusts 25kts
VFR
10:00 PM CDT - 1:00 AM CDT
Broken 15,000'
6sm
170° 13kts
Gusts 20kts
TAF KSWO 150520Z 1506/1606 17012G19KT P6SM BKN150 WS010/21040KT
   FM151300 18016G25KT P6SM BKN150
   FM160300 17013G20KT P6SM BKN150 WS010/21045KT
H97
EffectiveExpiresCategoryNOTAM
Domestic
5/5/26
0651Z
5/20/26
0551Z
!MLC 05/047 H97 OBST TOWER LGT (ASR 1245761) 361333.60N0965321.20W (9.9NM SSW H97) 1355.0FT (304.1FT AGL) U/S 2605050651-2605200551
4/12/26
1140Z
5/27/26
1139Z
!MLC 04/192 H97 OBST TOWER LGT (ASN 2020-ASW-4966-OE) 362357N0965949W (9.4NM W H97) 1349FT (320FT AGL) U/S 2604121140-2605271139
2/27/26
2103Z
5/29/26
2103Z
!MLC 02/407 H97 OBST TOWER LGT (ASR 1012132) 362144.00N0964804.00W (0.9NM SSE H97) 1219.5FT (309.7FT AGL) U/S 2602272103-2605292103
No
UNATNDD
FOR ARPT ATTENDANT CALL POLICE DEPT 918-762-3166.
CITY OF PAWNEE
CITY HALL 510 ILLINOIS ST
PAWNEE, OK 74058
Phone: 918-762-2658
ALICE COTTLE
CITY HALL 510 ILLINOIS ST
PAWNEE, OK 74058
Phone: 918-762-2658
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
MLC
--
--
N/A
Yes
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 18/36

2133 ft. x 100 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 185°5°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 36° 22' 49"N 36° 22' 28"N
Longitude 96° 48' 17"W 96° 48' 20"W
Elevation 875' 867'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
A14MAYOR.
A17-M1FOR ARPT ATTENDANT CALL POLICE DEPT 918-762-3166.
A31-18/36SOUTH 300 FT MUDDY AND SOFT WHEN WET.
A57-1841 FT TREE RWY 18 DER 75 FT LEFT OF CNTRLN.
PAWNEE MUNI (IATA: H97) is a public airport located in PAWNEE, OK, US.
