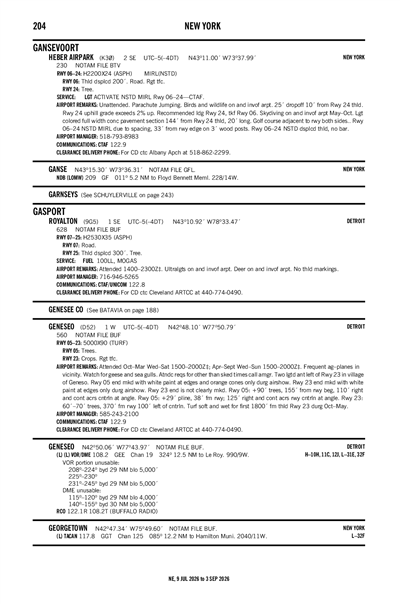

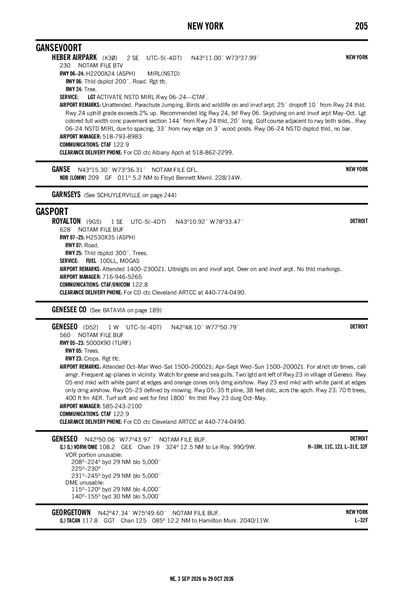

HEBER AIRPARK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

K30
Local K30
HEBER AIRPARK
PublicPUB

2 miles SE of GANSEVOORT, NY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 11' 00"N 73° 37' 59"W
Elevation
230' MSL
Pattern Alt
1230' MSL
Mag Variation
13°W
Declination
14°W
Fuel
None Listed
FSS
BURLINGTON (BTV)
Sectional
NEW YORK
ARTCC
BOSTON (ZBW)
Data Effective
3/19/26-4/16/26
KGFL (9nm) MVFR
1:53 AM EDT
Overcast 2,800'
10sm
46°F
37°F
30.01"Hg
180° 8kts
AO2 SLP166 T00780028 10122 20078 58030
METAR KGFL 050553Z AUTO 18008KT 10SM OVC028 08/03 A3001 RMK AO2 SLP166 T00780028 10122 20078 58030
+ Add Your Business

K30 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT MIRL RY 06/24 - CTAF.

FAA A/FD Pages

Terminal Area Forecast

KGFL (9nm)
Sun, 4/5 1:41 AM EDT
Sun, 4/5 2:00 AM EDT - Mon, 4/6 2:00 AM EDT
MVFR
2:00 AM EDT - 5:00 AM EDT
Overcast 3,000'
6sm
180° 10kts
MVFR
5:00 AM EDT - 8:00 AM EDT
Broken 2,500'
Scattered 1,000'
6sm
200° 12kts
Gusts 20kts
MVFR
6:00 AM EDT - 8:00 AM EDT
Light Showers and Rain
Overcast 1,500'
N/A
Calm
MVFR
8:00 AM EDT - 1:00 PM EDT
Light Rain and Mist
Overcast 1,500'
Scattered 1,000'
5sm
220° 8kts
IFR
Temporary 9:00 AM EDT - 11:00 AM EDT
Rain and Mist
Overcast 800'
4sm
Calm
MVFR
1:00 PM EDT - 3:00 PM EDT
Overcast 1,500'
6sm
220° 7kts
VFR
3:00 PM EDT - 10:00 PM EDT
Broken 4,000'
Scattered 2,500'
6sm
250° 8kts
Gusts 15kts
VFR
10:00 PM EDT - 2:00 AM EDT
Scattered 5,000'
6sm
250° 10kts
Gusts 19kts
TAF KGFL 050541Z 0506/0606 18010KT P6SM OVC030
   FM050900 20012G20KT P6SM SCT010 BKN025 WS020/16040KT
   PROB30 0510/0512 -SHRA OVC015
   FM051200 22008KT 5SM -RA BR SCT010 OVC015
   TEMPO 0513/0515 4SM RA BR OVC008
   FM051700 22007KT P6SM OVC015
   FM051900 25008G15KT P6SM SCT025 BKN040
   FM060200 25010G19KT P6SM SCT050
K30
EffectiveExpiresCategoryNOTAM
Domestic
1/6/26
1240Z
8/31/26
2359Z
!BTV 01/170 K30 OBST CRANE LGT (ASN 2025-AEA-12778-OE) 431023N0734311W (3.8NM W K30) 587FT (275FT AGL) U/S 2601061240-2608312359
No
UNATNDD
HEBER AIRPARK INC
288 BROWNVILLE RD
GANSEVOORT, NY 12831
Phone: 518-793-8983
JAMES HEBER
286 BROWNVILLE RD
GANSEVOORT, NY 12831
Phone: 518-793-8983
BURLINGTON FSS (BTV)
Toll Free: 1-800-WX-BRIEF
BTV
--
ACTVT MIRL RY 06/24 - CTAF.
N/A
Yes
Yes
No
Hanger, Tie-Down
No
None
None
None
None
Pilot Instruction
Parachute Jump Activity

Runway 06/24

2200 ft. x 24 ft.
ASPH
Good
NONE
NSTD

--
--
--
--
  Runway 06 Runway 24
True Heading Not ListedNot Listed
Traffic Pattern Right
Markings NSTD NSTD
Markings Condition FAIR FAIR
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1BIRDS & WILDLIFE ON & INVOF ARPT.
A110-2GOLF COURSE ADJ TO RY BOTH SIDES.
A110-3RY 24 UPHILL GRADE EXCEEDS 2% UP. RECOMMENDED LDG RY 24, TKOF RY 06.
A110-425 FT DROPOFF 10 FT FM RY 24 THLD.
A110-5SKYDIVING ON & INVOF ARPT MAY THRU OCT.
A110-6FOR CD CTC ALBANY APCH AT 518-862-2299.
A33-06/24_SURFLIGHT COLORED FULL WIDTH CONCRETE PAVEMENT SECTION 144' FROM RY 24 THRESHOLD, 20' LONG.
A40-06/24RY 06/24 NSTD MIRL DUE TO SPACING, 33 FT FM RY EDGE ON 3 FT WOOD POSTS.
A42-06_MARK06/24 NSTD DSPLCD THLD; NO BAR.
A57-06RWY 06 CLNC SLOPE 6:1 TO DTHR DUE TO 92 FT HIGH TREE, 569 FT FM DTHR, 141 FT LEFT.
A58-06RWY 06 HAS +15 FT ROAD AND 4 FT FENCE, 0 - 200 FT FM RWY END, 46 FT RIGHT & ACRS EXTD RWY CNTRLN; +20 FT HOUSE, 75 FT FM RWY END, 100 FT RIGHT.
A58-24RWY 24 HAS BRUSH / TREES BOTH SIDES OF RWY.
A81-APTACTVT MIRL RY 06/24 - CTAF.
E111PRVDD YOU TAKE STEPS TO ENSURE ALL PILOTS USING ARPT ARE AWARE OF CONFLICTING TFC PATTERNS BETWEEN YOUR ARPT & SHAW ARPT. TFC PATTERNS AT HEBER SHOULD BE FLOWN TO THE S OF THE ARPT; THOSE AT SHAW SHOULD FLY PATTERNS E; LOA BETWEEN YOU & SHAW ARPT SHOULD BE SIGNED & FORWARDED TO AEA.
HEBER AIRPARK (IATA: K30) is a public airport located in GANSEVOORT, NY, US.
