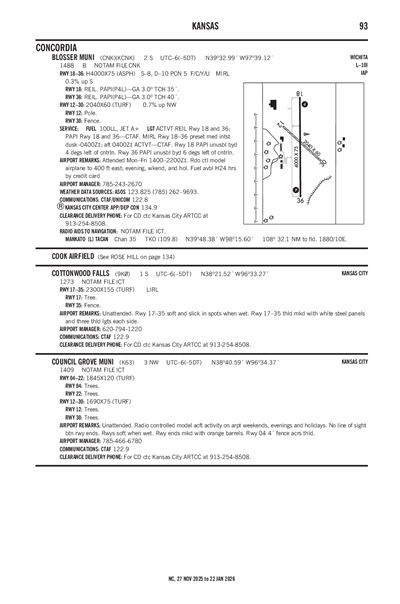

COUNCIL GROVE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

K63
COUNCIL GROVE MUNI
PublicPUB

3 miles NW of COUNCIL GROVE, KS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 40' 35"N 96° 34' 22"W
1409' MSL
2409' MSL
06E
None Listed
WICHITA (ICT)
KANSAS CITY
KANSAS CITY (ZKC)
4/18/24-5/16/24
KFRI (25nm) VFR
12:55 PM CDT
Broken 11,000'
10sm
66°F
34°F
30.20"Hg
020° 5kts
AO2 SLP224 T01910011 10199 20057 56005 $
KFRI 241755Z AUTO 02005KT 10SM BKN110 19/01 A3020 RMK AO2 SLP224 T01910011 10199 20057 56005 $
List Your Business

K63 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

K63 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

K63 Hotels

No hotels are listed for this airport.

K63 Restaurants

No restaurants are listed for this airport.

K63 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KFRI (25nm)
Wed, 4/24 7:00 AM CDT
Wed, 4/24 7:00 AM CDT - Thu, 4/25 1:00 PM CDT
VFR
7:00 AM CDT - 1:00 PM CDT
Scattered 18,000'
6sm
30.24"Hg
030° 6kts
VFR
Becoming 1:00 PM CDT - 10:00 PM CDT
Showers in vicinity
Broken 9,000'
6sm
30.12"Hg
140° 9kts
MVFR
Becoming 10:00 PM CDT - 7:00 AM CDT
Light Showers and Rain
Broken 3,000'
5.59sm
30.09"Hg
130° 9kts
MVFR
Becoming 7:00 AM CDT - 1:00 PM CDT
Light Rain
Overcast 2,000'
4.97sm
30.06"Hg
130° 12kts
Gusts 18kts
TAF KFRI 241200Z 2412/2518 03006KT 9999 SCT180 QNH3023INS
   BECMG 2418/2419 14009KT 9999 VCSH BKN090 QNH3012INS
   BECMG 2503/2504 13009KT 9000 -SHRA BKN030 QNH3010INS
   BECMG 2512/2513 13012G18KT 8000 -RA OVC020 QNH3006INS TX21/2421Z TN07/2412Z
K63
Domestic
4/9/241620Z !ICT 04/122 K63 OBST TOWER LGT (ASR 1321409) 385148N0963011W (11.7NM NNE K63) 1854FT (366FT AGL) U/S 2404091620-2404242300
3/12/240150Z !ICT 03/189 K63 OBST TOWER LGT (ASR 1277466) 385123.70N0962936.50W (11.4NM NNE K63) 1774.9FT (315.0FT AGL) U/S 2403120150-2406090400
3/1/241721Z !ICT 03/015 K63 OBST TOWER LGT (ASR 1044213) 385024.00N0963332.00W (9.8NM NE K63) 1928.8FT (419.0FT AGL) U/S 2403011721-2406012359
No
UNATNDD
CITY OF COUNCIL GROVE
205 UNION ST.
COUNCIL GROVE, KS 66846
Phone: 620-767-5417
JEFF BARBO
205 UNION ST.
COUNCIL GROVE, KS 66846
Phone: (785) 466-6780
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
--
--
N/A
No
No
No
Tie-Down
No
0
0
0
0
0
0
None
None
None
None
None

Runway 04/22

1845 ft. x 120 ft.
TURF
Good
NONE


--
--
--
--
  Runway 04 Runway 22
True Heading 46°226°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 38° 40' 29"N 38° 40' 41"N
Longitude 96° 34' 29"W 96° 34' 13"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

1690 ft. x 75 ft.
TURF
Good
NONE


--
--
--
--
  Runway 12 Runway 30
True Heading 119°299°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 38° 40' 40"N 38° 40' 32"N
Longitude 96° 34' 32"W 96° 34' 14"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RDO-CTLD MODEL ACFT ACTVTY ON ARPT WKENDS EVES & HOLS.
A110-2FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
COUNCIL GROVE MUNI (IATA: K63) is a public airport located in COUNCIL GROVE, KS.
