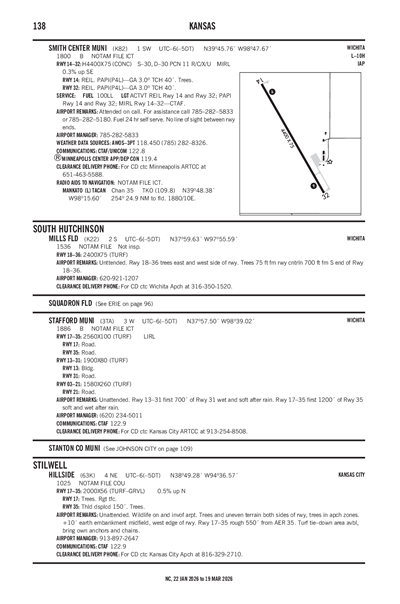

SMITH CENTER MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

K82
SMITH CENTER MUNI
PublicPUB

1 miles SW of SMITH CENTER, KS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 45' 45"N 98° 47' 40"W
1800' MSL
2800' MSL
07E
100LL
WICHITA (ICT)
WICHITA
MINNEAPOLIS (ZMP)
4/18/24-5/16/24
KK82 IFR
2:15 PM CDT
Overcast 2,100'
Broken 800'
10sm
58°F
55°F
29.82"Hg
120° 22kts
Gusts 30kts
AO2 TSNO T01420128
KK82 251915Z AUTO 12022G30KT 10SM BKN008 OVC021 14/13 A2982 RMK AO2 TSNO T01420128
List Your Business

K82 FBOs, Flight Schools and Ground Support

Promote Listing
Smith Center Municipal Airport
Freq: 122.8
Phone: (785) 282-3812
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/23
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.10
Full Serve

K82 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

K82 Hotels

No hotels are listed for this airport.

K82 Restaurants

No restaurants are listed for this airport.

K82 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
785-282-8326
 118.45

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KRSL (54nm)
Thu, 4/25 12:39 PM CDT
Thu, 4/25 1:00 PM CDT - Fri, 4/26 1:00 PM CDT
LIFR
1:00 PM CDT - 3:00 PM CDT
Mist
Overcast 800'
Broken 300'
2sm
120° 16kts
Gusts 24kts
MVFR
3:00 PM CDT - 10:00 PM CDT
Overcast 1,500'
6sm
120° 17kts
Gusts 26kts
IFR
10:00 PM CDT - 3:00 AM CDT
Thunderstorm in vicinity
Broken 900'
6sm
150° 22kts
Gusts 30kts
Shear 170° 45kts @ 2000'
MVFR
3:00 AM CDT - 7:00 AM CDT
Broken 1,500'
6sm
160° 21kts
Gusts 29kts
VFR
7:00 AM CDT - 1:00 PM CDT
Scattered 2,500'
6sm
180° 20kts
Gusts 28kts
KRSL 251739Z 2518/2618 12016G24KT 2SM BR BKN003 OVC008
   FM252000 12017G26KT P6SM OVC015
   FM260300 15022G30KT P6SM VCTS BKN009CB WS020/17045KT
   FM260800 16021G29KT P6SM BKN015
   FM261200 18020G28KT P6SM SCT025
K82
Domestic
4/15/240141Z !ICT 04/184 K82 OBST TOWER LGT (ASR 1282475) 394938.60N0983335.70W (11.5NM ENE K82) 2217.5FT (364.5FT AGL) U/S 2404150141-2408130140
3/25/240800Z !ICT 03/312 K82 RWY 18/36 CLSD 2403250800-PERM
No
ON CALL
FOR ARPT ATTENDANT CALL 785-282-6588 OR 785-282-5837.
CITY OF SMITH CENTER
SMITH CENTER
SMITH CENTER, KS 66967
CITY OF SMITH CENTER
119 WEST COURT
SMITH CENTER, KS 66967
Phone: 785-282-3812
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
--
ACTVT MIRL RWY 14/32, REIL RWY 14 AND 32, PAPI RWY 14 AND 32 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
No
9
1
0
0
0
0
None
None
None
None
Crop Dusting

Runway 14/32

4400 ft. x 75 ft.
CONC
Good
NONE
MED
11 /R/C/X/U
30,000lbs
30,000lbs
--
--
  Runway 14 Runway 32
True Heading 151°331°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 46' 07"N 39° 45' 29"N
Longitude 98° 47' 56"W 98° 47' 28"W
Elevation 1,786' 1,800'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 18/36

3601 ft. x 50 ft.
ASPH
Fair
NONE

5 /F/C/Y/U
4,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 180°0°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 45' 60"N 39° 45' 24"N
Longitude 98° 47' 38"W 98° 47' 38"W
Elevation 1,796' 1,787'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1PUBLIC PHONE AVBL 24 HRS.
A110-2FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
SMITH CENTER MUNI (IATA: K82) is a public airport located in SMITH CENTER, KS.
