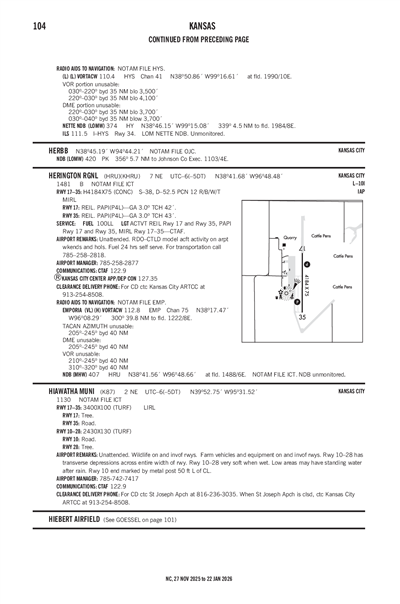

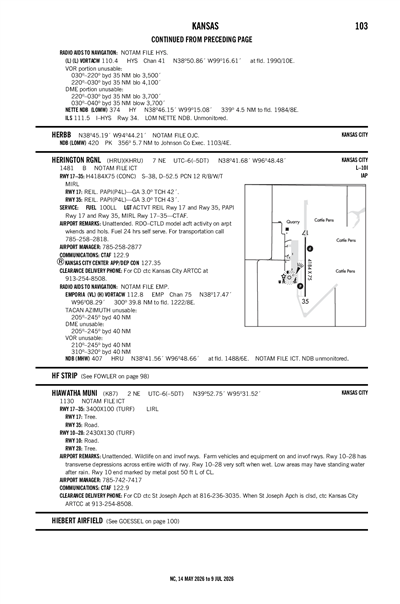

HIAWATHA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

K87
Local K87
HIAWATHA MUNI
PublicPUB

2 miles NE of HIAWATHA, KS, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 52' 45"N 95° 31' 31"W
Elevation
1130' MSL
Pattern Alt
2130' MSL
Mag Variation
2°E
Declination
6°E
Fuel
None Listed
FSS
WICHITA (ICT)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
6/11/26-7/9/26
KK83 (12nm) VFR
5:15 PM CDT
Overcast 9,000'
10sm
73°F
62°F
29.98"Hg
060° 6kts
AO2 T02290167
METAR KK83 252215Z AUTO 06006KT 10SM OVC090 23/17 A2998 RMK AO2 T02290167
+ Add Your Business

K87 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KSTJ (29nm)
Thu, 6/25 5:03 PM CDT
Thu, 6/25 5:00 PM CDT - Fri, 6/26 1:00 PM CDT
VFR
5:00 PM CDT - 7:00 PM CDT
Light Showers and Rain and Mist
Broken 4,000'
6sm
070° 8kts
MVFR
Temporary 5:00 PM CDT - 7:00 PM CDT
Thunderstorm and Rain and Mist
Broken 2,500'
5sm
VRB° 10kts
MVFR
7:00 PM CDT - 5:00 AM CDT
Light Showers and Rain
Overcast 1,500'
Scattered 900'
4sm
090° 9kts
IFR
5:00 AM CDT - 11:00 AM CDT
Light Showers and Rain
Overcast 900'
5sm
070° 7kts
MVFR
11:00 AM CDT - 1:00 PM CDT
Broken 1,300'
6sm
060° 7kts
TAF KSTJ 252203Z 2522/2618 07008KT 6SM -SHRA BR BKN040
   TEMPO 2522/2524 VRB10KT 5SM TSRA BR BKN025CB
   FM260000 09009KT 4SM -SHRA SCT009 OVC015
   FM261000 07007KT 5SM -SHRA OVC009
   FM261600 06007KT P6SM BKN013
K87
EffectiveExpiresCategoryNOTAM
Domestic
6/5/26
0638Z
7/5/26
2300Z
!ICT 06/138 K87 OBST TOWER LGT (ASN 2020-ACE-2344-OE) 395830N0953414W (6.1NM NNW K87) 1293FT (320FT AGL) U/S 2606050638-2607052300
5/31/26
1732Z
8/29/26
0400Z
!ICT 05/733 K87 OBST TOWER LGT (ASR 1223592) 395102.70N0953109.90W (1.7NM S K87) 1402.9FT (299.9FT AGL) U/S 2605311732-2608290400
No
UNATNDD
CITY OF HIAWATHA
701 OREGON ST
HIAWATHA, KS 66434
Phone: 785-742-7417
MIKE NICHOLS
701 OREGON ST
HIAWATHA, KS 66434
Phone: 785-742-7417
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
Sunset to Sunrise
--
N/A
Yes
No
No
Tie-Down
No
None
None
None
None
Crop Dusting

Runway 10/28

2430 ft. x 130 ft.
TURF
Good
NONE


--
--
--
--
  Runway 10 Runway 28
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

3400 ft. x 100 ft.
TURF
Fair
NONE
LOW

--
--
--
--
  Runway 17 Runway 35
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2FARM VEHICLES AND EQUIPMENT ON AND INVOF RYS.
A110-3WILDLIFE ON & INVOF RYS.
A110-4FOR CD CTC ST JOSEPH APCH AT 816-236-3035. WHEN ST JOSEPH APCH IS CLSD, CTC KANSAS CITY ARTCC AT 913-254-8508.
A33-10/28_CONDVERY SOFT WHEN WET. LOW AREAS MAY HAVE STANDING WATER AFTER RAIN.
A33-10/28_SURFTRANSVERSE DEPRESSIONS ACROSS ENTIRE WIDTH OF RY.
A42-10_MARKRWY 10 END MARKED BY METAL POST 50 FT L OF CL.
E111EXISTED PRIOR TO 1959.
HIAWATHA MUNI (IATA: K87) is a public airport located in HIAWATHA, KS, US.
