TUSCOLA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

K96
Local K96
TUSCOLA
PublicPUB

2 miles SW of TUSCOLA, IL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 46' 52"N 88° 18' 23"W
Elevation
665' MSL
Pattern Alt
1465' MSL
Mag Variation
3°W
Declination
0°
Fuel
100LL
FSS
SAINT LOUIS (STL)
Sectional
ST LOUIS
ARTCC
KANSAS CITY (ZKC)
Data Effective
9/3/26-10/1/26
KCMI (15nm) VFR
2:53 PM CDT
Clear
10sm
88°F
62°F
29.89"Hg
250° 8kts
AO2 SLP114 T03110167
METAR KCMI 121953Z 25008KT 10SM CLR 31/17 A2989 RMK AO2 SLP114 T03110167
+ Add Your Business

K96 FBOs

Promote Listing
Tuscola Airport
UNICOM: 122.9
Phone: (217) 840-3934
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 8/28
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve
Fuel Notes
Prices include tax
Call ahead for availability and pricing of fuel.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

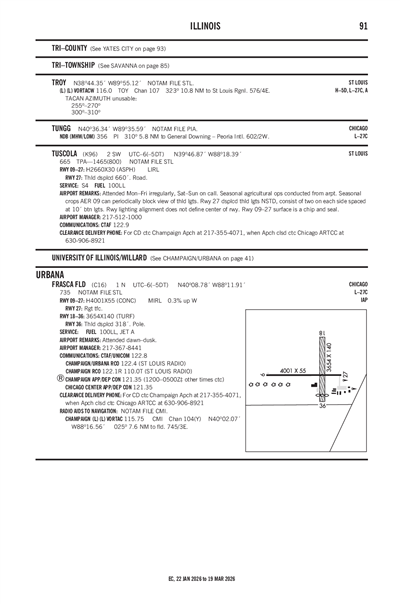

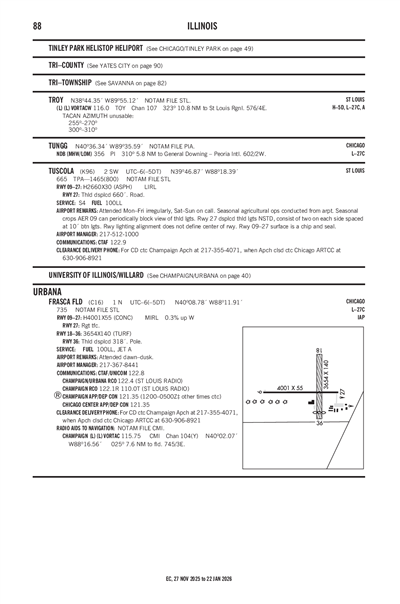

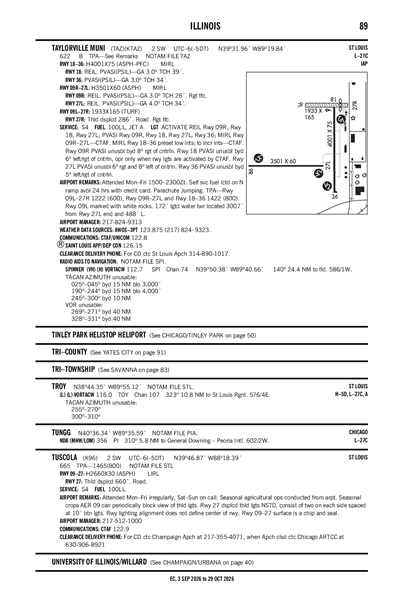

FAA A/FD Pages

Terminal Area Forecast

KCMI (15nm)
Sat, 9/12 12:20 PM CDT
Sat, 9/12 1:00 PM CDT - Sun, 9/13 1:00 PM CDT
VFR
1:00 PM CDT - 8:00 PM CDT
Scattered 3,500'
6sm
260° 7kts
VFR
8:00 PM CDT - 10:00 AM CDT
Broken 25,000'
Scattered 4,000'
6sm
330° 5kts
VFR
10:00 AM CDT - 1:00 PM CDT
Light Showers and Rain
Overcast 9,000'
6sm
020° 7kts
TAF KCMI 121720Z 1218/1318 26007KT P6SM SCT035
   FM130100 33005KT P6SM SCT040 BKN250
   FM131500 02007KT 6SM -SHRA OVC090
K96
EffectiveExpiresCategoryNOTAM
Domestic
9/5/26
0536Z
9/20/26
0436Z
!STL 09/103 K96 OBST TOWER LGT (ASR 1294718) 393840.10N0880132.80W (15.3NM ESE K96) 911.7FT (259.8FT AGL) U/S 2609050536-2609200436
8/20/26
1128Z
10/4/26
1128Z
!STL 08/487 K96 OBST TOWER LGT (ASN 2019-AGL-14523-OE) 395339N0880530W (12.0NM NE K96) 941FT (263FT AGL) U/S 2608201128-2610041128
8/19/26
1310Z
10/3/26
1309Z
!STL 08/463 K96 OBST TOWER LGT (ASN 2022-AGL-12244-OE) 394607N0881629W (1.6NM ESE K96) 875FT (229FT AGL) U/S 2608191310-2610031309
8/16/26
2028Z
11/14/26
2128Z
!STL 08/386 K96 OBST TOWER LGT (ASR 1251789) 395137.90N0880938.60W (8.3NM NE K96) 974.7FT (321.9FT AGL) U/S 2608162028-2611142128
No
MON-FRI IRREGULAR
SAT-SUN ON CALL
DOMINQUE YOUAKIM
480 AIRPORT RD. BLD G
MATTON, IL 61938
Phone: 217-512-1000
DOMINQUE YOUAKIM
480 AIRPORT RD BLD G
MATTON, IL 61953
Phone: 217-512-1000
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
STL
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction

Runway 09/27

2660 ft. x 30 ft.
ASPH
Good
NONE
LOW

--
--
--
--
  Runway 09 Runway 27
True Heading 91°271°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 39° 46' 53"N 39° 46' 52"N
Longitude 88° 18' 40"W 88° 18' 06"W
Elevation 665' 665'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1SEASONAL CROPS AER RY 09 CAN PERIODICALLY BLOCK VIEW OF THLD LGTS.
A110-2SEASONAL AGRICULTURAL OPERATIONS CONDUCTED FM ARPT.
A110-4FOR CD CTC CHAMPAIGN APCH AT 217-355-4071, WHEN APCH CLSD CTC CHICAGO ARTCC AT 630-906-8921
A33-09/27_SURFSFC IS A CHIP & SEAL.
A40-09/27RY LGTING ALIGNMENT DOES NOT DEFINE CENTER OF RY. RY 27 DSPLCD THLD LGTS NTSD: CONSIST OF TWO ON EACH SIDE SPACED AT 10 FT BETWEEN LGTS.
A57-27RY 27 APCH RATIO IS 16:1 FM OVER 13 FT HIGH BLDG 210 FT WEST OF RY END & 23 FT R NORTH OF CNTRLN TO MKD DSPLCD THLD. DSPLCD THLD MKD BY 12 IN WD WHT STRIPE ACROSS RY & 18 IN X 8 FT WHT CONC "ANGLES" ON BTH SDS IN GRASS.
A58-27+15 FT BLDS 100 FT BOTH SIDES CNTRLN IN PRIM SFC.
TUSCOLA (IATA: K96) is a public airport located in TUSCOLA, IL, US.
