COLONEL JAMES JABARA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAAO
COLONEL JAMES JABARA
PublicPUB

9 miles NE of WICHITA, KS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 44' 51"N 97° 13' 16"W
1421' MSL
2421' MSL
06E
Jet A, 100LL
WICHITA (ICT)
WICHITA
KANSAS CITY (ZKC)
6/16/22-7/14/22
KAAO VFR
7:54 AM CDT
Broken 10,000'
10sm
81°F
67°F
29.93"Hg
100° 3kts
AO2 SLP116 T02720194
KAAO 061254Z AUTO 10003KT 10SM BKN100 27/19 A2993 RMK AO2 SLP116 T02720194
List Your Business

KAAO FBOs, Flight Schools and Ground Support

Promote Listing
Midwest Corporate Aviation
Freq: 122.7
Phone: (316) 636-9700
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 6/13
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.81 7.99 7.99

KAAO Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KAAO Hotels

No hotels are listed for this airport.

KAAO Restaurants

No restaurants are listed for this airport.

KAAO Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

ASOS

ASOS
316-636-2541
 134.025

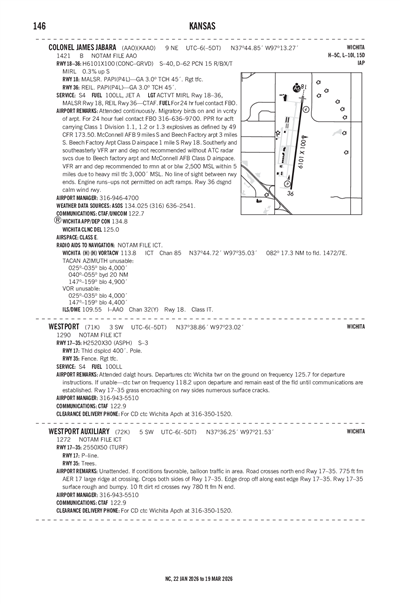

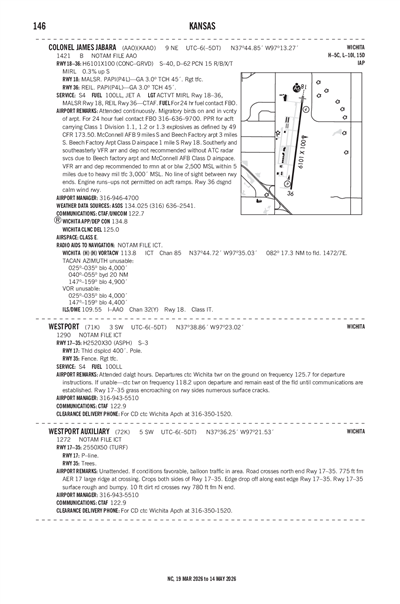

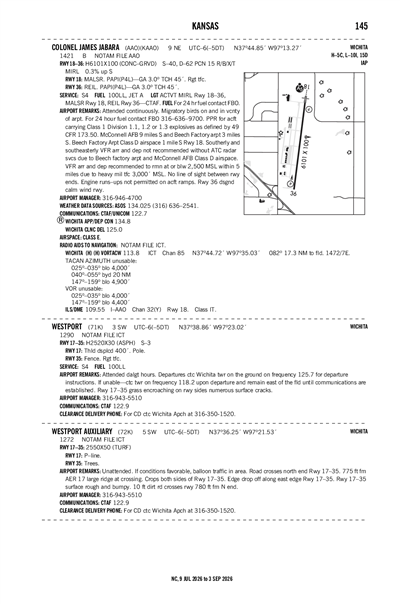

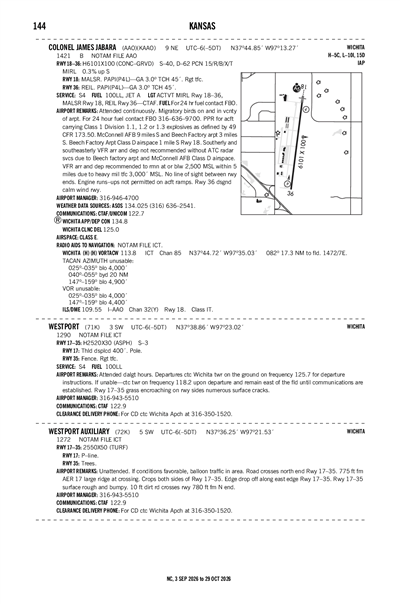

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KIAB (8nm)
Wed, 7/6 5:00 AM CDT
Wed, 7/6 5:00 AM CDT - Thu, 7/7 11:00 AM CDT
VFR
5:00 AM CDT - 10:00 AM CDT
Broken 15,000'
Scattered 10,000'
> 6sm
29.85"Hg
190° 12kts
Gusts 18kts
Shear 200° 45kts @ 2000'
VFR
Becoming 10:00 AM CDT - 9:00 PM CDT
Few 9,000'
> 6sm
29.79"Hg
180° 12kts
Gusts 22kts
VFR
Temporary 11:00 AM CDT - 4:00 PM CDT
No Clouds
N/A
210° 15kts
Gusts 25kts
VFR
Becoming 9:00 PM CDT - 1:00 AM CDT
Few 9,000'
> 6sm
29.79"Hg
170° 12kts
Gusts 18kts
VFR
Becoming 1:00 AM CDT - 10:00 AM CDT
Few 9,000'
> 6sm
29.85"Hg
180° 9kts
Shear 190° 40kts @ 2000'
VFR
Becoming 10:00 AM CDT - 11:00 AM CDT
Scattered 8,000'
> 6sm
29.88"Hg
200° 12kts
Gusts 22kts
TAF KIAB 061000Z 0610/0716 19012G18KT 9999 SCT100 BKN150 WS020/20045KT QNH2985INS
   BECMG 0615/0616 18012G22KT 9999 FEW090 QNH2978INS
   TEMPO 0616/0621 21015G25KT
   BECMG 0702/0703 17012G18KT 9999 FEW090 QNH2980INS
   BECMG 0706/0707 18009KT 9999 FEW090 WS020/19040KT QNH2984INS
   BECMG 0715/0716 20012G22KT 9999 SCT080 QNH2987INS TX38/0621Z TN24/0612Z
KAAO
Domestic
7/9/220000Z !AAO 07/009 AAO AD AP CLSD EXC HEL 2207090000-2207121100
7/8/221900Z !AAO 07/005 AAO RWY 18 PAPI U/S 2207081900-2207121300
7/8/221900Z !AAO 07/004 AAO RWY 36 PAPI U/S 2207081900-2207121300
7/8/221900Z !AAO 07/003 AAO RWY 18 ALS U/S 2207081900-2207121300
7/8/221900Z !AAO 07/002 AAO RWY 36 RWY END ID LGT U/S 2207081900-2207121300
7/8/221900Z !AAO 07/001 AAO NAV ILS RWY 18 U/S 2207081900-2207121300
7/3/220526Z !AAO 07/008 AAO OBST TOWER LGT (ASR 1223994) 374946.60N0972240.10W (8.9NM NW AAO) 1531.2FT (186.0FT AGL) U/S 2207030526-2207180426
7/3/220526Z !AAO 07/007 AAO OBST TOWER LGT (ASR 1032792) 374326.90N0971632.00W (2.9NM WSW AAO) 1712.9FT (309.1FT AGL) U/S 2207030526-2207180426
7/3/220526Z !AAO 07/006 AAO OBST TOWER LGT (ASR 1032293) 374408.80N0972000.40W (5.4NM W AAO) 1662.1FT (350.1FT AGL) U/S 2207030526-2207180426
4/30/220401Z !AAO 04/012 AAO AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2204300401-2404300401
3/19/221307Z !AAO 03/020 AAO OBST CRANE (ASN 2021-ACE-4862-OE) 374436N0971408W (0.7NM WSW AAO) 1566FT (145FT AGL) FLAGGED 2203191307-2212072359
FDC
3/30/221612Z !FDC 2/1185 AAO IAP COLONEL JAMES JABARA, WICHITA, KS.
ILS OR LOC RWY 18, ORIG-C...
S-LOC MDA 1800/HAT 386 ALL CATS, VISIBILITY CAT C 5/8.
CHART VDP AT 2.28 DME.
DISTANCE VDP TO THLD 1.11 NM.
THIS IS ILS OR LOC RWY 18, ORIG-D. 2203301612-PERM
No
ALL
WICHITA AIRPORT AUTHORITY
2173 AIR CARGO RD
WICHITA, KS 67209
Phone: 316-946-4700
MR. JESSE ROMO, A.A.E.
2173 AIR CARGO ROAD
WICHITA, KS 67209
Phone: 316-946-4700
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
AAO
--
APT LGT SKED: ACTVT MIRL RY 18/36, MALSR RY 18, REIL RY 36 - CTAF. PAPI RYS 18 & 36 OPR CONT.
Clear-Green
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
62
29
35
1
1
0
Major
Major
None
None
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Sales

Runway 18/36

6101 ft. x 100 ft.
CONC
Good
GRVD
MED
15 /R/B/X/T
40,000lbs
62,000lbs
--
--
  Runway 18 Runway 36
True Heading 187°7°
Traffic Pattern Right
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 37° 45' 21"N 37° 44' 21"N
Longitude 97° 13' 12"W 97° 13' 21"W
Elevation 1,401' 1,421'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No Yes
A110-11ATNDD CONSY.
A110-12USE CTN FOR MCCONNELL AFB 9 MILES S AND BEECH FACTORY ARPT 3 MILES S.
A110-13BEECH FACTORY ARPT CLASS D ASP BEGINS 1 MILE S OF RWY 18 DER.
A110-14SOUTHERLY AND SOUTHEASTERLY VFR ARR AND DEP NOT RCMDD WO ATC RADAR SVCS DUE TO BEECH FACTORY ARPT AND MCCONNELL CLASS D AFB ASP.
A110-15VFR ARR AND DEP ARE RCMDD TO RMN AOB 2500 FT MSL WITHIN 5 MILES DUE TO HEAVY MIL TFC AOA 3000 FT MSL.
A110-16MIGRATORY BIRDS INVOF ARPT.
A110-17DUE TO 20 FT RWY END ELEV DIFFERENTIAL, PILOTS MAY LOSE LINE OF SIGHT OF OTHER ACFT ON OPPOSING RWY ENDS.
A110-18NOISE SENSITIVE AREAS S, SW, AND W.
A110-19PPR FOR ACFT CARRYING CLASS 1 - DIVISION 1.1, 1.2, OR 1.3 XPLOSS AS DEFINED BY 49 CFR 173.50 OR AS AMDD.
A110-21RWY 18 NSTD TFC PAT.
A110-23FOR CD CTC WICHITA APCH AT 316-350-1520.
A110-24ALL TFC PATS W OF FIELD.
A110-25RWY 36 DSGND CALM WIND RWY.
COLONEL JAMES JABARA (ICAO: KAAO, IATA: AAO) is a public airport located in WICHITA, KS.
