iFlightPlanner



...

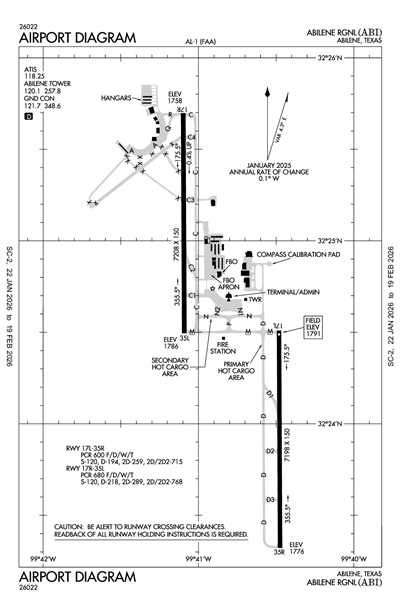

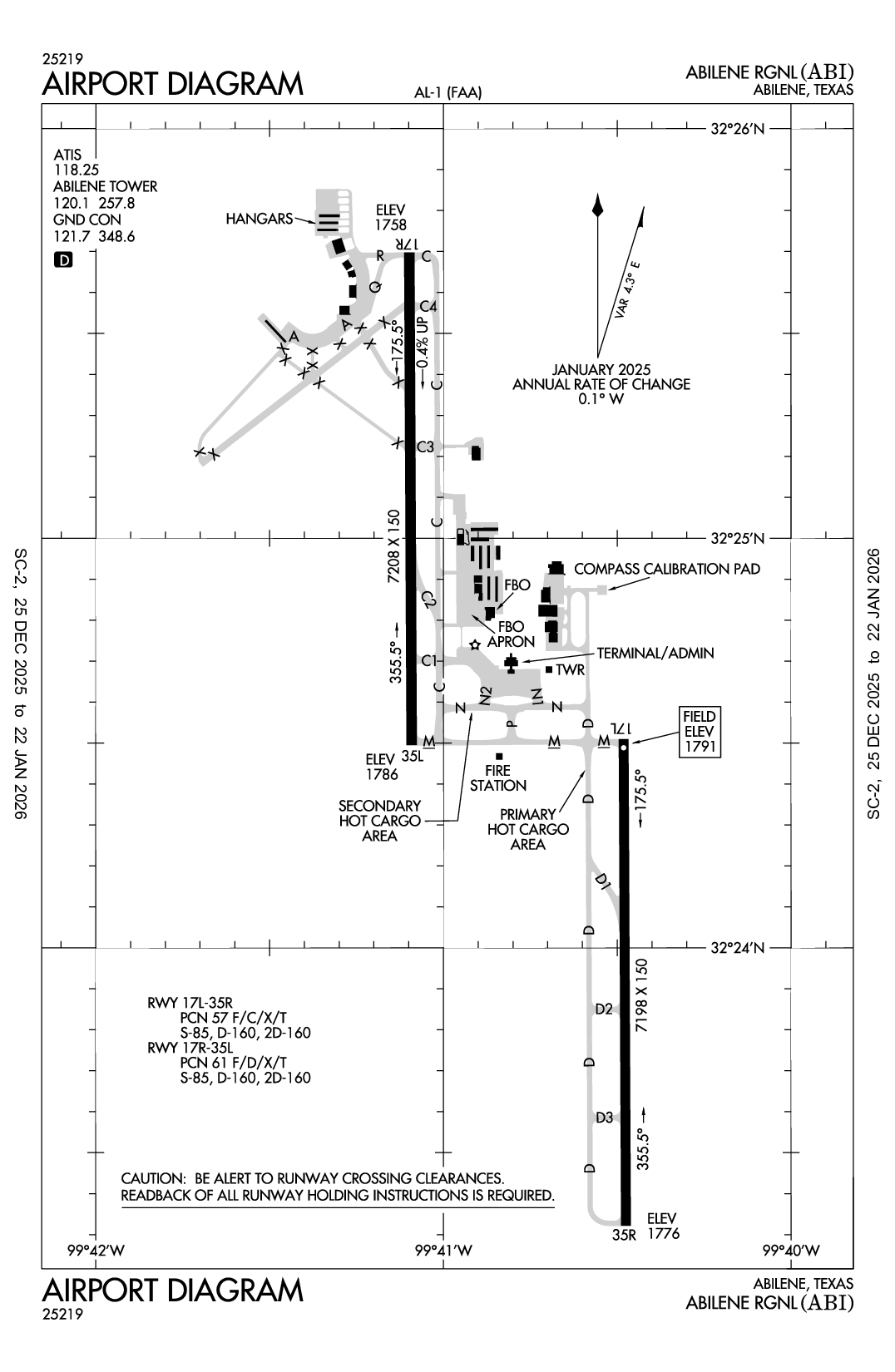

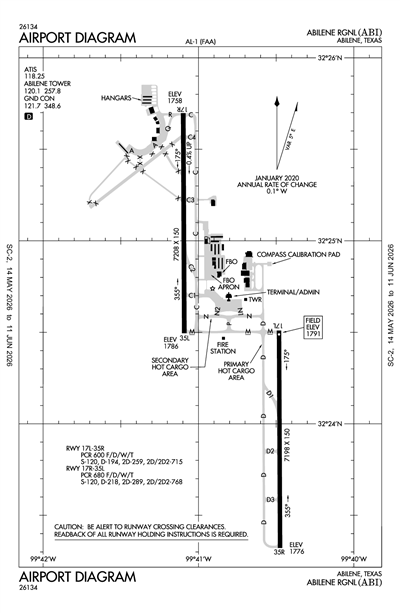

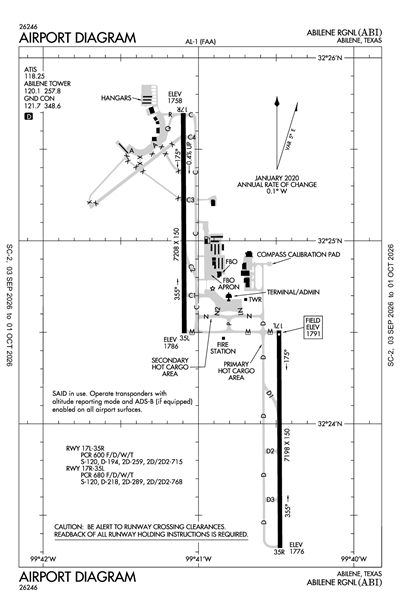

ABILENE RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KABI
ABILENE RGNL
PublicPUB

3 miles SE of ABILENE, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 24' 41"N 99° 40' 55"W
1791' MSL
2791' MSL
05E
JET A, JET A-1+, 100LL
FORT WORTH (FTW)
DALLAS-FT WORTH
FORT WORTH (ZFW)
7/11/24-8/8/24
KABI VFR
3:52 AM CDT
Clear
10sm
74°F
68°F
29.99"Hg
140° 8kts
AO2 SLP125 T02330200 58006 $
KABI 270852Z 14008KT 10SM CLR 23/20 A2999 RMK AO2 SLP125 T02330200 58006 $
Add Your Business

KABI FBOs

Promote Listing
Abilene Aero
UNICOM: 122.95
Phone: (325) 677-2601
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 7/23
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.29 6.39
Full Serve 7.29
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

ATIS
325-201-9495
 118.25

Approach/Departure

APCH/P DEP/P
EAST
 125.0
APCH/P DEP/P
WEST
 127.2

Emergency

EMERG
 121.5

Ground

GND/P
 121.7

Tower

LCL/P
 120.1

Other

CLASS C
EAST
 125.0
CLASS C
WEST
 127.2

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KABI
Sat, 7/27 12:20 AM CDT
Sat, 7/27 1:00 AM CDT - Sun, 7/28 1:00 AM CDT
VFR
1:00 AM CDT - 3:00 AM CDT
Few 2,500'
6sm
110° 13kts
VFR
3:00 AM CDT - 1:00 AM CDT
Sky Clear
6sm
150° 11kts
KABI 270520Z 2706/2806 11013KT P6SM FEW025
   FM270800 15011KT P6SM SKC
KABI
Domestic
7/25/240653Z !ABI 07/058 ABI OBST TOWER LGT (ASR 1024019) 322122.90N0992607.30W (13.0NM ESE ABI) 2346.5FT (385.8FT AGL) U/S 2407250653-2411220653
7/22/241742Z !ABI 07/056 ABI OBST RIG (ASN UNKNOWN) 321356N0992438W (1.38NM SSE ABI)
UNKNOWN (135FT AGL) LGTD 2407221742-2407290001
7/18/241417Z !ABI 07/047 ABI OBST POLE (ASN UNKNOWN) 322440N0994048W (.29NM ENE APCH END RWY 35L)
1861FT (70FT AGL) NOT LGTD 2407181417-2408162300
7/18/241414Z !ABI 07/046 ABI OBST POLE (ASN UNKNOWN) 322456N0994055W (.46NM NNE APCH END RWY 35L)
1861FT (70FT AGL) NOT LGTD 2407181414-2408162300
7/18/241411Z !ABI 07/045 ABI OBST POLE (ASN UNKNOWN) 322455N0994052W (.46NM NNE APCH END RWY 35L)
1861FT (70FT AGL) NOT LGTD 2407181411-2408162300
7/18/241408Z !ABI 07/044 ABI OBST POLE (ASN UNKNOWN) 322459N0994055W (.51NM NNE APCH END RWY 35L)
1861FT (70FT AGL) NOT LGTD 2407181408-2408162300
7/18/241404Z !ABI 07/043 ABI OBST POLE (ASN UNKNOWN) 322510N0994050W (.55NM NNE APCH END RWY 35L)
1861FT (70FT AGL) NOT LGTD 2407181404-2408162300
7/18/240112Z !ABI 07/041 ABI OBST TOWER LGT (ASR 1063090) 321252.40N0995323.30W (15.8NM SW ABI) 2658.5FT (348.8FT AGL) U/S 2407180112-2408172359
7/14/240822Z !ABI 07/033 ABI OBST TOWER LGT (ASR 1324983) 322839.14N0995852.58W (15.8NM WNW ABI) 2114FT (295FT AGL) U/S 2407140822-2408280822
7/11/241918Z !ABI 07/026 ABI OBST TOWER LGT (ASR 1048106) 322504.50N0995816.90W (14.8NM W ABI) 2242.8FT (357.9FT AGL) U/S 2407111918-2408251917
6/20/241632Z !ABI 06/059 ABI OBST TOWER LGT (ASR 1058250) 321016.00N0993526.00W (15.1NM SSE ABI) 2739.8FT (440.0FT AGL) U/S 2406201632-2410202359
6/13/241525Z !ABI 06/035 ABI OBST TOWER LGT (ASR 1215589) 321638.00N0993552.00W (9.1NM SSE ABI) 2957.0FT (749.0FT AGL) U/S 2406131525-2409152359
6/11/240911Z !ABI 06/025 ABI OBST TOWER LGT (ASR 1222049) 321749.80N0994906.30W (9.7NM SW ABI) 2149.0FT (265.1FT AGL) U/S 2406110911-2409090400
4/18/241319Z !ABI 04/045 ABI TWY N2 LOCATION SIGN FOR TWY N NOT STD 2404181319-2410312359
4/18/241318Z !ABI 04/044 ABI TWY N1 LOCATION SIGN FOR TWY N NOT STD 2404181318-2410312359
4/18/241317Z !ABI 04/043 ABI TWY C4 TWY DIRECTION SIGN WEST SIDE FOR TWY C NOT STD 2404181317-2410312359
4/18/241316Z !ABI 04/042 ABI TWY C TWY DIRECTION SIGN WEST SIDE FOR TWY C3 NOT STD 2404181316-2410312359
4/14/231742Z !ABI 04/025 ABI TWY A CLSD 2304141742-PERM
FDC
11/28/221321Z !FDC 2/6772 ABI IAP ABILENE RGNL, ABILENE, TX.
ILS OR LOC RWY 35R, AMDT 7B...
LOC RWY 17R, ORIG-B...
ALTERNATE MINIMUMS NA.
2211281321-2411281321EST
Yes
ALL
CITY OF ABILENE
PO BOX 60
ABILENE, TX 79604
Phone: 325-676-6206
DON GREEN
2933 AIRPORT BLVD SUITE 200
ABILENE, TX 79602
Phone: 325-676-6367
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
ABI
Sunset to Sunrise
--
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
79
17
8
1
0
0
Major
Major
None
High & Low Pressure
Air Freight
Avionics
Charter Service
Aircraft Sales

Runway 17L/35R

7198 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
57 /F/C/X/T
85,000lbs
160,000lbs
160,000lbs
--
  Runway 17L Runway 35R
True Heading 180°360°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 24' 31"N 32° 23' 19"N
Longitude 99° 40' 29"W 99° 40' 29"W
Elevation 1,791' 1,776'
Threshold Crossing Height 54 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights

Runway 17R/35L

7208 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
61 /F/D/X/T
85,000lbs
160,000lbs
160,000lbs
--
  Runway 17R Runway 35L
True Heading 180°360°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 25' 41"N 32° 24' 30"N
Longitude 99° 41' 06"W 99° 41' 05"W
Elevation 1,758' 1,786'
Threshold Crossing Height 63 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-1UNCTLD ARPT 2 NM NE OF ARPT, PAT ALT 2300 FT.
A110-3MIL AVN SVCS AVBL AT ARPT.
A110-5RWY 04/22 PERMLY CLSD, NOT AVBL FOR ACFT OPNS.
ABILENE RGNL (ICAO: KABI, IATA: ABI) is a public airport located in ABILENE, TX.
