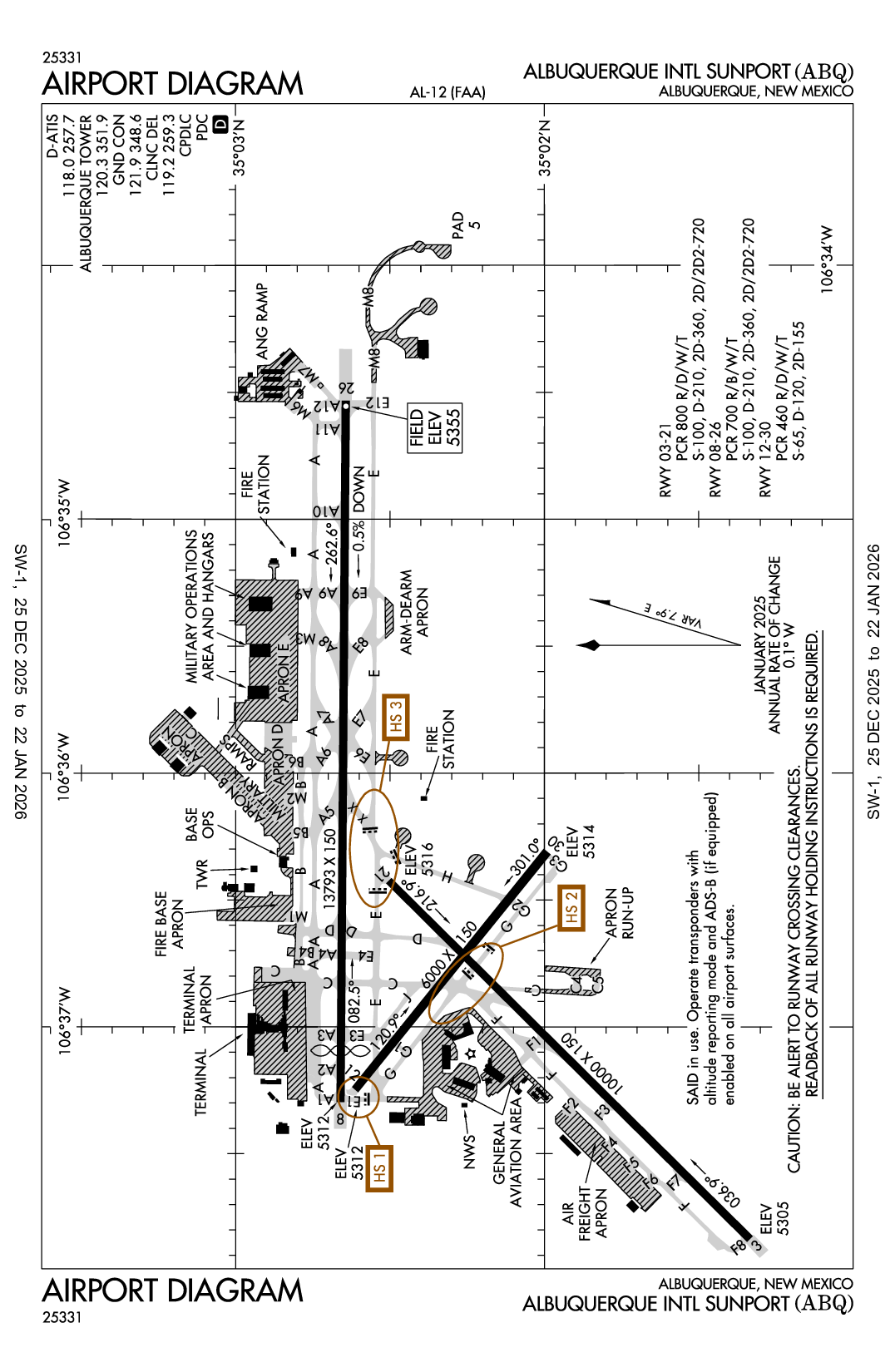

ALBUQUERQUE INTL SUNPORT - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KABQ
ALBUQUERQUE INTL SUNPORT
PublicPUB

3 miles SE of ALBUQUERQUE, NM
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 02' 20"N 106° 36' 30"W
5355' MSL
6355' MSL
11E
Jet A, Jet A-1, Jet A-1+, 100LL
ALBUQUERQUE (ABQ)
ALBUQUERQUE
ALBUQUERQUE (ZAB)
4/18/24-5/16/24
KABQ VFR
10:52 PM MDT
Scattered 20,000'
Scattered 14,000'
10sm
69°F
24°F
30.03"Hg
100° 12kts
Gusts 21kts
AO2 SLP090 T02061044 $
KABQ 240452Z 10012G21KT 10SM SCT140 SCT200 21/M04 A3003 RMK AO2 SLP090 T02061044 $
List Your Business

KABQ FBOs, Flight Schools and Ground Support

Cutter Aviation
Freq: 128.875
Phone: (505) 842-4184
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 4/23
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 7.05 7.66
Promote Listing
Atlantic Aviation
Freq: 130.675
Phone: (505) 842-4990
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/2
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.80 7.84

KABQ Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KABQ Hotels

No hotels are listed for this airport.

KABQ Restaurants

No restaurants are listed for this airport.

KABQ Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

D-ATIS
505-856-4928
 118.0

Approach

APCH/S
 126.3

Approach/Departure

APCH/P DEP/P
ON OR NORTH OF V12
 127.4
APCH/P DEP/P IC
SOUTH OF V12
 123.9

Clearance Delivery

CD/P
 119.2

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 120.3
LCL/S
 123.775

Other

CLASS C
SOUTH OF V12
 123.9
CLASS C
ON OR NORTH OF V12
 127.4
CURLY STAR
 127.4
LAVAN STAR
 123.9
MIERA STAR
 123.9

Terminal Area Forecast

KABQ
Tue, 4/23 5:29 PM MDT
Tue, 4/23 6:00 PM MDT - Wed, 4/24 6:00 PM MDT
VFR
6:00 PM MDT - 9:00 PM MDT
Few 12,000'
6sm
150° 11kts
VFR
9:00 PM MDT - 4:00 AM MDT
Sky Clear
6sm
120° 9kts
VFR
4:00 AM MDT - 9:00 AM MDT
Sky Clear
6sm
090° 8kts
VFR
9:00 AM MDT - 2:00 PM MDT
Sky Clear
6sm
VRB° 5kts
VFR
2:00 PM MDT - 6:00 PM MDT
Sky Clear
6sm
200° 11kts
KABQ 232329Z 2400/2424 15011KT P6SM FEW120
   FM240300 12009KT P6SM SKC
   FM241000 09008KT P6SM SKC
   FM241500 VRB05KT P6SM SKC
   FM242000 20011KT P6SM SKC
KABQ
Domestic
4/28/240200Z !ABQ 04/266 ABQ TWY ALL LGT U/S EXC MEDIUM INTST ON CONS 2404280200-2404281200
4/28/240200Z !ABQ 04/265 ABQ RWY 08 RTZL U/S EXC MEDIUM INTST ON CONS 2404280200-2404281200
4/28/240200Z !ABQ 04/264 ABQ RWY 03 RTZL U/S EXC MEDIUM INTST ON CONS 2404280200-2404281200
4/28/240200Z !ABQ 04/263 ABQ RWY 03/21 RCLL U/S EXC MEDIUM INTST ON CONS 2404280200-2404281200
4/28/240200Z !ABQ 04/262 ABQ RWY 08/26 RCLL U/S EXC MEDIUM INTST ON CONS 2404280200-2404281200
4/28/240200Z !ABQ 04/261 ABQ RWY 12/30 REDL U/S EXC MEDIUM INTST ON CONS 2404280200-2404281200
4/28/240200Z !ABQ 04/260 ABQ RWY 03/21 REDL U/S EXC MEDIUM INTST ON CONS 2404280200-2404281200
4/28/240200Z !ABQ 04/259 ABQ RWY 08/26 REDL U/S EXC MEDIUM INTST ON CONS 2404280200-2404281200
4/28/240200Z !ABQ 04/250 ABQ SVC TWR CLSD TWR 120.3 NOW CTAF CLASS C SER NOT AVBL
CTC ALBUQUERQUE ARTCC 124.32, FOR DELIVERY AT 505-856-4561
2404280200-2404281200
4/28/240200Z !ABQ 04/235 ABQ SVC MBST/WS DETECTION SYSTEM NOT AVBL 2404280200-2404281200
4/28/240200Z !ABQ 04/234 ABQ SVC TAR/SSR U/S 2404280200-2404281200
4/28/240200Z !ABQ 04/233 ABQ COM REMOTE TRANS/REC 354.1, 119.2, 134.8, 121.9, 124.4, 259.3, 317.6 U/S 2404280200-2404281200
4/28/240200Z !ABQ 04/232 ABQ COM CPDLC U/S 2404280200-2404281200
4/28/240200Z !ABQ 04/231 ABQ COM REMOTE TRANS/REC 123.775, 127.4, 351.9, 120.3, 121.5, 257.7 U/S 2404280200-2404281200
4/28/240200Z !ABQ 04/230 ABQ SVC ATIS 118.0 U/S 2404280200-2404281200
4/23/241609Z !ABQ 04/270 ABQ RWY 03 ALS U/S EXC LOW INTST ON CONS 2404231609-2404302000
4/16/241400Z !ABQ 04/178 ABQ AIRSPACE UAS WI AN AREA DEFINED AS 0.2NM RADIUS OF
350259N1063212W (3.6NM ENE ABQ) SFC-200FT AGL TUE WED THU FRI MON
1400-2200 2404161400-2405032200
4/16/241400Z !ABQ 04/177 ABQ AIRSPACE UAS WI AN AREA DEFINED AS 0.9NM RADIUS OF
345825N1062927W (7.0NM ESE ABQ) SFC-700FT AGL TUE WED THU FRI MON
1400-2200 2404161400-2405032200
4/2/242308Z !ABQ 04/036 ABQ TWY J LOCATION SIGN NORTH SIDE BTN TWY E AND TWY C NOT STD 2404022308-2406290600
4/1/240600Z !ABQ 04/002 ABQ TWY A9 LOCATION SIGN SOUTH SIDE NOT STD 2404010600-2406290600
3/31/242051Z !ABQ 03/392 ABQ TWY E LOCATION SIGN NORTH SIDE BTN TWY E8 AND TWY E9 NOT STD 2403312051-2406290600
3/31/242044Z !ABQ 03/391 ABQ TWY A8 LOCATION SIGN FOR RWY 08/26 NOT STD 2403312044-2406290600
3/31/242041Z !ABQ 03/390 ABQ RWY 26 8000FT DIST REMAINING SIGN RIGHT SIDE NOT STD 2403312041-2406290600
3/31/242039Z !ABQ 03/389 ABQ TWY A10 LOCATION SIGN FOR RWY 08/26 NOT STD 2403312039-2406290600
3/31/242029Z !ABQ 03/388 ABQ RWY 21 6000FT DIST REMAINING SIGN LEFT SIDE NOT STD 2403312029-2406290600
3/31/242027Z !ABQ 03/387 ABQ RWY 03 6000FT DIST REMAINING SIGN RIGHT SIDE NOT STD 2403312027-2406290600
3/31/242015Z !ABQ 03/384 ABQ TWY J LOCATION SIGN SOUTH SIDE BTN TWY C AND TWY E NOT STD 2403312015-2406290600
3/31/242004Z !ABQ 03/382 ABQ TWY C LOCATION SIGN NORTH SIDE FOR RWY 03/21 NOT STD 2403312004-2406290600
3/29/242111Z !ABQ 03/374 ABQ RWY 03 7000FT DIST REMAINING SIGN RIGHT SIDE NOT STD 2403292111-2406290600
3/29/242107Z !ABQ 03/373 ABQ RWY 03 3000FT DIST REMAINING SIGN RIGHT SIDE NOT STD 2403292107-2406290600
3/29/242105Z !ABQ 03/372 ABQ RWY 03 1000FT DIST REMAINING SIGN RIGHT SIDE NOT STD 2403292105-2406290600
3/29/242104Z !ABQ 03/371 ABQ TWY D LOCATION SIGN EAST SIDE FOR RWY 03/21 NOT STD 2403292104-2406290600
3/29/242101Z !ABQ 03/369 ABQ TWY E9 HLDG PSN SIGN EAST SIDE NOT STD 2403292101-2406290600
3/29/242058Z !ABQ 03/367 ABQ TWY E9 TWY DIRECTION SIGN NORTH SIDE NOT STD 2403292058-2406290600
3/10/241200Z !ABQ 03/045 ABQ OBST CRANE (ASN 2023-ASW-7419-NRA) 350252N1063703W (0.7NM NW ABQ) 5545FT (225FT AGL) FLAGGED AND LGTD MON-FRI 1200-2359 2403101200-2405312359
1/13/242157Z !ABQ 01/153 ABQ OBST CRANE (ASN UNKNOWN) 350251N1063702W (0.2NM N APCH END RWY 08)
5440FT (120FT AGL) FLAGGED AND LGTD 2401132157-2405312300
8/4/161200Z !ABQ 08/009 ABQ OBST TOWER LGT (ASR 1259646) 345726.60N1062934.60W (7.5NM SE ABQ) 5996.1FT (295.9FT AGL) OUT OF SERVICE 1608041200-PERM
FDC
1/17/241430Z !FDC 4/4475 ABQ IAP U.S. DOD ALBUQUERQUE INTL SUNPORT, ALBUQUERQUE, NM.
HI - TACAN RWY 8, AMDT 2A...
CIRCLING CAT C MDA 6020/HAA 665. VIS CAT C 1 3/4.
TEMPORARY CRANE 5653 MSL 2.9 NM E OF ABQ AIRPORT (2021-ASW-12740-OE).
2401171430-2406151315EST
1/17/241430Z !FDC 4/4474 ABQ IAP ALBUQUERQUE INTL SUNPORT, ALBUQUERQUE, NM.
ILS OR LOC RWY 3, AMDT 3...
RNAV (GPS) Y RWY 3, AMDT 1...
CIRCLING CATS A/B/C MDA 6020/HAA 665. VIS CAT C 1 3/4..
TEMPORARY CRANE, 5565 MSL, 4479 FT NW OF KABQ (2022-ASW-8190-NRA), TEMPORARY CRANE, 5653 MSL, 2.9 NM EAST OF KABQ (2021-ASW-12740-OE), TEMPORARY TERMINAL EQUIPMENT, 5545MSL, 4242FT NW OF KABQ AIRPORT (2023-ASW-7419-NRA).
2401171430-2406151315EST
1/17/241430Z !FDC 4/4473 ABQ IAP ALBUQUERQUE INTL SUNPORT, ALBUQUERQUE, NM.
RNAV (GPS) Y RWY 8, ORIG-C...
LNAV MDA 5880/HAT 560 ALL CATS. VIS CATS A/B RVR 4000, VIS CAT C/D RVR 6000.
CIRCLING CATS A/B/C MDA 6020/HAA 665. VIS CAT C 1 3/4.
VDP 1.62 NM TO RW08.
TEMPORARY CRANE 5565 MSL 1597FT N OF RWY 8 (2022-ASW-8190-NRA), TEMPORARY TERMINAL EQUIPMENT, 5545 MSL, 1262FT NORTH OF RWY 08 (2023-ASW-7419-NRA).
2401171430-2406151315EST
1/17/241430Z !FDC 4/4472 ABQ IAP ALBUQUERQUE INTL SUNPORT, ALBUQUERQUE, NM.
RNAV (RNP) Z RWY 8, AMDT 1A...
RNP 0.30 DA 5756/HAT 436 ALL CATS. VIS RVR 4000 ALL CATS.
FOR INOPERATIVE MALSR, INCREASE RNP 0.30 ALL CATS VISIBILITY TO 1 1/4SM.
TEMPORARY TERMINAL EQUIPMENT, 5545MSL, 1262FT NORTH OF RWY 08 (2023-ASW-7419-NRA).
2401171430-2406151315EST
1/17/241430Z !FDC 4/4471 ABQ IAP ALBUQUERQUE INTL SUNPORT, ALBUQUERQUE, NM.
ILS OR LOC RWY 8, AMDT 6B...
S-ILS 8 DA 5695/HAT 375 ALL CATS. VIS RVR 3500 ALL CATS.
CIRCLING CATS A/B/C MDA 6020/HAA 665. VIS CAT C 1 3/4.
FOR INOPERATIVE ALS, INCREASE S-ILS 8 ALL CATS VISIBILITY TO RVR 5500 AND S-LOC 8 CAT C/D VISIBILITY TO RVR 6000.
TEMPORARY TERMINAL EQUIPMENT, 5545MSL, 1262FT NORTH OF RWY 08 (2023-ASW-7419-NRA), TEMPORARY CRANE 5565 MSL 1597FT N OF RWY 8 (2022-ASW-8190-NRA), TEMPORARY CRANE 5452 MSL 1499FT NE OF RWY 08 (2022-ASW-7887-NRA), TEMPORARY CONST EQUIP 5367 MSL 545FTNW OF RWY 08 (2023-ASW-2058-NRA).
2401171430-2406151315EST
1/17/241430Z !FDC 4/4470 ABQ IAP ALBUQUERQUE INTL SUNPORT, ALBUQUERQUE, NM.
VOR RWY 8, AMDT 21...
EYECE FIX MINIMUMS:
S-8 MDA 5880/HAT 560 ALL CATS. VIS CATS C/D/E RVR 6000.
CIRCLING CATS A/B/C MDA 6020/HAA 665. VIS CAT C 1 3/4.
TEMPORARY CRANE 5565 MSL 1597FT N OF APCH END RWY 8 (2022-ASW-8190-NRA), TEMPORARY CRANE 5653 MSL 2.9NM E OF ABQ AIRPORT (2021-ASW-12740-OE), TEMPORARY TERMINAL EQUIPMENT, 5545MSL, 1262FT NORTH OF RWY 08 (2023-ASW-7419-NRA).
2401171430-2406151315EST
1/17/241430Z !FDC 4/4469 ABQ IAP ALBUQUERQUE INTL SUNPORT, ALBUQUERQUE, NM.
RADAR 1, AMDT 21...
ASR 8 MDA 5860/HAT 540 ALL CATS. VIS CATS C/D/E RVR 5500.
CIRCLING CATS A/B/C MDA 6020/HAA 665. VIS CAT C 1 3/4.
FOR INOPERATIVE MALSR, INCREASE S-3 CAT E VISIBILITY TO RVR 6000 AND S-8 CAT C/D/E VISIBILITY TO 1 1/2 SM.
TEMPORARY TERMINAL EQUIPMENT, 5545MSL, 1262FT NORTH OF RWY 08 (2023-ASW-7419-NRA), TEMPORARY CRANE, 5565 MSL, 4479 FT NW OF KABQ (2022-ASW-8190-NRA), TEMPORARY CRANE, 5653 MSL, 2.9 NM EAST OF KABQ (2021-ASW-12740-OE).
2401171430-2406151315EST
1/17/241430Z !FDC 4/4468 ABQ IAP U.S. DOD ALBUQUERQUE INTL SUNPORT, ALBUQUERQUE, NM.
HI - ILS OR LOC RWY 8, AMDT 2A...
S-ILS 8* DA 5673/HAT 353 ALL CATS, VIS RVR 3000 ALL CATS.
CIRCLING CAT C MDA 6020/HAA 665. VIS CAT C 1 3/4.
*WHEN ALS INOPERATIVE, INCREASE RVR TO 5500 AND VISIBILITY TO 1 SM.
TEMPORARY TERMINAL EQUIPMENT, 5545MSL, 1262FT NORTH OF RWY 08 (2023-ASW-7419-NRA), TEMPORARY CRANE 5653 MSL 2.9 NM E OF ABQ AIRPORT (2021-ASW-12740-OE).
2401171430-2406151315EST
1/13/241933Z !FDC 4/3468 ABQ ODP ALBUQUERQUE INTL SUNPORT, ALBUQUERQUE, NM.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 7...
TAKEOFF OBSTACLE NOTES: RWY 03, TEMPORARY CONSTRUCTION EQUIPMENT, BEGINNING 378 FT FROM DER, BEGINNING 207 FT RIGHT OF CENTERLINE, 35 AGL/UP TO 5350 MSL (2021-ASW-7386 AND 7390-NRA), RWY 08, TEMPORARY CRANE, 1.44 NM FROM DER, 2320 FT LEFT OF CENTERLINE, 250 AGL/5653 MSL (2021-ASW-12740-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2401131933-2410171933EST
Military
4/25/241300Z TWY M7 CLOSED FOR C-130 TRAINING OPERATIONS
4/25/240130Z !KABQ M0168/24 ABQ PJE WITHIN AREA DEFINED AS 5NM RADIUS OF ABQ VORTAC 100 DEG RADIAL @ 17 MILES 2404250130-2404250630
4/25/240000Z TWY M7 CLOSED FOR C-130 TRAINING OPERATIONS
4/24/240130Z !KABQ M0162/24 ABQ PJE WITHIN AREA DEFINED AS 5NM RADIUS OF ABQ VORTAC 100 DEG RADIAL @ 17 MILES 2404240130-2404240630
4/22/242131Z M0166/24 NOTAMC M0164/24
4/22/242130Z MILITARY HELIPAD 5 CLOSED TO ARRIVALS AND DEPARTURES.
4/22/242049Z L0004/24 NOTAMC L0002/24
4/18/241912Z E RAMP MEN AND EQUIPMENT WORKING SOUTHSIDE OF E RAMP. AIRCRAFT USE CAUTION WHEN TAXIING
Yes
ALL
CITY OF ALBUQUERQUE
PO BOX 1293
ALBUQUERQUE, NM 87103
Phone: 505-768-3000
RICHARD MCCURLEY
PO BOX 9948
ALBUQUERQUE, NM 87119
Phone: 505-244-7700
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
ABQ
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
38
52
55
21
34
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 03/21

10000 ft. x 150 ft.
CONC
Good
GRVD
HIGH
78 /R/B/W/T
100,000lbs
210,000lbs
360,000lbs
720,000lbs
  Runway 03 Runway 21
True Heading 45°225°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 01' 20"N 35° 02' 30"N
Longitude 106° 37' 50"W 106° 36' 25"W
Elevation 5,305' 5,316'
Threshold Crossing Height 59 ft. AGL 74 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No Yes

Runway 08/26

13793 ft. x 150 ft.
CONC
Good
GRVD
HIGH
71 /R/B/W/T
100,000lbs
210,000lbs
360,000lbs
720,000lbs
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 02' 40"N 35° 02' 39"N
Longitude 106° 37' 18"W 106° 34' 32"W
Elevation 5,312' 5,355'
Threshold Crossing Height 55 ft. AGL 83 ft. AGL
Visual Glide Path Angle 2.95° 3°
Visual Slope Indicator V6L P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights Yes

Runway 12/30

6000 ft. x 150 ft.
CONC
Good
GRVD
MED
41 /R/C/W/T
65,000lbs
120,000lbs
155,000lbs
--
  Runway 12 Runway 30
True Heading 129°309°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 35° 02' 37"N 35° 01' 60"N
Longitude 106° 37' 15"W 106° 36' 19"W
Elevation 5,312' 5,314'
Threshold Crossing Height -- 46 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-17AIR CARRIER GND HANDLING NOT AVBL BTN THE HRS OF 0100-0430.
A110-2BIRD HAZARD OCT-DEC & MAR-MAY.
A110-21TWY H MILITARY USE ONLY.
A110-22FTR ACFT DEP S ONLY.
A110-23DEPS ON RWY 03 ARE RSTRD AND RQR PRIOR COORDN WITH ATCT.
A110-24TWY E5 CLSD
A110-25SERVICE-FUEL: A++(MIL), A++100(MIL).
A110-26MIL WX SVC AVBL 1100-2300Z++ MON, TUE-FRI 1300-2300Z++. CLSD WKNDS & HOL/MIL DOWN DAYS. MSN WX SUPPORT BRIEFINGS FOR AIRCREW AVBL VIA THE 25 OWS/DAVIS-MONTHAN AFB DUR MIL WX FLT CLSD HR, DSN 228-6604M /C520-228-6604. WX FCST BY NWS KABQ. DSN 246-9707 AND C505-846-9707. H24 OBSN BY FAA C505-246-4200.
A110-28RWY 08 AND 12 APCH ENDS ARE DE-COUPLED. COMMON HOLD SHORT LINE IS SHARED. RWY 12 FOR TAKEOFF IS ONLY AVBL VIA TXY E. FULL LENGTH AVBL VIA BACK TAXI. RWY 30 LANDINGS, LAST AVBL EXIT IS TXY E, EXIT VIA E1 IS NOT POSSIBLE.
A110-6HVY STUDENT COPTER TFC; CTL FIRING AREA S OF ARPT.
A110-8ARFF PROVIDED BY USAF.
ALBUQUERQUE INTL SUNPORT (ICAO: KABQ, IATA: ABQ) is a public airport located in ALBUQUERQUE, NM.
