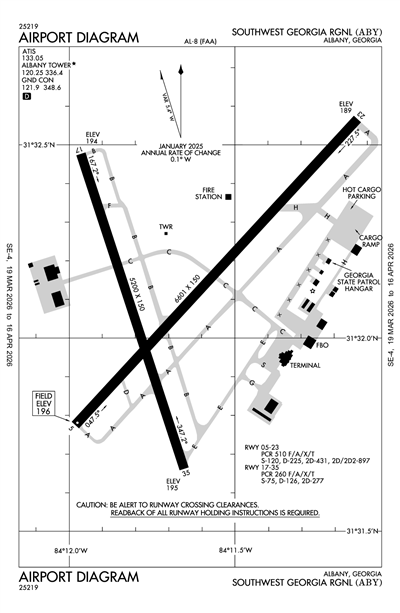

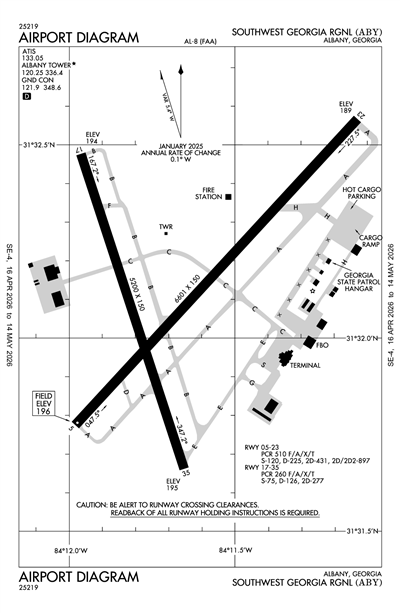

SOUTHWEST GEORGIA RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KABY
SOUTHWEST GEORGIA RGNL
PublicPUB

3 miles SW of ALBANY, GA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 32' 08"N 84° 11' 40"W
196' MSL
1196' MSL
05W
JET A, 100LL
MACON (MCN)
JACKSONVILLE
JACKSONVILLE (ZJX)
10/3/24-10/31/24
KABY VFR
1:53 PM EDT
Few 3,900'
10sm
83°F
62°F
30.19"Hg
050° 10kts
AO2 SLP220 T02830167 10283 20133 58022
KABY 221753Z 05010KT 10SM FEW039 28/17 A3019 RMK AO2 SLP220 T02830167 10283 20133 58022
Add Your Business

KABY FBOs

Promote Listing
Eagles of America
UNICOM: 122.95
Phone: (229) 434-8787
No Rating Available
0 Reviews (Read | Sign In To Write)
EPIC
As of 10/22
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.00 5.56
Fuel Notes
Prices include tax
Promote Listing
Thrush Aircraft
UNICOM: 122.95
Phone: (229) 789-0437
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 120.25

ATIS

ATIS
 133.05

Ground

GND/P
 121.9

Tower

LCL/P
 120.25

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KABY
Tue, 10/22 1:20 PM EDT
Tue, 10/22 2:00 PM EDT - Wed, 10/23 2:00 PM EDT
VFR
2:00 PM EDT - 2:00 PM EDT
Sky Clear
6sm
070° 8kts
KABY 221720Z 2218/2318 07008KT P6SM SKC
KABY
Domestic
10/22/240127Z !ABY 10/020 ABY AD AP WINDCONE PRIMARY LGT U/S 2410220127-2410241200
10/17/240128Z !ABY 10/018 ABY AD AP WINDCONE FOR TWY C RIGHT SIDE U/S 2410170128-2410200359
10/16/241505Z !ABY 10/017 ABY RWY 17 RWY END ID LGT U/S 2410161505-2410161605
10/16/241400Z !ABY 10/015 ABY RWY 17 VASI U/S 2410161400-2410161500
10/12/240532Z !ABY 10/014 ABY OBST TOWER LGT (ASR 1222439) 313519.40N0840432.90W (6.9NM ENE ABY) 461.0FT (261.2FT AGL) U/S 2410120532-2410270432
10/9/240208Z !ABY 10/011 ABY TWY F MANDATORY HOLD SIGN LGT U/S 2410090208-2410110400
10/9/240033Z !ABY 10/010 ABY OBST TOWER LGT (ASR 1013653) 313716.30N0841814.60W (7.5NM NW ABY) 494.1FT (252.0FT AGL) U/S 2410090033-2501080400
10/9/240030Z !ABY 10/009 ABY OBST TOWER LGT (ASR 1026405) 314118.00N0841002.00W (9.3NM NE ABY) 872.7FT (620.1FT AGL) U/S 2410090030-2501080400
10/6/242039Z !ABY 10/008 ABY RWY 17 FICON 5/5/5 100 PCT WET OBS AT 2410062039. 2410062039-2410070800
10/6/242038Z !ABY 10/007 ABY RWY 05 FICON 5/5/5 100 PCT WET OBS AT 2410062038. 2410062038-2410070800
10/6/241329Z !ABY 10/006 ABY RWY 17 FICON 5/5/5 100 PCT WET OBS AT 2410061329. 2410061329-2410062000
10/6/241328Z !ABY 10/005 ABY RWY 05 FICON 5/5/5 100 PCT WET OBS AT 2410061328. 2410061328-2410062000
9/30/240316Z !ABY 09/045 ABY RWY 05 RAI LGT U/S 2409300316-2501102000EST
9/27/242250Z !ABY 09/040 ABY OBST TOWER LGT (ASR 1214824) 313224.00N0841908.70W (6.4NM W ABY) 445.9FT (242.8FT AGL) U/S 2409272250-2501252250
8/2/241302Z !ABY 08/006 ABY APRON TERMINAL APN NONMOVEMENT AREA BDRY MARKINGS FADED 2408021302-2411302300
8/2/241302Z !ABY 08/005 ABY APRON TERMINAL APN CL MARKINGS FADED 2408021302-2411302300
8/2/241300Z !ABY 08/004 ABY APRON CARGO APN NONMOVEMENT AREA BDRY MARKINGS FADED 2408021300-2411302300
1/22/242310Z !ABY 01/072 ABY APRON CARGO APN CL MARKINGS FADED 2401222310-2501312200
FDC
10/7/241358Z !FDC 4/5638 ABY IAP SOUTHWEST GEORGIA RGNL, ALBANY, GA.
VOR RWY 17, AMDT 27C...
DME REQUIRED EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MAI VORTAC OUT OF SERVICE. 2410071358-2501151358EST
9/30/240612Z !FDC 4/2198 ABY IAP SOUTHWEST GEORGIA RGNL, ALBANY, GA.
ILS OR LOC RWY 5, AMDT 13B...
VOR RWY 17, AMDT 27C...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
PZD VOR/DME UNMONITORED. 2409300612-2410280612EST
4/19/242333Z !FDC 4/3224 ABY IAP SOUTHWEST GEORGIA RGNL, ALBANY, GA.
ILS OR LOC RWY 5, AMDT 13B...
AUTOPILOT COUPLED APPROACH NA BELOW 785.
2404192333-2604192333EST
7/18/232142Z !FDC 3/8660 ABY IAP SOUTHWEST GEORGIA RGNL, ALBANY, GA.
VOR RWY 17, AMDT 27C...
S-17 MDA 760/HAT 564; CIRCLING CAT A/B MDA 760/HAA 564.
JEVUG MINIMUM FIX ALTITUDE 760.
2307182142-2507182142EST
Yes
0500-2200
CITY OF ALBANY
3905 NEWTON ROAD, SUITE 100
ALBANY, GA 31701-7356
Phone: 229-302-1500
MR. DAVID HAMILTON
3905 NEWTON RD., SUITE 100
ALBANY, GA 31701
Phone: 229-302-1500
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
ABY
--
WHEN ATCT CLSD, ACTVT MALSR RWY 05; REIL RWY 35; PAPI RWY 23; HIRL RWY 05/23; MIRL RWY 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Minor
Low Pressure
None
Air Freight
Crop Dusting
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

6601 ft. x 148 ft.
ASPH
Good
GRVD
HIGH
57 /F/A/X/T
80,000lbs
135,000lbs
230,000lbs
--
  Runway 05 Runway 23
True Heading 42°222°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 31° 31' 47"N 31° 32' 35"N
Longitude 84° 11' 59"W 84° 11' 08"W
Elevation 196' 189'
Threshold Crossing Height 55 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 17/35

5219 ft. x 148 ft.
ASPH
Fair
GRVD
MED
29 /F/A/X/T
30,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 162°342°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 32' 29"N 31° 31' 40"N
Longitude 84° 11' 58"W 84° 11' 39"W
Elevation 194' 195'
Threshold Crossing Height 52 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-10FOR CD IF UNA TO CTC ON FSS FREQ, CTC JACKSONVILLE ARTCC AT 904-845-1592.
A110-2LOW FLYNG ACFT 3 MILES SOUTHEAST.
A110-4ACFT BYD 3 NM AND BLO 2000 FT ON APCH TO RWY 17 BRG 325-040 FROM ARPT NOT VISIBLE FM ATCT DUE TO TREES.
A110-5NUMEROUS BIRDS ON & WITHIN 5 NM OF ARPT SEP-FEB.
A110-6TWY H SOUTH OF CARGO RAMP OTS INDEFLY.
A110-7PERSONNEL AND EQUIPMENT MOWING GRASS ADJACENT TO ALL RUNWAYS AND TAXIWAYS APRIL 1- OCTOBER 30TH.
A110-8ACFT GTR THAN 350000 LBS GWT ARE RSTRD FM USING RWY 5/23 EXC 24HR PPR CALL AMGR 229-302-1500.
A110-9CTAF FREQ 120.25 UNREL FOR GROUND TO GROUND TWO WAY COM USE CAUTION ON CTAF.
SOUTHWEST GEORGIA RGNL (ICAO: KABY, IATA: ABY) is a public airport located in ALBANY, GA.
