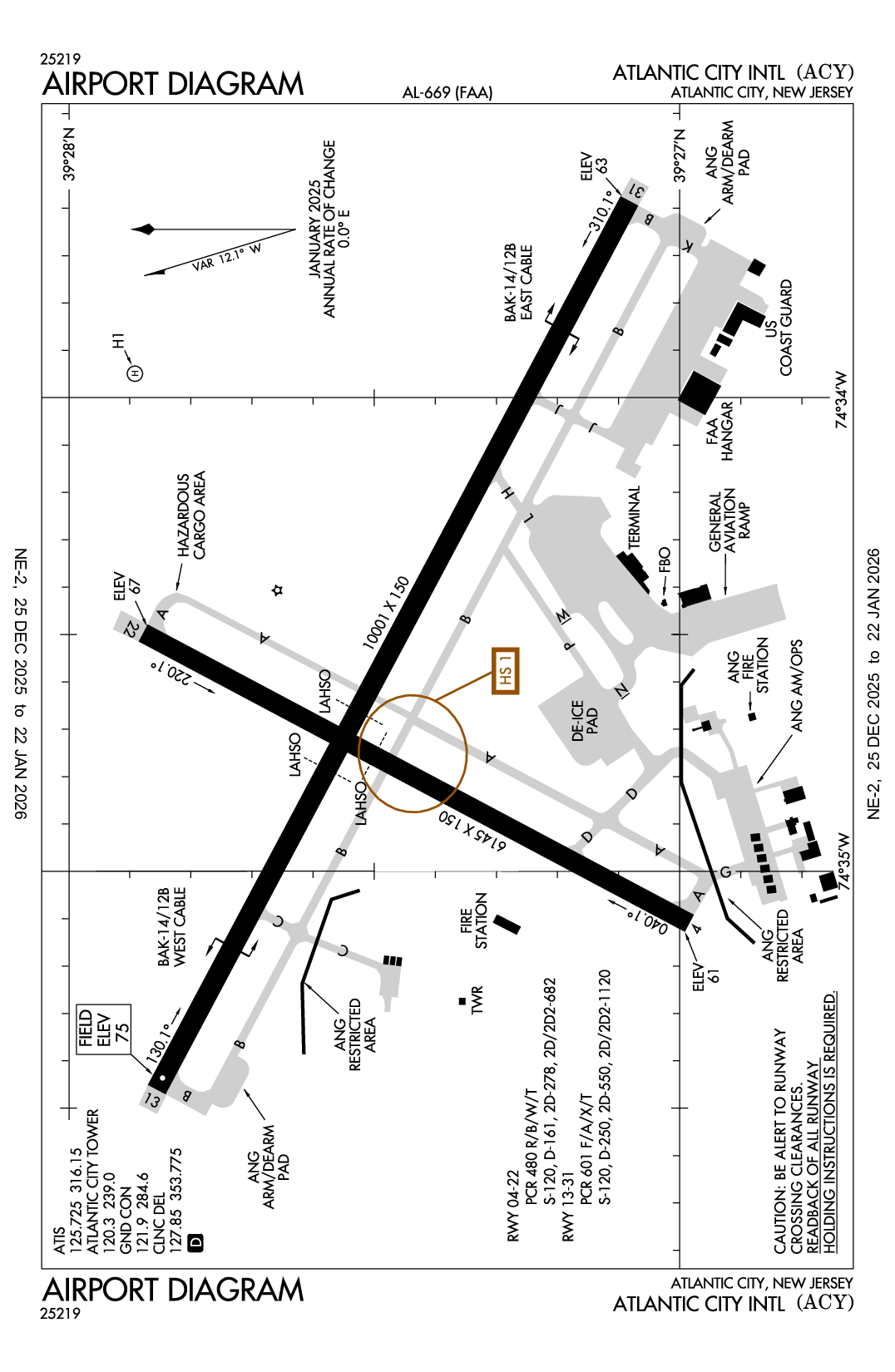

ATLANTIC CITY INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KACY
ICAO KACYIATA ACYLocal ACY
ATLANTIC CITY INTL
PublicPUB

9 miles NW of ATLANTIC CITY, NJ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 27' 27"N 74° 34' 38"W
Elevation
75' MSL
Pattern Alt
1075' MSL
Mag Variation
12°W
Declination
10°W
Fuel
JET A, JET A+, CILI, 100LL
FSS
MILLVILLE (MIV)
Sectional
WASHINGTON
ARTCC
WASHINGTON (ZDC)
Data Effective
10/1/26-10/29/26
KACY VFR
3:54 AM EDT
Clear
10sm
46°F
40°F
30.17"Hg
360° 5kts
AO2 SLP215 T00780044 $
METAR KACY 230754Z AUTO 36005KT 10SM CLR 08/04 A3017 RMK AO2 SLP215 T00780044 $
+ Add Your Business

KACY FBOs

Promote Listing
Signature Aviation
UNICOM: 122.775
Phone: (609) 383-3993
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 10/21
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.98 9.84
Fuel Notes
Prices include tax

KACY Restaurants

Meals-Up
Phone: (267) 225-6325
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 125.725
(609) 485-4444
ASOS (609) 277-2644

Common

CTAF 120.3
DURG ATC ZERO EVENTS, CTAF 120.3.

Clearance

Clearance Delivery 127.85

Ground

ATLANTIC CITY GROUND 121.9

Tower

ATLANTIC CITY TOWER 120.3

Approach

ATLANTIC CITY APPROACH 124.6
Initial Contact - 130-309
ATLANTIC CITY APPROACH 134.25
310-129

Departure

ATLANTIC CITY DEPARTURE 124.6
Initial Contact - 130-309
ATLANTIC CITY DEPARTURE 134.25
310-129

Operations

Operations 123.4
FAA OPS

Emergency

Emergency 121.5

Military

ANG OPS 140.7

Other

CLASS C 124.6
130-309
CLASS C 134.25
310-129

Terminal Area Forecast

KACY
Fri, 10/23 4:04 AM EDT
Fri, 10/23 4:00 AM EDT - Sat, 10/24 2:00 AM EDT
VFR
4:00 AM EDT - 5:00 AM EDT
Few 25,000'
6sm
010° 9kts
VFR
5:00 AM EDT - 11:00 AM EDT
Few 25,000'
6sm
010° 10kts
Gusts 19kts
VFR
11:00 AM EDT - 4:00 PM EDT
Few 25,000'
6sm
050° 11kts
Gusts 19kts
VFR
4:00 PM EDT - 2:00 AM EDT
Few 25,000'
6sm
050° 9kts
TAF KACY 230804Z 2308/2406 01009KT P6SM FEW250
   FM230900 01010G19KT P6SM FEW250
   FM231500 05011G19KT P6SM FEW250
   FM232000 05009KT P6SM FEW250
KACY
EffectiveExpiresCategoryNOTAM
Domestic
10/23/26
1300Z
10/23/26
1900Z
!ACY 10/081 ACY AIRSPACE UAS WI AN AREA DEFINED AS 392622N0743221W (2.4NM SE ACY) TO 392601N0743225W (2.5NM SE ACY) TO 392545N0743343W (2.6NM SE ACY) TO 392613N0743358W (2.7NM SE ACY) TO POINT OF ORIGIN SFC-195FT AGL 2610231300-2610231900
10/23/26
1230Z
10/23/26
2030Z
!ACY 10/070 ACY TWY A BTN APCH END RWY 22 AND RWY 13/31 CLSD 2610231230-2610232030
10/23/26
1230Z
10/23/26
2030Z
Runway!ACY 10/069 ACY RWY 04/22 CLSD 2610231230-2610232030
10/23/26
0120Z
11/13/26
2000Z
!ACY 10/082 ACY NAV VOR U/S 2610230120-2611132000
10/19/26
1826Z
10/26/26
2359Z
!ACY 10/076 ACY SVC TAR/SSR U/S 2610191826-2610262359
10/18/26
1545Z
2/15/27
1545Z
!ACY 10/074 ACY OBST TOWER LGT (ASR 1211751) 392433.10N0743237.70W (3.3NM SSE ACY) 218.8FT (169.9FT AGL) U/S 2610181545-2702151545
10/18/26
0735Z
10/25/26
0230Z
!ACY 10/073 ACY NAV ILS RWY 31 U/S 2610180735-2610250230
10/16/26
1312Z
1/31/27
2359Z
!ACY 10/065 ACY TWY A BTN APCH END RWY 04 AND TWY G NORTH EDGE IRREGULAR SFC 2610161312-2701312359
10/15/26
1125Z
1/15/27
2359Z
!ACY 10/059 ACY OBST RIG (ASN UNKNOWN) 392649N0743439W (0.64NM SSE ACY) 140FT (77FT AGL) FLAGGED AND LGTD 2610151125-2701152359
10/13/26
0217Z
11/27/26
0217Z
!ACY 10/051 ACY OBST TOWER LGT (ASR 1264968) 392752.70N0742956.20W (3.7NM E ACY) 283FT (223FT AGL) U/S 2610130217-2611270217
10/2/26
2010Z
12/31/26
2359Z
!ACY 10/010 ACY OBST POLE (ASN UNKNOWN) 392705N0743416W (0.4NM SE ACY) 160FT (100FT AGL) NOT LGTD 2610022010-2612312359
10/1/26
2317Z
12/31/26
2359Z
!ACY 10/006 ACY OBST BLDG LGT (ASN UNKNOWN) 392747N0743536W (0.86NM WNW ACY) 82FT (10FT AGL) U/S 2610012317-2612312359
9/24/26
1750Z
12/31/26
2000Z
!ACY 09/099 ACY AD AP FAA RAMP FUEL NOT AVBL 2609241750-2612312000
8/27/26
1206Z
11/26/26
0400Z
!ACY 08/121 ACY OBST TOWER LGT (ASR 1049923) 393249.30N0743817.50W (6.0NM NNW ACY) 570.9FT (503.9FT AGL) U/S 2608271206-2611260400
6/10/24
1300Z
!ACY 06/015 ACY OBST TOWER (ASN 2023-AEA-526-NRA) 392719N0743343W (0.7NM ESE ACY) 123FT (61FT AGL) LGTD 2406101300-PERM
6/10/24
1300Z
!ACY 06/014 ACY OBST TOWER (ASN 2023-AEA-524-NRA) 392739N0743418W (0.3NM NE ACY) 174FT (117FT AGL) LGTD 2406101300-PERM
6/10/24
1300Z
!ACY 06/013 ACY OBST TOWER (ASN 2023-AEA-2031-NRA) 392754N0743509W (0.6NM NW ACY) 125FT (61FT AGL) LGTD 2406101300-PERM
FDC
10/23/26
0128Z
11/13/26
2000Z
!FDC 6/1875 ACY IAP U.S. DOD ATLANTIC CITY INTL, ATLANTIC CITY, NJ.
COPTER ILS OR LOC/DME RWY 13, AMDT 1D...
HI - ILS Y OR LOC Y RWY 13, AMDT 4E...
ILS Z OR LOC Z RWY 13, AMDT 8E...
MISSED APPROACH: CLIMB TO 600 THEN CLIMBING LEFT TURN TO 2000 ON HEADING 076 AND VCN VOR/DME R-106 TO SMITS INT/VCN 29.13 DME AND HOLD,
ACY VOR OUT OF SERVICE. 2610230128-2611132000EST
10/23/26
0128Z
11/13/26
2000Z
!FDC 6/1873 ACY IAP ATLANTIC CITY INTL, ATLANTIC CITY, NJ.
ILS OR LOC/DME RWY 31, ORIG-E...
MISSED APPROACH: CLIMB TO 500 THEN CLIMBING RIGHT TURN TO 2000 VIA HEADING 130 AND VCN R-106 TO SMITS INT/29.13 DME AND HOLD.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
ACY VOR OUT OF SERVICE. 2610230128-2611132000EST
7/16/26
1929Z
!FDC 6/6226 ACY IAP ATLANTIC CITY INTL, ATLANTIC CITY, NJ.
RNAV (RNP) Z RWY 13, ORIG-C...
RNP 0.30 DA 458/HAT 383 ALL CATS.
2607161929-2807171929EST
Yes
ALL
SOUTH JERSEY TRANSPORTATION AUTH
SUITE 106
EGG HARBOR TOWNSHIP, NJ 08234
Phone: 609-645-7895
TIM KROLL
SUITE 100
EGG HARBOR TOWNSHIP, NJ 08234
Phone: 609-645-7895
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
ACY
--
--
N/A
Yes - Lighted
No
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Minor
High Pressure
None
Charter Service

Runway 04/22

6145 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH
480/R/B/W/T
120,000lbs
161,000lbs
278,000lbs
682,000lbs
  Runway 04 Runway 22
True Heading 28°208°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 26' 59"N 39° 27' 53"N
Longitude 74° 35' 07"W 74° 34' 30"W
Elevation 61' 67'
Threshold Crossing Height 50 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

10001 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
601/F/A/X/T
120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 13 Runway 31
True Heading 118°298°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 27' 51"N 39° 27' 05"N
Longitude 74° 35' 28"W 74° 33' 35"W
Elevation 75' 63'
Threshold Crossing Height 71 ft. AGL 69 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No Yes

Runway H1

102 ft. x 102 ft.

ASPH
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 39° 27' 53"N N/A
Longitude 74° 33' 57"W N/A
Elevation 56' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-11HIGH PER MIL ACFT OPERATING AT ARPT.
A110-12NOISE ABATEMENT PROCS IN EFCT CTC ARPT OPNS AT (609) 645-7895 EXT 4702.
A110-17MILITARY: ANG APRON PPR, CTC ANG BASE OPS C609-761-6009, FAX C609-761-6484, COMD POST C609-761-6001. LTD TRAN SVC AVBL 1100-2030Z++ TUE-FRI, CLSD SAT-MON AND HOL.
A110-18MILITARY: ANG: BASH PHASE II IN EFCT APR-OCT CTC BASE OPS ON 261.0 OR 140.7 FOR CURRENT BASH COND.
A110-19MILITARY: ANG: NSTD MRK ON ANG RAMPS: BLUE LINES DELINEATE F-16 WING TIP CLNC, YELLOW LINES AT HGR DOORS FOR PERS CLEAR ZONE.
A110-21AVOID CNTRLN LGT DUR CABLE ENGAGEMENT TO PREVENT TAILHOOK BOUNCE.
A110-22DURG ATC ZERO EVENTS, CTAF 120.3.
A110-23ANG ARM/DEARM PADS FOR MIL USE ONLY.
A110-24FOR ITINERANT MIL ACFT OPS PPR CTC ARPT OPS 609-645-7895 EXT 4702.
A110-25PILOTS CONDUCTING EFVS OPS; BE AWARE LED ALS IN USE RWY 13.
A110-26DE-ICING PAD FOR DE-ICING OPS ONLY. EXE CTC ARPT OPS 609-645-7895 EXT 4702.
A110-4FAA APRON PPR CALL 609-485-6482.
A110-6TWY C CLSD TO DUAL TANDEM & DOUBLE TANDEM EQUIPPED ACFT.
A110-7NO TRNG FLTS 2300-0700 LCL.
A110-9FOX & BIRDS ON & INVOF ARPT.
A30-H1PVT - EXPERIMENTAL USE ONLY. CTC FAA TECH CENTER AT 609-485-6675.
A76-CHTRFOR CHARTER OPNS CTC 609-645-7895 EXT 4702.
E111EXISTED PRIOR TO 1959.
E60-13_BAK-14BAK-14 BAK-12B (B) (1600')
E60-31_BAK-14BAK-14 BAK-12B (B) (1600')
E80US CUSTOMS USER FEE ARPT.CUSTOMS AVBL MON-FRI 0800-1700. PROVIDE MINIMUM 24 HR ADVANCE NOTICE TO ARRANGE FOR CUSTOMS. ALL CALLS TO CUSTOMS MON-FRI 0800-1700; PHONE 609-484-1610. US CUSTOMS FAX 609-484-1614.
ATLANTIC CITY INTL (ICAO: KACY, IATA: ACY) is a public airport located in ATLANTIC CITY, NJ, US.
