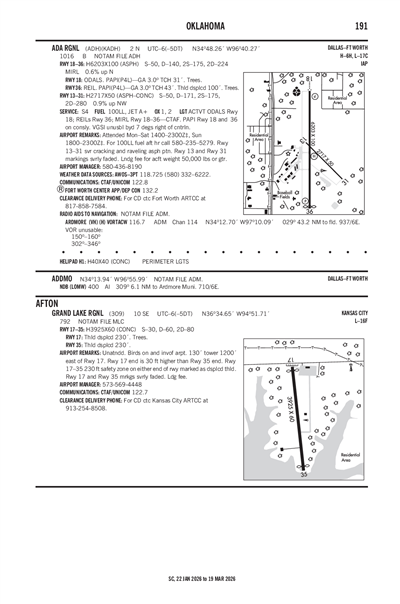

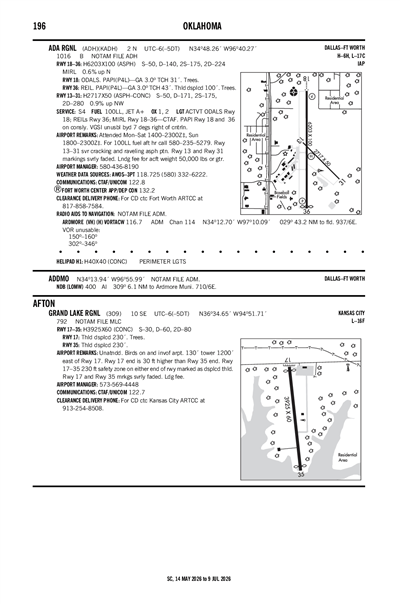

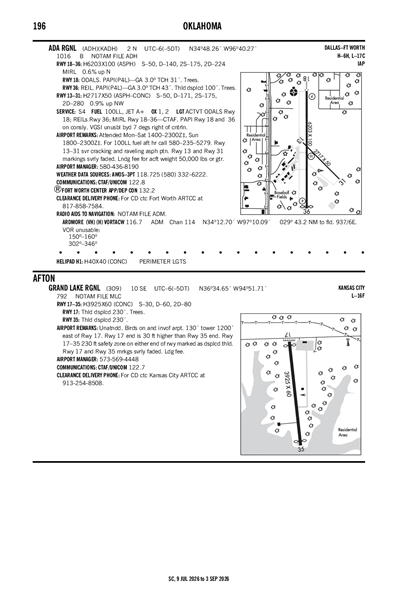

ADA RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KADH
ADA RGNL
PublicPUB

2 miles N of ADA, OK
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 48' 15"N 96° 40' 16"W
1016' MSL
2016' MSL
03E
Jet A, 100LL
MC ALESTER (MLC)
DALLAS-FT WORTH
FORT WORTH (ZFW)
6/16/22-7/14/22
KPVJ (28nm) VFR
10:55 PM CDT
Clear
10sm
80°F
64°F
29.96"Hg
140° 6kts
AO2 T02680179
KPVJ 010355Z AUTO 14006KT 10SM CLR 27/18 A2996 RMK AO2 T02680179

KADH FBOs, Flight Schools and Ground Support

Heartland Aviation
Freq: 122.8
Phone: (580) 421-7742
Other: (580) 235-5279
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 6/27
100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 7.00 6.25 6.30

KADH Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KADH Hotels

No hotels are listed for this airport.

KADH Restaurants

No restaurants are listed for this airport.

KADH Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
580-332-6222
118.725

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMLC (44nm)
Thu, 6/30 6:41 PM CDT
Thu, 6/30 7:00 PM CDT - Fri, 7/1 7:00 PM CDT
VFR
7:00 PM CDT - 10:00 AM CDT
Sky Clear
> 6sm
150° 4kts
VFR
10:00 AM CDT - 7:00 PM CDT
Scattered 6,000'
> 6sm
170° 6kts
KMLC 302341Z 0100/0124 15004KT P6SM SKC
   FM011500 17006KT P6SM SCT060
KADH
Domestic
6/29/220815Z !ADH 06/020 ADH OBST TOWER LGT (ASR 1251528) 344751.40N0965307.00W (10.6NM W ADH) 1405.2FT (350.1FT AGL) U/S 2206290815-2209270400
6/27/221332Z !ADH 06/019 ADH TWY D SOUTHWEST 450FT CLSD 2206271332-2207292359
6/16/220605Z !ADH 06/016 ADH OBST TOWER LGT (ASR 1318687) 350010.06N0965143.50W (15.18NM NW ADH) 1349FT (265FT AGL) U/S 2206160605-2207310605
6/8/222114Z !ADH 06/010 ADH SVC WX REP U/S 2206082114-2207152359
6/7/220843Z !ADH 06/007 ADH OBST TOWER LGT (ASR 1320070) 343848.90N0963122.20W (11.92NM SE ADH) 969FT (270FT AGL) U/S 2206070843-2207220842
6/5/221638Z !ADH 06/006 ADH OBST TOWER LGT (ASR 1288858) 344744.40N0965043.30W (8.6NM W ADH) 1401.6FT (339.9FT AGL) U/S 2206051638-2207051638
6/4/220510Z !ADH 06/005 ADH OBST TOWER LGT (ASR 1310621) 344904.70N0962942.70W (8.73NM E ADH) 1011FT (220FT AGL) U/S 2206040510-2207190510
6/3/220800Z !ADH 06/004 ADH OBST TOWER LGT (ASR 1018284) 345406.00N0964039.00W (5.8NM N ADH) 1718.5FT (724.7FT AGL) U/S 2206030800-2207180759
6/1/221245Z !ADH 06/001 ADH OBST TOWER LGT (ASR 1233422) 344750.00N0965301.00W (10.5NM W ADH) 1482.0FT (419.9FT AGL) U/S 2206011245-2208312359
5/24/220520Z !ADH 05/014 ADH OBST TOWER LGT (ASR 1010375) 344343.00N0964245.00W (5.0NM SSW ADH) 1508.2FT (390.1FT AGL) U/S 2205240520-2207242359
5/12/221343Z !ADH 05/010 ADH OBST TOWER LGT (ASR 1249058) 345415.00N0963946.00W (6.0NM NE ADH) 1299.9FT (370.1FT AGL) U/S 2205121343-2208022359
2/1/220501Z !ADH 01/021 ADH AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2202010501-2401050501
No
MON-SAT 0800-1700
SUN 1200-1700
CITY OF ADA
231 S TOWNSEND, 512 N. STOCKTON
ADA, OK 74820
Phone: 580-436-6300
CHRIS SOMERS
300 RAY STOUT BLVD, SUITE A
ADA, OK 74820
Phone: 580-436-8190
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
ADH
--
ACTVT ODALS RWY 18; REILS RWY 36; MIRL RWY 18/36 - CTAF. PAPI RWY 18 & 36 ON CONSLY.
Clear-Green
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
34
5
4
0
0
0
Major
Major
None
High & Low Pressure
Aircraft Rental
Annual Surveying

Runway 13/31

2717 ft. x 50 ft.
ASPH CONC
Poor



50,000lbs
171,000lbs
280,000lbs
--
  Runway 13 Runway 31
True Heading 135°315°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 34° 48' 21"N 34° 48' 02"N
Longitude 96° 40' 21"W 96° 39' 58"W
Elevation 1,004' 979'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

6203 ft. x 100 ft.
ASPH
Good

MED

50,000lbs
140,000lbs
224,000lbs
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 48' 48"N 34° 47' 46"N
Longitude 96° 40' 19"W 96° 40' 19"W
Elevation 1,016' 979'
Threshold Crossing Height 31 ft. AGL 43 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights ODALS
Centerline Lights
Runway End Identifier Lights No Yes

Runway H1

40 ft. x 40 ft.
CONC
Excellent

PERI

--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings NSTD
Markings Condition GOOD
Latitude 34° 48' 13"N N/A
Longitude 96° 40' 31"W N/A
Elevation 1,002' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
ADA RGNL (ICAO: KADH, IATA: ADH) is a public airport located in ADA, OK.
