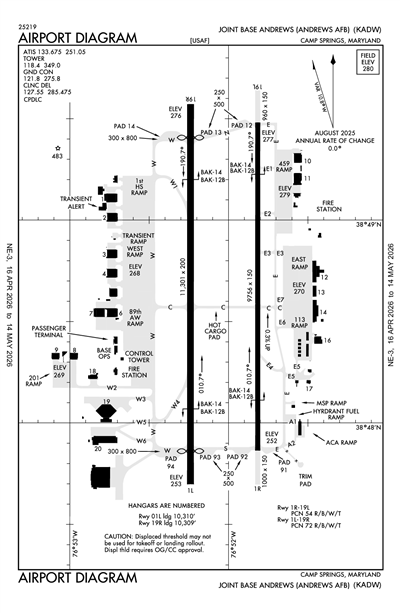

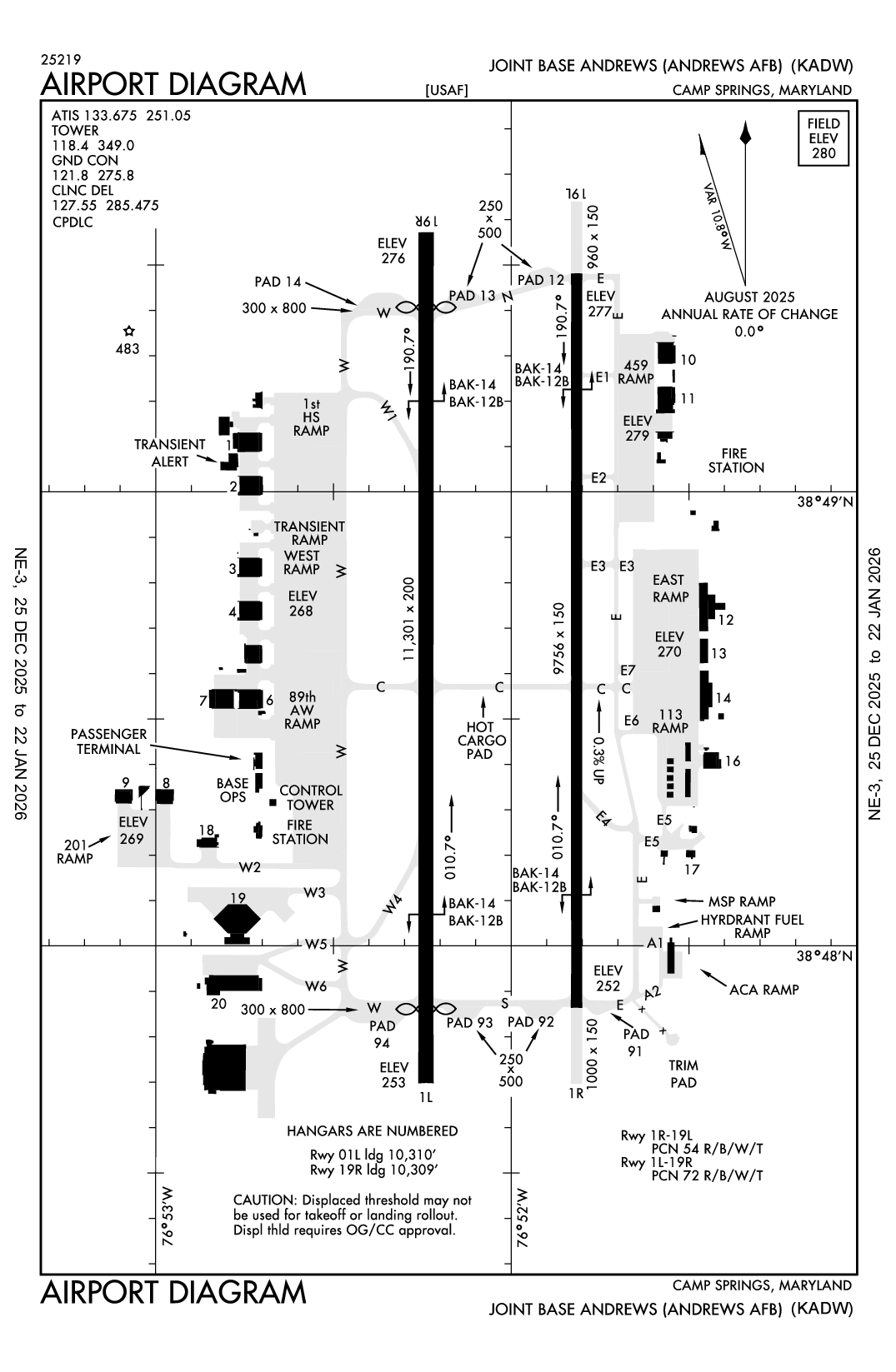

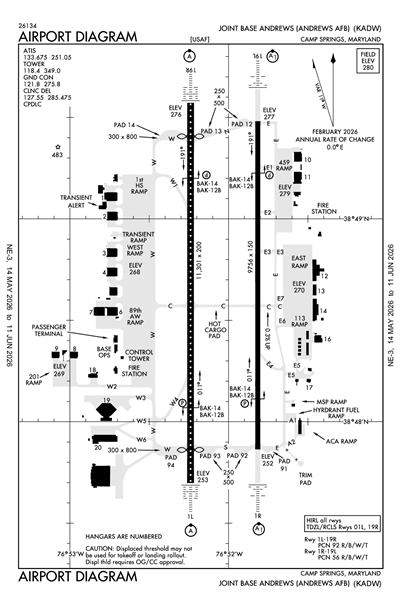

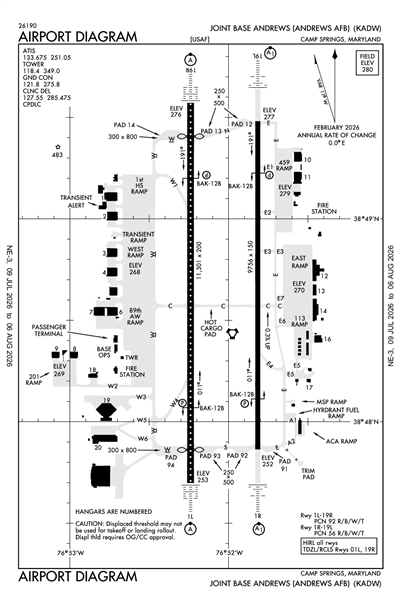

JOINT BASE ANDREWS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KADW
ICAO KADWIATA ADWLocal ADW
JOINT BASE ANDREWS
PrivatePVT

3 miles E of CAMP SPRINGS, MD, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 48' 39"N 76° 52' 03"W
Elevation
280' MSL
Pattern Alt
1280' MSL
Mag Variation
11°W
Declination
10°W
Fuel
None Listed
FSS
LEESBURG (DCA)
Sectional
WASHINGTON
ARTCC
WASHINGTON (ZDC)
Data Effective
9/3/26-10/1/26
KADW MVFR
2:55 PM EDT
Broken 17,000'
Broken 3,500'
Broken 2,600'
Scattered 2,000'
10sm
80°F
71°F
30.02"Hg
140° 10kts
AO2 BKN026 V SCT CIG 025 RWY19L SLP170 T02650217 $
METAR KADW 121855Z AUTO 14010KT 10SM SCT020 BKN026 BKN035 BKN170 27/22 A3002 RMK AO2 BKN026 V SCT CIG 025 RWY19L SLP170 T02650217 $
+ Add Your Business

KADW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

Digital ATIS 133.675

Clearance

Clearance Delivery 127.55

Ground

ANDREWS GROUND 121.8

Tower

ANDREWS TOWER 118.4

Arrival

FRDMM STAR 118.675
NUMMY STAR 118.675
SPISY STAR 133.75
TIKEE STAR 120.45
TRUPS STAR 118.675
VUDOO STAR 126.4

Approach

Ground Controlled Approach 125.35
POTOMAC APPROACH 128.0

Departure

JEFSN DP 118.95
LINCN DP 118.95
POTOMAC DEPARTURE 118.95
WEST
POTOMAC DEPARTURE 125.65
EAST

Emergency

Emergency 121.5

Military

AFRC OPS 143.8
COMD POST 141.55

Terminal Area Forecast

KADW
Sat, 9/12 1:00 PM EDT
Sat, 9/12 1:00 PM EDT - Sun, 9/13 7:00 PM EDT
MVFR
1:00 PM EDT - 5:00 PM EDT
Overcast 1,800'
6sm
30.03"Hg
130° 10kts
MVFR
Becoming 5:00 PM EDT - 10:00 PM EDT
Broken 12,000'
Broken 2,000'
6sm
29.97"Hg
130° 10kts
Gusts 15kts
MVFR
Becoming 10:00 PM EDT - 3:00 AM EDT
Light Showers and Rain
Overcast 14,000'
Broken 2,000'
4.97sm
29.94"Hg
120° 10kts
MVFR
Becoming 3:00 AM EDT - 7:00 AM EDT
Light Showers and Rain
Broken 14,000'
Scattered 3,000'
4.97sm
29.82"Hg
180° 5kts
VFR
Becoming 7:00 AM EDT - 9:00 AM EDT
Broken 14,000'
Scattered 1,500'
6sm
29.85"Hg
280° 8kts
MVFR
Becoming 9:00 AM EDT - 2:00 PM EDT
Broken 1,500'
6sm
29.88"Hg
310° 10kts
Gusts 15kts
VFR
Becoming 2:00 PM EDT - 7:00 PM EDT
Broken 4,000'
6sm
29.82"Hg
310° 10kts
TAF KADW 121700Z 1217/1323 13010KT 9999 OVC018 QNH3002INS
   BECMG 1221/1222 13010G15KT 9999 BKN020 BKN120 QNH2997INS
   BECMG 1302/1303 12010KT 8000 -SHRA BKN020 OVC140 QNH2994INS
   BECMG 1307/1308 18005KT 8000 -SHRA SCT030 BKN140 QNH2983INS
   BECMG 1311/1312 28008KT 9999 NSW SCT015 BKN140 QNH2984INS
   BECMG 1313/1314 31010G15KT 9999 BKN015 QNH2987INS
   BECMG 1318/1319 31010KT 9999 BKN040 QNH2983INS TX27/1220Z TN20/1309Z
KADW
EffectiveExpiresCategoryNOTAM
Domestic
9/15/26
1300Z
9/15/26
2000Z
!ADW 09/018 ADW NAV ILS RWY 19L LOC/GP U/S 2609151300-2609152000
9/15/26
1300Z
9/15/26
2000Z
!ADW 09/017 ADW NAV ILS RWY 01R LOC/GP U/S 2609151300-2609152000
9/15/26
0400Z
9/15/26
1000Z
!ADW 09/016 ADW NAV VOR NOT MNT 2609150400-2609151000
9/14/26
1200Z
9/14/26
2000Z
!ADW 09/013 ADW SVC TAR/SSR U/S 2609141200-2609142000
9/13/26
1100Z
9/13/26
1900Z
!ADW 09/023 ADW NAV ILS RWY 19L U/S 2609131100-2609131900
9/13/26
1100Z
9/13/26
1900Z
!ADW 09/022 ADW NAV ILS RWY 01R U/S 2609131100-2609131900
9/12/26
1502Z
9/18/26
0300Z
!ADW 09/021 ADW NAV ILS RWY 19L LOC U/S 2609121502-2609180300
9/8/26
2148Z
9/12/26
2355Z
!ADW 09/014 ADW NAV ILS RWY 01L GP U/S 2609082148-2609122355
8/4/26
0001Z
9/30/26
0300Z
!ADW 08/005 ADW NAV ILS RWY 19L GP U/S 2608040001-2609300300
3/16/26
2330Z
12/31/26
2359Z
Runway!ADW 03/054 ADW RWY 01L RVRM U/S DOD RVRT AVBL FOR MIL AND CIV USE 2603162330-2612312359
3/16/26
2330Z
12/31/26
2359Z
Runway!ADW 03/053 ADW RWY 19R RVRM U/S DOD RVRT AVBL FOR MIL AND CIV USE 2603162330-2612312359
Military
9/12/26
1124Z
9/26/26
2359Z
AerodromeAERODROME FIRE FIGHTING AND RESCUE CAPABILITY HAS BEEN DOWNGRADED TO RLS 10.
9/12/26
1110Z
9/12/26
1830Z
AerodromeAERODROME USE CAUTION GRASS CUTTERS WORKING IN GRASS AREA SOUTH OF TWY WHISKEY AND 01L/19R
9/12/26
0852Z
9/15/26
0852Z
M1812/26 NOTAMC M1811/26
9/11/26
2032Z
9/25/26
2359Z
AerodromeAERODROME FIRE FIGHTING AND RESCUE CAPABILITY HAS BEEN DOWNGRADED TO RLS 7-10.
9/11/26
2031Z
9/14/26
2031Z
M1809/26 NOTAMC M1805/26
9/11/26
0351Z
9/14/26
0351Z
M1807/26 NOTAMC M1801/26
9/10/26
1714Z
9/13/26
1714Z
M1804/26 NOTAMC M1799/26
9/10/26
1200Z
9/13/26
2200Z
AerodromeAERODROME EAST RAMP ROW 3 CLOSED.
9/10/26
1137Z
9/13/26
1137Z
M1800/26 NOTAMC M1793/26
9/10/26
0834Z
9/13/26
0834Z
M1798/26 NOTAMC M1796/26
9/10/26
0815Z
9/13/26
0815Z
M1797/26 NOTAMC M1795/26
9/9/26
1228Z
9/12/26
1228Z
M1792/26 NOTAMC M1786/26
9/9/26
0951Z
9/12/26
0951Z
M1791/26 NOTAMC M1788/26
9/1/26
1200Z
9/16/26
2000Z
USE CAUTION MEN AND EQUIPMENT ON THE 113-FIGHTER RAMP.
8/28/26
1016Z
11/23/26
2359Z
W4 INSTRUMENT HOLD SIGN OTS.
8/27/26
2002Z
10/7/26
2359Z
RunwayRWY 1R/19L, CRANE 1700FT EAST OF THE CENTERLINE , (HANGAR 14) 38-48-36.09N 76-51-28.73W, 184FT AGL/455FT MSL, MONDAY - FRIDAY 0700L-1500L (1100Z-1900Z)
8/26/26
1900Z
11/23/26
2359Z
AerodromeAERODROME MANDATORY HOLD SIGN ON TWY S UNSERVICABLE
8/26/26
1859Z
11/23/26
2359Z
AerodromeAERODROME ANDREWS ONE DEPARTURE: TAKEOFF MINIMUMS RWY 1L, 300-1 OR STANDARD WITH MINIMUM CLIMB OF 397FT/NM TO 700FT. TAKEOFF MINIMUMS RWY 1R, 300-1 OR STANDARD WITH MINIMUM CLIMB OF 558FT/NM TO 700FT. TEMPORARY CRANE 250FT AGL/490FT MSL 2969FT NORTH/NORTHEAST OF RWY 19L.
8/26/26
1856Z
11/23/26
2359Z
M1705/26 NOTAMN Q) ZDC/QXXXX/IV/NBO/A/000/999/3848N07652W005 A) KADW B) 2608261856 C) 2611232359 E) TACAN-B: CIRCLING MINS CAT AB 800-1 1/4 520 (600-1 1/4), CAT C 800- 1 1/2 520 (600-1 1/2). TEMPORARY CRANE 250FT AGL/490 FT MSL 2969FT NORTH/NORTHEAST OF RWY 19L.
8/26/26
1854Z
11/23/26
2359Z
ALL IAP CIRCLING MINIMA: CAT AB 800-1 520 (600-1), CAT C 800-1 1/2 520 (600-1 1/2). TEMPORARY CRANE 250FT AGL/490FT MSL 2969 FT NORTH/NORTHEAST OF RWY 19L.
8/26/26
1853Z
11/23/26
2359Z
M1701/26 NOTAMN Q) ZDC/QXXXX/IV/NBO/A/000/999/3848N07652W005 A) KADW B) 2608261853 C) 2611232359 E) JEFSEN TWO DEPARTURE: TAKEOFF MINIMUMS RWY 1R, 300-1 OR STANDARD WITH MINIMUM CLIMB OF 574FT/NM TO 700FT. TEMPORARY CRANE 250FT AGL/490FT MSL 2969FT NORTH/NORTHEAST OF RWY 19L.
8/26/26
1852Z
11/23/26
2359Z
AerodromeAERODROME RWY 19L: LNAV MDA MINS CAT AB 740/24 461 (500-1/2), CAT CDE 740/50 461 (500-1). TEMPORARY CRANE 250FT AGL/490FT MSL 2969FT NORTH/NORTHEAST OF RWY 19L
8/26/26
1851Z
11/23/26
2359Z
LINCN TWO DEPARTURE: TAKEOFF MINIMUMS RWY 1R, 300-1 OR STANDARD WITH MINIMUM CLIMB OF 574FT/NM TO 700FT. TEMPORARY CRANE 250FT AGL/490FT MSL 2969FT NORTH/NORTHEAST OF RWY 19L
8/26/26
1850Z
11/23/26
2359Z
AerodromeAERODROME ILS OR LOC RWY 19L: S-LOC MINS CAT AB 720/24 441 (500-1/2), CAT C 720/45 441 (500-7/8), CAT DE 720/45 441 (500-7/8). WHEN ALS INOP INCREASE CAT AB RVR TO 55, VIS TO 1 MILE; CAT CDE VIS TO 1 3/8 MILES. TEMPORARY CRANE 250FT GL/490FT MSL 2969FT NORTH/NORTHEAST OF RWY 19L
8/26/26
1849Z
11/23/26
2359Z
RunwayRWY 1R, CRANE 2969FT FROM DER 1230FT RIGHT OF THE CENTERLINE, 250FT AGL/490FT MSL.
8/26/26
1847Z
11/23/26
2359Z
RunwayRWY 1L, CRANE 2335FT FROM DER 3363FT OF CENTERLINE, 120FT AGL/387FT MSL
8/26/26
1846Z
11/23/26
2359Z
RunwayRWY 1R, CRANE 1888 FT FROM DER 1363 FT RIGHT OF THE CENTERLINE, 120 FT AGL/387 FT MSL
8/26/26
1842Z
11/23/26
2359Z
AerodromeAERODROME MORNING SIDE DEPARTURE: TAKEOFF MINIMUMS RWY 1R 300-1 OR STANDARD WITH MINIMUM CLIMB OF 558FT/NM TO 700FT. TEMPORARY CRANE 250FT AGL/490FT MSL 2969FT NORTH/NORTHEAST OF RWY 19L
8/26/26
1841Z
11/23/26
2359Z
M1685/26 NOTAMN Q) ZDC/QXXXX/IV/NBO/A/000/999/3848N07652W005 A) KADW B) 2608261841 C) 2611232359 E) AERODROME RWY 1L, CRANE 3416FT FROM DER 3231FT RIGHT OF THE CENTERLINE, 250FT AGL/490FT MSL.
8/26/26
1840Z
11/23/26
2359Z
AerodromeAERODROME USE CAUTION MEN AND EQUIPMENT SOUTH OF RWY 01L/19R IN THE CLEAR ZONE
8/26/26
1839Z
11/23/26
2359Z
M1681/26 NOTAMN Q) ZDC/QXXXX/IV/NBO/A/000/999/3848N07652W005 A) KADW B) 2608261839 C) 2611232359 E) AERODROME USE CAUTION MEN AND EQUIPMENT SOUTH OF RWY 01R/19L IN THE CLEAR ZONE
8/26/26
1832Z
11/23/26
2359Z
AerodromeAERODROME RUNWAY DISTANCE REMAINING MARKERS 5/4 LOCATED ON 01R/19L ADJECENT TO TWY CHARLIE OTS.
8/26/26
1831Z
11/23/26
2359Z
AerodromeAERODROME NORTH END RUNWAY DISTANCE REMAINING MARKER 2/7 LOCATED 01R/19L OTS.
8/24/26
1212Z
9/28/26
2145Z
AerodromeAERODROME PILOT TO DISPATCH INTERMITTENT
7/13/26
1442Z
10/10/26
2359Z
AerodromeAERODROME SEQUENCED FLASHING LIGHTS RWY 19L UNSERVICEABLE
7/13/26
1441Z
10/10/26
2359Z
AerodromeAERODROME RWY 01L: TORA: 9318, TODA 10710, ASDA 10710, LDA 9318
7/13/26
1438Z
10/10/26
2359Z
AerodromeAERODROME RWY 19R: TORA: 9318, TODA 10711, ASDA 10711, LDA 9318
7/7/26
0434Z
10/4/26
2359Z
AerodromeAERODROME OBSTACLE LIGHTS LOCATED ON MSP BLDG 2487 (38.801340N, -76.859912W) UNSERVICEABLE.
7/7/26
0429Z
10/4/26
2359Z
M1368/26 NOTAMN Q) ZDC/QXXXX/IV/NBO/A/000/999/3848N07652W005 A) KADW B) 2607070429 C) 2610042359 E) AERODROME OBSTACLE LIGHT LOCATED ON 113TH RAMP STADIUM LIGHT, SOUTHEAST OF HANGER 16 (38.8064265N, -76.8576348W) UNSERVICEABLE.
7/7/26
0427Z
10/4/26
2359Z
M1366/26 NOTAMN Q) ZDC/QXXXX/IV/NBO/A/000/999/3848N07652W005 A) KADW B) 2607070427 C) 2610042359 E) AERODROME ALL OBSTACLE LIGHTS LOCATED ON HANGER 14 (38.8090417N, -76.8577052W) UNSERVICEABLE.
7/7/26
0423Z
10/4/26
2359Z
AerodromeAERODROME OBSTACLE LIGHTS LOCATED ON RWY 19R WINDCONE (38.7993567N, -76.8722066W) UNSERVICEABLE
7/7/26
0420Z
10/4/26
2359Z
M1355/26 NOTAMN Q) ZDC/QXXXX/IV/NBO/A/000/999/3848N07652W005 A) KADW B) 2607070420 C) 2610042359 E) AERODROME OBSTACLE LIGHTS LOCATED ON 1ST HELI WINDCONE (38.8196641N, -76.8784441W) UNSERVICEABLE.
7/7/26
0418Z
10/4/26
2359Z
AerodromeAERODROME OBSTACLE LIGHTS LOCATED ON SOUTHEND OF HANGER 5 (38.8103883N, -76.8786952W) UNSERVICEABLE
7/7/26
0417Z
10/4/26
2359Z
AerodromeAERODROME OBSTACLE LIGHT LOCATED ON WEST RAMP STADIUM LIGHT ADJACENT TO 6 ROW (38.8089221N, -76.8779911W) UNSERVICEABLE.
7/7/26
0416Z
10/4/26
2359Z
M1350/26 NOTAMN Q) ZDC/QXXXX/IV/NBO/A/000/999/3848N07652W005 A) KADW B) 2607070416 C) 2610042359 E) AERODROME OBSTACLE LIGHT LOCATED ON WEST RAMP STADIUM LIGHT ADJACENT TO 10 ROW (38.8121371N, -76.8781215W) UNSERVICEABLE.
7/7/26
0416Z
10/4/26
2359Z
M1349/26 NOTAMN Q) ZDC/QXXXX/IV/NBO/A/000/999/3848N07652W005 A) KADW B) 2607070416 C) 2610042359 E) AERODROME OBSTACLE LIGHTS LOCATED ON RWY 01R WINDCONE (38.8006660N, -76.8649938W) UNSERVICEABLE
7/7/26
0415Z
10/4/26
2359Z
M1348/26 NOTAMN Q) ZDC/QXXXX/IV/NBO/A/000/999/3848N07652W005 A) KADW B) 2607070415 C) 2610042359 E) AERODROME OBSTACLE LIGHTS LOCATED ON RWY 01L WINDCONE (38.8215558N, -76.8725730W) UNSERVICEABLE.
7/7/26
0414Z
10/4/26
2359Z
AerodromeAERODROME OBSTACLE LIGHTS LOCATED ON RWY 19L WINDCONE (38.8214853N, -76.8652332W) UNSERVICEABLE.
7/7/26
0413Z
10/4/26
2359Z
AerodromeAERODROME OBSTACLE LIGHTS LOCATED ON HANGAR 1 (38.81832N, -76.87897W) UNSERVICEABLE.
7/2/26
0408Z
9/29/26
2359Z
AerodromeAERODROME SOUTH END RUNWAY DISTANCE REMAINING MARKER 3/6 LOCATED 01R/19L OTS
Yes
ALL
USAF
ANDREWS AFB
WASHINGTON, DC 20331
Phone: 301-981-1110
CHIEF AFLD MANAGEMENT
ANDREWS AFB
WASHINGTON, DC 20331
Phone: 301-981-9442
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
ADW
--
--
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
Low Pressure
Cargo Handling

Runway 01L/19R

11301 ft. x 200 ft.

CONC
GRVD
HIGH
92/R/B/W/T
--
--
--
--
  Runway 01L Runway 19R
True Heading 360°180°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 47' 42"N 38° 49' 34"N
Longitude 76° 52' 14"W 76° 52' 14"W
Elevation 253' 276'
Threshold Crossing Height 72 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights No No

Runway 01R/19L

9756 ft. x 150 ft.
ASPH
CONC
GRVD
HIGH
56/R/B/W/T
--
--
--
--
  Runway 01R Runway 19L
True Heading 360°180°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 47' 52"N 38° 49' 28"N
Longitude 76° 51' 49"W 76° 51' 49"W
Elevation 252' 277'
Threshold Crossing Height 63 ft. AGL 57 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-1BEARING STRENGTH RWY 01L/19R: S85 T220 ST175 SBTT518 TT327 TDT840 DDT800 TRT556.
A110-10FLUID: SP PRESAIR DE-ICE LPOX HPOX LOX.
A110-12OIL: SOAP.
A110-14TRAN ALERT: EXP DELAYS AT NGT, WKEND AND HOL.
A110-17RSTD: RWY 01R-19L B-747/AN-124 OPR PROH, EXC 89AW ACFT, DUE FOREIGN OBJECT DAMAGE POTENTIAL; WAIVER AUTHORITY IS 316 OG/CC. PPR EXC AMC, SAM, DOD COURIER SVC, & EVAC MSN DSN 858-3411. ALL ACFT FILING TO ADW MUST CALL FOR RAMP FREEZE INFO, RAMP FREEZES CLOSE AFLD UP TO 30 MIN, DELAYS ARE POSSIBLE.
A110-18RSTD: NO GENERAL AVN ACFT, NO AERO CLUB SUPPORT. NO ARR/DEP OF TRAN FTR ACFT WITH LIVE FORWARD FIRING MUNITIONS.
A110-19RSTD: ALL INBD ACFT CTC ANDREWS COMD POST (316 WG COMD POST) 1 HR OUT WITH DV CODES, LOAD MSG, BLOCKTIME, ETD AND RQR. AMC ACFT OPR RSTD DUR BIRD WATCH COND MODERATE (TKOF OR LDG PERMS ONLY WHEN DEP/ARR RTE AVOID IDENT BIRD ACT, NO LCL IFR/VFR TFC PAT ACT) AND SEVERE (TKOF OR LDG PROH WO OG/CC), CTC BASEOPS FOR CURRENT BIRD WATCH COND.
A110-2BEARING STRENGTH RWY 01R/19L: S85 T205 ST175 TT380 TDT800 DDT800 .
A110-20RSTD: CURRENT BIRD WATCH COND. E-4 ACFT RQR AFLD MGR APVL TO USE RWY 01R/19L DUE TO WEAK FEATURE AT APCH END RWY 01R. ALL TWYS ARE 75 FT WIDE EXC TWY E1 & TWY E2. TWY E BTN TWYS E1 & E4 ARE ONLY 50 FT WIDE. TWY E, N OF E3 CLSD TO ACFT WITH WG SPAN GREATER THAN 165' (C5 , B747, C17, KC10, ETC).
A110-21RSTD NAVY: AIRCREWS DESTN TO NAVY RAMP FILE "NAVY RAMP" IN REMARKS SECTION OF FLT PLAN.
A110-22CAUTION: EXTREMELY HVY VFR CONFLICTING TFC N AND S QUAD. DEER HAZ, DEER ARE ACT ON ANDREWS AFT, PILOTS RPT ANY ACT TO TWR/PTD. BIRD HAZ-EXP INCREASED BIRD ACT (PHASEII) FR SEP-OCT.
A110-23TFC PAT: BECAUSE OF EXTREMELY HVY AIR TFC TO THE W, ALL ACFT ON OVERHEAD PAT WILL ENTER FM THE 'E', REGARDLESS OF LDG RWY. OVERHEAD PAT 2000 FT, RECTANGULAR PAT 1500 FT, LGT ACFT 1000 FT, COPTER 800 FT.
A110-24TFC PAT: ACFT REQ VFR MULTI PAT MUST USE TWR VHF FREQ.
A110-25NS ABTMT: STRICT COMPLIANCE WITH PRO RQR. AFLD MGMT OPS DSN 858-3411, C301-981-3411.
A110-26NS ABTMT NAVY RAMP: TURBOPROP TAXI LO IDLE AND SECURE OUTBOARD ENG PRIOR TO RAMP ENTRY, EXM DUR ICE COND.
A110-27CSTM/AG/IMG NAV; CSTMS AVBL 1230-2130Z++, INCL HOL; ON CALL H24.
A110-28MISC: WINDS ARE EST DUE TO FMQ-13 WIND SENSORS BEING ACCURATE TO WITHIN ONLY +/- 4 KT. ATC/WX WILL NOT INCL/RELAY WIND CORR INTO FCST/PHRASEOLOGY. THEREFORE, AIRCREWS WILL INCORPORATE A +/- 4 KT ACCURACY INTO THEIR DECISION MAKING PROCESS FOR FLYING OPR.
A110-29MISC: ALL TRAN AFT WILL HOLD ON TWY W FOR FLW ME VEH PRIOR TO ENTERING PRK RAMP. FIRST 4300 FT AND LAST 325 FT RWY 01R CONCRETE. FTR/TRNG ACFT BRING ENG COVERS. ACFT WITH VIP EXP TRANSFER TO AF COPTER MUST CTC MUSSEL OPS (141.7 292.2) 15 MIN OUT IF ARR WILL BE DIFFERENT THAN SKED.
A110-3AOE.
A110-33ANG: PPR FOR SVCG AND USE OF PRK RAMPS. NO AVGAS OR RECIPROCATING ENG OIL AVBL, LTD MAINT. CTC 201 OPS DSN 857-7161/62, UHF 314.25; LCTD W SIDE ADW. 113 WG, DCANG DSN 857-4190/91, UHF 234.8; LCTD E SIDE ADW. NO TRAN MAINT AVBL.
A110-34ILS: AWL MLS UNUSE: CW BYD 220 DEG; INSIDE 2.5 DME CW BYD 210 DEG BLW 2.5 DEG. DISREGARD GUIDANCE SIGNAL FOUND CW BYD 230 DEG AND CCW BYD 150 DEG. AWL MLS ELEV UNUSE CW BYD 210 DEG ABV 12 DEG; CCW BD 170 DEG ABV 12 DEG.
A110-35COMMUNICATIONS-PMSV METRO: REMARKS: H24 WX SVC AVBL AT DSN 858-2840, C301-981-2840/5826. AN/FMQ-19 AUTOMATED OBSERVING SYS IN USE; AUGMENTED BY HUMAN OBSN WHEN NEC. IF WX FLT UNAVBL, REMOTE SVC AVBL FR 15 OPR WX SQUADRON DSN 576-9755 C618-256-9755.
A110-36CAUTION: VIS ABOVE 3 MILES HINDERED BY TREES. WIND FLOW FROM 200 DEG-300 DEG DISRUPED BY HANGAR ON SOUTHESAST SIDE OF AIRFIELD.
A110-37RSTD: OFFICIAL BUSINESS ONLY. PPRS FOR ALL AIRCRAFT. DVS, SAM, EVAC ARE EXEMPT FROM RESTRICTIONS HOWEVER REQUIRE PPR FOR TRACKING AND RAMP AVBL. DSN 858-3411. ALL TRAN ACFT MUST OBTAIN PPR NR FOR TRACKING AND RAMP AVBL VIA E-MAIL: 89OSS.OSA@US.AF.MIL OR DSN 858-3411/9442 OR C301-981-3411/9442 NO LESS THAN 48 HR PRIOR TO ARR.
A110-39RSTD: COMPASS ROSE CLSD EXC TO TOWED ACFT. PAD 12 CLSD. TWY E-4 LTD TO C130 AND C20/G5 AND SMALLER ACFT.
A110-4SVC: LGT: RWY 01L/19R VGSI AND ILS GLIDEPATH NOT COINCIDENTAL. RWY 01L/19R PAPI SET FOR HGT GROUP 4. RWY 01R/19L PAPI SET FOR HGT GROUP 4.
A110-40RSTD: FOR RON SVC CALL 316 WG COMD POST DSN 858-5058 OR C301-981-5058.
A110-41ANDREWS ATCT NOW PROVIDING PRE- DEPARTURE CLEARANCES (PDC) VIA TERMINAL DATA LINK. ACFT OPERATORS OR PILOTS WISHING TO PARTICIPATE MUST APPLY FOR SVC BY CONTACTING: FEDERAL AVIATION ADMINISTRATION, AERONAUTICAL DATA LINK PRODUCT LEAD, AND-370, 800 INDEPENDENCE AVENUE SW, WASHINGTON, DC 20591.
A110-42CAUTION: FLIGHT RESTRICTED ZONE AND SFRA IN THE WASHINGTON DC METROPOLITAN AREA. ALL NON-DOD ACFT MUST CTC. TRANSPORTATION SECURITY ADMINISTRATION FOR SFRA WAIVER IAW ZDC NOTAMS 5-7 DAYS PRIOR.
A110-43RSTD: AM OPS DOES NOT HAVE COMSEC STOR FAC; TRAN CREWS SHOULD PLAN TO ARR WITH APPROPRIATE AMT OF COMSEC TO CMPLT MSN; COMSEC CAN BE STORED AT COMD POST; DSN 858-5058,C301-981-5058.
A110-44RSTD: RWY 01L/19R SOUTH END UNDERRUN/ORVERRUN UNUSBL DUE TO PAVEMENT DEGRADATION.
A110-45ANS ABATEMENT: 0000-1100Z++, DLY, NO HELO OVFT OR TFC PAT W OF RWY 01L/19R (OVER BASE HOUSING) BLW 800 FT AGL.
A110-46CAUTION: OBST ERECTED: CRANE 572 FT MSL W OF AFLD AT NEW BRAC FAC (N38 48 51.67 W076 53 22.92).
A110-47REMARKS-CAUTION: OBST (ACFT TAILS) ENCROACH UPON 7:1 TRNS SFC; WESTSIDE, BTN PRK ROWS 1-12, TAIL HGTS MAY ENCROACH BY 16 FT 7IN. EAST RAMP, TAIL HGTS MAY ENCROACH BY 51 FT 6IN.
A110-48RSTD: ALL JET ACFT ARE ADVS TO TAXI S OF TWY SIERRA CNTRLN DUE TO PAVEMENT DEGRADATION.
A110-49RSTD: CTC 89 OSS AM OPS FOR WAIVER DSN 858-3411.
A110-5SERVICE-A-GEAR: RWY 01R-19L NORTH AND SOUTH MB60 A-G UNSVC.
A110-50REMARKS-RSTD: RWY 01L/19R LENGTH INCLUDING DSPLCD THR AREAS IS 10918 FT X 200 FT. OPR USE OF RWY 01L/19R DSPLCD THR AREAS FOR TKOF AND/OR LDG ROLLOUT SPECIFICALLY AUTH FOR PRESIDENTIAL AIRLIFT GROUP (PAG), 459 ARW ACFT, 1 ACCS AND OTHER 89 OG/CC APVD ACFT. NORTHERNMOST 400 FT OF OVRN DSPLCD THR AREAS CAN ACCOMMODATE ONLY IDLE THRUST JET BLAST. ONLY SOUTHERNMOST 600 FT OF RWY 19R DSPLCD THR AREAS (NORTH END OF RWY 01L/19R) IS USBL FOR TKOF (I.E. POINT AT WHICH TKOF POWER CAN BE APPLIED) DUE TO PROXIMITY OF LOC ANT ARRAY INSTALL 1200 FT FM RWY 19R LDG THR.
A110-52CAUTION: EFFECTIVE RWY 01L/19R (BTN DISPL THLD) AVBL FOR TKOF AND LDG IS 9318 FT. DO NOT LAND PRIOR TO MRK DISPL THLD, OVERRUN MAY BE USED FOR LDG ROLL OUT/EMERGENCY STOPPING. OFFL TERPS END OF RWY FOR OBST PROTECTION IS MRK THLD. DO NOT USE OPPOSITE END RUNWAY END FOR TKOF COMPUTATIONS OR TKOF ROLL. RWY 01L/19R DISPL THLD TKOFF USE RSTD TO PRESIDENTIAL AIRLIFT GP (PAG), 459 ARW ACFT, 1 ACCS ACFT, OR WITH 89 OG/CC APVL. OG/CC APVL RQR FOR USE OF THE DISPL THLD FOR TKOF OR LDG.
A110-53SERVICE-FUEL: AVAIL FUEL CODE A++.
A110-54MISC: FOR FLT PLANNING, USE DCA PREFERRED IFR ROUTES LCTD AT HTTP://WWW.FLY.FAA.GOV/RMT/N.FDC-PREFERRED-ROUTES-DATABASE.JSP.
A110-56REMARKS-RSTD: RWY 01L/19R LEN OF 11318 FT IS FOR PRESIDENTIAL AIRLIFT GP (PAG), 459 ARW ACFT & 1 ACCS ACFT & OTHER 89 OG/CC APVD ACFT OPS. APVL FOR USE OF THE DSPLCD THRS FOR TKOF OR LDGS RQR 89 OG/CC APVL.
A110-57NO PRACTICE APCH BTN 0300-1100Z++, ALL ARR ACFT EXPECT FULL STOP LDG. QUIET HR NORMALLY 0300-1100Z++.
A110-58MISC-NAVY: EAST/NAVY SIDE TRAN SVC NOT AVBL 24/7. EXC FOR DV FLT NAVY HQ BLDG OPEN 1230-2130Z++ MON-FRI. FOR AFTER HR ARRIVALS CTC NAFW AT C240-381-2739/C240-857-4880.
A110-59CSTMS/AG/IMG: CBP RQR THE FOLLOWING FORMS FOR ARR ACFT - CBP FORM 7507 (11/12) GEN DECLARATION, CBP FORM 6059B (04/14) CUSTOMS DECLARATION LCTD HTTPS://WWW.CBP.GOV/NEWSROOM/PUBLICATIONS/FORMS.
A110-6JASU: (A/M32A-86) 9(AM32-95).
A110-60RSTD: KADW RSTD TO OFFL BUS ONLY (OBO).
A110-61RSTD: ASDE IN USE. OPR TRANSPONDERS WITH ALT REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLE IN CTL MOVEMENT AREA.
A110-63MISC: RWY 01L/19R GROOVED.
A110-64COMMUNICATIONS-PTD: O/S UFN.
A110-65COMMUNICATIONS-COMD POST: VHF O/S UFN.
A110-66RSTD: RWY 01L-19R DISPL THLD TKOFF OR LDG USE RSTD TO PRESIDENTIAL AIRLIFT GP(PAG) 459 ARW ACFT 1ACCS ACFT OR WITH 89 OG/CC APVR.
A110-67WEST RAMP ROWS 2, 3, AND 4 CLOSED WHEN DV MOVEMENT AIRCRAFT PRESENT ON ROW 5.
A110-68RWY 01L/19R MANDATORY RWY HOLD SIGNS AT END INTERSECTIONS OF TXWYS N, S, AND W CONTAIN INCORRECT LEGEND. RWY 01L/19R AND RWY 01R/19L HOLD SIGNS AT INSTRUMENT CRITICAL AREAS ON TXWYS W, N, S, AND E CONTAIN INCORRECT LEGEND.
A110-69DURING WINTER WEATHER EVENTS AIRCREW MAY RECEIVE AIRFIELD STATUS INFORMATION AT HTTP://RT3GRIP.COM/ANDREWS/LOGIN.PHP AFTER RETRIEVING THE LOGIN INFORMATION FROM AM OPS AT DSN 858-9442 OR C301-981-9442.
A110-8FUEL: EXP 30 MIN DELAY. AIRCREW OF TRANSIENT AIRCRAFT REQUIRING POWER ON REFUELING MUST ASSIST IN REFUELING. J8.
A110-9FUEL NAVY: J8-AVBL O/R EXP MIN 1 HR DELAY.
A30-01L/19RRWY 19R AVL TKOF DIST INCL HARDENED OVRN IS 10918 FT X 200 FT.
E147OVERHEAD PAT 2000(1720), RECTANGULAR PAT 1500(1220), LGT ACFT & HELICOPTER 1000(720).
E60-01L_BAK-141BAK-14 BAK-12B(B) (1240 FT).
E60-01R_BAK-14BAK-14 BAK-12B(B) (1500 FT).
E60-19L_BAK-14BAK-14 BAK-12B(B) (1537 FT).
E60-19R_BAK-14BAK-14 BAK-12B(B) (2240 FT).
JOINT BASE ANDREWS (ICAO: KADW, IATA: ADW) is a private airport located in CAMP SPRINGS, MD, US.
