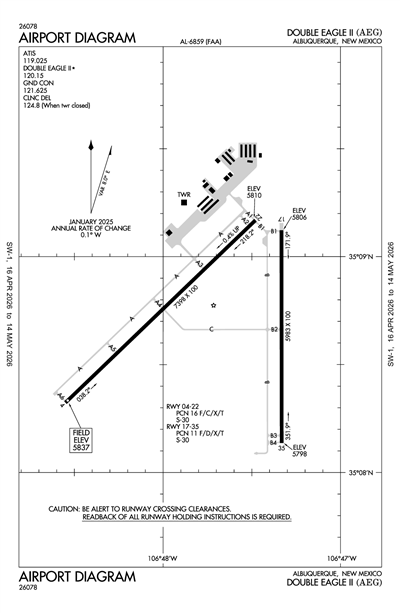

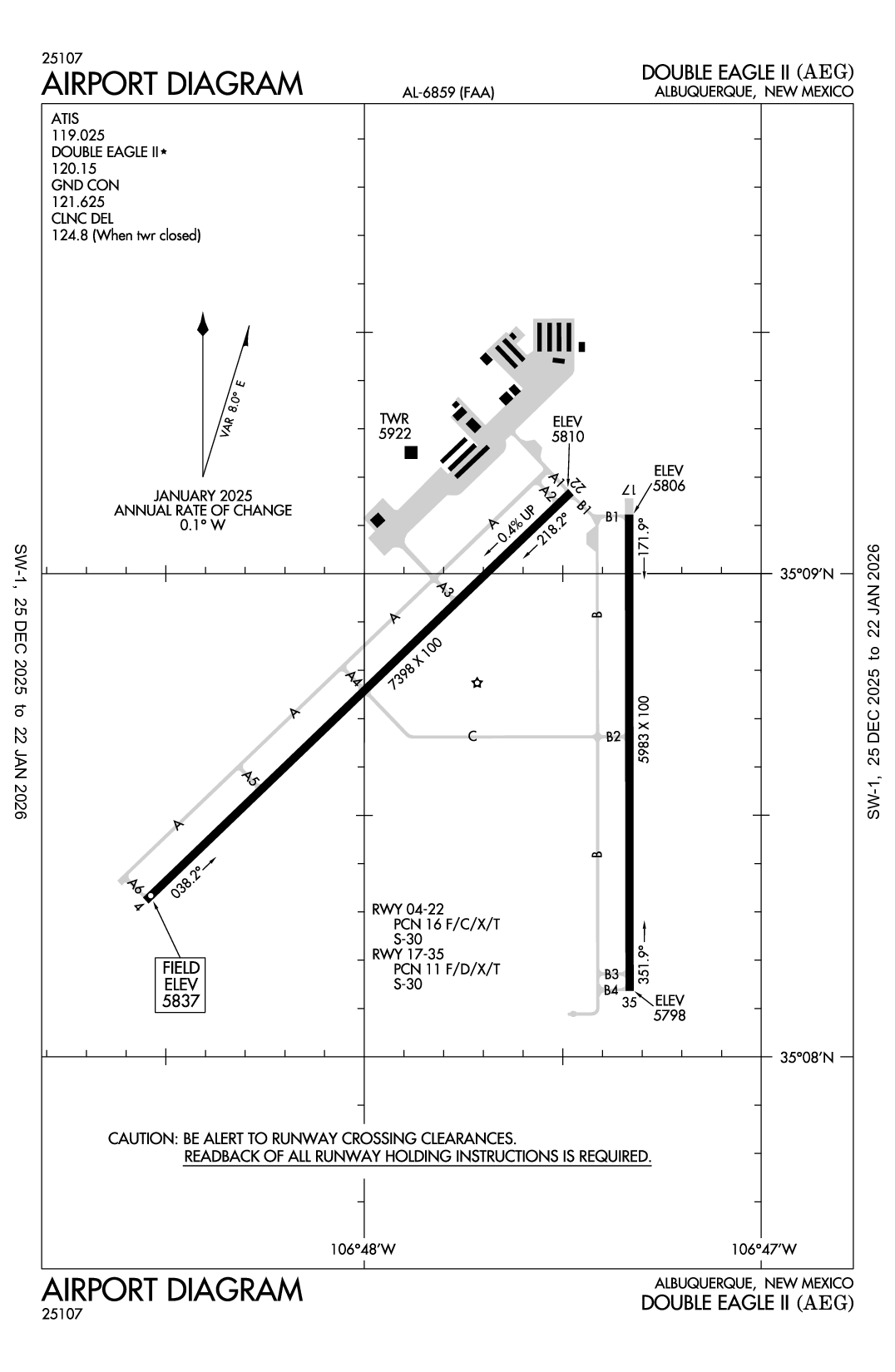

DOUBLE EAGLE II - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAEG
DOUBLE EAGLE II
PublicPUB

7 miles NW of ALBUQUERQUE, NM
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 08' 42"N 106° 47' 43"W
5837' MSL
6837' MSL
11E
JET A-1, 100LL
ALBUQUERQUE (ABQ)
ALBUQUERQUE
ALBUQUERQUE (ZAB)
11/27/25-12/25/25
KAEG VFR
12:15 AM MST
Clear
10sm
27°F
18°F
30.16"Hg
340° 7kts
AO2 T10271077
METAR KAEG 050715Z AUTO 34007KT 10SM CLR M03/M08 A3016 RMK AO2 T10271077
+ Add Your Business

KAEG FBOs

Promote Listing
Bode Aviation
UNICOM: 129.6
Phone: (505) 352-0292
No Rating Available
2 Reviews (Read | Sign In To Write)
2 out of 2 Recommend
Avfuel
As of 11/25
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.15 6.68
Full Serve 6.40 6.68
Fuel Notes
Prices include tax

KAEG Aircraft Service & Maintenance

Promote Listing
Air One Systems LLC
Phone: (505) 839-2284
Fax: (505) 839-2284
No Rating Available
0 Reviews (Read | Sign In To Write)

KAEG Other Aviation Services

Promote Listing
Aspen Avionics Inc.
Phone: (505) 856-5034
Fax: (505) 314-5440
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 120.15

ATIS

ATIS
 119.025

Ground

GND/P
 121.625

Tower

LCL/P
 120.15

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KAEG
Thu, 12/4 10:29 PM MST
Thu, 12/4 11:00 PM MST - Fri, 12/5 11:00 PM MST
VFR
11:00 PM MST - 10:00 AM MST
Sky Clear
6sm
310° 7kts
VFR
10:00 AM MST - 5:00 PM MST
Scattered 20,000'
Few 12,000'
6sm
310° 10kts
VFR
5:00 PM MST - 11:00 PM MST
Few 20,000'
6sm
310° 6kts
TAF KAEG 050529Z 0506/0606 31007KT P6SM SKC
   FM051700 31010KT P6SM FEW120 SCT200
   FM060000 31006KT P6SM FEW200
KAEG
EffectiveExpiresCategoryNOTAM
Domestic
12/3/25
1646Z
4/2/26
1646Z
!AEG 12/003 AEG OBST TOWER LGT (ASR 1057625) 345725.20N1071057.80W (22.1NM WSW AEG) 5867.5FT (363.8FT AGL) U/S 2512031646-2604021646
12/2/25
2326Z
1/1/26
1700Z
!AEG 12/002 AEG OBST TOWER LGT (ASR 1027941) 350108.70N1064902.00W (7.6NM S AEG) 5907.8FT (216.9FT AGL) U/S 2512022326-2601011700
11/12/25
1937Z
1/29/26
2300Z
!AEG 11/007 AEG NAV ILS RWY 22 U/S 2511121937-2601292300
11/12/25
1936Z
1/29/26
2300Z
!AEG 11/006 AEG NAV ILS RWY 22 DUDLE LOM U/S 2511121936-2601292300
11/12/25
1339Z
12/6/25
2355Z
!AEG 11/005 AEG AIRSPACE SEE ABQ 11/162 UAS DLY SR-SS
2511121339-2512062355
10/29/25
1320Z
1/9/26
2300Z
Runway!AEG 10/033 AEG RWY 22 ALS U/S 2510291320-2601092300
10/29/25
1300Z
1/9/26
2300Z
Runway!AEG 10/032 AEG RWY 04 PAPI U/S 2510291300-2601092300
10/28/25
1646Z
1/9/26
2300Z
!AEG 10/029 AEG TWY C CLSD 2510281646-2601092300
10/28/25
1300Z
1/9/26
2300Z
!AEG 10/028 AEG TWY A BTN TWY A2 AND TWY A6 CLSD 2510281300-2601092300
10/28/25
1300Z
1/9/26
2300Z
Runway!AEG 10/027 AEG RWY 04/22 CLSD 2510281300-2601092300
10/2/25
1325Z
1/1/26
2300Z
!AEG 10/002 AEG TWY A LGT BTN TWY A1 AND TWY A6 NOT STD 2510021325-2601012300
10/2/25
1325Z
1/1/26
2300Z
!AEG 10/001 AEG TWY A SIGNS BTN TWY A1 AND TWY A6 NOT STD 2510021325-2601012300
5/9/25
1213Z
2/2/26
2300Z
!AEG 05/005 AEG APRON SOUTH RAMP WIP CONST ADJ NW EDGE FENCE AROUND SITE 2505091213-2602022300
FDC
10/31/25
2019Z
!FDC 5/9738 AEG IAP DOUBLE EAGLE II, ALBUQUERQUE, NM.
ILS OR LOC RWY 22, AMDT 3A...
S-LOC 22: NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
MISSED APPROACH: CLIMB TO 7500 THEN CLIMBING RIGHT TURN TO 9000 ON ABQ VORTAC R-316 TO AWASH AND HOLD.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
DUDLE (AE) LOM OUT OF SERVICE.
2510312019-2606122019EST
Yes
0600-1900
FOR ATTENDANT AFT HRS CALL 505-884-4530.
CITY OF ALBUQUERQUE
PO BOX 9948
ALBUQUERQUE, NM 87119
Phone: (505) 244-7888
GAVINO GALLEGOS
PO BOX 9948
ALBUQUERQUE, NM 87119
Phone: 505-259-8113
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
AEG
--
ACTVT MALSR RWY 22; REIL RWY 17 & 35; PAPI RWY 04 & 17; MIRL RWY 04/22 & 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
Major
Major
High Pressure
High Pressure
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental

Runway 04/22

7398 ft. x 100 ft.
ASPH
Good
PFC
MED
16 /F/C/X/T
30,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 46°226°
Traffic Pattern Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 08' 19"N 35° 09' 10"N
Longitude 106° 48' 33"W 106° 47' 29"W
Elevation 5,837' 5,810'
Threshold Crossing Height 52 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights

Runway 17/35

5983 ft. x 100 ft.
ASPH
Excellent
NONE
MED
11 /F/D/X/T
30,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 09' 07"N 35° 08' 08"N
Longitude 106° 47' 20"W 106° 47' 20"W
Elevation 5,806' 5,798'
Threshold Crossing Height 52 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2WILDLIFE ON AND INVOF ARPT.
A110-5LIVE FIRE RANGE 1.6NM WEST OF THE APPROACH END OF RWY 04 AVOIDANCE ADVISED.
DOUBLE EAGLE II (ICAO: KAEG, IATA: AEG) is a public airport located in ALBUQUERQUE, NM.
