KAFF
ICAO KAFFIATA AFFLocal AFF
USAF ACADEMY DAVIS AIRFIELD
PrivatePVT

10 miles N of COLORADO SPRINGS, CO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 58' 24"N 104° 49' 12"W
Elevation
6576' MSL
Pattern Alt
7576' MSL
Mag Variation
8°E
Declination
11°E
Fuel
None Listed
FSS
DENVER (DEN)
Sectional
DENVER
ARTCC
DENVER (ZDV)
Data Effective
10/1/26-10/29/26
KAFF VFR
9:56 PM MDT
Broken 13,000'
Broken 11,000'
10sm
55°F
47°F
30.15"Hg
Calm
AO2A SLP147 T01250082 PWINO $
METAR KAFF 230356Z 00000KT 10SM BKN110 BKN130 13/08 A3015 RMK AO2A SLP147 T01250082 PWINO $
+ Add Your Business

KAFF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 128.525

Common

CTAF 124.15

Ground

ACADEMY GROUND 118.125
OPR SR OR 1245Z++ (WHICHEVER IS LATER) TO SS MON-FRI, 1430Z++ TO 2130Z++ SAT, EXCLUDING SUN AND HOL.

Tower

ACADEMY TOWER 124.15
OPR SR OR 1245Z++ (WHICHEVER IS LATER) TO SS MON-FRI, 1430Z++ TO 2130Z++ SAT, EXCLUDING SUN AND HOL.

Operations

Operations 127.15
SKYTRAIN

Emergency

Emergency 121.5

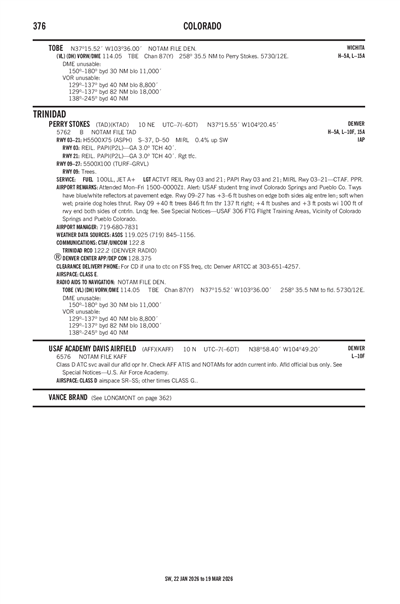

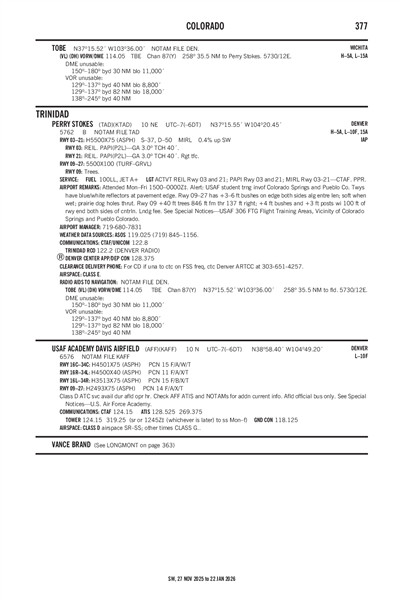

FAA A/FD Pages

Terminal Area Forecast

KAFF
Thu, 10/22 5:12 PM MDT
Thu, 10/22 1:00 PM MDT - Fri, 10/23 7:00 PM MDT
VFR
1:00 PM MDT - 6:00 PM MDT
Showers in vicinity
Broken 20,000'
Broken 12,000'
Scattered 7,000'
6sm
30.15"Hg
170° 14kts
Moderate, Clear Air, Occasional: 3,000 - 11,000'
VFR
Temporary 2:00 PM MDT - 7:00 PM MDT
Light Showers and Rain
Broken 6,000'
N/A
210° 15kts
Gusts 25kts
Moderate, Clear Air, Occasional: 3,000 - 9,000'
VFR
Becoming 6:00 PM MDT - 3:00 AM MDT
Light Showers and Rain
Broken 6,000'
6sm
30.00"Hg
160° 14kts
Moderate, Clear Air, Occasional: 3,000 - 9,000'
VFR
Becoming 3:00 AM MDT - 8:00 AM MDT
Showers in vicinity
Broken 20,000'
Broken 12,000'
Scattered 7,000'
6sm
30.06"Hg
140° 9kts
Moderate, Clear Air, Occasional: 2,000 - 11,000'
VFR
Becoming 8:00 AM MDT - 11:00 AM MDT
Scattered 12,000'
6sm
30.03"Hg
160° 14kts
Moderate, Clear Air, Occasional: 2,000 - 11,000'
VFR
Becoming 11:00 AM MDT - 5:00 PM MDT
Few 12,000'
6sm
30.00"Hg
190° 15kts
Gusts 25kts
Moderate, Clear Air, Occasional: 3,000 - 9,000'
VFR
Becoming 5:00 PM MDT - 7:00 PM MDT
Few 12,000'
6sm
30.00"Hg
170° 14kts
Moderate, Clear Air, Occasional: 3,000 - 10,000'
TAF COR KAFF 222312Z 2219/2401 17014KT 9999 VCSH SCT070 BKN120 BKN200 520308 QNH3014INS WND 040V260
   TEMPO 2220/2301 21015G25KT -SHRA BKN060 610709 520009
   BECMG 2300/2301 16014KT 9999 -SHRA BKN060 610609 520009 QNH3001INS
   BECMG 2309/2310 14009KT 9999 VCSH SCT070 BKN120 BKN200 520209 QNH3006INS WND 060V200
   BECMG 2314/2315 16014KT 9999 NSW SCT120 520209 QNH3003INS
   BECMG 2317/2318 19015G25KT 9999 FEW120 520009 QNH2999INS
   BECMG 2323/2324 17014KT 9999 FEW120 520307 QNH3000INS TX21/2221Z TN09/2312Z LAS
KAFF
EffectiveExpiresCategoryNOTAM
Military
10/25/26
1319Z
10/25/26
2200Z
Taxiway!KAFF M0577/26 AFF TWY H CLSD BETWEEN RWY 09/27 TO TWY G 2610251319-2610252200
10/25/26
1319Z
10/25/26
2200Z
Runway!KAFF M0575/26 AFF RWY 16C/34C CLSD 2610251319-2610252200
10/25/26
1319Z
10/25/26
2200Z
Runway!KAFF M0573/26 AFF RWY 16R/34L CLSD 2610251319-2610252200
10/25/26
1319Z
10/25/26
2200Z
Apron!KAFF M0571/26 AFF APRON SPLA CLSD LANES 1-4. 2610251319-2610252200
10/25/26
1319Z
10/25/26
2200Z
Apron!KAFF M0569/26 AFF APRON MIDFIELD APRON CLSD 2610251319-2610252200
10/22/26
1351Z
10/25/26
1351Z
M0576/26 NOTAMC M0566/26
10/22/26
1350Z
10/25/26
1350Z
M0574/26 NOTAMC M0563/26
10/22/26
1349Z
10/25/26
1349Z
M0572/26 NOTAMC M0564/26
10/22/26
1349Z
10/25/26
1349Z
M0570/26 NOTAMC M0567/26
10/22/26
1348Z
10/25/26
1348Z
M0568/26 NOTAMC M0565/26
10/21/26
1200Z
12/17/26
0100Z
OBST CRANE 39°03?45.20494?N, 104°51?07.38581?W MAX HEIGHT 220' AGL. MON-SAT 1200-0000Z; 150' AGL ALL OTHER TIMES. FLAGGED DAY/LGT NGT
10/20/26
1711Z
10/23/26
1711Z
M0561/26 NOTAMC M0559/26 Q) ZDV/QOBXX/IV/NBO/A/000/999/3858N10449W005 A) KAFF B) 2610201711 E) OBST CRANE 38°58'25.37"M, 104°49'49.54"W MAX HEIGHT 150FT AGL. CANCELED
10/20/26
1711Z
12/2/26
2359Z
OBST CRANE 38°58'25.37"N, 104°49'49.54"W MAX HEIGHT 150FT AGL.
10/20/26
1629Z
12/2/26
2359Z
OBST CRANE 38°58'28.21" N, 104°49'48.71"W MAX HEIGHT 150FT AGL
10/16/26
2036Z
11/9/26
0100Z
TaxiwayTWY A CLSD FROM NORTHERN EDGE OF NORTH RAMP TO RUNWAY 09/27 AND FROM RUNWAY 09/27 TO RUNWAY 16L.
10/6/26
1525Z
12/2/26
2359Z
OBST CRANE 38°58'52.45"N, 104°49'37.32"W MAX HEIGHT 150' AGL
10/6/26
1523Z
12/2/26
2359Z
OBST CRANE 38°58'47.63"N, 104°49'37.93"W MAX HEIGHT 150' AGL.
9/16/26
1702Z
12/14/26
2359Z
OBST CRANE 38° 58' 00.00" N, 104° 45' 23.00" W. MAX HEIGHT OF 250' AGL.
8/21/26
1353Z
11/19/26
1352Z
DAVIS AIRFIELD AUTOMATED WEATHER AVAILABLE ON 119.65. WIND, TEMPERATURE, ALTIMETER AND PRESSURE ALTITUDE ARE CONSIDERED ACCURATE. ALL OTHER INFORMATION SHOULD BE CONSIDERED ERRONEOUS.
Yes
MAR 1 TO SEP 30 MON-THUR SR OR 1345Z++
OCT 1 TO FEB 28 29 FRI SR OR 1345Z++
SAT 1430Z++ TO 2130Z++
CLSD SUN & FED HOL.
CLSD SUN & FED HOL.
(WHICHEVER IS LATER) TO SS OR 0200Z++ (WHICHEVER IS EARLIER).
(WHICHEVER IS LATER) TO SS OR 0300Z++ (WHICHEVER IS EARLIER).
(WHEN NEC TO SUPPORT 306 FTG FLT OPS); 306TH FTG SUMMER OPS MON-FRI 1300-0200Z++, SAT 1430-2130Z++ (ONLY WHEN NEC TO SUPPORT 306 FTG FLT OPS), CLSD SUN AND FEDERAL HOL.
USAF
HQS USAF ACADEMY
COLORADO SPRINGS, CO 80901
CHIEF AIRFIELD MANAGEMENT
HQS USAF ACADEMY
COLORADO SPRINGS, CO 80901
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
KAFF
--
--
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 09/27

2493 ft. x 75 ft.
ASPH
Good
NONE

14/F/A/X/T
--
--
--
--
  Runway 09 Runway 27
True Heading 96°276°
Traffic Pattern
Markings NRS NRS
Markings Condition GOOD GOOD
Latitude 38° 58' 34"N 38° 58' 31"N
Longitude 104° 49' 19"W 104° 48' 48"W
Elevation 6,528' 6,576'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 16C/34C

4501 ft. x 75 ft.
ASPH
Good
NONE

15/F/A/W/T
--
--
--
--
  Runway 16C Runway 34C
True Heading 170°350°
Traffic Pattern
Markings NRS NRS
Markings Condition GOOD GOOD
Latitude 38° 58' 43"N 38° 57' 59"N
Longitude 104° 49' 21"W 104° 49' 11"W
Elevation 6,526' 6,505'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 16L/34R

3513 ft. x 75 ft.
ASPH
Good
NONE

15/F/B/X/T
--
--
--
--
  Runway 16L Runway 34R
True Heading 170°350°
Traffic Pattern Left Left
Markings NRS NRS
Markings Condition GOOD GOOD
Latitude 38° 58' 44"N 38° 58' 10"N
Longitude 104° 49' 09"W 104° 49' 00"W
Elevation 6,545' 6,534'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 16R/34L

4500 ft. x 40 ft.

ASPH
NONE

11/F/A/X/T
--
--
--
--
  Runway 16R Runway 34L
True Heading 169°349°
Traffic Pattern Left Left
Markings NRS NRS
Markings Condition
Latitude 38° 58' 42"N 38° 57' 59"N
Longitude 104° 49' 24"W 104° 49' 14"W
Elevation 6,515' 6,502'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-14CAUTION: USE CTN FOR UAS OPS 3-6 NM NW SFC-8500 FT MSL OVER USAF ACADEMY PROPERTY.
A110-21FUEL-A++(MIL)
A110-22COMSEC STOR UNAVBL.
A110-23CAUTION: NUMEROUS NSTD MRKS EXIST ON AFLD.
A110-25SEE SPECIAL NOTICE US AIR FORCE ACADEMY VOLUME FLT TRNG AREAS FOR ADDN INFO.
A110-26RSTD: AIRFIELD OFFL BUS ONLY. PPR MUST BE COORD 72 HR IN ADVANCE WITH AFLD MGMT, DSN: 333-2526, C:719-333-2526.
A110-27CAUTION: CEILING MAY BE LOWER TO N, E, AND W DUE TO RISING TERRAIN. HI DENSITY VFR STU PILOT TRNG, GLDR TRNG AND PRCHT OPS FR SFC-17500 FT MSL WI 5 NM OF AFLD. USE CAUTION FOR UAS OPS 3-6 NM NW SFC-8500 FT MSL OVR USAF ACADEMY PROPERTY. AERODROME RWY CC NOT REPORTED.
A110-29MISC: FULL SVC WX STN OPR H24 WITH AUGMENTED AN/FMQ-19 IN USE. BACKUP WX BRIEFING SVC FR 25 OWS, DAVIS MONTHAN AFB, AZ, DSN 228-6589 OR C520-228-6598.
A110-30CAUTION: MULT CRANES WI 3 NMR OF KAFF IN NE QUAD UP TO 250 FT AGL (INTERQUEST PKWY AND I-25 AREA).
A110-31CL D ATC SVS AVAIL DUR AFLD OPR HR. CHECK AFF ATIS AND NOTAMS FOR ADDN CURRENT INFO.
A110-32CAUTION: HIGH WIND ALERT SYSTEM (HWAS) N OF RWY 09/27 AND E OF TWY A UNLGTD.
A110-33SERVICE - NO TRAN ALERT OR MAINT SVC.
A110-34RSTD: UNCTLD ACFT OPS AT DAVIS FLD STRICTLY PROHIBITED WO APVD UNCTLD OPS WAIVER; WAIVER MUST BE ON FILE WITH AMGR.
A110-35CAUTION: CRANE WITH MAX HGT OF 245 FT LOCTD BY THE US AIR FORCE ACADEMY PREPARATORY SCHOOL. EXACT LCTN 38 58 42.42N, 104 51 27.91 W.
A110-6NO MAINT OR TSNT SVC AVBL.
A17-D1CLSD SUN & FED HOL.
A17-D2CLSD SUN & FED HOL.
A17-H1(WHICHEVER IS LATER) TO SS OR 0200Z++ (WHICHEVER IS EARLIER).
A17-H2(WHICHEVER IS LATER) TO SS OR 0300Z++ (WHICHEVER IS EARLIER).
A17-H3(WHEN NEC TO SUPPORT 306 FTG FLT OPS); 306TH FTG SUMMER OPS MON-FRI 1300-0200Z++, SAT 1430-2130Z++ (ONLY WHEN NEC TO SUPPORT 306 FTG FLT OPS), CLSD SUN AND FEDERAL HOL.
USAF ACADEMY DAVIS AIRFIELD (ICAO: KAFF, IATA: AFF) is a private airport located in COLORADO SPRINGS, CO, US.
