JAFFREY AIRFIELD SILVER RANCH - Airport Diagram

KAFN

ICAO KAFNIATA AFNLocal AFN

JAFFREY AIRFIELD SILVER RANCH

PublicPUB

1 miles SE of JAFFREY, NH, US

View on Map

Status

Operational

Coordinates

42° 48' 18"N 72° 00' 11"W

Elevation

1040' MSL

Pattern Alt

2040' MSL

Mag Variation

14°W

Declination

14°W

Fuel

100LL

FSS

BANGOR (BGR)

Sectional

NEW YORK

ARTCC

BOSTON (ZBW)

Data Effective

3/19/26-4/16/26

KAFN VFR

11:52 AM EDT RAW

Broken 3,400'

Viz

10sm

Temp

54°F

Dew

38°F

Pres

30.27"Hg

Wind

VRB° 4kts

RMK

AO2 SLP256 T01220033

METAR KAFN 041552Z AUTO VRB04KT 10SM BKN034 12/03 A3027 RMK AO2 SLP256 T01220033

Add Your Business

KAFN FBOs

Promote Listing

Silver Ranch Airpark

UNICOM: 122.8

Phone: (603) 532-8870

0 Reviews (Read | Sign In To Write)

Independent

As of 3/15	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	5.90

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

ASOS	135.875
(603) 532-6195

Common

CTAF	122.8
UNICOM	122.8

Center

BOSTON CENTER	123.75
LOW, APCH/DEP SVC PRVDD BY BOSTON ARTCC ON FREQS 123.75/338.2 (GARDNER RCAG).

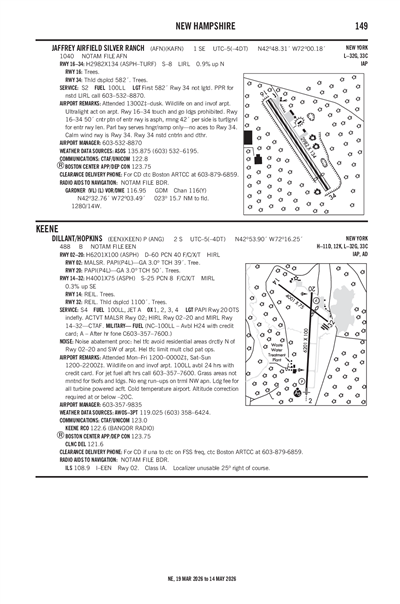

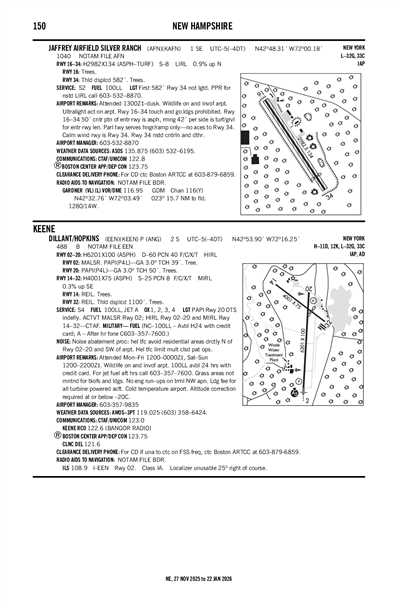

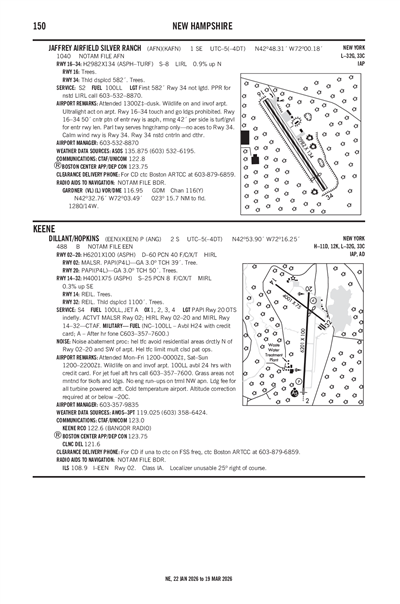

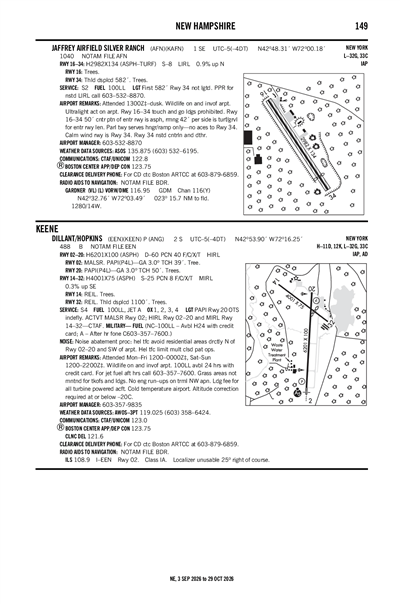

FAA A/FD Pages

FAA A/FD Page

Airport Minimums

Instrument Approach

Terminal Area Forecast

KMHT (26nm)

RAW

Reported

Sat, 4/4 7:46 AM EDT

Valid

Sat, 4/4 8:00 AM EDT - Sun, 4/5 8:00 AM EDT

VFR

8:00 AM EDT - 11:00 AM EDT

Broken 25,000'
Scattered 4,500'

Viz

6sm

Wind

350° 10kts

VFR

11:00 AM EDT - 2:00 PM EDT

Broken 5,000'

Viz

6sm

Wind

050° 8kts

VFR

2:00 PM EDT - 9:00 PM EDT

Broken 5,000'

Viz

6sm

Wind

100° 10kts

Gusts 18kts

MVFR

9:00 PM EDT - 4:00 AM EDT

Light Rain

Overcast 1,500'

Viz

6sm

Wind

100° 12kts

LIFR

4:00 AM EDT - 8:00 AM EDT

Light Rain and Mist

Overcast 300'

Viz

2sm

Wind

VRB° 4kts

TAF KMHT 041146Z 0412/0512 35010KT P6SM SCT045 BKN250
   FM041500 05008KT P6SM BKN050
   FM041800 10010G18KT P6SM BKN050
   FM050100 10012KT P6SM -RA OVC015
   FM050800 VRB04KT 2SM -RA BR OVC003

KAFN

No NOTAM Available

ATC Tower

Attendance

0800-DUSK

Owner

JAFFREY MUNI ARPT DEV CORP
190 TURNPIKE RD, JAFFREY AIRFIELD
JAFFREY, NH 03452

Manager

HARVEY N SAWYER
190 TURNPIKE RD, JAFFERY AIRFIELD
JAFFREY, NH 03452
Phone: 603-532-8870

FSS

BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF

NOTAM

AFN

Light Schedule

Lights

PPR FOR NSTD LIRL CALL 603-532-8870.

Beacon

N/A

Wind Indicator

Yes

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Minor

Pwrplant Repair

Minor

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 16/34

Dimensions

2982 ft. x 134 ft.

Surface Type

ASPH TURF

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

LOW

Pavement Class

Single Wheel

8,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 16	Runway 34
True Heading	148°	328°
Traffic Pattern	Left	Left
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	42° 48' 31"N	42° 48' 06"N
Longitude	72° 00' 21"W	72° 00' 00"W
Elevation	1,040'	1,013'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	No

A110*G	THIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1	ULTRALIGHT ACT ON ARPT.
A110-2	PARL TWY SERVES HNGR/RAMP ONLY - NO ACES TO RWY 34.
A110-5	WILDLIFE ON & INVOF ARPT.
A110-6	FOR CD CTC BOSTON ARTCC AT 603-879-6859.
A110-7	CALM WIND RWY IS RWY 34.
A30-16/34	TGLS PROHIBITED.
A33-16/34_SURF	50 FT CNTR PTN OF ENTR RWY IS ASPH, RMNG 42 FT PER SIDE IS TURF/GRVL FOR ENTR RWY LEN.
A40-16/34	FIRST 582 FT RWY 34 NOT LGTD.
A42-34_COND	NSTD CNTRLN & DTHR.
A52-34	45 FT RISING TRRN/TREES 200+ FT FM THR.
A57-34	APCH SLP 20:1 TO DTHR.
A58-34	+6 FT TRRN/TREES 50 FT FM THR RISING TO +45 FT 200 FT FM THR.
A81-APT	PPR FOR NSTD LIRL CALL 603-532-8870.
E111	ESTAB PRIOR 1959.

JAFFREY AIRFIELD SILVER RANCH (ICAO: KAFN, IATA: AFN) is a public airport located in JAFFREY, NH, US.
