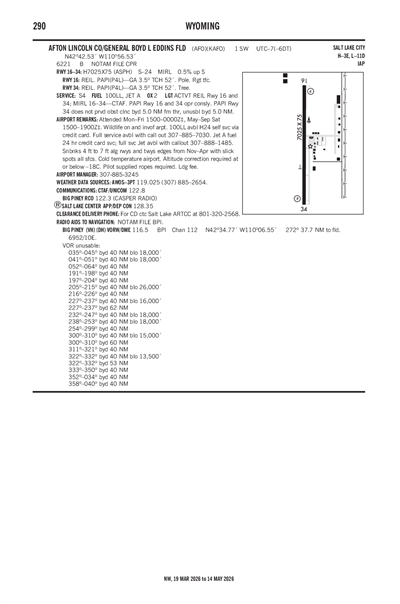

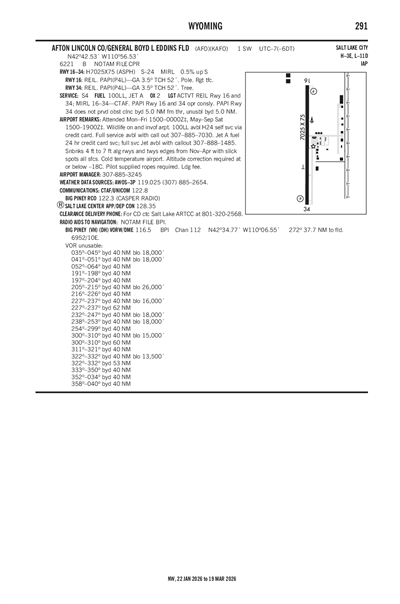

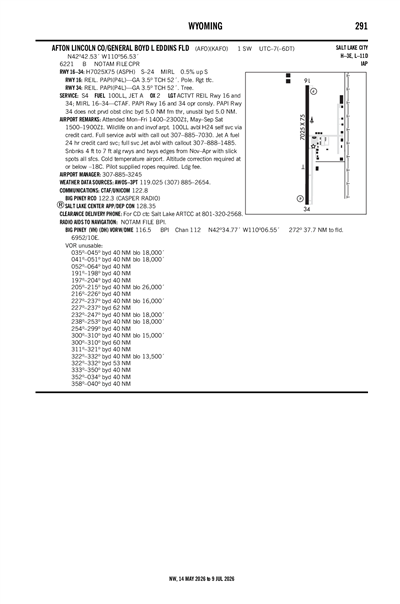

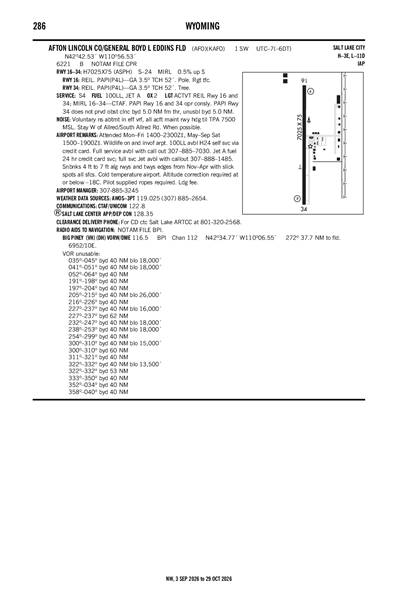

AFTON LINCOLN COUNTY/GENERAL BOYD L EDDINS FLD - Airport Diagram

KAFO

ICAO KAFOIATA AFOLocal AFO

AFTON LINCOLN COUNTY/GENERAL BOYD L EDDINS FLD

PublicPUB

1 miles SW of AFTON, WY, US

View on Map

Status

Operational

Coordinates

42° 42' 32"N 110° 56' 32"W

Elevation

6221' MSL

Pattern Alt

7221' MSL

Mag Variation

11°E

Declination

14°E

Fuel

JET A, 100LL

FSS

CASPER (CPR)

Sectional

SALT LAKE CITY

ARTCC

SALT LAKE CITY (ZLC)

Data Effective

10/1/26-10/29/26

KAFO VFR

10:15 PM MDT RAW

Broken 11,000'
Broken 9,000'

Viz

10sm

Temp

46°F

Dew

43°F

Pres

29.93"Hg

Wind

Calm

RMK

AO2

METAR KAFO 230415Z AUTO 00000KT 10SM BKN090 BKN110 08/06 A2993 RMK AO2

Add Your Business

KAFO FBOs

Promote Listing

Eagle Jet Center

UNICOM: 122.8

Phone: (307) 885-7030

0 Reviews (Read | Sign In To Write)

Avfuel

As of 10/13	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	7.79		9.09
Full Serve			9.09

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

AWOS-3PT	119.025
(307) 885-2654

Common

CTAF	122.8
ACTVT REIL RWY 16 & 34; MIRL RWY 16/34 - CTAF. PAPI RWY 16 & 34 OPR CONSLY.
UNICOM	122.8

Center

SALT LAKE CENTER	128.35
LOW, APCH/DEP CTL SVC PRVDD BY SALT LAKE ARTCC (ZLC) ON FREQS 128.35/239.25 (BLACKFOOT RCAG).

FAA A/FD Pages

FAA A/FD Page

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KBPI (38nm)

RAW

Reported

Thu, 10/22 5:23 PM MDT

Valid

Thu, 10/22 6:00 PM MDT - Fri, 10/23 6:00 PM MDT

VFR

Temporary 6:00 PM MDT - 7:00 PM MDT

Light Showers and Rain

Broken 5,000'

Viz

N/A

Wind

Calm

VFR

6:00 PM MDT - 9:00 PM MDT

Showers in vicinity

Broken 10,000'
Scattered 6,000'

Viz

6sm

Wind

170° 12kts

Gusts 18kts

VFR

9:00 PM MDT - 6:00 AM MDT

Broken 6,000'
Few 3,000'

Viz

6sm

Wind

160° 12kts

Gusts 18kts

MVFR

3:00 AM MDT - 6:00 AM MDT

Light Rain

Overcast 3,000'

Viz

N/A

Wind

Calm

VFR

6:00 AM MDT - 12:00 PM MDT

Broken 5,000'
Scattered 3,000'

Viz

6sm

Wind

200° 14kts

Gusts 22kts

VFR

12:00 PM MDT - 6:00 PM MDT

Scattered 8,000'
Scattered 5,000'

Viz

6sm

Wind

220° 16kts

Gusts 25kts

TAF KBPI 222323Z 2300/2324 17012G18KT P6SM VCSH SCT060 BKN100
   TEMPO 2300/2301 -SHRA BKN050
   FM230300 16012G18KT P6SM FEW030 BKN060
   PROB30 2309/2312 -RA OVC030
   FM231200 20014G22KT P6SM SCT030 BKN050
   FM231800 22016G25KT P6SM SCT050 SCT080

KAFO

Effective	Expires	Category	NOTAM
Domestic
8/13/26 1404Z	11/30/26 2359Z		!CPR 08/037 AFO SVC AUTOMATED WX BCST SYSTEM 119.025/307-885-2654 U/S 2608131404-2611302359

ATC Tower

Attendance

MON-FRI 0700-1600
MAY-SEPT SAT 0800-1200

Owner

TOWN OF AFTON
BOX 1181
AFTON, WY 83110
Phone: (307) 885-9831

Manager

HEATH LAWSON
BOX 1181
AFTON, WY 83110
Phone: 307-885-3245

FSS

CASPER FSS (CPR)
Toll Free: 1-800-WX-BRIEF

NOTAM

CPR

Light Schedule

Lights

ACTVT REIL RWY 16 & 34; MIRL RWY 16/34 - CTAF. PAPI RWY 16 & 34 OPR CONSLY.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Yes

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

Low Pressure

Other Services

Pilot Instruction
Aircraft Rental

Runway 16/34

Dimensions

7025 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

24,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 16	Runway 34
True Heading	180°	0°
Traffic Pattern	Right
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	42° 43' 06"N	42° 41' 57"N
Longitude	110° 56' 32"W	110° 56' 32"W
Elevation	6,188'	6,221'
Threshold Crossing Height	52 ft. AGL	52 ft. AGL
Visual Glide Path Angle	3.5°	3.5°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A11	ALSO LINCOLN COUNTY-307-877-2004.
A110-1	SNBNKS 4 FT TO 7 FT ALG RWYS & TXYS EDGES FM NOV-APR WITH SLICK SPOTS ALL SFCS.
A110-2	COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -18C.
A110-3	FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
A110-4	WILDLIFE ON & INVOF ARPT.
A110-5	VOLUNTARY NS ABTMT IN EFF VRF, ALL ACFT MAINT RWY HDG TIL TPA 7500 MSL. STAY W OF ALLRED/SOUTH ALLRED RD. WHEN POSSIBLE.
A43-34	RWY 34 PAPI DOES NOT PRVD OBST CLNC BYD 5.0 NM FM THR, UNUSBL BYD 5.0 NM.
A70-100LL	AVBL H24 SELF SVC VIA CREDIT CARD. FULL SERVICE AVBL WITH CALL OUT 307-885-7030.
A70-A	FUEL 24 HR CREDIT CARD SVC; FULL SVC JET AVBL WITH CALLOUT 307-8881485.
A75-T	PILOT SUPD ROPES RQRD.
A81-APT	ACTVT REIL RWY 16 & 34; MIRL RWY 16/34 - CTAF. PAPI RWY 16 & 34 OPR CONSLY.

AFTON LINCOLN COUNTY/GENERAL BOYD L EDDINS FLD (ICAO: KAFO, IATA: AFO) is a public airport located in AFTON, WY, US.
