ANSON COUNTY/JEFF CLOUD FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAFP
ANSON COUNTY/JEFF CLOUD FLD
PublicPUB

3 miles N of WADESBORO, NC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 01' 14"N 80° 04' 38"W
300' MSL
1300' MSL
07W
Jet A-1+, 100LL
RALEIGH (RDU)
CHARLOTTE
ATLANTA (ZTL)
6/16/22-7/14/22
KAFP VFR
6:15 PM EDT
Scattered 12,000'
Scattered 4,900'
10sm
93°F
70°F
29.98"Hg
180° 5kts
AO2 T03400211
KAFP 052215Z AUTO 18005KT 10SM SCT049 SCT120 34/21 A2998 RMK AO2 T03400211
List Your Business

KAFP FBOs, Flight Schools and Ground Support

Promote Listing
Anson County Airport
Freq: 122.8
Phone: (704) 694-2516
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 6/21
 100LL Jet A Jet A+ Mogas UL94
Self Serve 7.14
Full Serve 5.89 5.89

KAFP Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KAFP Hotels

No hotels are listed for this airport.

KAFP Restaurants

No restaurants are listed for this airport.

KAFP Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
704-695-0623
 119.325

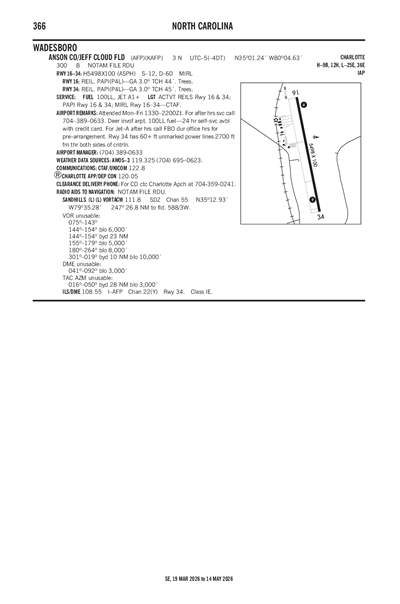

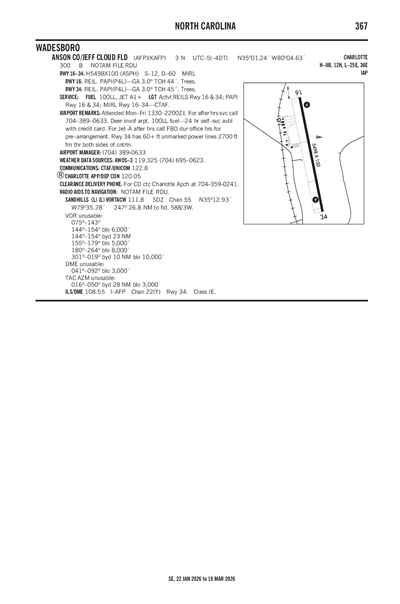

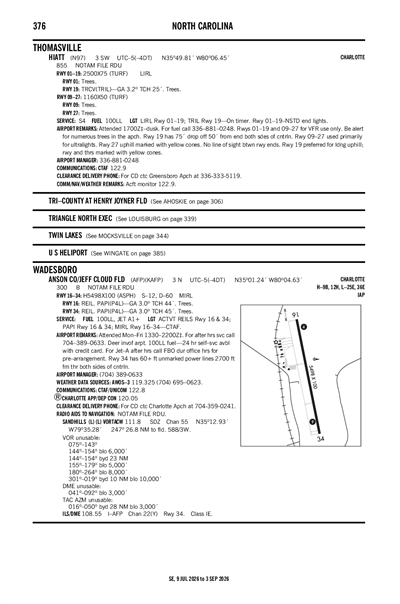

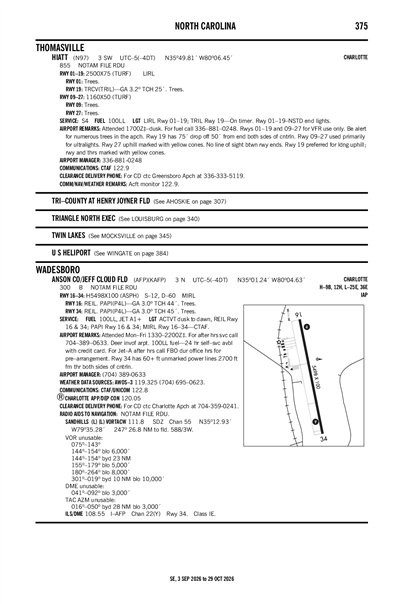

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KCLT (45nm)
Tue, 7/5 5:56 PM EDT
Tue, 7/5 6:00 PM EDT - Wed, 7/6 8:00 PM EDT
VFR
6:00 PM EDT - 11:00 PM EDT
Thunderstorm in vicinity
Scattered 5,000'
Few 3,000'
> 6sm
210° 8kts
MVFR
Temporary 7:00 PM EDT - 11:00 PM EDT
Thunderstorm and Rain and Mist
Broken 3,500'
4sm
320° 15kts
Gusts 30kts
VFR
11:00 PM EDT - 11:00 AM EDT
Broken 15,000'
Few 6,000'
> 6sm
210° 5kts
VFR
11:00 AM EDT - 8:00 PM EDT
Broken 20,000'
Scattered 6,000'
> 6sm
230° 4kts
MVFR
2:00 PM EDT - 8:00 PM EDT
Thunderstorm and Rain and Mist
Broken 3,500'
4sm
Calm
KCLT 052156Z 0522/0624 21008KT P6SM VCTS FEW030 SCT050CB
   TEMPO 0523/0603 32015G30KT 4SM TSRA BR BKN035CB
   FM060300 21005KT P6SM FEW060 BKN150
   FM061500 23004KT P6SM SCT060 BKN200
   PROB30 0618/0624 4SM TSRA BR BKN035CB
KAFP
Domestic
7/3/220527Z !RDU 07/058 AFP OBST TOWER LGT (ASR 1219737) 351040.40N0800646.60W (9.6NM N AFP) 547.6FT (307.7FT AGL) U/S 2207030527-2207180427
7/3/220526Z !RDU 07/048 AFP OBST TOWER LGT (ASR 1220060) 350814.10N0800617.90W (7.1NM N AFP) 586.9FT (285.1FT AGL) U/S 2207030526-2207180426
7/3/220524Z !RDU 07/035 AFP OBST TOWER LGT (ASR 1220481) 350455.00N0800631.20W (4.0NM NNW AFP) 540.7FT (282.8FT AGL) U/S 2207030524-2207180424
7/3/220524Z !RDU 07/027 AFP OBST TOWER LGT (ASR 1219619) 345909.90N0800554.90W (2.4NM SSW AFP) 606.0FT (308.1FT AGL) U/S 2207030524-2207180424
7/2/221929Z !RDU 07/023 AFP OBST TOWER LGT (ASR 1258628) 351302.40N0800054.50W (12.3NM NNE AFP) 656.2FT (290.0FT AGL) U/S 2207021929-2208161929
1/19/220501Z !RDU 01/169 AFP AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2201190501-2401190501
FDC
6/24/221947Z !FDC 2/3943 AFP IAP ANSON COUNTY/JEFF CLOUD FLD,
WADESBORO, NC.
RNAV (GPS) RWY 34, AMDT 2C...
LPV DA 649/HAT 350, VISIBILITY ALL CATS 1 SM.
DELETE PLANVIEW NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI
ANGLE 3.00/TCH 45).
CHART NOTE: RWY 34 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT
AUTHORIZED.
THIS IS RNAV (GPS) RWY 34, AMDT 2D. 2206241947-PERM
6/24/221947Z !FDC 2/3942 AFP IAP ANSON COUNTY/JEFF CLOUD FLD,
WADESBORO, NC.
ILS OR LOC RWY 34, ORIG-C...
S-ILS 34 DA 649/HAT 350, VISIBILITY 1 SM ALL CATS.
CILRU FIX MINIMUMS S-LOC 34 MDA 820/HAT 521, VISIBILITY CATS C/D 1
1/2 SM.
DELETE PLANVIEW NOTE: VGSI AND ILS GIDEPATH NOT COINCIDENT (VGSI
ANGLE 3.00/TCH 45).
DELETE NOTE: VDP NA WHEN USING ROCKINGHAM ALTIMETER SETTING.
DELETE NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE
ROCKINGHAM ALTIMETER SETTING: INCREASE S-ILS 34 DA TO 607 AND S-ILS
34 ALL CATS VISIBILITY 1/8 SM; INCREASE ALL MDA 60 FEET AND S-LOC
34 CATS C/D VISIBILITY 1/8 SM AND CILRU FIX MINIMUMS S-LOC 34 CATS
C/D VISIBILITY 1/4 SM.
DELETE * LOC ONLY, *.
DELETE: **LOC ONLY, 1000 WHEN USING ROCKINGHAM ALTIMETER SETTING,
**.
THIS IS ILS OR LOC RWY 34, ORIG-D. 2206241947-PERM
4/15/221334Z !FDC 2/8567 AFP ODP ANSON COUNTY/JEFF CLOUD FLD, WADESBORO, NC.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2A...
TAKE-OFF MINIMUMS: RWY 16, STANDARD WITH A MINIMUM CLIMB OF 255 FT PER NM TO 1000.
ALL OTHER DATA REMAINS AS PUBLISHED. 2204151334-2404151334EST
4/13/221414Z !FDC 2/7453 AFP IAP ANSON COUNTY/JEFF CLOUD FLD, WADESBORO, NC.
RNAV (GPS) RWY 16, AMDT 1B...
LPV AND LNAV/VNAV LINES OF MINIMA NA. LNAV MDA 680/HAT 380 ALL CATS.
2204131414-2404131414EST
2/10/221257Z !FDC 2/3208 AFP IAP ANSON COUNTY/JEFF CLOUD FLD, WADESBORO, NC.
ILS OR LOC RWY 34, ORIG-C...
DME REQUIRED EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, CTF VOR/DME OUT OF SERVICE.
2202101257-2209221257EST
No
MON-FRI 0830-1700
FOR AFT HRS SVC CALL 704-389-0633.
ANSON COUNTY
101 S. GREENE STREET
WADESBORO, NC 28170
Phone: 704-994-3200
REX EDWARDS
2980 AIRPORT ROAD
WADESBORO, NC 28170
Phone: (704) 389-0633
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
RDU
--
ACTVT REILS RWY 16 & 34; PAPI RWY 16 & 34; MIRL RWY 16/34 - CTAF.
Clear-Green
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
23
0
0
5
0
0
None
None
None
None
None

Runway 16/34

5498 ft. x 100 ft.
ASPH
Excellent

MED

12,000lbs
60,000lbs
--
--
  Runway 16 Runway 34
True Heading 155°335°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 35° 01' 39"N 35° 00' 50"N
Longitude 80° 04' 52"W 80° 04' 23"W
Elevation 299' 297'
Threshold Crossing Height 30 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1DEER IN VICINITY OF ARPT.
A110-2FOR CD CTC CHARLOTTE APCH AT 704-359-0241.
A110-3RWY 34 HAS 60+ FT UNMARKED POWER LINES 2700 FT FM THR BOTH SIDES OF CNTRLN.
ANSON COUNTY/JEFF CLOUD FLD (ICAO: KAFP, IATA: AFP) is a public airport located in WADESBORO, NC.
