PEROT FLD/FORT WORTH ALLIANCE - Airport Diagram

KAFW

ICAO KAFWIATA AFWLocal AFW

PEROT FLD/FORT WORTH ALLIANCE

PublicPUB

14 miles N of FORT WORTH, TX, US

View on Map

Status

Operational

Coordinates

32° 59' 25"N 97° 19' 10"W

Elevation

723' MSL

Pattern Alt

1723' MSL

Mag Variation

3°E

Declination

4°E

Fuel

JET A-1+, 100LL

FSS

FORT WORTH (FTW)

Sectional

DALLAS-FT WORTH

ARTCC

FORT WORTH (ZFW)

Data Effective

3/19/26-4/16/26

KAFW VFR

1:53 PM CDT RAW

Broken 6,000'

Viz

10sm

Temp

66°F

Dew

58°F

Pres

30.19"Hg

Wind

360° 13kts

RMK

AO2 SLP216 T01890144 $

METAR KAFW 041853Z 36013KT 10SM BKN060 19/14 A3019 RMK AO2 SLP216 T01890144 $

Add Your Business

KAFW FBOs

Promote Listing

Alliance Aviation Services

UNICOM: 129.75

Phone: (817) 890-1000

0 Reviews (Read | Sign In To Write)

World Fuel

As of 4/2	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	7.65	8.70	8.76

Fuel Notes

Prices include tax

KAFW Aircraft Service & Maintenance

Promote Listing

V2X Vertex Aerospace

Phone: (571) 387-4377

0 Reviews (Read | Sign In To Write)

Your Information

Business

Weather and Advisory

ATIS	126.925
ASOS	(817) 491-6188

Clearance

Clearance Delivery

128.725

Ground

ALLIANCE GROUND

132.65

Tower

ALLIANCE TOWER	120.825
HELICOPTERS
ALLIANCE TOWER	135.15

Arrival

DODJE STAR	125.2
DODJE STAR	125.9
LIKES STAR	125.8
SOUTH
LIKES STAR	135.975
NORTH
MOTZA STAR	118.1
SOUTH
MOTZA STAR	125.8
NORTH
REEKO STAR	125.2
SASIE STAR	124.3
TRUUK RNAV STAR	124.3
WESAT STAR	118.1
SOUTH
WESAT STAR	125.8
NORTH

Approach

LONE STAR APPROACH

118.1

Departure

BOTCH DP	118.1
DALLAS AREA DP	118.1
GARLAND DP	118.1
JOE POOL DP	118.1
LONE STAR DEPARTURE	118.1
NANDR RNAV DP	118.1

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

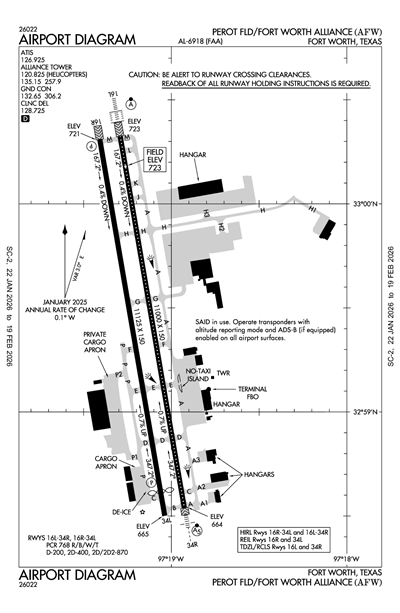

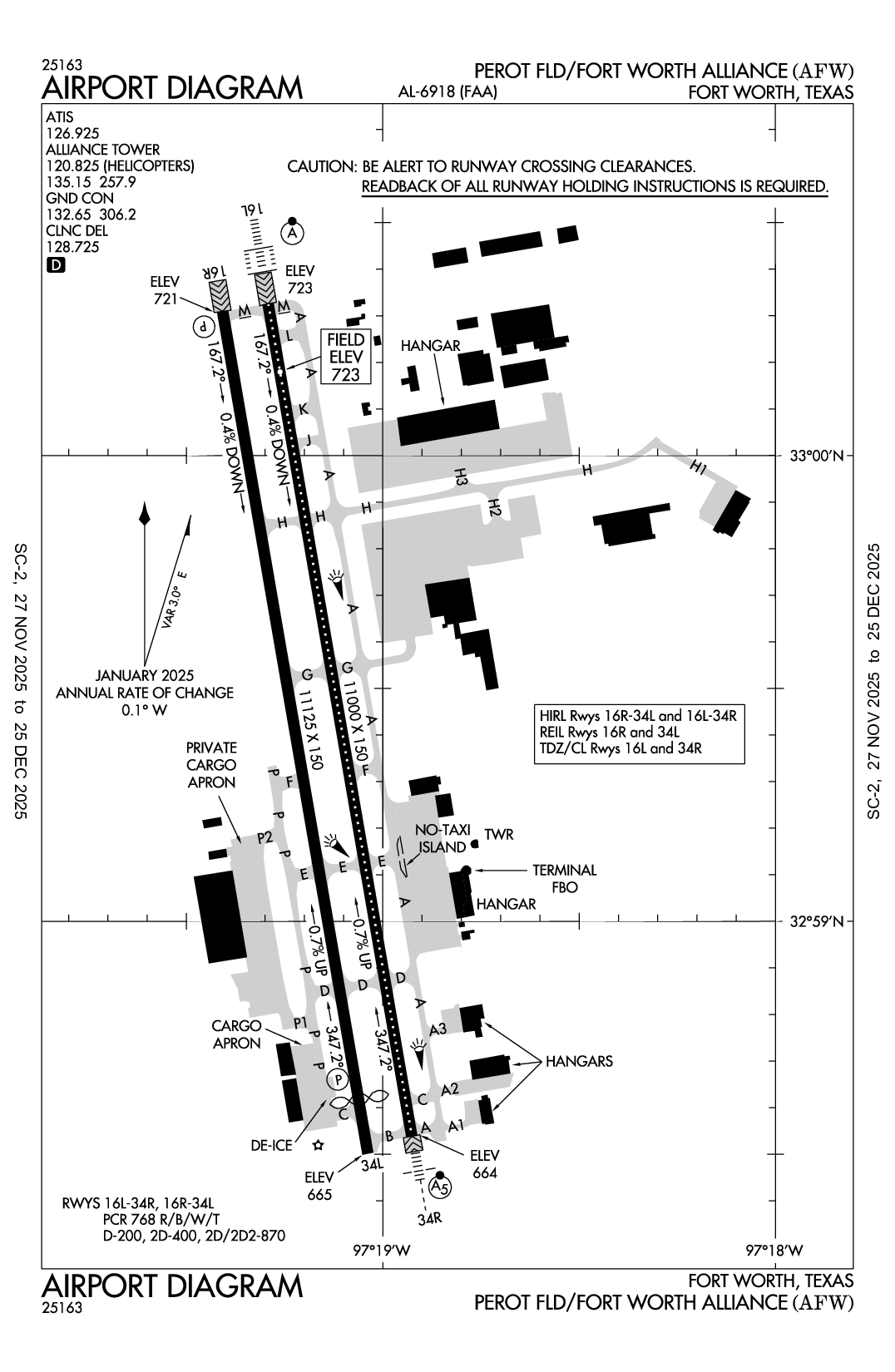

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KAFW

RAW

Reported

Sat, 4/4 12:41 PM CDT

Valid

Sat, 4/4 1:00 PM CDT - Sun, 4/5 1:00 PM CDT

VFR

1:00 PM CDT - 8:00 PM CDT

Overcast 5,000'
Broken 3,500'

Viz

6sm

Wind

010° 15kts

Gusts 25kts

VFR

8:00 PM CDT - 12:00 PM CDT

Scattered 20,000'

Viz

6sm

Wind

010° 9kts

VFR

12:00 PM CDT - 1:00 PM CDT

Scattered 25,000'

Viz

6sm

Wind

020° 11kts

Gusts 21kts

TAF KAFW 041741Z 0418/0518 01015G25KT P6SM BKN035 OVC050
FM050100 01009KT P6SM SCT200
FM051700 02011G21KT P6SM SCT250

KAFW

Effective	Expires	Category	NOTAM
Domestic
4/6/26 1300Z	4/6/26 2300Z		!AFW 04/010 AFW TWY L CLSD 2604061300-2604062300
4/6/26 1300Z	4/6/26 2300Z		!AFW 04/009 AFW TWY A BTN TWY J AND TWY M CLSD 2604061300-2604062300
4/4/26 2000Z	4/4/26 2200Z	Runway	!AFW 04/011 AFW RWY 16L/34R CLSD EXC XNG 2604042000-2604042200
4/3/26 2031Z	4/6/26 2300Z		!AFW 04/008 AFW TWY K BTN RWY 16L/34R AND TWY A CLSD 2604032031-2604062300
3/28/26 1701Z	5/31/26 2300Z	Runway	!AFW 03/040 AFW RWY 16R RWY END ID LGT U/S 2603281701-2605312300
3/28/26 1700Z	5/31/26 2300Z		!AFW 03/039 AFW TWY L IN PAVEMENT RWY GUARD LGT AT RWY 16L/34R U/S 2603281700-2605312300
3/5/26 1253Z	10/31/26 2339Z		!AFW 03/005 AFW AIRSPACE SEE FUZ 03/099 UAS DLY SR-SS 2603051253-2610312339
3/5/26 1253Z	10/31/26 2339Z		!AFW 03/004 AFW AIRSPACE SEE FUZ 03/093 UAS DLY SR-SS 2603051253-2610312339
3/5/26 1252Z	10/31/26 2339Z		!AFW 03/003 AFW AIRSPACE SEE FUZ 03/092 UAS DLY SR-SS 2603051252-2610312339
2/27/26 1755Z	4/30/26 2359Z		!AFW 02/037 AFW AD AP WINDCONE FOR RWY 34R LGT U/S 2602271755-2604302359
2/12/26 0313Z	4/30/26 2300Z	Runway	!AFW 02/016 AFW RWY 34L RTHL U/S 2602120313-2604302300
FDC
4/4/26 0956Z	5/4/26 0956Z		!FDC 6/8171 AFW SID PEROT FLD/FORT WORTH ALLIANCE, FORT WORTH, TX. KINGDOM FIVE DEPARTURE... WICHITA FALLS TRANSITION: NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, SPS VOR OUT OF SERVICE. 2604040956-2605040956EST
3/17/26 2000Z			!FDC 6/9488 AFW SID PEROT FLD/FORT WORTH ALLIANCE, FORT WORTH, TX. BOTCH ONE DEPARTURE (RNAV)... BRHMA TRANSITION: RUFFS TO KATZZ, MOCA 3500. ALIAN TRANSITION: FUMED TO ALIAN, MOCA 3200. CIKAN TRANSITION, DOSXX TRANSITION, WSTEX TRANSITION: LYNDE TO WSTEX, MOCA 3300. 2603172000-2803172000EST
1/28/26 1715Z			!FDC 6/8067 AFW SID PEROT FLD/FORT WORTH ALLIANCE, FORT WORTH, TX. BOTCH ONE DEPARTURE (RNAV)... KUSSO TWO DEPARTURE (RNAV)... NANDR THREE DEPARTURE (RNAV)... TAKEOFF MINIMUMS: RWY 16L, 300-2 1/4 OR STANDARD WITH MINIMUM CLIMB OF 220 FT PER NM TO 1100, OR ALTERNATIVELY, WITH STANDARD TAKEOFF MINIMUMS AND A NORMAL 200 FT PER NM CLIMB GRADIENT, TAKEOFF MUST OCCUR NO LATER THAN 1900 FT PRIOR TO DER. RWY 16R, 300-2 1/4 OR STANDARD WITH MINIMUM CLIMB OF 225 FT PER NM TO 1100, OR ALTERNATIVELY, WITH STANDARD TAKEOFF MINIMUMS AND A NORMAL 200 FT PER NM CLIMB GRADIENT, TAKEOFF MUST OCCUR NO LATER THAN 2000 FT PRIOR TO DER. ALL OTHER DATA REMAINS AS PUBLISHED. 2601281715-2608191715EST
1/27/26 1246Z			!FDC 6/7306 AFW IAP PEROT FLD/FORT WORTH ALLIANCE, FORT WORTH, TX. ILS OR LOC RWY 16L, AMDT 8A... ILS RWY 16L (CAT II-III), AMDT 8A... RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, UKW VOR OUT OF SERVICE. 2601271246-2609081246EST
12/5/25 1905Z			!FDC 5/5392 AFW IAP PEROT FLD/FORT WORTH ALLIANCE, FORT WORTH, TX. ILS OR LOC RWY 16L, AMDT 8A... ILS OR LOC RWY 34R, AMDT 8A... ILS RWY 16L (CAT II AND III), AMDT 8A... DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, MQP VORTAC OUT OF SERVICE. 2512051905-2607171905EST
12/5/25 1903Z			!FDC 5/5334 AFW SID PEROT FLD/FORT WORTH ALLIANCE, FORT WORTH, TX. KINGDOM FIVE DEPARTURE... LUBBOCK TRANSITION, MILLSAP TRANSITION, WICHITA FALLS TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, MQP VORTAC OUT OF SERVICE. 2512051903-2607171903EST
12/5/25 1903Z			!FDC 5/5326 AFW SID PEROT FLD/FORT WORTH ALLIANCE, FORT WORTH, TX. WORTH ONE DEPARTURE... ABILENE TRANSITION, CORONA TRANSITION, LUBBOCK TRANSITION, TEXICO TRANSITION: NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, MQP VORTAC OUT OF SERVICE. 2512051903-2607171903EST
8/27/25 1932Z			!FDC 5/4809 AFW SID PEROT FLD/FORT WORTH ALLIANCE, FORT WORTH, TX. WORTH ONE DEPARTURE ... JOE POOL EIGHT DEPARTURE ... TAKEOFF MINIMUMS: RWY 16R, 300-2 1/4 OR STANDARD WITH MINIMUM CLIMB OF 225 FT PER NM TO 1100, OR ALTERNATIVELY, WITH STANDARD TAKEOFF MINIMUMS AND A NORMAL 200 FT PER NM CLIMB GRADIENT, TAKEOFF MUST OCCUR NO LATER THAN 2000 FT PRIOR TO DER. ALL OTHER DATA REMAINS AS PUBLISHED. 2508271932-2708281932EST
3/13/25 1300Z	6/7/26 1218Z		!FDC 5/2696 AFW SID PEROT FLD/FORT WORTH ALLIANCE, FORT WORTH, TX. WORTH ONE DEPARTURE... CORONA TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, CNX VORTAC OUT OF SERVICE. 2503131300-2606071218EST
4/29/24 1445Z	4/29/26 2359Z		!FDC 4/6141 AFW STAR LIKES THREE RNAV STAR MOCA BTN BIEST AND HRLIP CHANGED TO 3100 2404291445-2604292359EST

ATC Tower

Yes

Attendance

ALL

Owner

CITY OF FORT WORTH
1000 THROCKMORTON
FORT WORTH, TX 76177
Phone: 817-392-6116

Manager

CHRISTOPHER ASH
13901 AVIATOR WAY
FORT WORTH, TX 76177
Phone: 817-890-1000

FSS

FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF

NOTAM

AFW

Light Schedule

Sunset to Sunrise

Lights

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

Low Pressure

Bulk Oxygen

None

Other Services

Avionics
Cargo Handling

Runway 16L/34R

Dimensions

11000 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

Double Wheel

200,000lbs

Double Tandem

400,000lbs

Dual Dbl Tand

870,000lbs

	Runway 16L	Runway 34R
True Heading	170°	350°
Traffic Pattern	Right	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	33° 00' 20"N	32° 58' 32"N
Longitude	97° 19' 17"W	97° 18' 56"W
Elevation	723'	664'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights	ALSF2	MALSR
Centerline Lights	Yes	Yes
Runway End Identifier Lights

Runway 16R/34L

Dimensions

11125 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

Double Wheel

200,000lbs

Double Tandem

400,000lbs

Dual Dbl Tand

870,000lbs

	Runway 16R	Runway 34L
True Heading	170°	350°
Traffic Pattern	Right	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	33° 00' 19"N	32° 58' 30"N
Longitude	97° 19' 24"W	97° 19' 02"W
Elevation	721'	665'
Threshold Crossing Height	82 ft. AGL	74 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4R	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-3	FLIGHT NOTIFICATION SERVICE (ADCUS) AVBL.
A110-4	PORTIONS OF TWY H MOVEMENT AREA EAST OF TWY A IS NOT VISIBLE FROM ATCT.
A26	ARFF INDEX E AVAILABLE. PPR FOR ACR OPNS WITH MORE THAN 30 PSGR SEATS CALL 817-890-1000 OR 800-318-9268.
A39-16L/34R	PCR VALUE: 768/R/B/W/T
A39-16R/34L	PCR VALUE: 768/R/B/W/T
A57-16R	APCH RATIO 0:1 BASED ON DSPLCD THLD; +5 FT FENCE 0 FT, 250 FT R.
A57-34L	APCH RATIO 50:1 TO DSPLCD THLD.
A58-34L	+4 FT FENCE 0 FT 250 FT L; APCH RATIO 0:1 BASED ON DSPLCD THLD.
A71	PRIOR ARRANGEMENTS REQUIRED FOR AIRFRAME OR POWER PLANT REPAIRS FOR DESIGN GROUP III & ABOVE.
A82	ARINC FREQ 129.75 AVBL.
E111	PRVDD CONDITIONS CONTAINED IN 08/01/89 LTR TO MR. DAVID IVORY ARE ADHERED TO.

PEROT FLD/FORT WORTH ALLIANCE (ICAO: KAFW, IATA: AFW) is a public airport located in FORT WORTH, TX, US.
