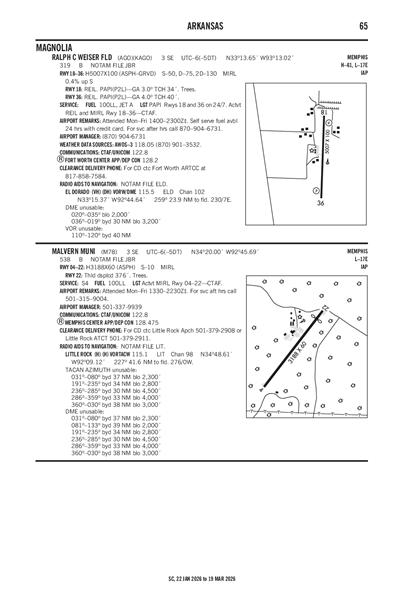

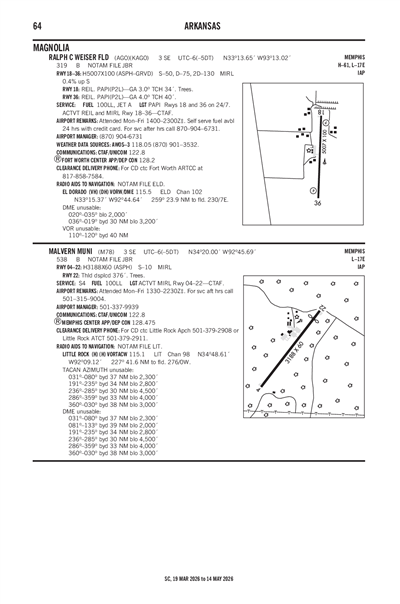

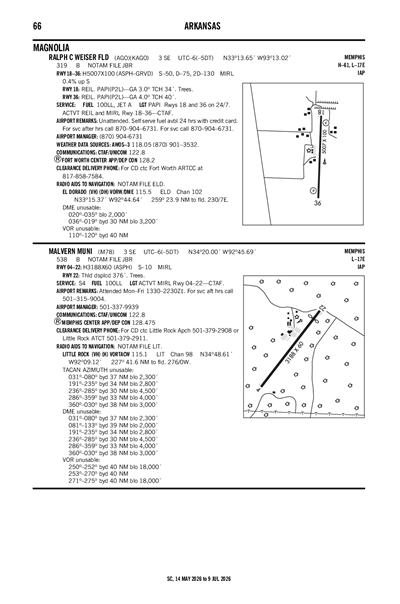

RALPH C WEISER FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAGO
RALPH C WEISER FLD
PublicPUB

3 miles SE of MAGNOLIA, AR
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 13' 39"N 93° 13' 01"W
319' MSL
1319' MSL
01E
Jet A, 100LL
JONESBORO (JBR)
MEMPHIS
FORT WORTH (ZFW)
4/18/24-5/16/24
KAGO IFR
7:35 PM CDT
Overcast 1,200'
Broken 900'
8sm
59°F
57°F
30.05"Hg
VRB° 5kts
A01
KAGO 200035Z AUTO VRB05KT 8SM BKN009 OVC012 15/14 A3005 RMK A01
List Your Business

KAGO FBOs, Flight Schools and Ground Support

Promote Listing
Magnolia Municipal Airport
Freq: 122.8
Phone: (870) 234-0740
Other: (870) 904-6731
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 3/26
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.30 5.45
Full Serve 5.30 5.45

KAGO Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KAGO Hotels

No hotels are listed for this airport.

KAGO Restaurants

No restaurants are listed for this airport.

KAGO Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
870-901-3532
 118.05

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KELD (20nm)
Fri, 4/19 6:20 PM CDT
Fri, 4/19 7:00 PM CDT - Sat, 4/20 7:00 PM CDT
MVFR
7:00 PM CDT - 1:00 AM CDT
Overcast 1,000'
6sm
020° 5kts
IFR
1:00 AM CDT - 4:00 AM CDT
Mist
Overcast 900'
6sm
020° 6kts
IFR
4:00 AM CDT - 7:00 AM CDT
Mist and Showers in vicinity
Overcast 700'
5sm
020° 8kts
IFR
7:00 AM CDT - 1:00 PM CDT
Light Thunderstorm and Rain and Mist
Overcast 500'
3sm
020° 10kts
IFR
1:00 PM CDT - 7:00 PM CDT
Light Rain and Mist
Overcast 700'
6sm
040° 11kts
Gusts 18kts
KELD 192320Z 2000/2024 02005KT P6SM OVC010
   FM200600 02006KT 6SM BR OVC009
   FM200900 02008KT 5SM BR VCSH OVC007
   FM201200 02010KT 3SM -TSRA BR OVC005CB
   FM201800 04011G18KT 6SM -RA BR OVC007
KAGO
Domestic
4/18/240843Z !JBR 04/303 AGO OBST TOWER LGT (ASR 1222387) 332102.80N0932003.10W (9.4NM NW AGO) 563.0FT (270.0FT AGL) U/S 2404180843-2405030743
4/9/242335Z !JBR 04/154 AGO OBST TOWER LGT (ASR 1020569) 332637.00N0932727.00W (17.6NM NW AGO) 669.0FT (290.0FT AGL) U/S 2404092335-2405092359
4/9/241331Z !JBR 04/141 AGO OBST TOWER LGT (ASR 1294026) 331600.30N0931549.10W (3.3NM NW AGO) 529.9FT (254.9FT AGL) U/S 2404091331-2405142359EST
4/5/240403Z !JBR 04/094 AGO OBST TOWER LGT (ASR 1306832) 331648.51N0931946.14W (6.5NM WNW AGO) 565FT (214FT AGL) U/S 2404050403-2404202300
3/21/241755Z !JBR 03/236 AGO SVC AUTOMATED WX BCST SYSTEM 118.05 U/S 2403211755-2405242349EST
3/21/241352Z !JBR 03/229 AGO OBST TOWER LGT (ASR 1037620) 331924.80N0931107.00W (6.0NM NNE AGO) 691.6FT (323.8FT AGL) U/S 2403211352-2404212359
FDC
2/28/241521Z !FDC 4/0555 AGO IAP RALPH C WEISER FLD, MAGNOLIA, AR.
RNAV (GPS) RWY 36, AMDT 1C...
CIRCLING CAT C MDA 980/HAA 661.
2402281521-2602281521EST
No
MON-FRI 0800-1700
CITY OF MAGNOLIA
CITY HALL, P.O. BOX 1126
MAGNOLIA, AR 71754
Phone: 870-234-1375
BRAD HAM
212 AIRPORT 980
MAGNOLIA, AR 71753
Phone: (870) 904-6731
JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF
JBR
--
PAPI RWYS 18 & 36 ON 24/7. ACTVT REIL & MIRL RWY 18/36 CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
11
1
0
0
0
0
None
None
None
None
Crop Dusting
Pilot Instruction

Runway 18/36

5007 ft. x 100 ft.
ASPH
Fair
NONE
MED

50,000lbs
75,000lbs
130,000lbs
--
  Runway 18 Runway 36
True Heading 182°2°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 33° 14' 04"N 33° 13' 14"N
Longitude 93° 13' 00"W 93° 13' 02"W
Elevation 301' 319'
Threshold Crossing Height 34 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
RALPH C WEISER FLD (ICAO: KAGO, IATA: AGO) is a public airport located in MAGNOLIA, AR.
