AUGUSTA RGNL AT BUSH FLD - Airport Diagram

KAGS

ICAO KAGSIATA AGSLocal AGS

AUGUSTA RGNL AT BUSH FLD

PublicPUB

6 miles S of AUGUSTA, GA, US

View on Map

Status

Operational

Coordinates

33° 22' 12"N 81° 57' 52"W

Elevation

146' MSL

Pattern Alt

1146' MSL

Mag Variation

7°W

Declination

4°W

Fuel

JET A, 100LL

FSS

MACON (MCN)

Sectional

ATLANTA

ARTCC

ATLANTA (ZTL)

Data Effective

3/19/26-4/16/26

KAGS VFR

6:53 PM EDT RAW

Broken 9,500'
Few 6,500'

Viz

10sm

Temp

78°F

Dew

65°F

Pres

30.09"Hg

Wind

020° 6kts

RMK

AO2 SLP187 T02560183

METAR KAGS 042253Z 02006KT 10SM FEW065 BKN095 26/18 A3009 RMK AO2 SLP187 T02560183

Add Your Business

KAGS FBOs

Promote Listing

Augusta Regional Airport Aviation Services

UNICOM: 122.95

Phone: (706) 798-2656

0 Reviews (Read | Sign In To Write)

World Fuel

As of 3/31	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	6.46	7.51	7.54

Fuel Notes

Prices include tax
Prist (FSII) available upon request for $0.03 per gal.

KAGS Aircraft Service & Maintenance

Promote Listing

StandardAero

Phone: (706) 771-5235

Fax: (706) 771-5236

0 Reviews (Read | Sign In To Write)

Your Information

Business

Weather and Advisory

ATIS	132.75
ASOS	(706) 250-6089

Common

CTAF	118.7
PAPI RWYS 08, 17, 26 & 35, OPER CONSLY. REIL RWY 08 & 26; MIRL RWY 08/26; HIRL RWY 17/35 OPER CONSLY WHEN ATCT CLSD. ACTVT MALSR RWY 17 & 35 - CTAF.
UNICOM	122.95

Clearance

Clearance Delivery

118.65

Ground

AUGUSTA GROUND	121.9
0645-2300

Tower

AUGUSTA TOWER	118.7
0645-2300

Terminal

TRSA	119.15
350-169
TRSA	126.8
170-349

Arrival

STUGE STAR	119.15
STWRT STAR	119.15

Approach

AUGUSTA APPROACH	119.15
350-169
AUGUSTA APPROACH	126.8
Initial Contact - 170-349

Departure

AUGUSTA DEPARTURE	119.15
350-169
AUGUSTA DEPARTURE	126.8
Initial Contact - 170-349

Center

AUGUSTA CENTER	128.1
LOW, APCH/DEP SVC PRVDD BY ATLANTA ARTCC ON FREQS 128.1/322.325 (AUGUSTA RCAG) WHEN APCH CTL CLSD.

Emergency

Emergency	121.5
Medevac	32.5

Military

ARMY OPS	49.9
ARMY OPS	149.7

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

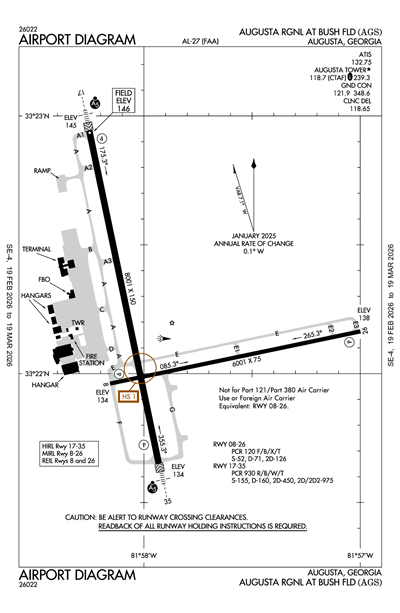

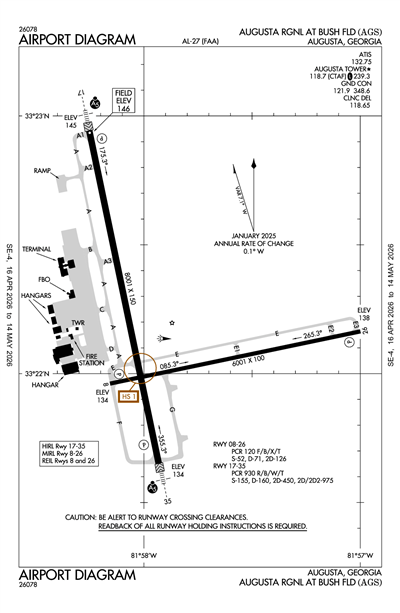

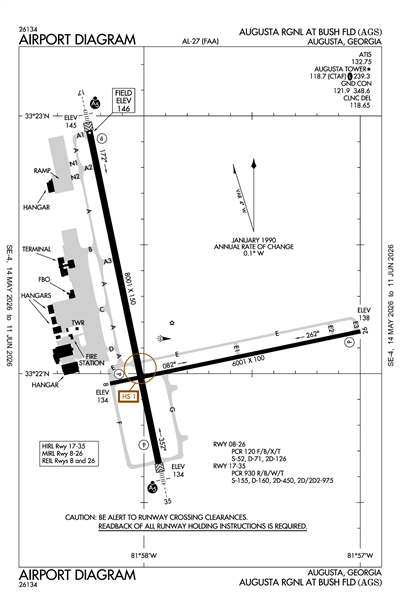

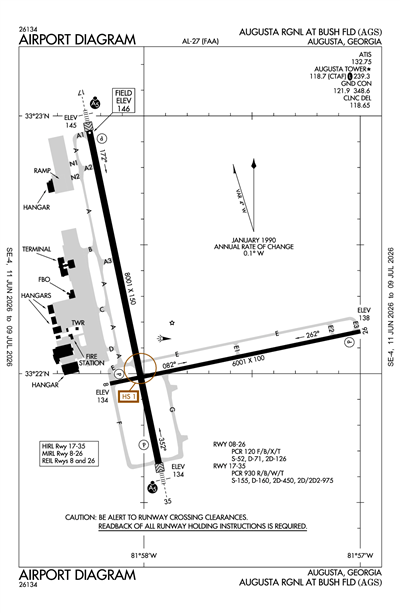

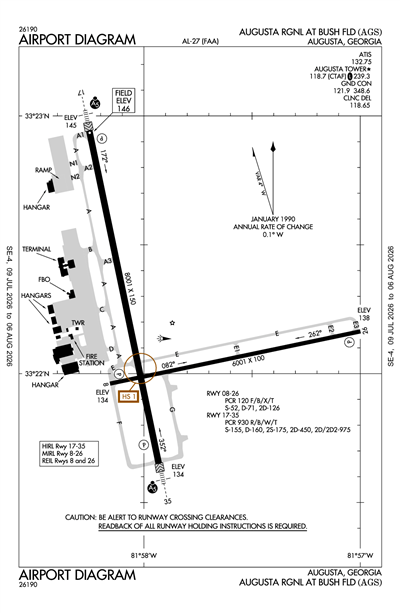

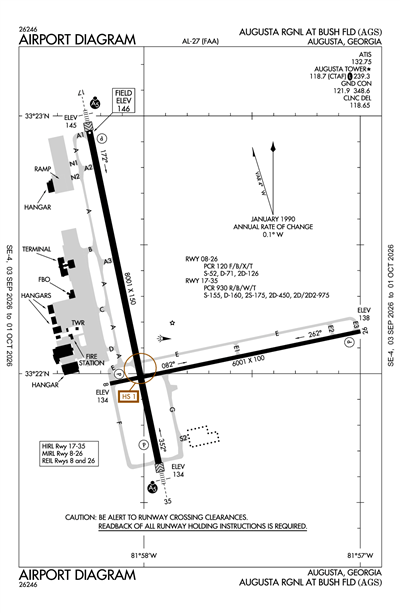

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

Arrival Procedures

Instrument Approach

Hotspot

HOT SPOT

Terminal Area Forecast

KAGS

RAW

Reported

Sat, 4/4 7:20 PM EDT

Valid

Sat, 4/4 8:00 PM EDT - Sun, 4/5 8:00 PM EDT

VFR

8:00 PM EDT - 9:00 PM EDT

Showers in vicinity

Scattered 5,000'

Viz

6sm

Wind

160° 9kts

VFR

9:00 PM EDT - 4:00 AM EDT

Scattered 25,000'
Scattered 5,000'

Viz

6sm

Wind

180° 8kts

VFR

4:00 AM EDT - 9:00 AM EDT

Scattered 5,000'
Scattered 1,500'

Viz

6sm

Wind

200° 7kts

VFR

9:00 AM EDT - 1:00 PM EDT

Broken 5,000'
Scattered 1,500'

Viz

6sm

Wind

210° 9kts

MVFR

1:00 PM EDT - 6:00 PM EDT

Light Showers and Rain and Mist

Overcast 2,500'

Viz

4sm

Wind

Calm

VFR

1:00 PM EDT - 8:00 PM EDT

Broken 5,000'
Scattered 2,500'

Viz

6sm

Wind

240° 12kts

Gusts 20kts

TAF KAGS 042320Z 0500/0524 16009KT P6SM VCSH SCT050
   FM050100 18008KT P6SM SCT050 SCT250
   FM050800 20007KT P6SM SCT015 SCT050
   FM051300 21009KT P6SM SCT015 BKN050
   FM051700 24012G20KT P6SM SCT025 BKN050
   PROB30 0517/0522 4SM -SHRA BR OVC025

KAGS

Effective	Expires	Category	NOTAM
Domestic
4/6/26 1200Z	4/14/26 2300Z		!AGS 04/005 AGS AD AP CLSD TO HEL EXC BASED ACFT 2604061200-2604142300
4/6/26 1200Z	4/14/26 2300Z		!AGS 04/003 AGS AD AP CLSD TO FORMATION FLTS AND FREIGHT AND MEDICAL AND MIL OPS AND AIR CARGO 2604061200-2604142300
4/6/26 1200Z	4/14/26 2300Z		!AGS 04/002 AGS TWY E1, E2, E3, TWY E BTN RWY 17/35 AND TWY E3 CLSD EXC PRKG 2604061200-2604142300
4/6/26 1200Z	4/14/26 2300Z	Runway	!AGS 04/001 AGS RWY 08/26 CLSD EXC TAX AND PRKG 2604061200-2604142300
4/6/26 1045Z	4/13/26 0300Z		!AGS 04/008 AGS SVC TEMPO TWR RAMP CTL 118.250 2604061045-2604130300
4/6/26 1045Z	4/13/26 0300Z		!AGS 04/007 AGS TWY B, C, D, TWY A BTN TWY A2 AND TWY E NONMOVEMENT AREA 2604061045-2604130300
4/5/26 0900Z	4/13/26 2359Z		!AGS 03/051 AGS SVC TFC MANAGEMENT PROGRAM ALERT SEE DOMESTIC NOTICES MASTERS GOLF TOUNAMENT 2604050900-2604132359
4/4/26 0432Z	4/19/26 0332Z		!AGS 04/010 AGS OBST TOWER LGT (ASR 1048593) 332415.40N0814116.70W (14.1NM E AGS) 704.7FT (319.9FT AGL) U/S 2604040432-2604190332
4/3/26 1200Z	4/14/26 2300Z		!AGS 04/004 AGS AD AP CLSD TO TGL AND PLA 2604031200-2604142300
4/2/26 0938Z	4/4/26 2000Z		!AGS 04/009 AGS TWY F HLDG PSN SIGN FOR APCH END RWY 08 LGT U/S 2604020938-2604042000
3/31/26 1350Z	5/31/26 2359Z	Runway	!AGS 03/054 AGS RWY 17/35 SAFETY AREA REDUCED S END 400FT WIDE 2603311350-2605312359
3/30/26 1725Z	4/13/26 2359Z		!AGS 03/053 AGS OBST TOWER LGT (ASR 1059411) 332437.00N0815036.00W (6.6NM ENE AGS) 1881.9FT (1505.9FT AGL) U/S 2603301725-2604132359
3/8/26 1200Z	4/17/26 2359Z		!AGS 03/013 AGS TWY G, E1, E2, E3, TWY E BTN RWY 17/35 AND TWY E3 CLSD 2603081200-2604172359
3/8/26 1200Z	4/17/26 2359Z	Runway	!AGS 03/012 AGS RWY 08/26 CLSD 2603081200-2604172359
6/30/25 0834Z			!AGS 06/021 AGS NAV ILS RWY 35 OM U/S 2506300834-2606182111EST
FDC
4/5/26 0900Z	4/13/26 2359Z		!FDC 6/7416 AGS SID AUGUSTA RGNL AT BUSH FLD, AUGUSTA, GA. DOVER FIVE DEPARTURE (RNAV)... SAMMI FOUR DEPARTURE (RNAV)... DEPARTURE PROCEDURE NA. 2604050900-2604132359EST
4/5/26 0900Z	4/13/26 2359Z		!FDC 6/6803 AGS STAR AUGUSTA RGNL AT BUSH FLD, AUGUSTA, GA. (AGS) STUGE THREE ARRIVAL...NOT AVBL 2604050900-2604132359
4/5/26 0900Z	4/13/26 2359Z		!FDC 6/6801 AGS STAR AUGUSTA RGNL AT BUSH FLD, AUGUSTA, GA (AGS) STWRT THREE ARRIVAL...NOT AVBL 2604050900-2604132359
3/17/26 1209Z			!FDC 6/9087 AGS IAP AUGUSTA RGNL AT BUSH FLD, AUGUSTA, GA. ILS OR LOC RWY 35, AMDT 28E... PROCEDURE ENTRY AT SARDY NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. 2603171209-2803171209EST
1/6/26 1424Z			!FDC 6/0859 AGS IAP AUGUSTA RGNL AT BUSH FLD, AUGUSTA, GA. ILS OR LOC RWY 17, AMDT 10A... PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, ALD VOR OUT OF SERVICE. 2601061424-2608181424EST
7/29/25 1128Z			!FDC 5/6174 AGS ODP AUGUSTA RGNL AT BUSH FLD, AUGUSTA, GA. TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 14... CHANGE TAKEOFF MINIMUMS TO READ: RWY 8: STANDARD WITH MINIMUM CLIMB OF 394 FT/NM TO 2600 OR 1700-3 FOR CLIMB IN VISUAL CONDITIONS. ALL OTHER DATA REMAINS AS PUBLISHED. 2507291128-2707291128EST
7/29/25 1128Z			!FDC 5/6172 AGS SID AUGUSTA RGNL AT BUSH FLD, AUGUSTA, GA. CHATT SIX DEPARTURE (RNAV)... SAMMI FOUR DEPARTURE (RNAV)... CHANGE TAKEOFF MINIMUMS TO READ: RWY 8: STANDARD WITH MINIMUM CLIMB OF 394 FT/NM TO 2600. ALL OTHER DATA REMAINS AS PUBLISHED. 2507291128-2707291128EST

ATC Tower

Yes

Attendance

ALL

Owner

CITY OF AUGUSTA
AVIATION DEPARTMENT 1501 AVIATION WAY
AUGUSTA, GA 30906
Phone: 706-798-2656

Manager

HERBERT JUDON
1501 AVIATION WAY
AUGUSTA, GA 30906
Phone: 706-798-3236

FSS

MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF

NOTAM

AGS

Light Schedule

Lights

PAPI RWYS 08, 17, 26 & 35, OPER CONSLY. REIL RWY 08 & 26; MIRL RWY 08/26; HIRL RWY 17/35 OPER CONSLY WHEN ATCT CLSD. ACTVT MALSR RWY 17 & 35 - CTAF.

Beacon

N/A

Wind Indicator

Yes

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

High & Low Pressure

Bulk Oxygen

High & Low Pressure

Other Services

Air Ambulance
Avionics
Cargo Handling
Charter Service
Aircraft Rental
Aircraft Sales

Runway 08/26

Dimensions

6001 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

52,000lbs

Double Wheel

71,000lbs

Double Tandem

126,000lbs

Dual Dbl Tand

	Runway 08	Runway 26
True Heading	78°	258°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	33° 21' 58"N	33° 22' 10"N
Longitude	81° 58' 09"W	81° 56' 60"W
Elevation	134'	138'
Threshold Crossing Height	55 ft. AGL	55 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

Runway 17/35

Dimensions

8001 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

155,000lbs

Double Wheel

160,000lbs

Double Tandem

450,000lbs

Dual Dbl Tand

975,000lbs

	Runway 17	Runway 35
True Heading	168°	348°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	33° 22' 57"N	33° 21' 39"N
Longitude	81° 58' 15"W	81° 57' 56"W
Elevation	145'	134'
Threshold Crossing Height	71 ft. AGL	72 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights	MALSR	MALSR
Centerline Lights
Runway End Identifier Lights

A110-1	BIRDS ON & INVOF ARPT. HVY BIRD ACT INVOF ARPT NOV-MAR.
A110-4	CAUTION: TAXI-LANE RAMP ENTRANCE/EXIT POINT INTO STANDARD AERO STORM WATER DITCH ON NORTH SIDE.
A110-6	CAUTION: WILDLIFE HAZARD COYOTE.
A110-7	FOR CD IF UNA TO CTC ON FSS FREQ, CTC AUGUSTA APCH AT 706-771-1777, WHEN APCH CLSD CTC ATLANTA ARTCC AT 770-210-7692.
A26	ARFF INDEX C AVBL UPON REQUEST.
A36-17/35	2S-175.
A38-17/35	2T-585K (B-C-17), 2D/2D2-975K (747), 840K (C-5) 2D/2D2-975K (747).
A39-08/26	PCR VALUE: 120/F/B/X/T
A39-17/35	PCR VALUE: 930/R/B/W/T
A57-35	PER SURVEY DEC 2004 RWY 17-35.
A81-APT	PAPI RWYS 08, 17, 26 & 35, OPER CONSLY. REIL RWY 08 & 26; MIRL RWY 08/26; HIRL RWY 17/35 OPER CONSLY WHEN ATCT CLSD. ACTVT MALSR RWY 17 & 35 - CTAF.
E111	EXISTED PRIOR TO 1959.

AUGUSTA RGNL AT BUSH FLD (ICAO: KAGS, IATA: AGS) is a public airport located in AUGUSTA, GA, US.
