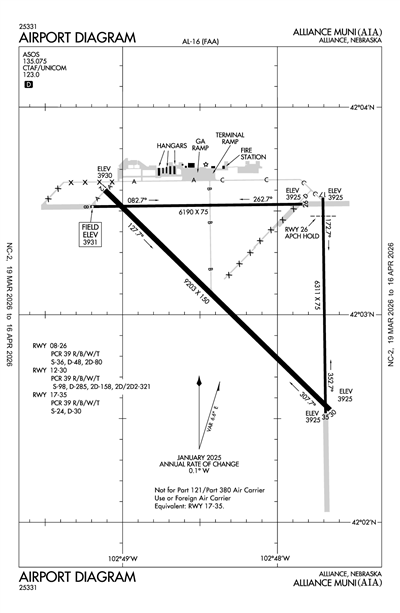

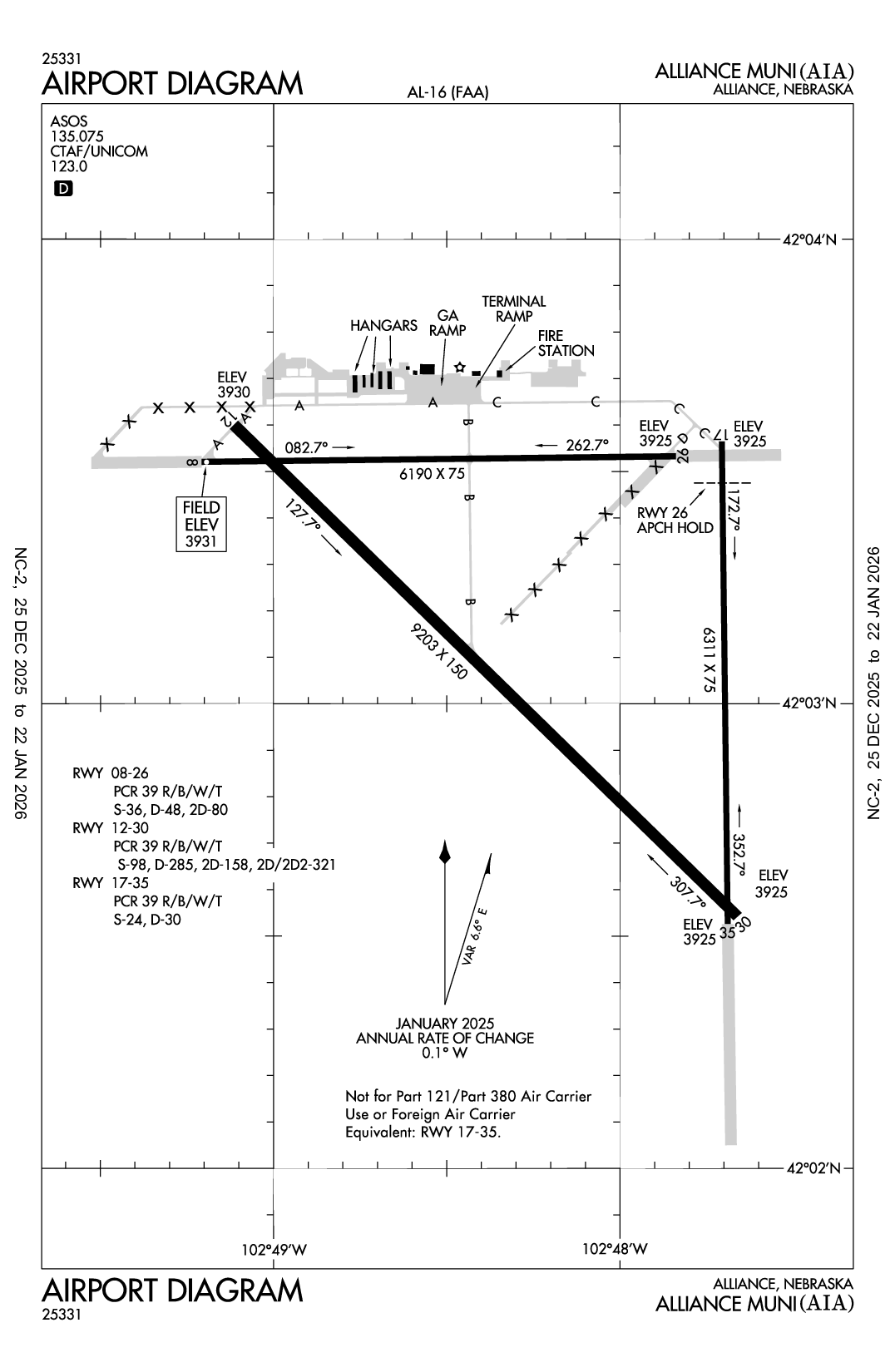

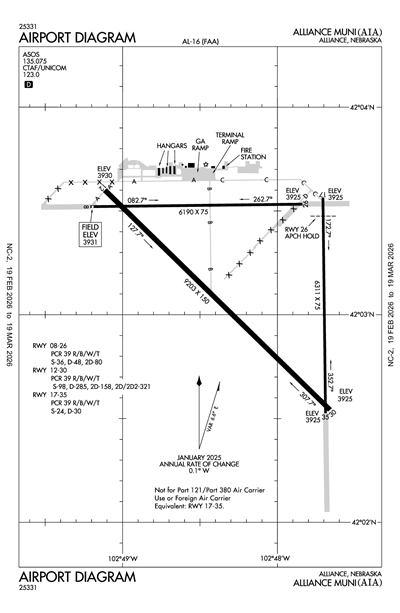

ALLIANCE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAIA
ALLIANCE MUNI
PublicPUB

3 miles SE of ALLIANCE, NE
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 03' 12"N 102° 48' 13"W
3931' MSL
4931' MSL
07E
JET A, 100LL
COLUMBUS (OLU)
CHEYENNE
DENVER (ZDV)
10/3/24-10/31/24
KAIA VFR
11:53 AM MDT
Clear
10sm
63°F
42°F
30.16"Hg
010° 9kts
AO2 SLP199 T01720056 10172 20089 51012
KAIA 221753Z AUTO 01009KT 340V040 10SM CLR 17/06 A3016 RMK AO2 SLP199 T01720056 10172 20089 51012
Add Your Business

KAIA FBOs

Promote Listing
Heartland Aviation
UNICOM: 123.0
Phone: (308) 762-5311
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 10/12
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.80 5.20 5.20
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
308-762-1221
 135.075

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KAIA
Tue, 10/22 11:29 AM MDT
Tue, 10/22 12:00 PM MDT - Wed, 10/23 12:00 PM MDT
VFR
12:00 PM MDT - 4:00 PM MDT
Few 25,000'
6sm
360° 12kts
Gusts 20kts
VFR
4:00 PM MDT - 4:00 AM MDT
Broken 25,000'
Scattered 12,000'
6sm
040° 10kts
VFR
4:00 AM MDT - 10:00 AM MDT
Scattered 25,000'
6sm
240° 6kts
VFR
10:00 AM MDT - 12:00 PM MDT
Sky Clear
6sm
180° 12kts
Gusts 20kts
KAIA 221729Z 2218/2318 36012G20KT P6SM FEW250
   FM222200 04010KT P6SM SCT120 BKN250
   FM231000 24006KT P6SM SCT250
   FM231600 18012G20KT P6SM SKC
KAIA
Domestic
10/25/240400Z !AIA 10/073 AIA COM REMOTE COM OUTLET 122.3 U/S 2410250400-2410250900
10/22/241300Z !AIA 10/078 AIA TWY C BTN APCH END RWY 17 AND TWY D CLSD 2410221300-2410222359
10/22/241300Z !AIA 10/077 AIA TWY B BTN RWY 08/26 AND RWY 12/30 CLSD 2410221300-2410222359
10/22/241300Z !AIA 10/076 AIA TWY A BTN APCH END RWY 08 AND WEST RAMP WEST ACCESS CLSD 2410221300-2410222359
10/22/241300Z !AIA 10/075 AIA RWY 17/35 CLSD 2410221300-2410222359
10/22/241300Z !AIA 10/074 AIA RWY 12/30 CLSD 2410221300-2410222359
10/22/240500Z !AIA 10/055 AIA COM REMOTE COM OUTLET 122.3 U/S 2410220500-2410221100
10/19/241630Z !AIA 10/060 AIA TWY C BTN APCH END RWY 17 AND TWY D CLSD 2410191630-2410192359
10/19/241630Z !AIA 10/059 AIA TWY B BTN RWY 08/26 AND RWY 12/30 CLSD 2410191630-2410192359
10/19/241630Z !AIA 10/058 AIA TWY A BTN APCH END RWY 08 AND WEST RAMP WEST ACCESS CLSD 2410191630-2410192359
10/19/241630Z !AIA 10/056 AIA RWY 17/35 CLSD 2410191630-2410192359
10/18/241628Z !AIA 10/054 AIA COM REMOTE COM OUTLET 122.3 U/S 2410181628-2411182000EST
10/17/241400Z !AIA 10/047 AIA AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF AIA SFC-3500FT AGL ACFT CS FLC78
2410171400-2410172200EST
10/14/241335Z !AIA 10/039 AIA OBST TOWER LGT (ASR 1051391) 414110.00N1030514.00W (25.31NM SSW AIA) 4005FT (300FT AGL) U/S 2410141335-2411142359
10/12/241300Z !AIA 10/034 AIA TWY D CLSD 2410121300-2410122359
10/12/241300Z !AIA 10/033 AIA TWY B CLSD 2410121300-2410122359
10/12/241300Z !AIA 10/032 AIA TWY A BTN APCH END RWY 08 AND APCH END RWY 12 CLSD 2410121300-2410122359
10/12/241300Z !AIA 10/031 AIA RWY 08/26 CLSD 2410121300-2410122359
10/11/241300Z !AIA 10/030 AIA TWY A BTN APCH END RWY 08 AND APCH END RWY 12 CLSD 2410111300-2410112359
10/11/241300Z !AIA 10/029 AIA TWY B CLSD 2410111300-2410112359
10/11/241300Z !AIA 10/028 AIA TWY D CLSD 2410111300-2410112359
10/11/241300Z !AIA 10/027 AIA RWY 08/26 CLSD 2410111300-2410112359
10/11/240400Z !AIA 10/005 AIA COM REMOTE COM OUTLET 122.3 U/S 2410110400-2410110900
10/9/242015Z !AIA 10/021 AIA TWY A CLSD 2410092015-2410092200
10/9/242014Z !AIA 10/020 AIA RWY 12/30 CLSD 2410092014-2410092200
10/9/242014Z !AIA 10/019 AIA TWY C CLSD 2410092014-2410092200
10/9/242013Z !AIA 10/018 AIA RWY 17/35 CLSD 2410092013-2410092200
10/9/241300Z !AIA 10/017 AIA TWY A BTN APCH END RWY 08 AND APCH END RWY 12 CLSD 2410091300-2410091600
10/4/240500Z !AIA 10/002 AIA COM REMOTE COM OUTLET 122.300 U/S 2410040500-2410041000
9/9/241008Z !AIA 09/017 AIA OBST TOWER LGT (ASR 1024344) 420246.00N1031010.00W (16.3NM W AIA) 4443.9FT (298.9FT AGL) U/S 2409091008-2410092359
8/12/242013Z !AIA 08/010 AIA RWY 30 RAI LGT U/S 2408122013-2411302000EST
7/26/241704Z !AIA 07/028 AIA OBST TOWER LGT (ASR 1238064) 415027.90N1030428.80W (17.6NM SW AIA) 5749.0FT (1478.0FT AGL) U/S 2407261704-2410312359
FDC
10/4/242155Z !FDC 4/5066 AIA IAP ALLIANCE MUNI, ALLIANCE, NE.
ILS OR LOC RWY 30, ORIG-B...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AIA VOR/DME OUT OF SERVICE. 2410042155-2411072155EST
No
ALL
CITY OF ALLIANCE
PO BOX D
ALLIANCE, NE 69301
Phone: 308-762-5400
MS LYNN PLACEK
5631 SARPY ROAD, PO BOX D
ALLIANCE, NE 69301
Phone: 308-762-4512
COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF
AIA
--
ACTVT MALSR RWY 30; REIL RWY 12; VASI RWY 12; PAPI RWY 30 & MIRL RWY 12/30 & 08/26 -CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Crop Dusting
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 08/26

6190 ft. x 75 ft.
ASPH
Good
PFC
MED
28 /F/A/W/U
36,000lbs
48,000lbs
80,000lbs
--
  Runway 08 Runway 26
True Heading 89°269°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 03' 31"N 42° 03' 32"N
Longitude 102° 49' 12"W 102° 47' 50"W
Elevation 3,931' 3,925'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

9203 ft. x 150 ft.
ASPH
Excellent
AFSC
MED
42 /F/A/W/U
36,000lbs
48,000lbs
80,000lbs
--
  Runway 12 Runway 30
True Heading 134°314°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 42° 03' 36"N 42° 02' 33"N
Longitude 102° 49' 07"W 102° 47' 40"W
Elevation 3,930' 3,924'
Threshold Crossing Height 39 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes No

Runway 17/35

6311 ft. x 75 ft.
ASPH
Poor
NONE

17 /F/A/W/U
24,000lbs
30,000lbs
--
--
  Runway 17 Runway 35
True Heading 179°359°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 42° 03' 34"N 42° 02' 32"N
Longitude 102° 47' 42"W 102° 47' 41"W
Elevation 3,925' 3,925'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RY 17/35 UNAVBL FOR USE BY AIR CARRIERS.
A110-10FOR CD IF UNA TO CTC ON FSS FREQ, CTC DENVER ARTCC AT 303-651-4257.
A110-2ULTRALIGHT & GLIDER OPNS ON & INVOF ARPT.
A110-3AERIAL SPRAYING OPNS ON & INVOF ARPT.
A110-5RY 08/26 DESIGNATED CALM WIND.
A110-6HAYING OPNS ON INTERIOR OF ARPT DURG SUMMER MONTHS.
A110-7OCCASIONAL USE BY ACFT WITH NO RADIO.
A110-8BACK TAXIING.
A110-9MIGRATORY WATERFOWL ON & INVOF ARPT.
ALLIANCE MUNI (ICAO: KAIA, IATA: AIA) is a public airport located in ALLIANCE, NE.
