CORONA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAJO
ICAO KAJOLocal AJO
CORONA MUNI
PublicPUB

3 miles NW of CORONA, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 53' 52"N 117° 36' 09"W
Elevation
533' MSL
Pattern Alt
1533' MSL
Mag Variation
11°E
Declination
14°E
Fuel
100LL
FSS
RIVERSIDE (RAL)
Sectional
LOS ANGELES
ARTCC
LOS ANGELES (ZLA)
Data Effective
7/9/26-8/6/26
KAJO VFR
5:56 PM PDT
Clear
10sm
88°F
67°F
29.84"Hg
280° 15kts
Gusts 20kts
AO2 SLP098 T03110194
METAR KAJO 260056Z AUTO 28015G20KT 10SM CLR 31/19 A2984 RMK AO2 SLP098 T03110194
+ Add Your Business

KAJO FBOs

Promote Listing
CW Transportation
UNICOM: 122.7
Phone: (951) 852-1505
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 7/24
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.99
Full Serve
Fuel Notes
Prices include tax
Call ahead for availability and pricing of fuel.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 132.175
(951) 340-4764, (COMM_DECOMM_DATE) AWSS

Common

CTAF 122.7
ACTVT MIRL RY 07/25 VASI & REIL RY 25 - CTAF.
UNICOM 122.7

Arrival

SETER STAR 127.0
ZIGGY STAR 127.0

Approach

SOCAL APPROACH 135.4
SOCAL APPROACH 135.4
Initial Contact

Departure

SOCAL DEPARTURE 135.4
Initial Contact
SOCAL DEPARTURE 135.4

Other

CLASS C 127.0
NORTH-NE
CLASS C 135.4
SOUTH-SW

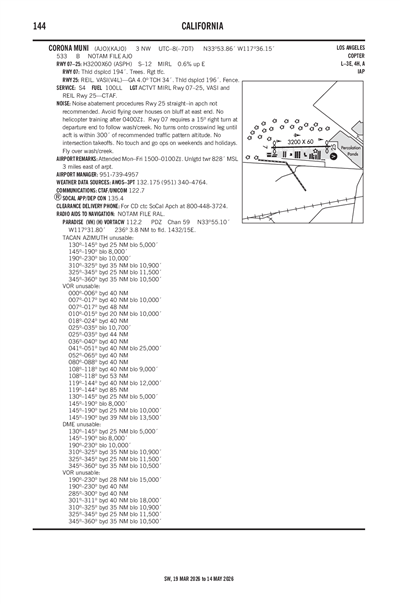

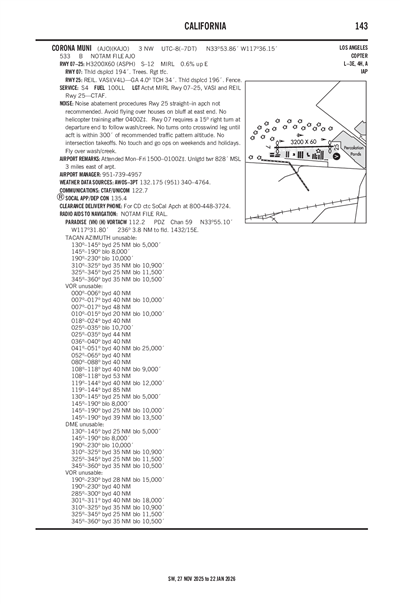

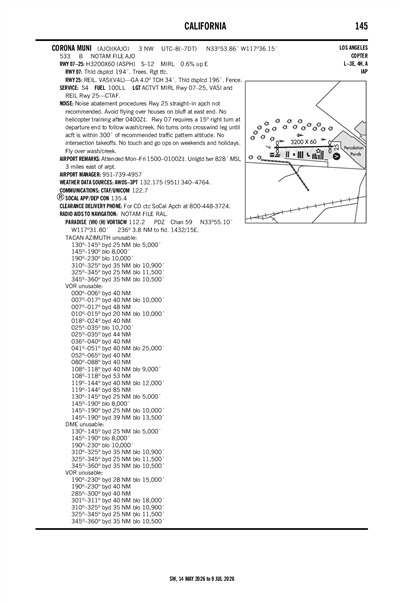

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KONT (9nm)
Sat, 7/25 4:31 PM PDT
Sat, 7/25 5:00 PM PDT - Sun, 7/26 11:00 PM PDT
VFR
5:00 PM PDT - 10:00 PM PDT
Broken 25,000'
6sm
250° 12kts
Gusts 20kts
VFR
10:00 PM PDT - 2:00 PM PDT
Scattered 25,000'
6sm
VRB° 5kts
VFR
2:00 PM PDT - 10:00 PM PDT
Broken 25,000'
6sm
260° 12kts
Gusts 21kts
VFR
10:00 PM PDT - 11:00 PM PDT
Broken 25,000'
6sm
VRB° 5kts
TAF KONT 252331Z 2600/2706 25012G20KT P6SM BKN250
   FM260500 VRB05KT P6SM SCT250
   FM262100 26012G21KT P6SM BKN250
   FM270500 VRB05KT P6SM BKN250
KAJO
EffectiveExpiresCategoryNOTAM
Domestic
7/29/26
1600Z
7/29/26
2359Z
!AJO 07/009 AJO AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF AJO SFC-3500FT AGL ACFT CS FLC76
2607291600-2607292359
7/15/26
0609Z
10/13/26
0609Z
!AJO 07/004 AJO OBST TOWER LGT (ASR 1215353) 335253.60N1173617.90W (1.0NM S AJO) 732.0FT (65.0FT AGL) U/S 2607150609-2610130609
7/2/26
1839Z
8/2/26
2359Z
!AJO 07/001 AJO OBST TOWER LGT (ASR 1276732) 334946.60N1173819.70W (4.4NM SSW AJO) 2999.0FT (281.2FT AGL) U/S 2607021839-2608022359
6/25/26
0713Z
8/26/26
2359Z
Runway!AJO 06/013 AJO RWY 25 VASI U/S 2606250713-2608262359
6/16/26
1143Z
9/14/26
1143Z
!AJO 06/011 AJO OBST TOWER LGT (ASR 1023254) 335100.00N1173916.00W (3.8NM SW AJO) 3155.8FT (136.2FT AGL) U/S 2606161143-2609141143
5/25/26
1304Z
8/25/26
2300Z
!AJO 05/011 AJO OBST TOWER LGT (ASR UNKNOWN) 335322.53N1174452.25W (8.4NM W AJO) 1276FT (138FT AGL) U/S 2605251304-2608252300
FDC
6/11/25
1648Z
!FDC 5/2356 AJO ODP CORONA MUNI, CORONA, CA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3A...
TAKEOFF MINIMUMS: RWY 25, 600-2 1/2 OR STANDARD WITH MINIMUM CLIMB OF 280 FT/NM TO 1200.
DEPARTURE PROCEDURE: ALL AIRCRAFT CONTINUE CLIMB DIRECT TO PDZ VORTAC. AIRCRAFT DEPARTING PDZ VORTAC R-091 CW R-140 AND R-231 CW R-280 CLIMB ON COURSE. ALL OTHERS, PROCEDURE NA. ALL OTHER DATA REMAINS AS PUBLISHED. 2506111648-2706111648EST
No
MON-FRI 0700-1700
CITY OF CORONA
400 SOUTH VICENTIA AVE
CORONA, CA 92882
Phone: 951-736-2289
MOSES CORTEZ
400 SOUTH VICENTIA AVE, SUITE 225
CORONA, CA 92882
Phone: 951-739-4957
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
AJO
--
ACTVT MIRL RY 07/25 VASI & REIL RY 25 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 07/25

3200 ft. x 60 ft.
ASPH
Fair
NONE
MED

12,000lbs
--
--
--
  Runway 07 Runway 25
True Heading 89°269°
Traffic Pattern Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 33° 53' 51"N 33° 53' 52"N
Longitude 117° 36' 28"W 117° 35' 50"W
Elevation 515' 533'
Threshold Crossing Height -- 34 ft. AGL
Visual Glide Path Angle -- 4°
Visual Slope Indicator -- V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A11ON LEASE TO CITY OF CORONA FROM ARMY CORPS OF ENGINEERS.
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1NOISE ABATEMENT PROCEDURES: RY 25 STRAIGHT-IN APCH NOT RECOMMENDED. AVOID FLYING OVER HOUSES ON BLUFF AT EAST END. FLY OVER WASH/CREEK. RY 07 REQUIRES A 15 DEG RIGHT TURN AT DEP END TO FOLLOW WASH/CREEK.
A110-2UNLGTD TWR 828 FT MSL 3 MILES E OF ARPT.
A110-6NO INTERSECTION TAKEOFFS.
A110-7NO TOUCH AND GO OPERATIONS ON WKNDS AND HOLS.
A110-8NO HELICOPTER TRNG AFTER 2000
A110-9FOR CD CTC SOCAL APCH AT 800-448-3724.
A14AIRPORT ADDRESS: 1900 AVIATION DRIVE, CORONA, CA 92880.
A57-07RWY 07 APCH RATIO TO DSPLCD THR 20:1
A57-25RWY 25 APCH RATIO TO DSPLCD THR 34:1.
A81-APTACTVT MIRL RY 07/25 VASI & REIL RY 25 - CTAF.
E147NO TURNS ONTO XW LEG TIL ACFT IS WI 300 FT OF RECOMMENDED TPA.
CORONA MUNI (ICAO: KAJO, IATA: AJO) is a public airport located in CORONA, CA, US.
