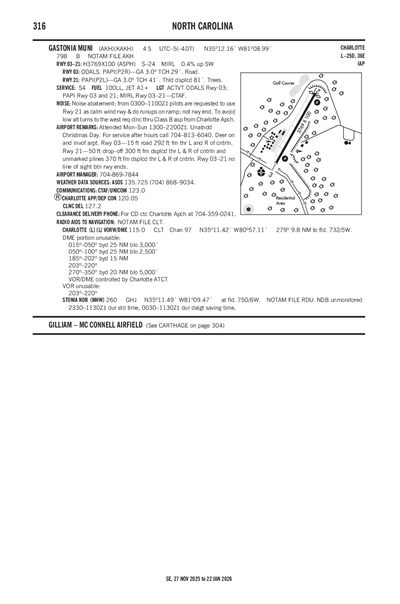

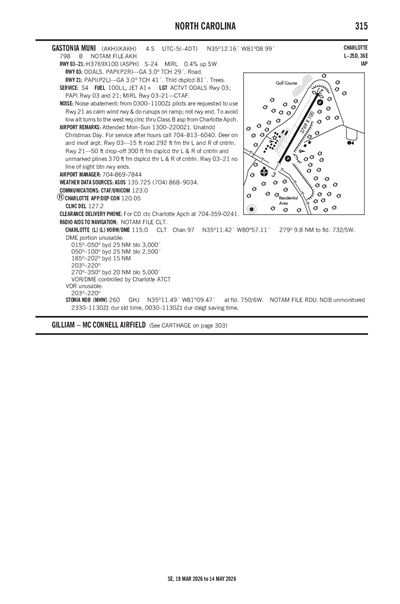

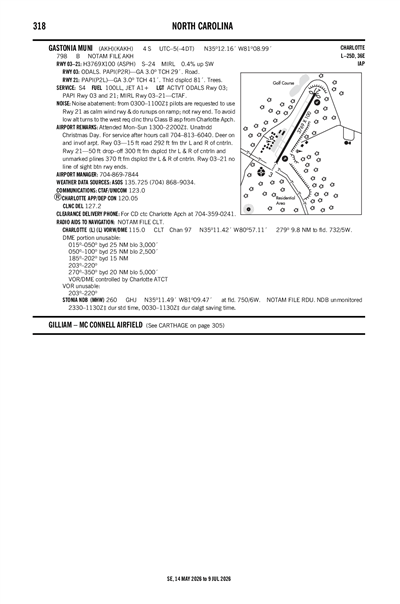

GASTONIA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAKH
ICAO KAKHLocal AKH
GASTONIA MUNI
PublicPUB

4 miles S of GASTONIA, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 12' 09"N 81° 08' 60"W
Elevation
798' MSL
Pattern Alt
1798' MSL
Mag Variation
8°W
Declination
6°W
Fuel
JET A-1+, 100LL
FSS
RALEIGH (RDU)
Sectional
CHARLOTTE
ARTCC
ATLANTA (ZTL)
Data Effective
7/9/26-8/6/26
KAKH VFR
9:18 PM EDT
Broken 9,500'
Scattered 3,000'
Few 1,600'
10sm
74°F
70°F
30.15"Hg
050° 8kts
AO2 T02330211
SPECI KAKH 140118Z AUTO 05008KT 10SM FEW016 SCT030 BKN095 23/21 A3015 RMK AO2 T02330211
+ Add Your Business

KAKH FBOs

Promote Listing
Academy of Aviation
UNICOM: 123.0
Phone: (704) 869-7844
Other: (704) 813-6040
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 7/8
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 7.12
Full Serve 7.53 6.88
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 135.725
(704) 868-9034

Common

CTAF 123.0
ACTVT ODALS RWY 03; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF.
UNICOM 123.0

Clearance

Clearance Delivery 127.2
CD FREQ 127.2 OTS INDEFLY AT GASTONIA MUNI (AKH), GASTONIA, NC.

Arrival

JOOLS STAR 135.6
RASLN STAR 126.15

Approach

CHARLOTTE APPROACH 120.05

Departure

BARMY DP 120.05
BEAVY DP 120.05
BOBZY DP 120.05
CHARLOTTE DEPARTURE 120.05
ESTRR DP 120.05
ICONS DP 120.05
JOJJO DP 120.05
KERMIT DP 120.05
KILNS DP 120.05
KNIGHTS DP 120.05
KRITR DP 120.05
KWEEN DP 120.05
LILLS DP 120.05
WEAZL DP 120.05

Terminal Area Forecast

KCLT (10nm)
Mon, 7/13 7:57 PM EDT
Mon, 7/13 8:00 PM EDT - Wed, 7/15 2:00 AM EDT
MVFR
8:00 PM EDT - 12:00 AM EDT
Light Showers and Rain
Broken 25,000'
Broken 3,500'
Broken 2,000'
6sm
060° 10kts
IFR
12:00 AM EDT - 5:00 AM EDT
Showers in vicinity
Broken 800'
6sm
060° 8kts
IFR
5:00 AM EDT - 12:00 PM EDT
Broken 600'
6sm
050° 8kts
MVFR
12:00 PM EDT - 3:00 PM EDT
Broken 1,500'
6sm
050° 9kts
VFR
3:00 PM EDT - 8:00 PM EDT
Scattered 5,000'
Scattered 2,100'
6sm
050° 8kts
VFR
8:00 PM EDT - 2:00 AM EDT
Few 14,000'
6sm
050° 4kts
TAF KCLT 132357Z 1400/1506 06010KT P6SM -SHRA BKN020 BKN035 BKN250
   FM140400 06008KT P6SM VCSH BKN008
   FM140900 05008KT P6SM BKN006
   FM141600 05009KT P6SM BKN015
   FM141900 05008KT P6SM SCT021 SCT050
   FM150000 05004KT P6SM FEW140
KAKH
EffectiveExpiresCategoryNOTAM
Domestic
7/20/26
0100Z
7/23/26
1100Z
Runway!AKH 07/009 AKH RWY 03/21 CLSD DLY 0100-1100 2607200100-2607231100
7/13/26
2100Z
7/17/26
1100Z
!AKH 07/007 AKH APRON MAIN APN ACCESS CLSD DLY 2100-1100 2607132100-2607171100
7/13/26
0100Z
7/23/26
1100Z
!AKH 07/005 AKH AD AP CLSD TO IFR TRAFFIC 2607130100-2607231100
7/13/26
0100Z
7/16/26
1100Z
Runway!AKH 07/004 AKH RWY 03/21 CLSD DLY 0100-1100 2607130100-2607161100
7/10/26
1951Z
7/13/26
2100Z
!AKH 07/008 AKH AD AP FULL SERVE AVGAS NOT AVBL 2607101951-2607132100
7/1/26
0624Z
9/29/26
0624Z
!AKH 07/001 AKH OBST TOWER LGT (ASR 1000283) 351042.30N0811137.90W (2.6NM SW AKH) 993.8FT (318.9FT AGL) U/S 2607010624-2609290624
6/30/26
0708Z
8/14/26
0707Z
!AKH 06/004 AKH OBST TOWER LGT (ASR 1056284) 350840.00N0811332.00W (5.2NM SW AKH) 1065.0FT (268.0FT AGL) U/S 2606300708-2608140707
6/6/26
2315Z
9/4/26
2315Z
!AKH 06/003 AKH OBST TOWER LGT (ASR 1003373) 351600.00N0811041.00W (4.1NM NNW AKH) 1120.7FT (315.0FT AGL) U/S 2606062315-2609042315
6/5/26
1118Z
7/20/26
1117Z
!AKH 06/002 AKH OBST TOWER LGT (ASR 1008247) 351357.00N0811634.00W (6.4NM WNW AKH) 1848.1FT (268.0FT AGL) U/S 2606051118-2607201117
6/3/26
0945Z
9/1/26
0945Z
!AKH 06/001 AKH OBST TOWER LGT (ASR 1030686) 351020.60N0810634.20W (2.7NM SE AKH) 1004.6FT (262.8FT AGL) U/S 2606030945-2609010945
5/20/26
1225Z
8/18/26
0400Z
!AKH 05/012 AKH OBST TOWER LGT (ASR 1062687) 351535.10N0812016.50W (9.8NM WNW AKH) 1328.7FT (213.9FT AGL) U/S 2605201225-2608180400
5/12/26
1252Z
Runway!AKH 05/007 AKH RWY 03 ALS U/S 2605121252-2611122111EST
5/12/26
1251Z
Runway!AKH 05/006 AKH RWY 21 PAPI U/S 2605121251-2611122111EST
1/19/26
1454Z
7/31/26
2359Z
!AKH 01/007 AKH OBST TOWER (ASR 1332043) 351325.70N0811130.10W (2.41NM NW AKH) 994FT (199FT AGL) U/S NOT FLAGGED NOT LGT 2601191454-2607312359
FDC
7/10/26
1423Z
!FDC 6/4618 AKH SID GASTONIA MUNI, GASTONIA, NC. KERMIT SIX DEPARTURE... KNIGHTS FIVE DEPARTURE... DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, CLT VOR OUT OF SERVICE. 2607101423-2807091423EST
7/10/26
1423Z
!FDC 6/4611 AKH IAP GASTONIA MUNI, GASTONIA, NC. NDB RWY 3, AMDT 9A... RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, CLT VOR OUT OF SERVICE. 2607101423-2807091423EST
3/12/25
1638Z
!FDC 5/2212 AKH IAP GASTONIA MUNI, GASTONIA, NC.
NDB RWY 3, AMDT 9A...
S-3 CAT A VIS 1 SM.
NOTE: PROCEDURE NA AT NIGHT.
NOTE: RWY 3 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED.
2503121638-2710221638EST
3/12/25
1633Z
!FDC 5/2211 AKH IAP GASTONIA MUNI, GASTONIA, NC.
RNAV (GPS) RWY 3, AMDT 1B...
LPV DA NA.
NOTE: PROCEDURE NA AT NIGHT.
NOTE: RWY 3 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED.
2503121633-2710221633EST
No
MON-SUN 0800-1700
UNATNDD CHRISTMAS DAY.
FOR SERVICE AFTER HOURS CALL 704-813-6040
CITY OF GASTONIA
PO BOX 1748
GASTONIA, NC 28053
Phone: (704) 214-9160
STEVE HUSS
1126 GASTON DAY SCHOOL ROAD
GASTONIA, NC 28056
Phone: 704-869-7844
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
AKH
--
ACTVT ODALS RWY 03; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Avionics
Charter Service

Runway 03/21

3769 ft. x 100 ft.
ASPH
Good
NONE
MED

24,000lbs
--
--
--
  Runway 03 Runway 21
True Heading 28°208°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 35° 11' 53"N 35° 12' 26"N
Longitude 81° 09' 10"W 81° 08' 49"W
Elevation 796' 780'
Threshold Crossing Height 29 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2R P2L
Approach Lights ODALS
Centerline Lights No No
Runway End Identifier Lights
A11STEVE HUSS.
A110-2RWY 03 - 15 FT ROAD 292 FT FM THR L & R OF CNTRLN.
A110-3RWY 21 - 50 FT DROP-OFF 300 FT FM DSPLCD THR L&R OF CNTRLN AND UNMKD PLINES 370 FT FM DSPLCD THR L&R OF CNTRLN.
A110-4NOISE ABATEMENT: FROM 2200-0600 PILOTS ARE REQUESTED TO USE RWY 21 AS CALM WIND RWY & DO RUNUPS ON RAMP; NOT RWY END. TO AVOID LOW ALT TURNS TO THE WEST REQ CLNC THRU CLASS B ASP FROM CHARLOTTE APCH.
A110-5DEER ON & INVOF ARPT.
A110-6FOR CD CTC CHARLOTTE APCH AT 704-359-0241.
A110-7RWY 03/21 NO LINE OF SIGHT BTN RWY ENDS.
A17-D1UNATNDD CHRISTMAS DAY.
A17-H1FOR SERVICE AFTER HOURS CALL 704-813-6040
A57-21APCH SLOPE 43:1 TO DSPLCD THR DUE TO 66 FT TREES LOCATED 3099 FT FRM DSPLCD THR OFFSET 796 FT RIGHT OF CNTRLN.
A58-2110 FT BRUSH 82 FT FM END OF RWY 105 FT RIGHT OF CNTRLN.
A81-APTACTVT ODALS RWY 03; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF.
GASTONIA MUNI (ICAO: KAKH, IATA: AKH) is a public airport located in GASTONIA, NC, US.
