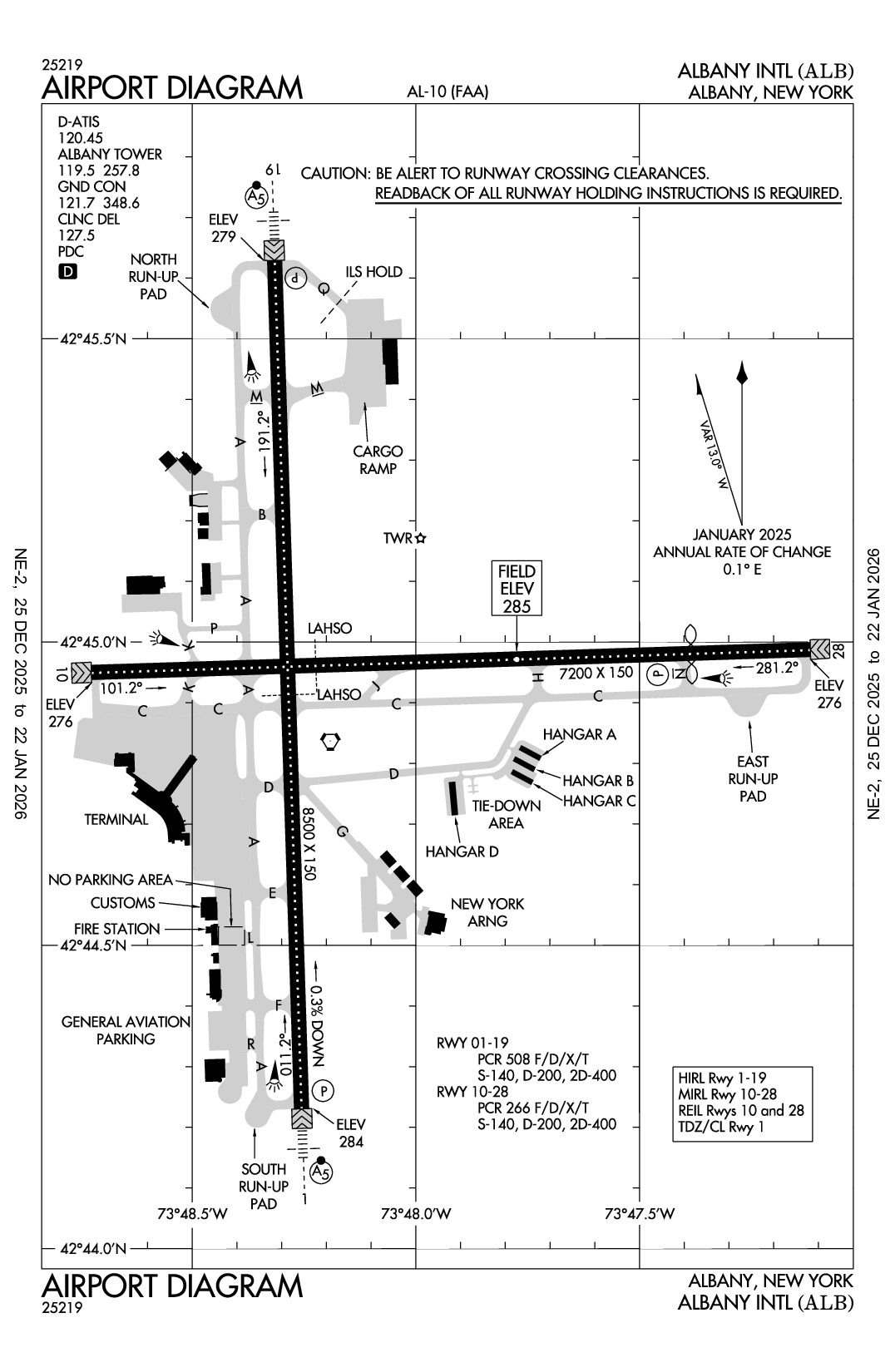

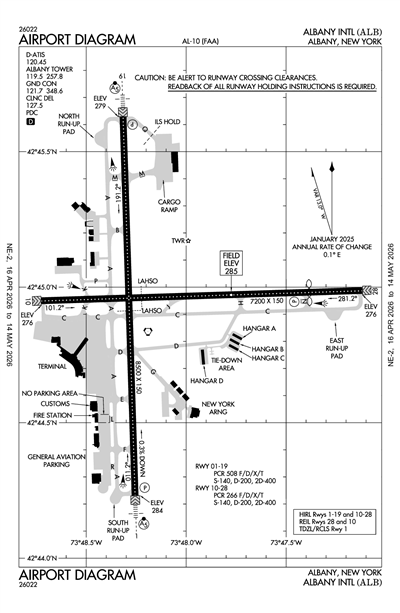

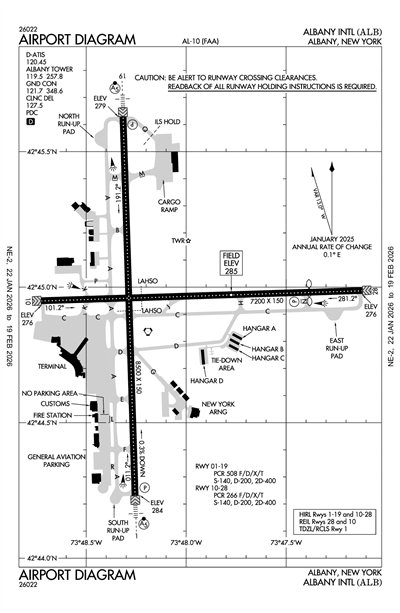

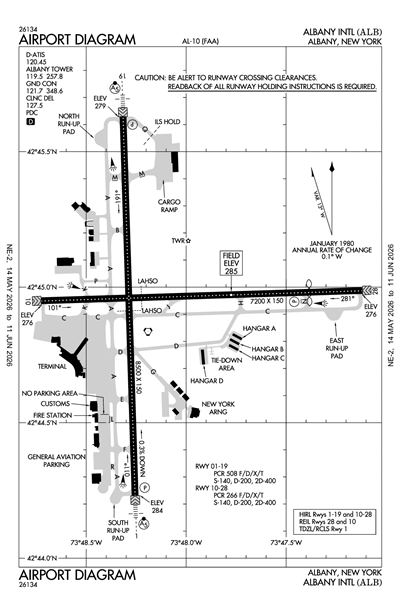

ALBANY INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KALB
ALBANY INTL
PublicPUB

6 miles NW of ALBANY, NY
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 44' 57"N 73° 48' 07"W
285' MSL
1285' MSL
00E
Jet A, 100LL
BURLINGTON (BTV)
NEW YORK
BOSTON (ZBW)
12/31/20-1/28/21
KALB VFR
6:51 AM EST
Overcast 15,000'
Few 4,000'
10sm
17°F
10°F
29.79"Hg
VRB° 4kts
AO2 SLP093 BINOVC 70002 T10831122 11083 21100 56038
KALB 211151Z VRB04KT 10SM FEW040 OVC150 M08/M12 A2979 RMK AO2 SLP093 BINOVC 70002 T10831122 11083 21100 56038

KALB FBOs, Flight Schools and Ground Support

Million Air
Freq: 129.7
Phone: (518) 242-2444
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
Fuel as of 12/30/2020 100LL SS-- 100LL FS$4.49 Jet A-- Jet A+$4.42 MoGas--

KALB Ground Transportation (Taxi, Limo, Car Service)

Absolute Taxi and Airport Transportation
Phone: (607) 287-4256
No Rating Available
0 Reviews (Read | Sign In To Write)

KALB Hotels

No hotels are listed for this airport.

KALB Restaurants

No restaurants are listed for this airport.

KALB Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

D-ATIS
120.45

ASOS

ASOS
518-464-6423
120.45

Approach/Departure

APCH/P DEP/P
194-011
118.05
APCH/P DEP/P IC
011-194
132.825
APCH/S DEP/S
118.05
APCH/S DEP/S
127.15

Clearance Delivery

CD/P
127.5

Emergency

EMERG
121.5

Ground

GND/P
121.7

Tower

LCL/P
119.5

Other

CLASS C
194-011
118.05
CLASS C
011-194
132.825
NG OPS
FM
30.1
NG OPS
122.775

Terminal Area Forecast

KALB
Thu, 1/21 6:30 AM EST
Thu, 1/21 7:00 AM EST - Fri, 1/22 7:00 AM EST
VFR
7:00 AM EST - 8:00 AM EST
Broken 4,000'
> 6sm
170° 6kts
IFR
Temporary 8:00 AM EST - 12:00 PM EST
Light Snow and Mist
Overcast 2,500'
Broken 1,500'
1sm
Calm
MVFR
8:00 AM EST - 1:00 PM EST
Light Snow and Mist
Overcast 4,000'
Broken 2,500'
4sm
180° 8kts
VFR
1:00 PM EST - 9:00 PM EST
Broken 5,000'
Scattered 3,500'
> 6sm
200° 10kts
VFR
9:00 PM EST - 7:00 AM EST
Showers in vicinity
Broken 5,000'
Scattered 3,500'
> 6sm
210° 7kts
KALB 211130Z 2112/2212 17006KT P6SM BKN040
   FM211300 18008KT 4SM -SN BR BKN025 OVC040
   TEMPO 2113/2117 1SM -SN BR BKN015 OVC025
   FM211800 20010KT P6SM SCT035 BKN050
   FM220200 21007KT P6SM VCSH SCT035 BKN050
KALB
Domestic
1/21/211300Z !ALB 01/139 ALB NAV ILS RWY 01 U/S 2101211300-2101212230
1/21/211300Z !ALB 01/138 ALB NAV ILS RWY 19 LOC/GP/DME U/S 2101211300-2101212230
1/20/211848Z !ALB 01/218 ALB TWY ALL FICON WET OBS AT 2101201848. 2101201848-2101211848
1/20/211847Z !ALB 01/217 ALB APRON ALL FICON WET OBS AT 2101201847. 2101201847-2101211847
1/20/211847Z !ALB 01/216 ALB RWY 28 FICON 5/5/5 50 PCT WET OBS AT 2101201847. 2101201847-2101211847
1/20/211846Z !ALB 01/215 ALB RWY 01 FICON 20 PCT WET OBS AT 2101201846. 2101201846-2101211846
1/4/211852Z !ALB 01/093 ALB NAV TACAN U/S 2101041852-2107052000EST
12/4/202013Z !ALB 12/019 ALB OBST TOWER LGT (ASR UNKNOWN) 424052.00N0734309.00W (5.44NM SSE ALB) 441FT (207FT AGL) U/S 2012042013-2103312359
12/1/200015Z !ALB 12/001 ALB NAV VORTAC U/S 2012010015-2101212359
11/19/201501Z !ALB 11/104 ALB NAV VOR 282-298 UNUSABLE 2011191501-2101292359EST
11/19/201500Z !ALB 11/103 ALB NAV VOR 214-217 UNUSABLE 2011191500-2101292359EST
11/19/201459Z !ALB 11/102 ALB NAV VOR 095-102 UNUSABLE 2011191459-2101292359EST
11/19/201458Z !ALB 11/101 ALB NAV VOR 081-090 UNUSABLE 2011191458-2101292359EST
11/19/201457Z !ALB 11/100 ALB NAV VOR 076-077 UNUSABLE 2011191457-2101292359EST
9/29/202243Z !ALB 09/125 ALB OBST TOWER LGT (ASR UNKNOWN) 424049.30N0734236.40W (5.75NM SE ALB) 571.0FT (207FT AGL) U/S 2009292243-2102012359
6/26/201420Z !ALB 06/084 ALB NAV VOR 136-143 BEYOND 8NM UNUSABLE PLUS SEE CHART SUPPLEMENT 2006261420-PERM
3/28/191658Z !ALB 03/167 ALB COM NATIONAL GUARD OPS FREQ 258.2 COMMISSIONED 1903281658-PERM
FDC
12/21/201710Z !FDC 0/7648 ALB IAP ALBANY INTL, ALBANY, NY.
ILS OR LOC RWY 1, AMDT 11C...
ILS RWY 1 (SA CAT II), AMDT 11B...
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR AIRCRAFT EQUIPPED
WITH SUITABLE RNAV SYSTEM WITH GPS,
ALB VORTAC OUT OF SERVICE. 2012211710-2102161710EST
12/11/201455Z !FDC 0/3386 ALB IAP ALBANY INTL, ALBANY, NY.
ILS OR LOC RWY 1, AMDT 11C...
ILS RWY 1 (SA CAT II), AMDT 11C...
MISSED APPROACH: CLIMB TO 2000 THEN CLIMBING LEFT TURN TO 4000 ON
ALB VORTAC R-299 TO MARIA/ALB 19.00 DME AND HOLD (DME REQUIRED),
CAM VOR/DME OUT OF SERVICE. 2012111455-2103091455EST
1/30/202049Z !FDC 0/9453 ALB IAP ALBANY INTL, Albany, NY.
ILS OR LOC RWY 19, AMDT 24...
MISSED APPROACH: CLIMB TO 2000 THEN CLIMBING RIGHT TURN TO 6000 ON
HEADING 200 AND ALB VORTAC R-194 TO GROUP/ALB VORTAC 11.00 DME AND
HOLD, CONTINUE CLIMB-IN-HOLD TO 6000. (DME REQUIRED),
CAM VOR/DME OUT OF SERVICE. 2001302049-2105122049EST
6/20/191403Z !FDC 9/9151 ALB ODP ALBANY INTL, Albany, NY.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 13...
DEPARTURE PROCEDURE RWY 19: CLIMB HEADING 191.17 TO 1400 BEFORE
TURNING WEST.
ALL OTHER DATA REMAINS AS PUBLISHED. 1906201403-2106201403EST
Yes
ALL
ALBANY COUNTY ARPT AUTH
737 ALBANY SHAKER ROAD
ALBANY, NY 12211
Phone: 518-242-2200
FRED ACUNTO
737 ALBANY SHAKER ROAD
ALBANY, NY 12211
Phone: 518-242-2352
BURLINGTON FSS (BTV)
Toll Free: 1-800-WX-BRIEF
ALB
Sunset to Sunrise
--
Clear-Green
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
Airport of Entry
60
7
19
11
11
0
Major
Major
High Pressure
None
Cargo Handling
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 01/19

8500 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
70 /F/C/X/T
140000 lbs
200000 lbs
400000 lbs
0 lbs
  Runway 01 Runway 19
Runway Heading 358° 178°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 44' 14"N 42° 45' 38"N
Longitude 73° 48' 15"W 73° 48' 19"W
Elevation 284.3 ft. 279.4 ft.
Threshold Crossing Height 53 ft. AGL 53 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4R P4L
Approach Lights MALSR MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No

Runway 10/28

7200 ft. x 150 ft.
ASPH
Good
GRVD
MED
67 /F/C/X/T
140000 lbs
200000 lbs
400000 lbs
0 lbs
  Runway 10 Runway 28
Runway Heading 88° 268°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 44' 57"N 42° 44' 59"N
Longitude 73° 48' 44"W 73° 47' 07"W
Elevation 276.4 ft. 276 ft.
Threshold Crossing Height 0 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3.35°
Visual Slope Indicator P4L
Approach Lights
Centerline Lights Yes Yes
Runway End Identifier Lights Yes Yes
A110-10MOWING W/I SAFETY AREAS OF ALL RYS & TWYS MAY THRU NOV.
A110-11NO ACFT PARKING BETWEEN FIRE STATION AND TWY L.
A110-3TWY D EAST OF RY 01/19 IS RESTRD TO ACFT 12500 LBS & LESS.
A110-6BIRDS, DEER & OTHER WILDLIFE ON & INVOF ARPT.
A110-7WEATHER BALLOON LAUNCHES APRXLY 3 MI SOUTH OF ARPT AT 0600 & 1800.
A110-8TWY 'C' W OF TWY 'A' NON MOVEMENT AREA.
A110-9CUSTOMS/IMMIGRATION FLIGHT INFO SERVICE FACILITY LCTD NORTH END GENERAL AVIATION APRON. ACFT CLEARING CUSTOMS UTILIZE PAINTED POSITION MKGS & PROCEED TO MINIMIZE BLAST IMPACT.

View hangar and property listings at KALB, provided by our partner Hangar Network.

No Hangar Network listings are currently available for this airport.

ALBANY INTL (ICAO: KALB, IATA: ALB) is a public airport located in ALBANY, NY.
