ALAMOGORDO-WHITE SANDS RGNL - Airport Diagram

KALM

ICAO KALMIATA ALMLocal ALM

ALAMOGORDO-WHITE SANDS RGNL

PublicPUB

4 miles SW of ALAMOGORDO, NM, US

View on Map

Status

Operational

Coordinates

32° 50' 22"N 105° 59' 28"W

Elevation

4200' MSL

Pattern Alt

5200' MSL

Mag Variation

8°E

Declination

8°E

Fuel

JET A-1+, 100LL

FSS

ALBUQUERQUE (ABQ)

Sectional

ALBUQUERQUE

ARTCC

ALBUQUERQUE (ZAB)

Data Effective

3/19/26-4/16/26

KHMN (6nm) VFR

8:55 PM MDT RAW

Clear

Viz

10sm

Temp

70°F

Dew

15°F

Pres

29.97"Hg

Wind

210° 11kts

RMK

AO2 SLP090 T02121094 53017 $

METAR KHMN 040255Z AUTO 21011KT 10SM CLR 21/M09 A2997 RMK AO2 SLP090 T02121094 53017 $

Add Your Business

KALM FBOs

Promote Listing

Exile Aviation

UNICOM: 122.8

Phone: (575) 437-2474

Other: (575) 430-8963

0 Reviews (Read | Sign In To Write)

Avfuel

As of 4/3	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	6.25		6.97

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

AWOS-3	127.825
(575) 439-4112

Common

CTAF	122.8
ACTVT PAPI RWY 04; VASI RWY 22; MIRL RWY 04/22 - CTAF. MIRL RWY 04/22 PRESET MED INTST; INCR INTST - CTAF.
UNICOM	122.8

Approach

HOLLOMAN APPROACH

120.6

Departure

HOLLOMAN DEPARTURE

128.1

Center

HOLLOMAN CENTER	132.65
LOW/HIGH, APCH/DEP SVC PRVDD BY ALBUQUERQUE ARTCC (ZAB) ON FREQS 132.65/257.6 (ALAMOGORDO RCAG) WHEN HOLLOMAN APCH CTL (HMN) CLSD.

Flight Service

Flight Service	122.4
(ABQ)

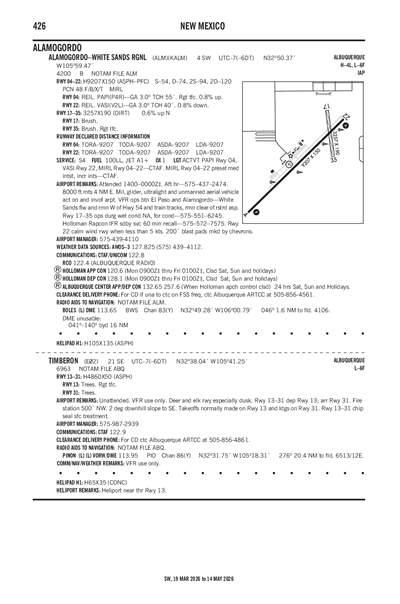

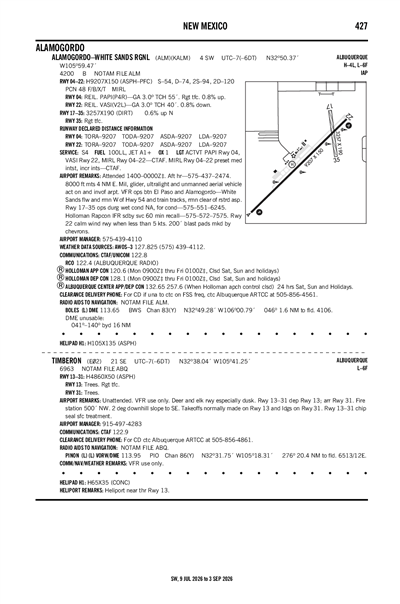

FAA A/FD Pages

FAA A/FD Page

Airport Minimums

Departure Procedures

CORONA ONE (OBSTACLE) (RNAV)

Instrument Approach

RNAV (GPS) RWY 04

Terminal Area Forecast

KHMN (6nm)

RAW

Reported

Fri, 4/3 11:00 AM MDT

Valid

Fri, 4/3 11:00 AM MDT - Sat, 4/4 5:00 PM MDT

VFR

11:00 AM MDT - 10:00 PM MDT

Scattered 20,000'

Viz

6sm

Pres

29.91"Hg

Wind

340° 10kts

Gusts 15kts

Turbulence

Moderate, Clear Air, Occasional: 1,000 - 9,000'

VFR

Becoming 10:00 PM MDT - 6:00 AM MDT

Scattered 20,000'
Few 15,000'

Viz

6sm

Pres

29.94"Hg

Wind

360° 15kts

Gusts 25kts

Turbulence

Moderate, Clear Air, Frequent: 6,000 - 13,000'
Moderate, Clear Air, Occasional: 6,000 - 6,000'

VFR

Becoming 6:00 AM MDT - 5:00 PM MDT

Scattered 20,000'
Few 15,000'

Viz

6sm

Pres

30.15"Hg

Wind

340° 10kts

Gusts 15kts

Turbulence

Moderate, Clear Air, Occasional: 6,000 - 9,000'

TAF KHMN 031700Z 0317/0423 34010G15KT 9999 SCT200 520009 QNH2990INS
BECMG 0404/0405 36015G25KT 9999 FEW150 SCT200 520006 530607 QNH2995INS
BECMG 0412/0413 34010G15KT 9999 FEW150 SCT200 520009 QNH3015INS TX28/0322Z TN05/0412Z

KALM

Effective	Expires	Category	NOTAM
Domestic
3/31/26 0124Z	4/15/26 2300Z		!ALM 03/011 ALM COM REMOTE COM OUTLET 122.4 U/S 2603310124-2604152300
3/24/26 1155Z		Runway	!ALM 03/008 ALM RWY 04 RWY END ID LGT U/S 2603241155-2609242111EST

ATC Tower

Attendance

0700-1700
AFT HR - 575-437-2474.

Owner

CITY OF ALAMOGORDO
1376 E 9TH STREET
ALAMOGORDO, NM 88310
Phone: 505-439-4100

Manager

TROY ORR
3500 AIRPORT ROAD
ALAMOGORDO, NM 88310
Phone: 575-439-4110

FSS

ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF

NOTAM

ALM

Light Schedule

Lights

ACTVT PAPI RWY 04; VASI RWY 22; MIRL RWY 04/22 - CTAF. MIRL RWY 04/22 PRESET MED INTST; INCR INTST - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

High Pressure

Other Services

Air Ambulance
Avionics
Charter Service
Glider Service
Pilot Instruction
Glider Towing

Runway 04/22

Dimensions

9207 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

PFC

Rwy Edge Lgts

MED

Pavement Class

48/F/B/X/T

Single Wheel

54,000lbs

Double Wheel

74,000lbs

Double Tandem

120,000lbs

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	46°	226°
Traffic Pattern	Right	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	32° 49' 44"N	32° 50' 48"N
Longitude	106° 00' 14"W	105° 58' 57"W
Elevation	4,127'	4,200'
Threshold Crossing Height	55 ft. AGL	40 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4R	V2L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

Runway 17/35

Dimensions

3257 ft. x 190 ft.

Surface Type

DIRT

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 17	Runway 35
True Heading	174°	354°
Traffic Pattern	Left	Right
Markings
Markings Condition
Latitude	32° 50' 54"N	32° 50' 22"N
Longitude	105° 59' 10"W	105° 59' 06"W
Elevation	4,195'	4,174'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

Dimensions

105 ft. x 135 ft.

Surface Type

Surface Cond

ASPH

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway H1	Runway
True Heading	Not Listed	Not Listed
Traffic Pattern
Markings
Markings Condition
Latitude	32° 50' 18"N	N/A
Longitude	105° 59' 41"W	N/A
Elevation	4,163'	--
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	8000 FT MTS 4 NM E.
A110-3	VFR OPS BTN EL PASO & ALAMOGORDO-WHITE SANDS FLW & RMN W OF HWY 54 & TRAIN TRACKS; RMN CLEAR OF RSTRD ASP.
A110-4	MIL, GLIDER, ULTRALIGHT & UNMANNED AERIAL VEHICLE ACT ON & INVOF ARPT.
A110-5	HOLLOMAN RAPCON IFR SDBY SVC 60 MIN RECALL - 575-572-7575.
A110-8	FOR CD IF UNA TO CTC ON FSS FREQ, CTC ALBUQUERQUE ARTCC AT 505-856-4561.
A17-M1	AFT HR - 575-437-2474.
A30-04/22	RWY 22 CALM WIND RWY WHEN LESS THAN 5 KTS. 200 FT BLAST PADS MKD BY CHEVRONS.
A30-17/35	OPS DURG WET COND NA; FOR COND - 575-551-6245.
A58-04	+3-8 FT BRUSH 0-200 FT FM RWY END 165-250 FT R OF CNTRLN.
A81-APT	ACTVT PAPI RWY 04; VASI RWY 22; MIRL RWY 04/22 - CTAF. MIRL RWY 04/22 PRESET MED INTST; INCR INTST - CTAF.

ALAMOGORDO-WHITE SANDS RGNL (ICAO: KALM, IATA: ALM) is a public airport located in ALAMOGORDO, NM, US.
