iFlightPlanner



...

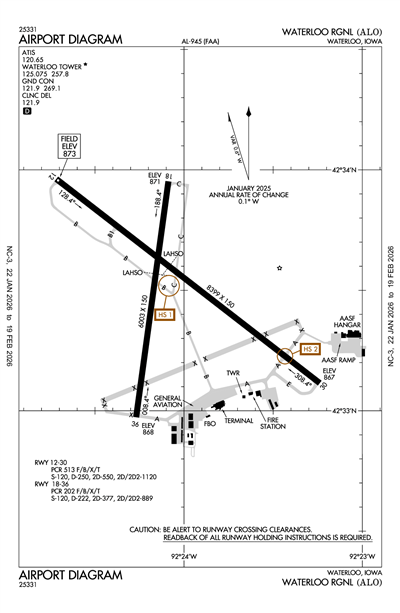

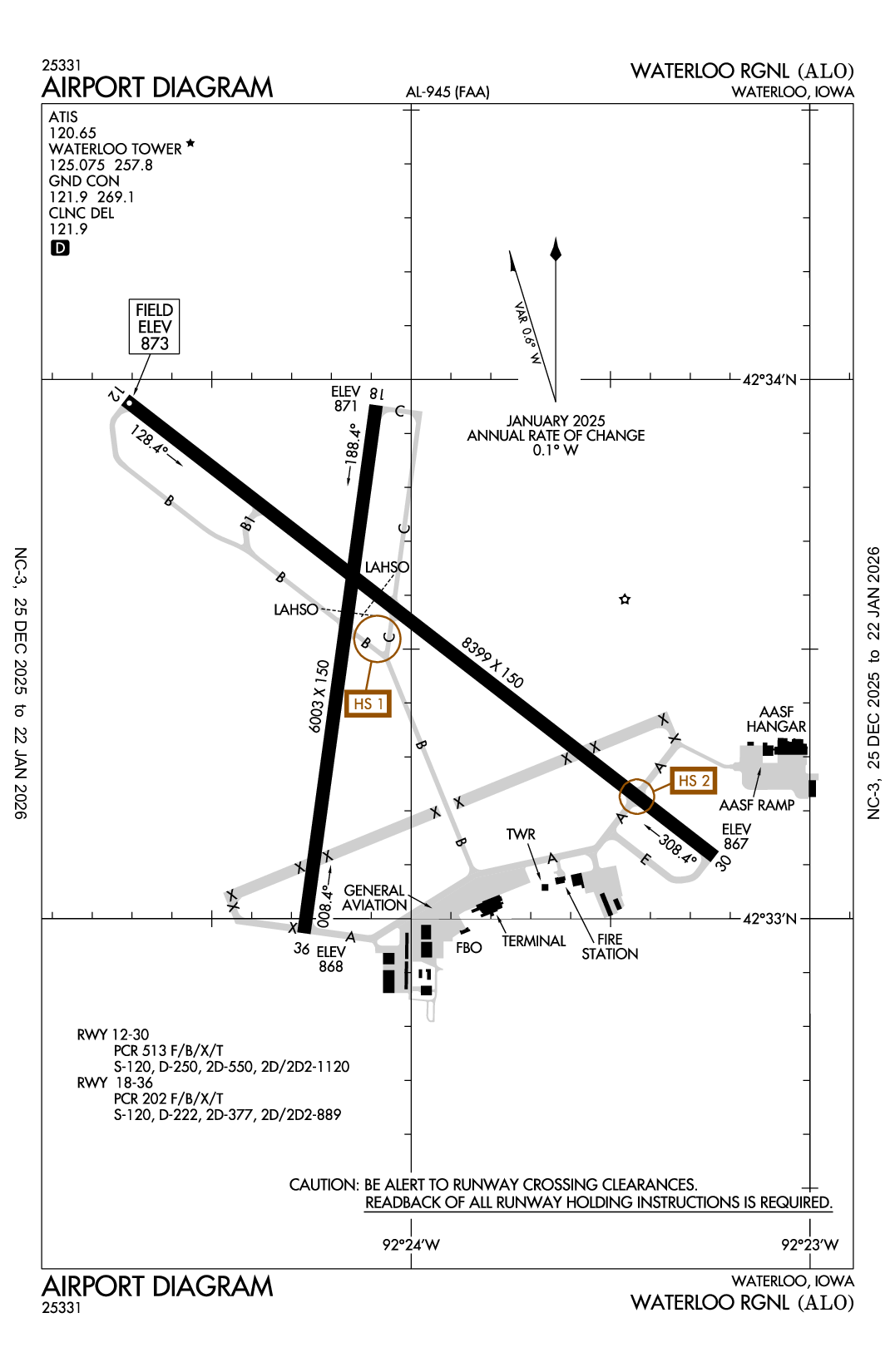

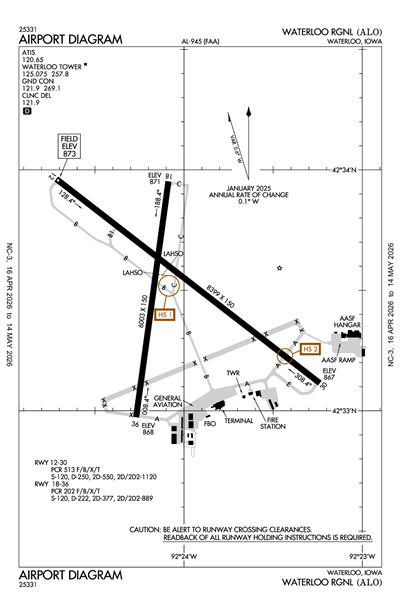

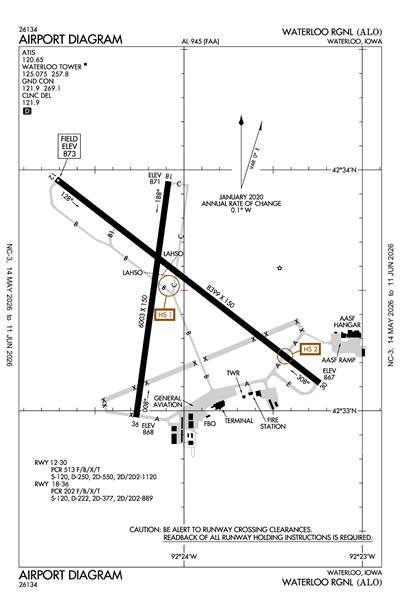

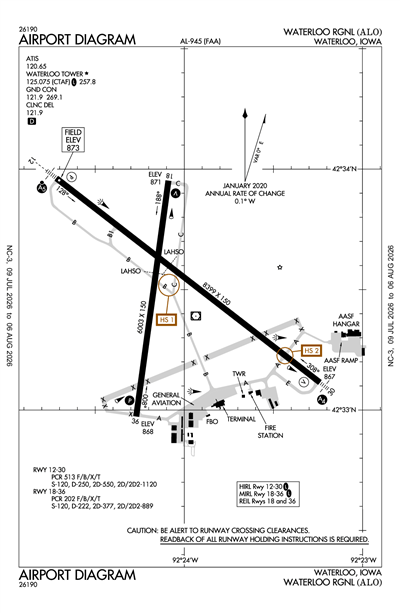

WATERLOO RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KALO
WATERLOO RGNL
PublicPUB

4 miles NW of WATERLOO, IA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 33' 30"N 92° 24' 04"W
873' MSL
1873' MSL
00E
JET A, 100LL
FORT DODGE (FOD)
CHICAGO
CHICAGO (ZAU)
10/3/24-10/31/24
KALO VFR
10:54 AM CDT
Broken 3,600'
10sm
56°F
37°F
30.00"Hg
320° 21kts
Gusts 34kts
AO2 PK WND 35038/1516 RAB1457E10B27E52 SLP161 P0000 T01330028
KALO 131554Z 32021G34KT 10SM BKN036 13/03 A3000 RMK AO2 PK WND 35038/1516 RAB1457E10B27E52 SLP161 P0000 T01330028
Add Your Business

KALO FBOs

Promote Listing
Livingston Aviation
UNICOM: 122.95
Phone: (319) 234-1783
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 10/8
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.40 5.65 5.65
Fuel Notes
Prices include tax

KALO Aircraft Service & Maintenance

Promote Listing
Connell Aviation Group
Phone: (641) 330-2537
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 125.075

ATIS

ATIS
 120.65

ASOS

ASOS
319-233-8984
 120.65

Approach/Departure

APCH/P DEP/P
 118.9
APCH/S DEP/S
 126.75

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 125.075

Other

ANG OPS
FM
 36.7
ANG OPS
 142.6

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KALO
Sun, 10/13 6:58 AM CDT
Sun, 10/13 7:00 AM CDT - Mon, 10/14 7:00 AM CDT
VFR
7:00 AM CDT - 12:00 PM CDT
Sky Clear
6sm
Calm
VFR
Temporary 7:00 AM CDT - 11:00 AM CDT
No Clouds
N/A
320° 32kts
Gusts 45kts
VFR
12:00 PM CDT - 6:00 PM CDT
Scattered 25,000'
Few 5,000'
6sm
320° 22kts
Gusts 32kts
VFR
Temporary 12:00 PM CDT - 4:00 PM CDT
No Clouds
N/A
320° 30kts
Gusts 40kts
VFR
6:00 PM CDT - 11:00 PM CDT
Few 25,000'
6sm
330° 20kts
Gusts 33kts
VFR
11:00 PM CDT - 7:00 AM CDT
Few 25,000'
6sm
330° 11kts
KALO 131158Z 1312/1412 00000KT P6SM SKC
   TEMPO 1312/1316 32032G45KT
   FM131700 32022G32KT P6SM FEW050 SCT250
   TEMPO 1317/1321 32030G40KT
   FM132300 33020G33KT P6SM FEW250
   FM140400 33011KT P6SM FEW250
KALO
Domestic
10/11/242231Z !ALO 10/010 ALO TWY A BTN GA FIXED BASE OPR RAMP AND APCH END RWY 36 CLSD 2410112231-2410182300
10/11/242230Z !ALO 10/009 ALO RWY 36 THR MARKINGS NOT STD 2410112230-2410182300
10/11/242222Z !ALO 10/008 ALO TWY A EDGE LGT BTN TWY B AND APCH END RWY 36 U/S 2410112222-2410182359
10/10/241917Z !ALO 10/007 ALO OBST CRANE (ASN UNKNOWN) 423259N0922344W (.4NM WSW APCH END RWY 30)
984FT (115FT AGL) FLAGGED 2410101917-2501312359EST
10/10/241454Z !ALO 10/006 ALO RWY 36 PAPI U/S 2410101454-2410152300
10/10/241454Z !ALO 10/005 ALO RWY 36 RWY END ID LGT U/S 2410101454-2410152300
10/10/241453Z !ALO 10/004 ALO RWY 18 VASI U/S 2410101453-2410152300
9/18/242144Z !ALO 09/007 ALO TWY A BTN FIXED BASE OPR RAMP AND RWY 36 CLSD 2409182144-2410112200
2/15/242121Z !ALO 02/010 ALO TWY A LGT BTN RWY 12/30 AND ARMY AVIATION SUPPORT FAC RAMP DECOMMISSIONED 2402152121-PERM
12/19/232138Z !ALO 12/006 ALO OBST TOWER LGT (ASR 1018166) 422645.00N0922230.00W (6.9NM S ALO) 1396.7FT (434.7FT AGL) U/S 2312192138-2412312359
FDC
10/10/242002Z !FDC 4/8122 ALO IAP WATERLOO RGNL, WATERLOO, IA.
RNAV (GPS) RWY 36, AMDT 1A...
LNAV/VNAV DA 1191/HAT 322 ALL CATS.
TEMPORARY CRANE, 980 MSL, 2185FT EAST OF RWY 36 (2024-ACE-2632-NRA).
2410102002-2501152002EST
11/3/231243Z !FDC 3/6530 ALO IAP WATERLOO RGNL, WATERLOO, IA.
RNAV (GPS) RWY 36, AMDT 1A...
CHANGE NOTE TO READ: VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 50.8).
2311031243-2511031239EST
3/27/232100Z !FDC 3/2976 ALO IAP WATERLOO RGNL, WATERLOO, IA.
VOR RWY 18, AMDT 10...
PROCEDURE NA.
2303272100-2503272100EST
Yes
0500-2100
CITY OF WATERLOO
715 MULBERRY
WATERLOO, IA 50701
Phone: 319-291-4323
MR. STEVEN KJERGAARD
2790 LIVINGSTON LANE
WATERLOO, IA 50703
Phone: 319-291-4483
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
ALO
--
WHEN ATCT CLSD ACTVT MALSR RWY 12; MALS RWY 30; VASI RWY 18; PAPI RWY 36; MIRL RWYS 18/36, AND HIRL RWY 12/30 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental

Runway 12/30

8399 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
59 /R/A/X/T
55,000lbs
75,000lbs
140,000lbs
--
  Runway 12 Runway 30
True Heading 128°308°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 42° 33' 58"N 42° 33' 07"N
Longitude 92° 24' 43"W 92° 23' 14"W
Elevation 873' 867'
Threshold Crossing Height 57 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L V4L
Approach Lights MALSR MALS
Centerline Lights
Runway End Identifier Lights

Runway 18/36

6003 ft. x 150 ft.
ASPH CONC
Good
GRVD
MED
51 /F/B/X/T
50,000lbs
75,000lbs
--
--
  Runway 18 Runway 36
True Heading 188°8°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 42° 33' 57"N 42° 32' 58"N
Longitude 92° 24' 05"W 92° 24' 16"W
Elevation 871' 868'
Threshold Crossing Height 42 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-10FOR CD CTC WATERLOO ATCT AT 319-233-4835. WHEN WATERLOO ATCT CLSD, FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A110-2BIRDS ON & INVOF ARPT.
A110-3RWY 30 IS CALM WIND RWY.
A110-5WHEN DEPARTING ALL RWYS, ENDS OF OTHER RWYS NOT VISIBLE.
A110-6WHEN ATCT CLSD & DURG SNOW EVENTS, ALL ARR/DEP ACFT ANNC THEIR INTNS ON CTAF 5 MIN PRIOR TO USING THE RWYS.
A110-7PERSONNEL & EQUP PERFORMING SNOW REMOVAL OPNS WILL MONITOR CTAF.
A110-8ARNG: ARNG OPS CTC DSN 431-5520, C319-234-1372.
A110-9ARPT SFC CONDS UNMON 2200-0430 DAILY.
WATERLOO RGNL (ICAO: KALO, IATA: ALO) is a public airport located in WATERLOO, IA.
