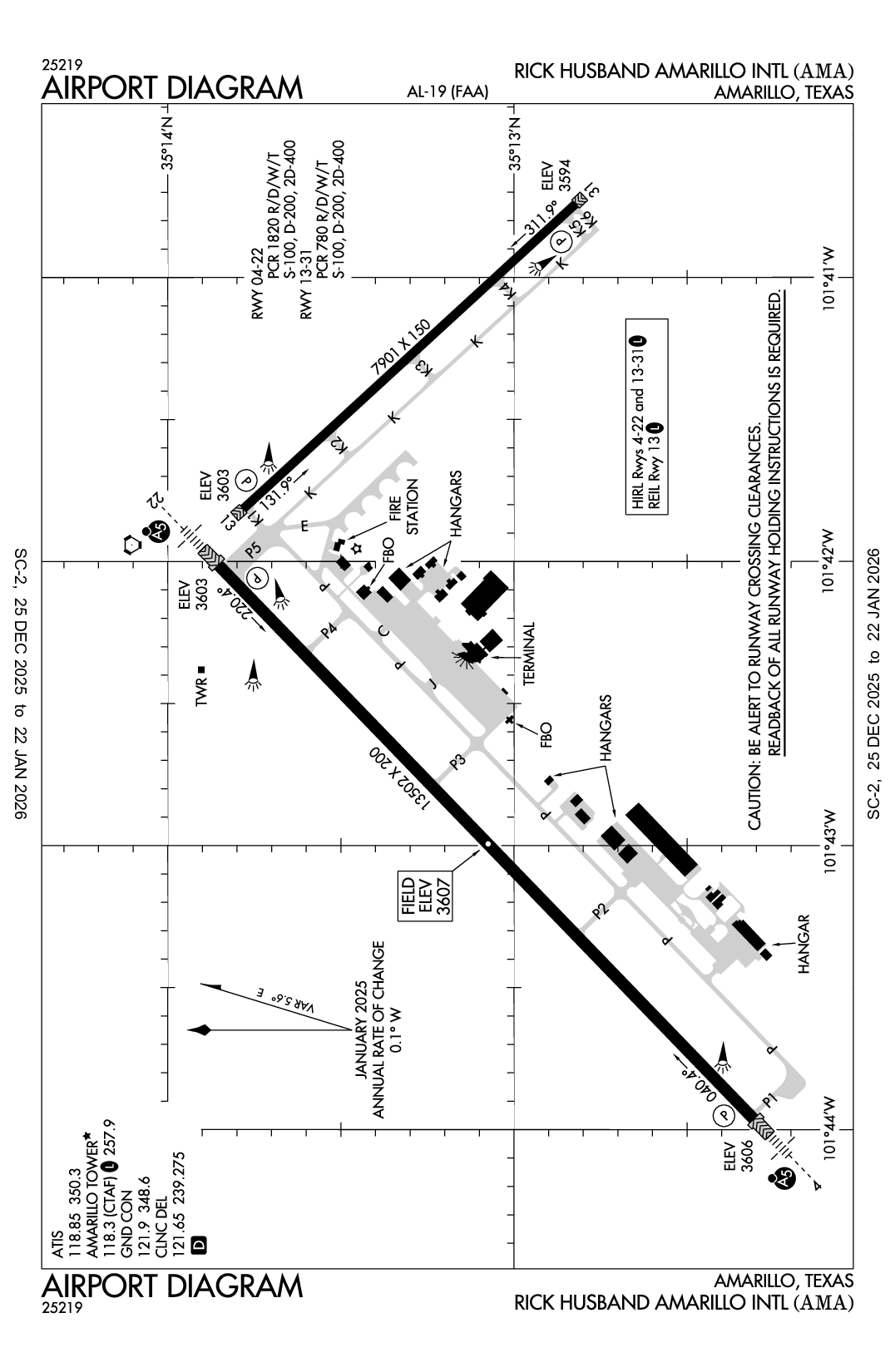

RICK HUSBAND AMARILLO INTL - Airport Diagram

KAMA

ICAO KAMAIATA AMALocal AMA

RICK HUSBAND AMARILLO INTL

PublicPUB

7 miles E of AMARILLO, TX, US

View on Map

Status

Operational

Coordinates

35° 13' 10"N 101° 42' 21"W

Elevation

3607' MSL

Pattern Alt

4502' MSL

Mag Variation

6°E

Declination

8°E

Fuel

JET A-1+, 100LL

FSS

FORT WORTH (FTW)

Sectional

DALLAS-FT WORTH

ARTCC

ALBUQUERQUE (ZAB)

Data Effective

10/1/26-10/29/26

KAMA VFR

9:53 PM CDT RAW

Overcast 3,500'
Few 1,700'

Viz

10sm

Temp

57°F

Dew

55°F

Pres

30.29"Hg

Wind

010° 4kts

RMK

AO2 SLP233 T01390128 53006

METAR KAMA 030253Z 01004KT 10SM FEW017 OVC035 14/13 A3029 RMK AO2 SLP233 T01390128 53006

Add Your Business

KAMA FBOs

Promote Listing

Haven Aviation Services

UNICOM: 122.95

Phone: (806) 425-2352

0 Reviews (Read | Sign In To Write)

Avfuel

As of 9/29	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	8.04		6.81

Fuel Notes

Jet-A Prist is Pre-mixed

Fuel Hours

Haven is open from 6:00 AM to 12:00 PM, with 24-hour service available upon request - After hours 855-774-2836

Volume Discounts

“Haven offers discounted rates for preferred customers. For more information, please contact our front office. (806-214-2741)

Promote Listing

Signature Aviation

ASRI: 129.875, UNICOM: 122.95

Phone: (806) 335-2806

0 Reviews (Read | Sign In To Write)

Independent

As of 10/1	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	8.13	7.29

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

ATIS	118.85
ASOS	118.85
(806) 223-2973

Common

CTAF	118.3
WHEN ATCT CLSD, TO INCR INTST AND ACTVT MALSR RWYS 04 & 22; REIL RWY 13; HIRL RWYS 04/22, 13/31; ALL TWYS - CTAF.
UNICOM	122.95

Clearance

Clearance Delivery

121.65

Ground

AMARILLO GROUND	121.9
0600-0000

Tower

AMARILLO TOWER	118.3
0600-0000

Approach

AMARILLO APPROACH	119.5
Initial Contact
AMARILLO APPROACH	121.15
Secondary

Departure

AMARILLO DEPARTURE	119.5
Initial Contact
AMARILLO DEPARTURE	121.15
Secondary

Center

AMARILLO CENTER	127.85
LOW, APCH/DEP SVC PRVDD BY ALBUQUERQUE ARTCC (ZAB) ON FREQS 127.85/285.475 (AMARILLO RCAG) WHEN AMARILLO APCH CTL (AMA) CLSD.

Emergency

121.5

Other

CLASS C	119.5
CLASS C/S	121.15
Secondary

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Instrument Approach

Terminal Area Forecast

KAMA

RAW

Reported

Fri, 10/2 8:50 PM CDT

Valid

Fri, 10/2 9:00 PM CDT - Sat, 10/3 7:00 PM CDT

MVFR

9:00 PM CDT - 2:00 AM CDT

Overcast 1,400'

Viz

6sm

Wind

030° 8kts

MVFR

2:00 AM CDT - 6:00 AM CDT

Overcast 1,000'

Viz

6sm

Wind

VRB° 6kts

VFR

6:00 AM CDT - 7:00 PM CDT

Mist

Scattered 1,500'

Viz

6sm

Wind

VRB° 6kts

TAF KAMA 030150Z 0302/0324 03008KT P6SM OVC014
FM030700 VRB06KT P6SM OVC010
FM031100 VRB06KT 6SM BR SCT015

KAMA

Effective	Expires	Category	NOTAM
Domestic
10/7/26 1800Z	10/7/26 2100Z		!AMA 09/067 AMA TWY P BTN TWY P1 AND TWY P2 CLSD 2610071800-2610072100
10/7/26 1800Z	10/7/26 1930Z		!AMA 09/066 AMA TWY P2 CLSD 2610071800-2610071930
10/7/26 1800Z	10/7/26 1930Z		!AMA 09/065 AMA TWY P BTN TWY P1 AND TWY P3 CLSD 2610071800-2610071930
10/7/26 1800Z	10/7/26 2100Z		!AMA 09/064 AMA TWY P1 CLSD 2610071800-2610072100
10/7/26 1500Z	10/7/26 1630Z		!AMA 09/063 AMA TWY P5 CLSD 2610071500-2610071630
10/7/26 1500Z	10/7/26 1630Z		!AMA 09/062 AMA TWY P BTN TWY P4 AND TWY P5 CLSD 2610071500-2610071630
10/7/26 1330Z	10/7/26 1500Z		!AMA 09/061 AMA TWY J CLSD 2610071330-2610071500
10/7/26 1330Z	10/7/26 1500Z		!AMA 09/060 AMA TWY P BTN TWY P3 AND TWY J CLSD 2610071330-2610071500
10/7/26 1330Z	10/7/26 1500Z		!AMA 09/059 AMA TWY P3 CLSD 2610071330-2610071500
10/7/26 1200Z	10/7/26 1330Z		!AMA 09/058 AMA TWY C CLSD 2610071200-2610071330
10/7/26 1200Z	10/7/26 1330Z		!AMA 09/057 AMA TWY P4 CLSD 2610071200-2610071330
10/7/26 1200Z	10/7/26 1330Z		!AMA 09/056 AMA TWY P BTN TWY J AND TWY P4 CLSD 2610071200-2610071330
10/6/26 1200Z	10/6/26 2200Z	Runway	!AMA 09/048 AMA RWY 04/22 CLSD 2610061200-2610062200
10/5/26 1200Z	10/5/26 2200Z	Runway	!AMA 09/045 AMA RWY 04/22 CLSD 2610051200-2610052200
10/2/26 1559Z	10/2/26 2000Z	Runway	!AMA 10/002 AMA RWY 31 FICON 5/5/5 100 PCT WET OBS AT 2610021559. 2610021559-2610022000
10/2/26 1558Z	10/2/26 2000Z	Runway	!AMA 10/001 AMA RWY 04 FICON 5/5/5 100 PCT WET OBS AT 2610021558. 2610021558-2610022000
9/29/26 1845Z	10/31/26 2359Z		!AMA 09/051 AMA APRON TERMINAL RAMP BTN 870FT SSE TWY C AND 800FT SW TWY C CLSD LGTD AND BARRICADED 2609291845-2610312359
9/29/26 1844Z	10/31/26 2359Z		!AMA 09/050 AMA APRON TERMINAL APN OVERNIGHT PRKG AREA R4 CLSD 2609291844-2610312359
9/23/26 1204Z	10/9/26 2200Z		!AMA 09/040 AMA AD AP WDI PRI LGT U/S 2609231204-2610092200
9/17/26 1604Z	10/31/26 2359Z		!AMA 09/024 AMA OBST CRANE (ASN 2025-ASW-13310-OE) 351446N1014446W (2.6NM NW AMA) 3835FT (200FT AGL) FLAGGED AND LGTD 2609171604-2610312359
8/6/26 1524Z			!AMA 08/003 AMA NAV ILS RWY 04 OM U/S 2608061524-2802212111EST
1/22/26 1200Z	10/14/26 2330Z		!AMA 01/033 AMA OBST CRANE (ASN 2025-ASW-3242-NRA) 351316N1014211W (0.2NM NE AMA) 3749FT (142FT AGL) FLAGGED 2601221200-2610142330
1/8/26 2307Z	7/7/27 2200Z		!AMA 01/012 AMA OBST CRANE (ASN 2025-ASW-14157-OE) 351127N1014229W (1.51NM N AMA) 3679FT (80FT AGL) FLAGGED 2601082307-2707072200
1/8/26 2244Z	7/7/27 2200Z		!AMA 01/010 AMA OBST CRANE (ASN 2025-ASW-14830-OE) 351127N1014229W (1.47NM S AMA) 3753FT (153FT AGL) FLAGGED 2601082244-2707072200
9/8/25 1901Z	10/17/26 2200Z		!AMA 09/007 AMA OBST CRANE (ASN 2023-ASW-6595-OE) 351143N1014029W (2.1NM SE AMA) 3763FT (200FT AGL) FLAGGED AND LGTD 2509081901-2610172200
FDC
9/28/26 2029Z			!FDC 6/5984 AMA IAP RICK HUSBAND AMARILLO INTL, AMARILLO, TX. VOR RWY 13, ORIG-B... CIRCLING CAT C VISIBILITY 1 3/4, CIRCLING CAT D VISIBILITY 2 1/4. 2609282029-2809282029EST
3/20/26 1415Z			!FDC 6/1603 AMA IAP U.S. DOD RICK HUSBAND AMARILLO INTL, AMARILLO, TX. HI - VOR OR TACAN RWY 4, AMDT 1A... MSA FROM PNH VORTAC 360 CW 180 MINIMUM ALTITUDE 5300. 2603201415-2803201415EST
5/22/25 1820Z			!FDC 5/4397 AMA IAP RICK HUSBAND AMARILLO INTL, AMARILLO, TX. LDA RWY 22, AMDT 1D... AUTOPILOT COUPLED APPROACH UNUSABLE BELOW 3762 MSL.. 2505221820-2705221820EST
4/2/25 1330Z			!FDC 5/0857 AMA IAP U.S. DOD RICK HUSBAND AMARILLO INTL, AMARILLO, TX. HI - VOR OR TACAN RWY 13, ORIG-B... S-13 MDA 4120/HAT 517 ALL CATS. VISIBILITY ALL CATS 1 3/8. WITH BORGER ALTIMETER SETTING: S-13 MDA 4280/HAT 677 ALL CATS. VISIBILITY ALL CATS 1 3/4. VDP AT PNH VORTAC 1.17 DME; DISTANCE VDP TO THLD 1.45 NM. CHANGE MINIMUM HOLDING ALTITUDE AT SIDER (IAF) PNH R-247/20 DME FROM 14000 TO AT OR ABOVE FL 180. MSA FROM PNH VORTAC 360 CW 180 MINIMUM ALTITUDE 5300. 2504021330-2704021330EST
3/31/25 1649Z			!FDC 5/9972 AMA IAP RICK HUSBAND AMARILLO INTL, AMARILLO, TX. VOR RWY 13, ORIG-B... VOR RWY 22, AMDT 1A... VOR RWY 31, ORIG-B... MSA FROM PNH VORTAC 360 CW 180 MINIMUM ALTITUDE 5300. 2503311649-2704011649EST

ATC Tower

Yes

Attendance

ALL

Owner

CITY OF AMARILLO
PO BOX 1971
AMARILLO, TX 79105
Phone: 806-378-3000

Manager

MICHAEL CONNER
10801 ARPT BLVD
AMARILLO, TX 79111
Phone: 806-335-1671

FSS

FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF

NOTAM

AMA

Light Schedule

Lights

WHEN ATCT CLSD, TO INCR INTST AND ACTVT MALSR RWYS 04 & 22; REIL RWY 13; HIRL RWYS 04/22, 13/31; ALL TWYS - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Yes

Parking

Hanger, Tie-Down

Int'l Operations

Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

Low Pressure

Bulk Oxygen

Low Pressure

Other Services

Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

Dimensions

13502 ft. x 200 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

1820/R/D/W/T

Single Wheel

100,000lbs

Double Wheel

200,000lbs

Double Tandem

400,000lbs

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	46°	226°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	35° 12' 18"N	35° 13' 51"N
Longitude	101° 43' 58"W	101° 42' 01"W
Elevation	3,606'	3,603'
Threshold Crossing Height	61 ft. AGL	77 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights	MALSR	MALSR
Centerline Lights	No	No
Runway End Identifier Lights	No	No

Runway 13/31

Dimensions

7901 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

780/R/D/W/T

Single Wheel

100,000lbs

Double Wheel

200,000lbs

Double Tandem

400,000lbs

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	137°	317°
Traffic Pattern
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	35° 13' 47"N	35° 12' 49"N
Longitude	101° 41' 49"W	101° 40' 44"W
Elevation	3,603'	3,594'
Threshold Crossing Height	52 ft. AGL	52 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	Yes	No

A110-1	TILTROTOR ACFT ACTIVITY INVOF ARPT.
A110-2	LDG FEE.
A110-3	FOR CD WHEN ATCT CLSD CTC ALBUQUERQUE ARTCC AT 505-856-4561.
A14	DIRECTOR OF AVIATION
A16	MICHAEL.CONNER@AMARILLO.GOV ALT: 806-335-1671
A26	INDEX C EQUIP AVBL UPON REQ.
A34-04/22	CENTER 130 FT GROOVED FULL LENGTH.
A40-04/22	RWY 04/22 NSTD HIRL DUE TO SPACING. HIRL 50 FT FM RWY EDGE, NSTD DSTC FM CNTRLN - PAVEMENT OUTSIDE RWY EDGE STRIPES MAY NOT BE FULL STRENGTH AND DEPTH PERCEPTION PROBLEMS MAY EXIST DURING PERIODS OF DARKNESS.
A47-04	RVR AVBL 1200-0600Z CTC ATCT.
A81-APT	WHEN ATCT CLSD, TO INCR INTST AND ACTVT MALSR RWYS 04 & 22; REIL RWY 13; HIRL RWYS 04/22, 13/31; ALL TWYS - CTAF.
E147	TPA: 895 FT AGL PROP ACFT, 1395 FT AGL TURBOJET ACFT, 1895 FT AGL OVERHEAD .

RICK HUSBAND AMARILLO INTL (ICAO: KAMA, IATA: AMA) is a public airport located in AMARILLO, TX, US.
