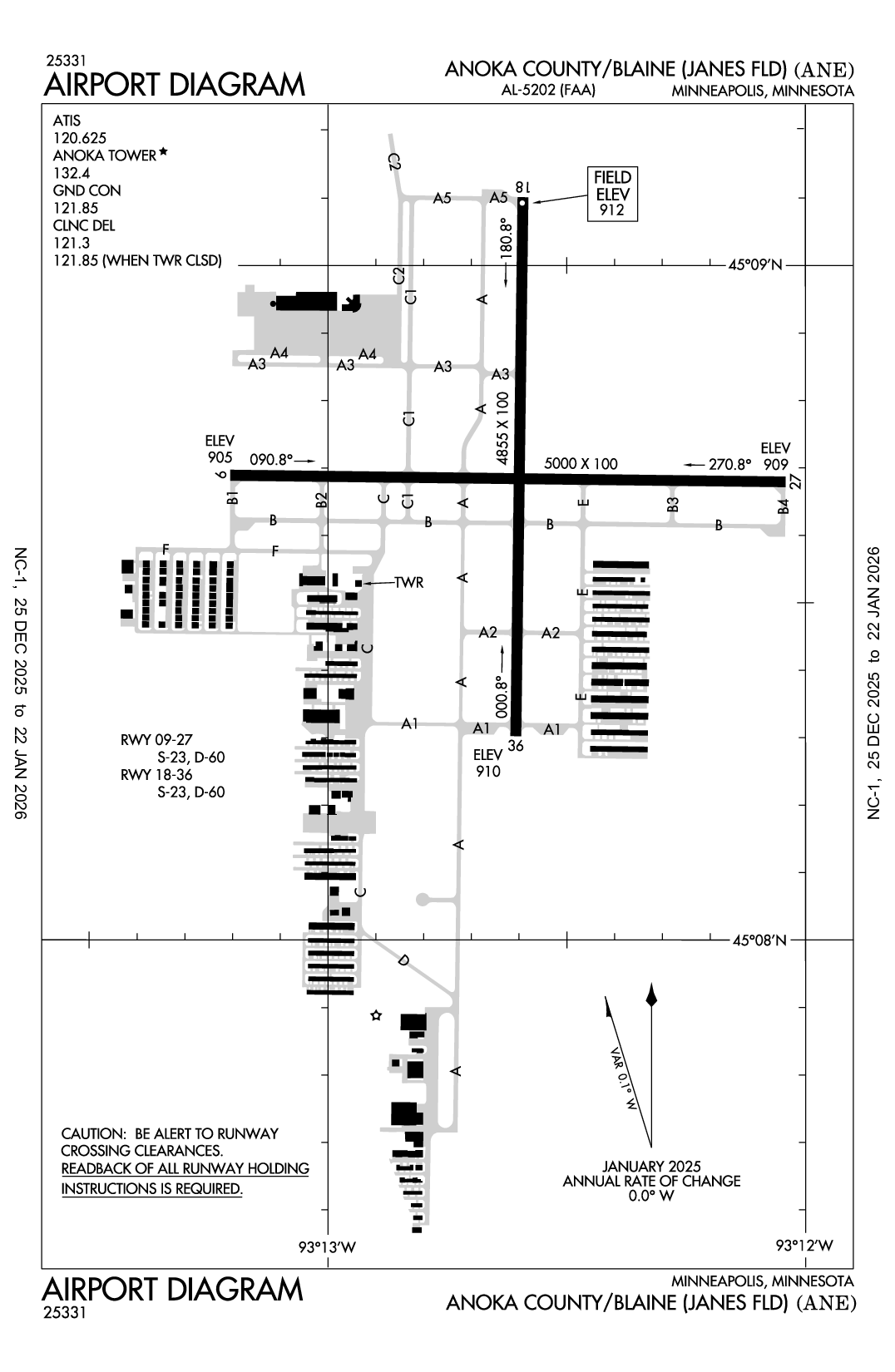

ANOKA COUNTY-BLAINE (JANES FLD) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KANE
ANOKA COUNTY-BLAINE (JANES FLD)
PublicPUB

10 miles N of MINNEAPOLIS, MN
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 08' 42"N 93° 12' 37"W
912' MSL
1912' MSL
02E
Jet A, 100LL
PRINCETON (PNM)
TWIN CITIES
MINNEAPOLIS (ZMP)
6/16/22-7/14/22
KANE VFR
2:55 AM CDT
Clear
10sm
84°F
57°F
29.79"Hg
210° 15kts
Gusts 23kts
AO2
KANE 300755Z AUTO 21015G23KT 10SM CLR 29/14 A2979 RMK AO2

KANE FBOs, Flight Schools and Ground Support

Cirrus Flight Operations
Freq: 122.95
Phone: (763) 784-6619
No Rating Available
0 Reviews (Read | Sign In To Write)
Atlantic Aviation
Freq: 129.6
Phone: (763) 780-2802
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 6/21
100LL Jet A Jet A+ Mogas UL94
Self Serve 7.54
Full Serve 8.54 9.14 9.29

KANE Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KANE Hotels

No hotels are listed for this airport.

KANE Restaurants

No restaurants are listed for this airport.

KANE Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 132.4

ATIS

ATIS
120.625

AWOS-3

AWOS-3
763-780-9025
120.625

Clearance Delivery

CD/P
121.3

Ground

GND/P
121.85

Tower

LCL/P
132.4

Terminal Area Forecast

KMSP (16nm)
Thu, 6/30 12:25 AM CDT
Thu, 6/30 1:00 AM CDT - Fri, 7/1 7:00 AM CDT
VFR
1:00 AM CDT - 7:00 AM CDT
Scattered 25,000'
> 6sm
210° 19kts
Gusts 28kts
Shear 210° 50kts @ 2000'
VFR
Temporary 4:00 AM CDT - 7:00 AM CDT
Light Rain
Broken 8,000'
N/A
Calm
VFR
7:00 AM CDT - 9:00 AM CDT
Broken 20,000'
> 6sm
200° 12kts
Gusts 23kts
VFR
9:00 AM CDT - 5:00 PM CDT
Broken 20,000'
> 6sm
220° 10kts
VFR
5:00 PM CDT - 1:00 AM CDT
Few 25,000'
> 6sm
290° 10kts
VFR
1:00 AM CDT - 7:00 AM CDT
Sky Clear
> 6sm
340° 6kts
KMSP 300525Z 3006/0112 21019G28KT P6SM SCT250 WS020/21050KT
   TEMPO 3009/3012 -RA BKN080
   FM301200 20012G23KT P6SM BKN200
   FM301400 22010KT P6SM BKN200
   FM302200 29010KT P6SM FEW250
   FM010600 34006KT P6SM SKC
KANE
Domestic
6/27/221200Z !ANE 06/011 ANE OBST CRANE (ASN 2022-AGL-633-OE) 450856N0931054W (1.2NM E ANE) 1055FT (150FT AGL) NOT LGTD 2206271200-2207132300
6/13/222204Z !ANE 06/006 ANE OBST TOWER LGT (ASR 1009659) 450358.40N0931054.30W (4.9NM SSE ANE) 1253.9FT (339.9FT AGL) U/S 2206132204-2207132359
6/11/220603Z !ANE 06/005 ANE OBST TOWER LGT (ASR 1022893) 451330.00N0932400.00W (9.4NM WNW ANE) 1287.7FT (428.1FT AGL) U/S 2206110603-2208312359EST
6/10/221331Z !ANE 06/004 ANE OBST CRANE (ASN UNKNOWN) 450732N0931309W (0.9NM SW APCH END RWY 36)
1075FT (160FT AGL) FLAGGED AND LGTD 2206101331-2212312359
5/23/221316Z !ANE 05/007 ANE OBST TOWER LGT (ASR 1279356) 450832.20N0931909.90W (4.6NM W ANE) 1061.0FT (209.0FT AGL) U/S 2205231316-2208012359
4/5/221647Z !ANE 04/017 ANE OBST CRANE (ASN UNKNOWN) 450723N0931101W (1.45NM SE APCH END RWY 36)
939FT (80FT AGL) FLAGGED 2204051647-2208152300
1/19/220501Z !ANE 01/061 ANE AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2201190501-2401190501
FDC
6/24/221217Z !FDC 2/3547 ANE ODP ANOKA COUNTY-BLAINE (JANES FLD), MINNEAPOLIS, MN.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5B...
TAKE-OFF OBSTACLES NOTE: RWY 09, TEMPORARY CRANE 4926 FT FROM DER, 1603 FT LEFT OF CENTERLINE, 150 FT AGL/1055 FT MSL (2022-AGL-633-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2206241217-2302031217EST
6/19/220059Z !FDC 2/1224 ANE SID ANOKA COUNTY-BLAINE (JANES FIELD), Minneapolis, MN.
ROCHESTER ONE DEPARTURE...
NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
FGT VOR OUT OF SERVICE. 2206190059-2207192000EST
6/19/220059Z !FDC 2/1218 ANE SID ANOKA COUNTY-BLAINE (JANES FIELD), Minneapolis, MN.
ORSKY TWO DEPARTURE...
SCHEP NINE DEPARTURE...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
FGT VOR OUT OF SERVICE. 2206190059-2207192000EST
6/2/222016Z !FDC 2/3323 ANE SID ANOKA COUNTY-BLAINE (JANES FLD), MINNEAPOLIS, MN.
COULT SEVEN DEPARTURE...
DEPARTURE PROCEDURE DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
EAU VORTAC OUT OF SERVICE. 2206022016-2207172300EST
2/3/222139Z !FDC 2/1220 ANE SID ANOKA COUNTY-BLAINE (JANES FLD), MINNEAPOLIS, MN.
COULT SEVEN DEPARTURE...
DARWIN EIGHT DEPARTURE...
TAKEOFF MINIMUMS:
ANOKA COUNTY-BLAINE (JAMES FIELD): RWY 18: STANDARD WITH MINIMUM CLIMB OF 371 FT PER NM TO 3000.
ALL OTHER DATA REMAINS AS PUBLISHED. 2202032139-2402022139EST
1/4/221610Z !FDC 2/0797 ANE SID ANOKA COUNTY-BLAINE (JANES FIELD), MINNEAPOLIS, MN.
COULT SEVEN DEPARTURE...
MINIMUM ALTITUDE AT TAXEE 4600. EAU VORTAC RESTRICTED. 2201041610-2401041610EST
Yes
ALL
METROPOLITAN AIRPORT CMSN
6040 28TH AVE S
MINNEAPOLIS, MN 55450-2701
Phone: 612-726-8100
PHILIP TIEDEMAN
6040 28TH AVE S
MINNEAPOLIS, MN 55450-2701
Phone: 763-717-0001
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
ANE
--
HIRL RY 09/27 AND MIRL RY 18/36 PRESET ON LOW; INCR INTST AND ACTVT REIL RYS 09; 18; & 36; VASI RYS 18 & 36; PAPI RYS 9 & 27 & MALSR RY 27 - CTAF.
Clear-Green
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
327
31
22
8
0
0
Major
Major
High & Low Pressure
None
Air Freight
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 09/27

5000 ft. x 100 ft.
ASPH
Good
GRVD
HIGH

23,000lbs
60,000lbs
--
--
  Runway 09 Runway 27
True Heading 91°271°
Traffic Pattern Left Right
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 45° 08' 41"N 45° 08' 41"N
Longitude 93° 13' 12"W 93° 12' 03"W
Elevation 905' 909'
Threshold Crossing Height 25 ft. AGL 50 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes No

Runway 18/36

4855 ft. x 100 ft.
ASPH
Good

MED

23,000lbs
60,000lbs
--
--
  Runway 18 Runway 36
True Heading 181°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 09' 06"N 45° 08' 18"N
Longitude 93° 12' 36"W 93° 12' 36"W
Elevation 912' 910'
Threshold Crossing Height 51 ft. AGL 50 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator V4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2DEER, BIRDS & WILDLIFE ON & INVOF ARPT.
A110-4FOR NOISE ABATEMENT PROCEDURES, WWW.MACNOISE.COM/PILOTS. ACFT PLEASE FOLLOW VOLUNTARY NOISE ABATEMENT PROCEDURES.
A110-5WHEN ATCT CLSD SNOW REMOVAL OPERATORS MONITOR 132.4.
A110-6FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
ANOKA COUNTY-BLAINE (JANES FLD) (ICAO: KANE, IATA: ANE) is a public airport located in MINNEAPOLIS, MN.
