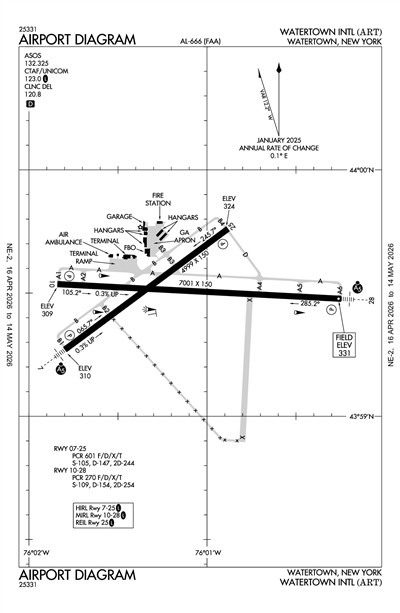

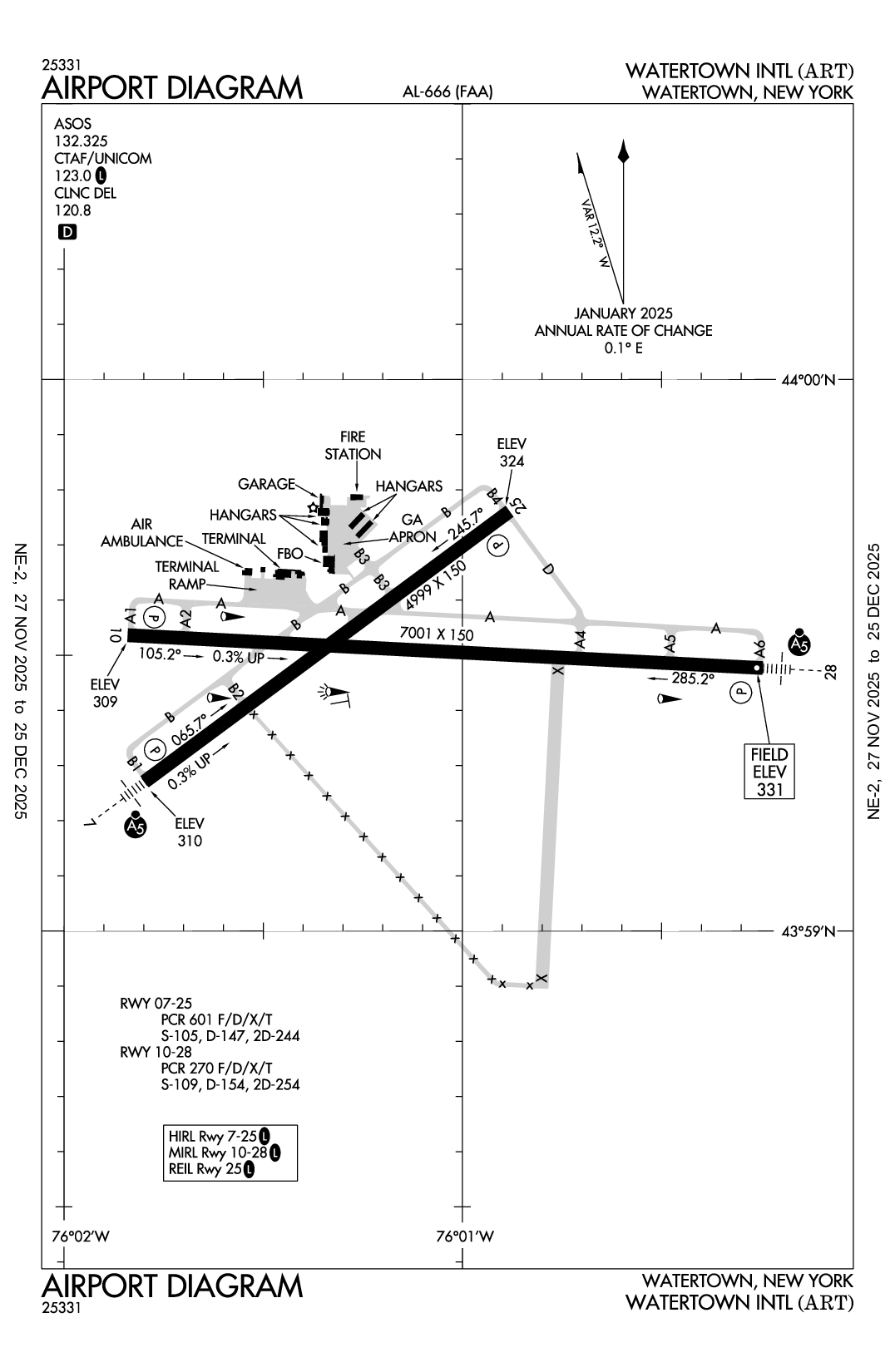

WATERTOWN INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KART
WATERTOWN INTL
PublicPUB

5 miles W of WATERTOWN, NY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 59' 31"N 76° 01' 10"W
331' MSL
1331' MSL
12W
JET A, 100LL
BURLINGTON (BTV)
NEW YORK
BOSTON (ZBW)
1/22/26-2/19/26
KART MVFR
3:56 AM EST
Overcast 2,700'
10sm
3°F
-3°F
30.12"Hg
Calm
AO2 SLP213 T11611194 58006
METAR KART 010856Z AUTO 00000KT 10SM OVC027 M16/M19 A3012 RMK AO2 SLP213 T11611194 58006
+ Add Your Business

KART FBOs

Promote Listing
Watertown International Airport
UNICOM: 123.0
Phone: (315) 786-6001
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 1/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.00 6.35
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 132.325
(315) 639-4002

Common

CTAF 123.0
ACTVT MALSR RWY 07 & 28; REIL RWY 25; HIRL RWY 07/25; MIRL RWY 10/28; TWY LGTS - CTAF. PAPI RWYS 7, 10, 25 & 28 OPR CONSLY.; GND VEHICLES MNT CTAF.
UNICOM 123.0

Clearance

Clearance Delivery 120.8

Approach

WHEELER-SACK APPROACH 124.875

Departure

WHEELER-SACK DEPARTURE 124.875

Flight Service

Flight Service 122.2
(BTV)

Terminal Area Forecast

KART
Sun, 2/1 12:29 AM EST
Sun, 2/1 1:00 AM EST - Mon, 2/2 1:00 AM EST
MVFR
1:00 AM EST - 4:00 AM EST
Overcast 2,600'
6sm
Calm
MVFR
4:00 AM EST - 11:00 AM EST
Broken 3,000'
6sm
VRB° 3kts
VFR
11:00 AM EST - 4:00 PM EST
Broken 6,000'
6sm
360° 6kts
VFR
4:00 PM EST - 6:00 PM EST
Broken 12,000'
6sm
340° 5kts
VFR
6:00 PM EST - 1:00 AM EST
Scattered 25,000'
6sm
Calm
TAF KART 010529Z 0106/0206 00000KT P6SM OVC026
   FM010900 VRB03KT P6SM BKN030
   FM011600 36006KT P6SM BKN060
   FM012100 34005KT P6SM BKN120
   FM012300 00000KT P6SM SCT250
KART
EffectiveExpiresCategoryNOTAM
Domestic
2/3/26
0500Z
2/3/26
1100Z
!ART 01/611 ART NAV VOR NOT MNT 2602030500-2602031100
2/3/26
0500Z
2/3/26
1100Z
!ART 01/610 ART COM REMOTE COM OUTLET 121.500, 243.000 U/S 2602030500-2602031100
2/3/26
0500Z
2/3/26
1100Z
!ART 01/609 ART COM REMOTE COM OUTLET 122.200 U/S 2602030500-2602031100
1/31/26
1330Z
5/31/26
1330Z
!ART 01/655 ART OBST TOWER LGT (ASR 1223770) 435535.30N0755819.80W (4.4NM SSE ART) 697.8FT (190.0FT AGL) U/S 2601311330-2605311330
1/31/26
0916Z
2/1/26
0916Z
Runway!ART 01/654 ART RWY 28 FICON 10 PCT COMPACTED SN 24IN SNOWBANKS OBS AT 2601310916. 2601310916-2602010916
1/31/26
0915Z
2/1/26
0915Z
Runway!ART 01/653 ART RWY 25 FICON 10 PCT COMPACTED SN 24IN SNOWBANKS OBS AT 2601310915. 2601310915-2602010915
1/31/26
0913Z
2/1/26
0913Z
!ART 01/652 ART APRON GA RAMP FICON PATCHY 1/8IN DRY SN OVER COMPACTED SN AND PATCHY COMPACTED SN BA MEDIUM TO POOR OBS AT 2601310913. 2601310913-2602010913
1/31/26
0912Z
2/1/26
0912Z
!ART 01/651 ART APRON TERMINAL RAMP FICON PATCHY 1/8IN DRY SN OVER COMPACTED SN AND PATCHY COMPACTED SN BA GOOD TO MEDIUM OBS AT 2601310912. 2601310912-2602010912
1/31/26
0911Z
2/1/26
0911Z
!ART 01/650 ART TWY ALL FICON PATCHY COMPACTED SN AND PATCHY 1/8IN DRY SN BA GOOD TO MEDIUM OBS AT 2601310910. 2601310911-2602010911
1/29/26
2256Z
2/6/26
2300Z
!ART 01/643 ART TWY B HLDG PSN SIGN SOUTH SIDE FOR RWY 10/28 LGT U/S 2601292256-2602062300
1/29/26
0751Z
2/27/26
2300Z
!ART 01/626 ART AD AP SIGNS OBSC 2601290751-2602272300
1/29/26
0031Z
!ART 01/617 ART OBST TOWER LGT (ASR 1019628) 435951.60N0753526.80W (18.3NM E ART) 1072.8FT (194.9FT AGL) U/S 2601290031-2602271700EST
1/19/26
1018Z
2/18/26
2359Z
!ART 01/405 ART OBST TOWER LGT (ASR 1004665) 433628.00N0755822.00W (23.4NM S ART) 1341.5FT (206.7FT AGL) U/S 2601191018-2602182359
1/17/26
2125Z
!ART 01/379 ART OBST TOWER LGT (ASR 1209499) 435256.50N0754325.40W (14.2NM ESE ART) 1750.0FT (265.1FT AGL) U/S 2601172125-2602161700EST
1/17/26
0125Z
!ART 01/357 ART OBST TOWER LGT (ASR 1006117) 441522.10N0760011.50W (16.1NM NE ART) 611.9FT (252.0FT AGL) U/S 2601170125-2602151700EST
1/12/26
2145Z
!ART 01/266 ART NAV ILS RWY 07 DME U/S 2601122145-2602252359EST
1/11/26
0226Z
5/11/26
0226Z
!ART 01/206 ART OBST TOWER LGT (ASR 1004175) 434831.40N0753040.20W (24.3NM ESE ART) 1584.0FT (336.0FT AGL) U/S 2601110226-2605110226
1/6/26
0203Z
!ART 01/089 ART OBST TOWER LGT (ASR 1057920) 435953.30N0754647.20W (10.3NM E ART) 1018.7FT (216.9FT AGL) U/S 2601060203-2602041700EST
12/22/25
0213Z
4/30/26
2359Z
!ART 12/465 ART OBST TOWER LGT (ASR 1002926) 435740.20N0754827.70W (9.2NM ESE ART) 1358.9FT (319.9FT AGL) U/S 2512220213-2604302359
12/10/25
1619Z
6/10/26
2359Z
!ART 12/257 ART OBST TOWER LGT (ASR 1209408) 435854.00N0755641.00W (3.2NM E ART) 625.7FT (199.8FT AGL) U/S 2512101619-2606102359
12/8/25
1739Z
3/8/26
2359Z
!ART 12/198 ART OBST TOWER LGT (ASR 1042270) 435723.00N0755044.00W (7.7NM ESE ART) 1315.6FT (370.7FT AGL) U/S 2512081739-2603082359
12/8/25
1738Z
3/8/26
2359Z
!ART 12/197 ART OBST TOWER LGT (ASR 1009788) 435644.00N0755653.00W (4.1NM SE ART) 716.5FT (267.1FT AGL) U/S 2512081738-2603082359
12/8/25
1738Z
3/3/26
2359Z
!ART 12/196 ART OBST TOWER LGT (ASR 1006968) 435641.00N0755655.00W (4.1NM SE ART) 716.5FT (267.1FT AGL) U/S 2512081738-2603032359
12/8/25
1737Z
3/8/26
2359Z
!ART 12/195 ART OBST TOWER LGT (ASR 1009787) 435647.00N0755651.00W (4.1NM SE ART) 716.5FT (267.1FT AGL) U/S 2512081737-2603082359
FDC
8/12/25
1759Z
!FDC 5/6103 ART IAP WATERTOWN INTL, WATERTOWN, NY.
ILS OR LOC RWY 7, AMDT 9...
DISREGARD NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 900.
2508121759-2708121759EST
No
OCT-APR 0600-1800
MAY-SEP 0500-1900
COUNTY OF JEFFERSON
195 ARSENAL ST
WATERTOWN, NY 13601
Phone: 315-785-3075
GRANT W. SUSSEY
22529 AIRPORT DR
DEXTER, NY 13634
Phone: 315-786-6002
BURLINGTON FSS (BTV)
Toll Free: 1-800-WX-BRIEF
ART
--
ACTVT MALSR RWY 07 & 28; REIL RWY 25; HIRL RWY 07/25; MIRL RWY 10/28; TWY LGTS - CTAF. PAPI RWYS 7, 10, 25 & 28 OPR CONSLY.
N/A
Yes - Lighted
N/A
No
Hanger, Tie-Down
NOT a Landing Rights Airport
Airport of Entry
Major
Major
None
None
Air Ambulance
Cargo Handling
Pilot Instruction
Aircraft Rental

Runway 07/25

4999 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

105,000lbs
147,000lbs
244,000lbs
--
  Runway 07 Runway 25
True Heading 53°233°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 43° 59' 16"N 43° 59' 46"N
Longitude 76° 01' 48"W 76° 00' 53"W
Elevation 310' 324'
Threshold Crossing Height 52 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 10/28

7001 ft. x 150 ft.
ASPH
Good
GRVD
MED

109,000lbs
154,000lbs
254,000lbs
--
  Runway 10 Runway 28
True Heading 93°273°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition FAIR FAIR
Latitude 43° 59' 32"N 43° 59' 29"N
Longitude 76° 01' 50"W 76° 00' 15"W
Elevation 309' 331'
Threshold Crossing Height 47 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No
A110-1DEER & BIRDS ON & INVOF ARPT.
A110-10CTN: NGT VISION DEVICE OPS CONDUCTED IN TFC PAT AREA.
A110-15RC MODEL ACT 4 NM N & 9 NM SSW BLW 400 FT.
A110-16TWY LGTS NOT VSB USING NGT VISION GOGGLES.
A110-17APN PRKG WT BRG CPTY: 68/F/C/X/T; S-120, D-239, DT-385.
A110-19WX CAMERA AVBL AT WATERTOWNAIRPORT.COM.
A110-22FOR CD IF UNA TO CTC WHEELER SACK ATCT ON FREQ, CTC WHEELER SACK ATCT AT 315-772-7105.
A110-23CTN: RAPID HOT REFUELING ON TRML & GA RAMP.
A110-24GND VEHICLES MNT CTAF.
A110-25US CUSTOMS PRKG AT GA RAMP UNLESS ADZD BY CUSTOMS OR FBO.
A110-26TKS, TYPE I & IV FLUIDS AVBL - CTC FBO.
A110-2724HR PPR FOR TRNSPN OF XPLOS - CTC AMGR.
A110-28MEDEVAC ON ARPT. GIVEAWAY TO ACFT OR HEL USING MEDEVAC CS.
A110-29WHEELED HEL REQSTD TO GND TAXI WHEN XNG GA RAMP.
A110-3MIL HEL T ON & INVOF ARPT.
A110-4PPR FOR USE OF UNIMPROVED SFCS - AMGR.
A110-6TKS DE/ANTI ICING AVBL - FBO 315-786-6001.
A110-8RWY/TWY COND UNMNTD AFT HRS.
A110-9PAEW ALL SFCS APR-OCT. SN REMOVAL EQUIP OCT-APR.
A24LNDG FEE OVR 6000 LB.
A26PPR 2 HRS FOR UNSKD OPS WITH MORE THAN 30 PAX SEATS CALL 315-816-2331 OR 315-486-3302. INDEX B COVERAGE IS AVBL O/R.
A30-07/25RWY 25 CALM WIND RWY.
A39-07/25PCR VALUE: 601/F/D/X/T
A39-10/28PCR VALUE: 270/F/D/X/T
A70-100LLFUEL AFT HRS: 315-816-2334 OR 315-466-6741.
A81-APTACTVT MALSR RWY 07 & 28; REIL RWY 25; HIRL RWY 07/25; MIRL RWY 10/28; TWY LGTS - CTAF. PAPI RWYS 7, 10, 25 & 28 OPR CONSLY.
E111FILED FOR RECORD PURPOSES ONLY.
E792 HR PPR - US CUSTOMS 315-482-2261.
WATERTOWN INTL (ICAO: KART, IATA: ART) is a public airport located in WATERTOWN, NY, US.
