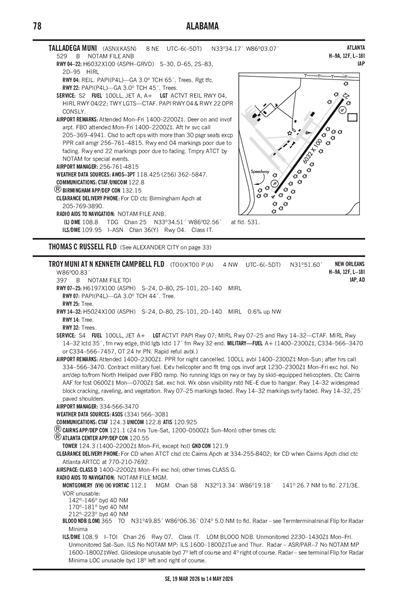

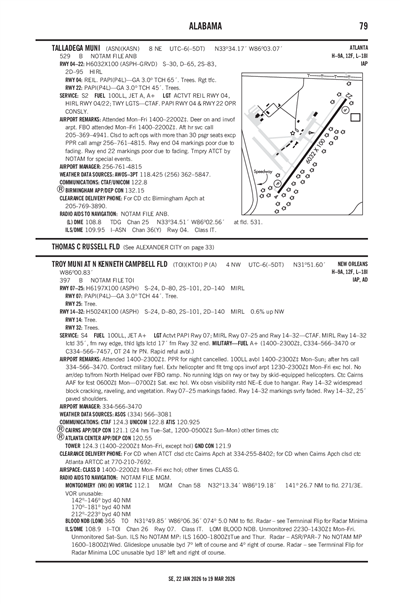

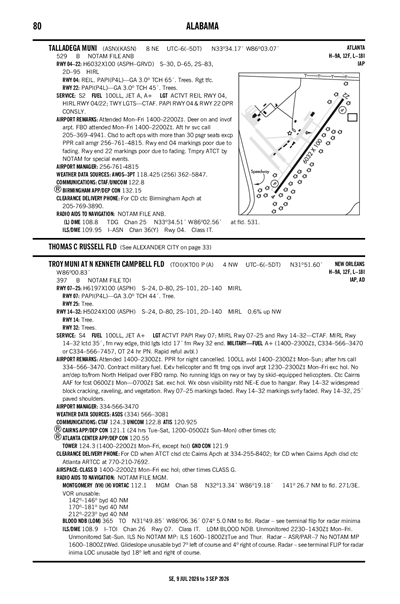

TALLADEGA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KASN
ICAO KASNIATA ASNLocal ASN
TALLADEGA MUNI
PublicPUB

8 miles NE of TALLADEGA, AL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 34' 10"N 86° 03' 04"W
Elevation
529' MSL
Pattern Alt
1529' MSL
Mag Variation
4°W
Declination
3°W
Fuel
JET A, JET A (FSII), 100LL
FSS
ANNISTON (ANB)
Sectional
ATLANTA
ARTCC
ATLANTA (ZTL)
Data Effective
6/11/26-7/9/26
KPLR (10nm) VFR
12:55 PM CDT
Clear
10sm
81°F
63°F
30.11"Hg
Calm
A01
METAR KPLR 241755Z AUTO 10SM CLR 27/17 A3011 RMK A01
+ Add Your Business

KASN FBOs

Promote Listing
Talladega Municipal Airport
UNICOM: 122.8
Phone: (256) 761-4815
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 6/7
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.37 6.75 7.00
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 118.425
(256) 362-5847

Common

CTAF 122.8
ACTVT REIL RWY 04; HIRL RWY 04/22; TWY LGTS - CTAF. PAPI RWY 04 & 22 OPR CONSLY.
UNICOM 122.8

Approach

BIRMINGHAM APPROACH 132.15

Departure

BIRMINGHAM DEPARTURE 132.15

Terminal Area Forecast

KBHM (35nm)
Wed, 6/24 12:33 PM CDT
Wed, 6/24 1:00 PM CDT - Thu, 6/25 1:00 PM CDT
VFR
1:00 PM CDT - 8:00 PM CDT
Broken 25,000'
Few 4,500'
6sm
040° 5kts
VFR
8:00 PM CDT - 1:00 PM CDT
Broken 20,000'
6sm
Calm
TAF KBHM 241733Z 2418/2518 04005KT P6SM FEW045 BKN250
   FM250100 00000KT P6SM BKN200
KASN
EffectiveExpiresCategoryNOTAM
Domestic
6/26/26
2100Z
6/29/26
1300Z
!ANB 06/921 ASN AD AP FIXED BASE OPR CLSD 2606262100-2606291300
6/26/26
2100Z
6/29/26
1300Z
!ANB 06/920 ASN AD AP 100LL AND JET A FUEL NOT AVBL 2606262100-2606291300
6/19/26
0907Z
!ANB 06/763 ASN NAV TDG DME NOT MNT 2606190907-2606262000EST
6/18/26
0029Z
!ANB 06/662 ASN SVC AUTOMATED WX BCST SYSTEM U/S 2606180029-2607312359EST
6/16/26
1550Z
7/1/26
1300Z
!ANB 06/608 ASN SVC AUTOMATED WX BCST SYSTEM U/S 2606161550-2607011300
6/13/26
1958Z
10/11/26
1958Z
!ANB 06/536 ASN OBST TOWER LGT (ASR 1254872) 333725.90N0860447.60W (3.5NM NNW ASN) 930.1FT (243.1FT AGL) U/S 2606131958-2610111958
6/13/26
0834Z
6/27/26
2359Z
!ANB 06/528 ASN OBST TOWER LGT (ASR 1212682) 333638.40N0860908.60W (5.6NM WNW ASN) 795.6FT (309.7FT AGL) U/S 2606130834-2606272359
6/13/26
0558Z
9/11/26
0558Z
!ANB 06/523 ASN OBST TOWER LGT (ASR 1035748) 332745.40N0860725.50W (7.4NM SSW ASN) 1503.0FT (415.0FT AGL) U/S 2606130558-2609110558
6/8/26
0617Z
9/6/26
0617Z
!ANB 06/386 ASN OBST TOWER LGT (ASR 1215469) 334123.20N0860444.80W (7.3NM N ASN) 828.1FT (315.0FT AGL) U/S 2606080617-2609060617
6/8/26
0238Z
9/6/26
0238Z
!ANB 06/380 ASN OBST TOWER LGT (ASR 1036688) 333511.50N0855832.70W (3.9NM ENE ASN) 999.0FT (289.0FT AGL) U/S 2606080238-2609060238
6/8/26
0237Z
9/6/26
0237Z
!ANB 06/379 ASN OBST TOWER LGT (ASR 1000479) 333447.80N0855938.80W (2.9NM ENE ASN) 1053.1FT (200.1FT AGL) U/S 2606080237-2609060237
6/3/26
0419Z
10/1/26
0419Z
!ANB 06/254 ASN OBST TOWER LGT (ASR 1220051) 333510.50N0860621.70W (2.9NM WNW ASN) 873.7FT (258.9FT AGL) U/S 2606030419-2610010419
4/1/26
1216Z
Runway!ANB 04/013 ASN RWY 04 RWY END ID LGT U/S 2604011216-2610012111EST
FDC
6/22/26
1358Z
10/7/26
1358Z
!FDC 6/9608 ASN IAP TALLADEGA MUNI, TALLADEGA, AL.
ILS Z OR LOC Z RWY 4, AMDT 1...
MISSED APPROACH: CLIMB TO 1300 THEN CLIMBING LEFT TURN TO 3700 ON HEADING 293 ON GAD VOR/DME R-205 TO JOTAV INT/GAD VOR/DME 24.88 DME AND HOLD.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
VUZ VOR OUT OF SERVICE. 2606221358-2610071358EST
5/29/26
1419Z
!FDC 6/4043 ASN IAP TALLADEGA MUNI, TALLADEGA, AL. RNAV (GPS) RWY 4, AMDT 2A... WHEN LOCAL ATIMETER SETTING NOT RECEIVED, USE ANNISTON ALTIMETER SETTING: INCREASE LPV DA TO 746, LNAV/VNAV DA TO 919, AND INCREASE ALL MDAS 40 FEET; INCREASE LNAV/VNAV VISIBILITY ALL CATS 1/8 SM, LNAV VISIBILITY CAT C AND D 1/8 SM, AND CIRCLING VISIBILITY CAT C 1/4 SM. BARO-VNAV AND VDP NA WHEN USING ANNISTON ALTIMETER SETTING. 2605291419-2609091419EST
No
MON-FRI 0800-1600
FBO ATTENDED MON-FRI 0800-1600.
CITY OF TALLADEGA
255 SOUTH ST. WEST P.O. BOX 498
TALLADEGA, AL 35160
Phone: 256-362-8775
JIM BROCK
566 AIRPORT DRIVE
LINCOLN, AL 35096
Phone: 256-761-4815
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
ANB
--
ACTVT REIL RWY 04; HIRL RWY 04/22; TWY LGTS - CTAF. PAPI RWY 04 & 22 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
None

Runway 04/22

6032 ft. x 100 ft.
ASPH
Fair
GRVD
HIGH

30,000lbs
65,000lbs
95,000lbs
--
  Runway 04 Runway 22
True Heading 35°215°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition POOR POOR
Latitude 33° 33' 46"N 33° 34' 35"N
Longitude 86° 03' 25"W 86° 02' 44"W
Elevation 509' 528'
Threshold Crossing Height 65 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes No
A110-1TMPRY ATCT BY NOTAM FOR SPECIAL EVENTS.
A110-2DEER ON & INVOF ARPT.
A110-3AFT HR SVC CALL 205-369-4941.
A110-4FOR CD CTC BIRMINGHAM APCH AT 205-769-3890.
A17-H1FBO ATTENDED MON-FRI 0800-1600.
A26CLSD TO ACFT OPS WITH MORE THAN 30 PSGR SEATS EXCP PPR CALL AMGR (256) 761-4815.
A42-04_CONDMARKINGS POOR DUE TO FADING.
A42-22_CONDMARKINGS POOR DUE TO FADING.
A81-APTACTVT REIL RWY 04; HIRL RWY 04/22; TWY LGTS - CTAF. PAPI RWY 04 & 22 OPR CONSLY.
TALLADEGA MUNI (ICAO: KASN, IATA: ASN) is a public airport located in TALLADEGA, AL, US.
