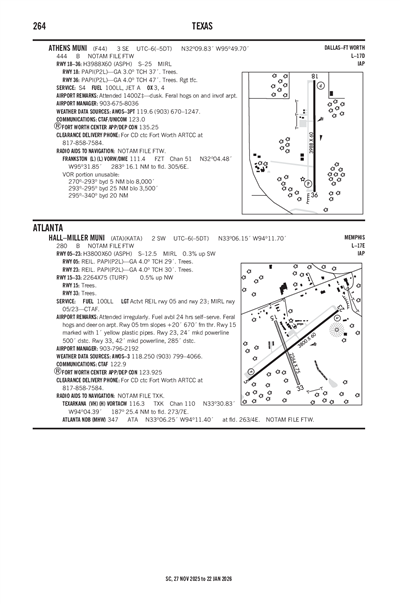

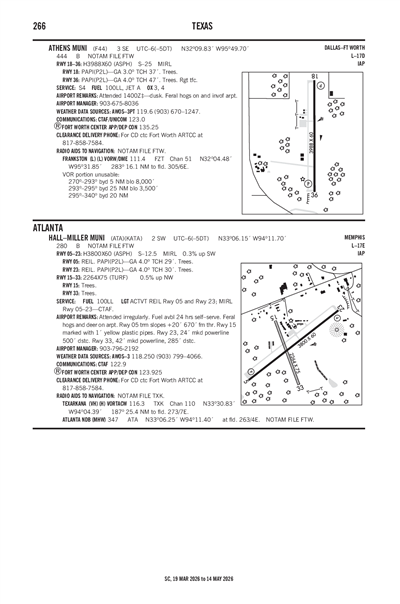

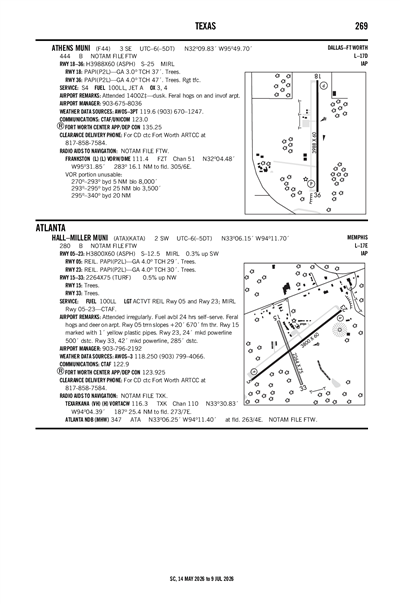

HALL-MILLER MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KATA
ICAO KATALocal ATA
HALL-MILLER MUNI
PublicPUB

2 miles SW of ATLANTA, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 06' 09"N 94° 11' 42"W
Elevation
280' MSL
Pattern Alt
1280' MSL
Mag Variation
1°E
Declination
4°E
Fuel
100LL
FSS
FORT WORTH (FTW)
Sectional
MEMPHIS
ARTCC
FORT WORTH (ZFW)
Data Effective
2/19/26-3/19/26
KATA MVFR
10:15 AM CDT
Broken 2,500'
10sm
71°F
61°F
29.62"Hg
200° 16kts
Gusts 23kts
AO2 CIG 024V031 BKN V OVC T02170159 $
METAR KATA 151515Z AUTO 20016G23KT 10SM BKN025 22/16 A2962 RMK AO2 CIG 024V031 BKN V OVC T02170159 $
+ Add Your Business

KATA FBOs

Promote Listing
Hall-Miller Municipal Airport
Phone: (903) 796-2192
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 2/28
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 4.86
Full Serve
Fuel Notes
Prices include tax
Call ahead for availability and pricing of fuel.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 118.25
(903) 799-4066

Common

CTAF 122.9
ACTVT REIL RWY 05 & 23; MIRL RWY 05/23 - CTAF.

Center

FORT WORTH CENTER 123.925
LOW, APCH/DEP CTL SVC PRVDD BY FORT WORTH ARTCC (ZFW) ON FREQS 123.925/269.475 (TEXARKANA RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KTXK (24nm)
Sun, 3/15 6:51 AM CDT
Sun, 3/15 7:00 AM CDT - Mon, 3/16 7:00 AM CDT
MVFR
7:00 AM CDT - 1:00 PM CDT
Broken 2,000'
6sm
190° 15kts
Gusts 24kts
VFR
1:00 PM CDT - 3:00 PM CDT
Showers in vicinity
Broken 3,500'
6sm
220° 18kts
Gusts 26kts
VFR
3:00 PM CDT - 6:00 PM CDT
Thunderstorm in vicinity
Broken 4,000'
6sm
300° 20kts
Gusts 30kts
MVFR
Temporary 4:00 PM CDT - 6:00 PM CDT
Light Thunderstorm and Rain
Broken 2,500'
3sm
VRB° 25kts
Gusts 35kts
VFR
6:00 PM CDT - 9:00 PM CDT
Scattered 15,000'
Scattered 5,000'
6sm
330° 20kts
Gusts 30kts
VFR
9:00 PM CDT - 4:00 AM CDT
Broken 15,000'
6sm
330° 16kts
Gusts 30kts
VFR
4:00 AM CDT - 7:00 AM CDT
Scattered 25,000'
6sm
340° 13kts
Gusts 24kts
TAF KTXK 151151Z 1512/1612 19015G24KT P6SM BKN020
   FM151800 22018G26KT P6SM VCSH BKN035
   FM152000 30020G30KT P6SM VCTS BKN040CB
   TEMPO 1521/1523 VRB25G35KT 3SM -TSRA BKN025CB
   FM152300 33020G30KT P6SM SCT050 SCT150
   FM160200 33016G30KT P6SM BKN150
   FM160900 34013G24KT P6SM SCT250
KATA
EffectiveExpiresCategoryNOTAM
Domestic
3/15/26
1332Z
4/29/26
1332Z
!FTW 03/416 ATA OBST TOWER LGT (ASR 1052180) 331518.00N0940517.00W (10.6NM NNE ATA) 793.0FT (434.1FT AGL) U/S 2603151332-2604291332
3/9/26
1306Z
7/7/26
1306Z
!FTW 03/229 ATA OBST TOWER LGT (ASR 1021466) 330816.00N0940427.00W (6.5NM ENE ATA) 764.8FT (399.9FT AGL) U/S 2603091306-2607071306
2/16/26
0900Z
4/2/26
0500Z
!FTW 02/415 ATA OBST TOWER LGT (ASR 1281726) 330620.80N0941047.40W (0.8NM ENE ATA) 420.9FT (184.1FT AGL) U/S 2602160900-2604020500
2/5/26
0255Z
5/5/26
0500Z
!FTW 02/124 ATA OBST TOWER LGT (ASR 1234416) 331456.20N0940927.80W (9.0NM NNE ATA) 551.8FT (270.0FT AGL) U/S 2602050255-2605050500
12/15/25
2057Z
!FTW 12/405 ATA SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2512152057-2604162359EST
12/9/25
1831Z
Runway!FTW 12/276 ATA RWY 05 RWY END ID LGT U/S 2512091831-2605042111EST
FDC
3/21/25
1916Z
!FDC 5/6462 ATA IAP HALL-MILLER MUNI, ATLANTA, TX.
RNAV (GPS) RWY 5, AMDT 1C...
MISSED APPROACH: CLIMB TO 3000 DIRECT YOVUK AND LEFT TURN TRACK 302.12 TO DOGGE AND HOLD, CONTINUE CLIMB-IN-HOLD TO 3000.
2503211916-2703211916EST
3/7/25
1342Z
!FDC 5/0418 ATA ODP HALL-MILLER MUNI, ATLANTA, TX.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
TAKE-OFF MINIMUMS TO READ: RWY 05: 400-2 3/4 OR STANDARD WITH MINIMUM CLIMB OF 203 FT/NM TO 800 OR ALTERNATIVELY, WITH STANDARD TAKEOFF MINIMUMS AND A NORMAL 200 FT/NM CLIMB GRADIENT, TAKEOFF MUST OCCUR NO LATER THAN 1200 FEET PRIOR TO DER. ALL OTHER DATA REMAINS AS PUBLISHED.
2503071342-2703061341EST
No
IREG
CITY OF ATLANTA
CITY HALL 315 N BUCKER P.O. BOX 669
ATLANTA, TX 75551
Phone: 903-796-7153
DANICA PORTER
PO BOX 669
ATLANTA, TX 75551
Phone: 903-796-2192
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
FTW
--
ACTVT REIL RWY 05 & 23; MIRL RWY 05/23 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 05/23

3800 ft. x 60 ft.
ASPH
Fair
NONE
MED

12,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 52°232°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 33° 05' 58"N 33° 06' 22"N
Longitude 94° 11' 59"W 94° 11' 24"W
Elevation 280' 268'
Threshold Crossing Height 29 ft. AGL 30 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 15/33

2264 ft. x 75 ft.
TURF
Good
NONE


--
--
--
--
  Runway 15 Runway 33
True Heading 160°340°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 33° 06' 18"N 33° 05' 57"N
Longitude 94° 11' 48"W 94° 11' 39"W
Elevation 273' 261'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FERAL HOGS & DEER ON ARPT.
A110-2RWY 23, 24 FT MKD POWERLINE 500 FT DSTC.
A110-3RWY 05 TRRN SLOPES +20 FT 670 FT FM THR.
A110-4RWY 33, 42 FT MKD POWERLINE, 285 FT DSTC.
A110-5FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A14CITY/ARPT MGR.
A16EXT 120.
A42-15_MARKRWY MKD WITH 1 FT YELLOW PLASTIC PIPES.
A57-05APCH SLOPE 3:1 TO RWY END BASED ON STRAIGHT OUT.
A57-1550 FT UNMKD PWR LINES 560 DSTC ACRS APCH. MKD PWR LINES LWR THAN TREES.
A58-0525 FT TREES, 0 FT DSTC, 165 FT R.
A58-2340 FT TREES 0-199 FT FM THR 135 L.
A70-100LLFUEL AVBL 24 HRS SELF-SERVE.
A81-APTACTVT REIL RWY 05 & 23; MIRL RWY 05/23 - CTAF.
HALL-MILLER MUNI (ICAO: KATA, IATA: ATA) is a public airport located in ATLANTA, TX, US.
