iFlightPlanner



...

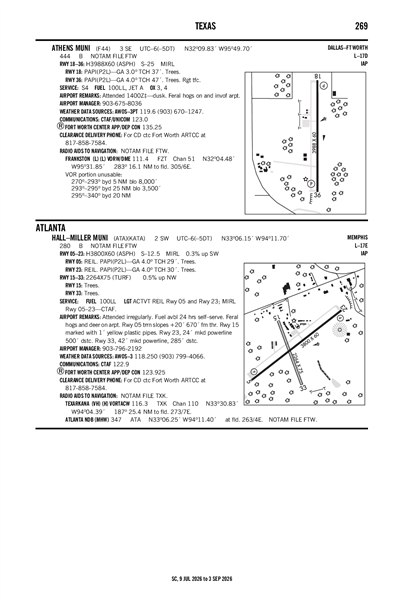

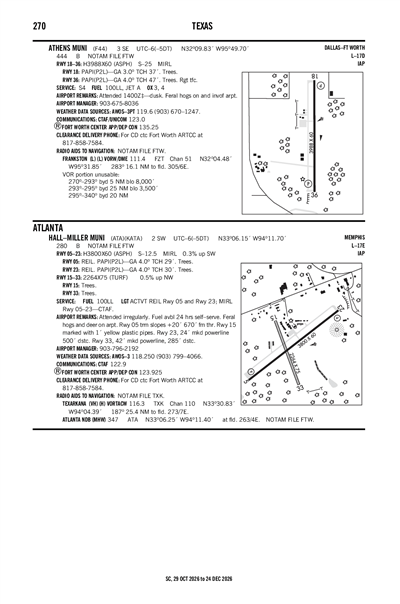

HALL-MILLER MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KATA
ICAO KATALocal ATA
HALL-MILLER MUNI
PublicPUB

2 miles SW of ATLANTA, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 06' 09"N 94° 11' 42"W
Elevation
280' MSL
Pattern Alt
1280' MSL
Mag Variation
1°E
Declination
4°E
Fuel
100LL
FSS
FORT WORTH (FTW)
Sectional
MEMPHIS
ARTCC
FORT WORTH (ZFW)
Data Effective
7/9/26-8/6/26
KTXK (24nm) VFR
10:53 PM CDT
Clear
10sm
88°F
67°F
29.85"Hg
210° 9kts
AO2 SLP102 T03110194
METAR KTXK 010353Z AUTO 21009KT 10SM CLR 31/19 A2985 RMK AO2 SLP102 T03110194
+ Add Your Business

KATA FBOs

Promote Listing
Hall-Miller Municipal Airport
Phone: (903) 796-2192
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 7/30
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 4.85
Full Serve
Fuel Notes
Prices include tax
Call ahead for availability and pricing of fuel.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 118.25
(903) 799-4066

Common

CTAF 122.9
ACTVT REIL RWY 05 & 23; MIRL RWY 05/23 - CTAF.

Center

FORT WORTH CENTER 123.925
LOW, APCH/DEP CTL SVC PRVDD BY FORT WORTH ARTCC (ZFW) ON FREQS 123.925/269.475 (TEXARKANA RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KTXK (24nm)
Fri, 7/31 6:36 PM CDT
Fri, 7/31 7:00 PM CDT - Sat, 8/1 7:00 PM CDT
VFR
7:00 PM CDT - 8:00 PM CDT
Broken 25,000'
Scattered 5,000'
6sm
220° 10kts
VFR
8:00 PM CDT - 10:00 PM CDT
Broken 25,000'
6sm
190° 6kts
VFR
10:00 PM CDT - 1:00 AM CDT
Showers in vicinity
Broken 10,000'
6sm
220° 6kts
VFR
1:00 AM CDT - 11:00 AM CDT
Broken 25,000'
6sm
220° 9kts
VFR
11:00 AM CDT - 7:00 PM CDT
Scattered 25,000'
6sm
310° 10kts
Gusts 17kts
TAF KTXK 312336Z 0100/0124 22010KT P6SM SCT050 BKN250
   FM010100 19006KT P6SM BKN250
   FM010300 22006KT P6SM VCSH BKN100
   FM010600 22009KT P6SM BKN250
   FM011600 31010G17KT P6SM SCT250
KATA
EffectiveExpiresCategoryNOTAM
Domestic
7/28/26
2254Z
!FTW 07/861 ATA SVC AUTOMATED WX BCST SYSTEM U/S 2607282254-2608282359EST
7/25/26
0444Z
8/9/26
0344Z
!FTW 07/752 ATA OBST TOWER LGT (ASR 1062181) 330708.00N0940941.00W (2.0NM ENE ATA) 481.0FT (199.8FT AGL) U/S 2607250444-2608090344
7/19/26
0658Z
10/17/26
0658Z
!FTW 07/546 ATA OBST TOWER LGT (ASR 1250572) 330758.40N0940050.20W (9.3NM ENE ATA) 616.8FT (255.9FT AGL) U/S 2607190658-2610170658
6/21/26
1219Z
9/19/26
1219Z
!FTW 06/541 ATA OBST TOWER LGT (ASR 1235525) 330757.20N0941021.40W (2.1NM NNE ATA) 625.0FT (265.1FT AGL) U/S 2606211219-2609191219
5/18/26
2340Z
8/16/26
0400Z
!FTW 05/460 ATA OBST TOWER LGT (ASR 1281330) 331115.70N0940859.90W (5.6NM NNE ATA) 590.9FT (256.9FT AGL) U/S 2605182340-2608160400
5/4/26
1214Z
Runway!FTW 05/076 ATA RWY 05 RWY END ID LGT U/S 2605041214-2611042111EST
5/4/26
1203Z
8/3/26
0400Z
!FTW 05/075 ATA OBST TOWER LGT (ASR 1234416) 331456.20N0940927.80W (9.0NM NNE ATA) 551.8FT (270.0FT AGL) U/S 2605041203-2608030400
FDC
3/21/25
1916Z
!FDC 5/6462 ATA IAP HALL-MILLER MUNI, ATLANTA, TX.
RNAV (GPS) RWY 5, AMDT 1C...
MISSED APPROACH: CLIMB TO 3000 DIRECT YOVUK AND LEFT TURN TRACK 302.12 TO DOGGE AND HOLD, CONTINUE CLIMB-IN-HOLD TO 3000.
2503211916-2703211916EST
No
IREG
CITY OF ATLANTA
CITY HALL 315 N BUCKER P.O. BOX 669
ATLANTA, TX 75551
Phone: 903-796-7153
DANICA PORTER
PO BOX 669
ATLANTA, TX 75551
Phone: 903-796-2192
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
FTW
--
ACTVT REIL RWY 05 & 23; MIRL RWY 05/23 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 05/23

3800 ft. x 60 ft.
ASPH
Fair
NONE
MED

12,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 52°232°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 33° 05' 58"N 33° 06' 22"N
Longitude 94° 11' 59"W 94° 11' 24"W
Elevation 280' 268'
Threshold Crossing Height 29 ft. AGL 30 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 15/33

2264 ft. x 75 ft.
TURF
Good
NONE


--
--
--
--
  Runway 15 Runway 33
True Heading 160°340°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 33° 06' 18"N 33° 05' 57"N
Longitude 94° 11' 48"W 94° 11' 39"W
Elevation 273' 261'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FERAL HOGS & DEER ON ARPT.
A110-2RWY 23, 24 FT MKD POWERLINE 500 FT DSTC.
A110-3RWY 05 TRRN SLOPES +20 FT 670 FT FM THR.
A110-4RWY 33, 42 FT MKD POWERLINE, 285 FT DSTC.
A110-5FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A14CITY/ARPT MGR.
A16EXT 120.
A42-15_MARKRWY MKD WITH 1 FT YELLOW PLASTIC PIPES.
A57-05APCH SLOPE 3:1 TO RWY END BASED ON STRAIGHT OUT.
A57-1550 FT UNMKD PWR LINES 560 DSTC ACRS APCH. MKD PWR LINES LWR THAN TREES.
A58-0525 FT TREES, 0 FT DSTC, 165 FT R.
A58-2340 FT TREES 0-199 FT FM THR 135 L.
A70-100LLFUEL AVBL 24 HRS SELF-SERVE.
A81-APTACTVT REIL RWY 05 & 23; MIRL RWY 05/23 - CTAF.
HALL-MILLER MUNI (ICAO: KATA, IATA: ATA) is a public airport located in ATLANTA, TX, US.
