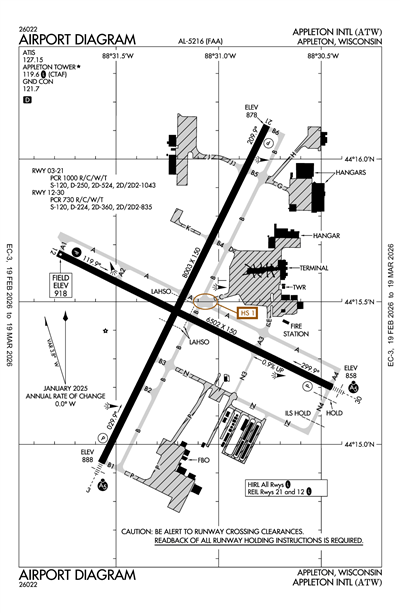

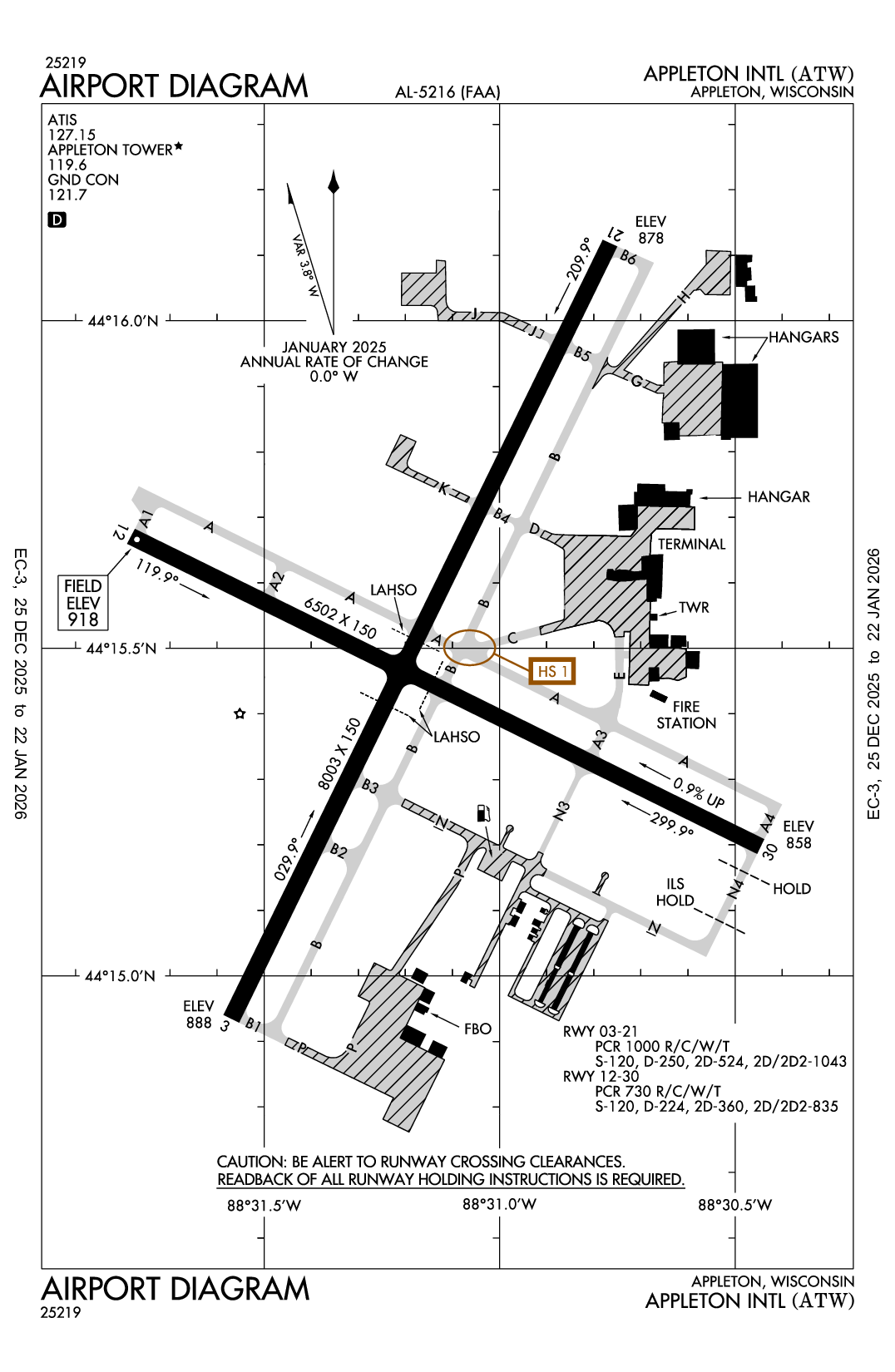

APPLETON INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KATW
ICAO KATWIATA ATWLocal ATW
APPLETON INTL
PublicPUB

3 miles W of APPLETON, WI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
44° 15' 29"N 88° 31' 09"W
Elevation
918' MSL
Pattern Alt
1918' MSL
Mag Variation
4°W
Declination
2°W
Fuel
JET A, 100LL
FSS
GREEN BAY (GRB)
Sectional
GREEN BAY
ARTCC
CHICAGO (ZAU)
Data Effective
5/14/26-6/11/26
KATW VFR
11:15 PM CDT
Clear
10sm
64°F
50°F
30.13"Hg
170° 7kts
AO2
METAR KATW 040415Z AUTO 17007KT 10SM CLR 18/10 A3013 RMK AO2
+ Add Your Business

KATW FBOs

Promote Listing
Appleton Flight Center
UNICOM: 122.95
Phone: (920) 738-3034
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 6/2
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 7.13 5.89
Full Serve 7.44 6.25 6.31
Fuel Notes
Prices include tax
Promote Listing
Gulfstream Aerospace Corporation
UNICOM: 122.95
Phone: (920) 472-3177
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 127.15
AWOS-3 (920) 832-2597

Common

CTAF 119.6
WHEN ATCT CLSD HIRL RWY 03/21 PRESET ON LOW INTST; TO INCR INTST & ACTVT MALSR RWY 03, 30; REIL RWY 12, 21; PAPI RWY 12; HIRL RWY 03/21, 12/30 - CTAF.; SNOW REMOVAL OPNS IN PROGRESS WINTER MONTHS. VEHICLE OPERATORS WILL BE MONITORING CTAF; ACFT LNDG/DEP APPLETON SHOULD USE CTAF WHEN ATCT CLSD.
UNICOM 122.95

Ground

APPLETON GROUND 121.7
0530-2300

Tower

APPLETON TOWER 119.6
0530-2300

Approach

GREEN BAY APPROACH 126.3

Departure

GREEN BAY DEPARTURE 126.3

Center

GREEN BAY CENTER 126.3
LOW, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC (ZMP) ON FREQS 126.3 (APPLETON RCAG)/317.7 (MOSINEE RCAG) WHEN GREEN BAY APCH CLSD.

Terminal Area Forecast

KATW
Wed, 6/3 6:20 PM CDT
Wed, 6/3 7:00 PM CDT - Thu, 6/4 7:00 PM CDT
VFR
7:00 PM CDT - 8:00 AM CDT
Scattered 25,000'
6sm
180° 5kts
VFR
8:00 AM CDT - 3:00 PM CDT
Broken 25,000'
6sm
210° 10kts
Gusts 17kts
VFR
3:00 PM CDT - 7:00 PM CDT
Broken 6,000'
6sm
230° 9kts
Gusts 15kts
TAF KATW 032320Z 0400/0424 18005KT P6SM SCT250
   FM041300 21010G17KT P6SM BKN250
   FM042000 23009G15KT P6SM BKN060
KATW
EffectiveExpiresCategoryNOTAM
Domestic
6/10/26
0500Z
6/10/26
1000Z
!ATW 06/010 ATW COM REMOTE TRANS/REC 126.3 U/S 2606100500-2606101000
6/4/26
1400Z
6/4/26
2000Z
!ATW 06/013 ATW AD AP RVR ALL U/S 2606041400-2606042000
4/14/26
1557Z
7/14/26
2359Z
!ATW 04/071 ATW AD AP BIRD ACT MIGRATORY BIRDS 2604141557-2607142359
4/2/26
1606Z
8/21/26
2200Z
!ATW 04/039 ATW OBST CRANE (ASN 2025-AGL-5137-OE) 441459N0882657W (3.0NM E ATW) 970FT (195FT AGL) FLAGGED 2604021606-2608212200
3/28/26
0218Z
6/30/26
2359Z
!ATW 03/242 ATW TWY ALL SFC MARKINGS FADED 2603280218-2606302359
3/2/26
2238Z
7/31/26
2359Z
!ATW 03/001 ATW OBST TOWER LGT (ASR 1052712) 441453.00N0881801.20W (9.4NM E ATW) 992.1FT (242.1FT AGL) U/S 2603022238-2607312359
1/6/26
1344Z
!ATW 01/074 ATW NAV ILS RWY 30 OM U/S 2601061344-2607062111EST
12/3/25
1935Z
8/1/26
0100Z
!ATW 12/065 ATW OBST CRANE (ASN 2025-AGL-13789-OE) 441601N0882918W (1.4NM ENE ATW) 1012FT (205FT AGL) FLAGGED AND LGTD 2512031935-2608010100
FDC
5/18/26
1431Z
!FDC 6/1052 ATW IAP APPLETON INTL, APPLETON, WI. RNAV (GPS) RWY 3, AMDT 1B... LNAV/VNAV VIS ALL CATS RVR 3000. LNAV VIS CAT C/D RVR 5500. CHANGE FOR INOPERATIVE MALSR NOTE TO READ: FOR INOPERATIVE ALS, INCREASE LNAV/VNAV ALL CATS VISIBILITY TO RVR 5500 AND LNAV CAT C/D VISIBILITY TO 1 3/8 SM. CHANGE ALTIMETER NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE GRB ALTIMETER SETTING AND INCREASE LPV DA TO 1219 FEET AND ALL VISIBILITIES TO RVR 2600; INCREASE LNAV/VNAV DA TO 1313 FEET AND ALL VISIBILITES TO RVR 4000; INCREASE ALL MDAS 100 FEET AND LNAV VISIBILITY CAT C/D 3/8 SM AND CIRCLING VISIBILITY CAT C 1/4 SM. CHANGE BARO-VNAV NA NOTE TO READ: FOR UNCOMPENSATED BARO-VNAV SYSTEMS, LNAV/VNAV NA BELOW -16C OR ABOVE 54C. CHANGE BARO/VNAV AND VDP NA NOTE TO READ: BARO-VNAV AND VDP NA WHEN USING GRB ALTIMETER SETTING. DELETE NOTE: DME/DME RNP-0.3 NA. PBN REQUIREMENTS NOTE: RNP APCH - GPS. DELETE *LNAV ONLY. DELETE ASTERISK FROM VDP. CHANGE PLANVIEW NOTE TO READ: PROCEDURE NA FOR ARRIVAL AT OSH VORTAC ON AIRWAY RADIALS 337 CW 023. THIS IS RNAV (GPS) RWY 3, AMDT 1C. 2605181431-PERM
4/23/26
1137Z
12/3/28
1137Z
!FDC 6/5360 ATW IAP APPLETON INTL, APPLETON, WI. RNAV (GPS) RWY 3, AMDT 1B... LNAV CAT C VIS RVR 5500. DISREGARD BARO-VNAV NA BELOW -16C (4F). FOR UNCOMPENSATED BARO-VNAV SYSTEMS, LNAV/VNAV NA BELOW -16C OR ABOVE 54C. DISREGARD FOR INOPERATIVE MALSR NOTE. FOR INOPERATIVE ALS, INCREASE LNAV/VNAV ALL CATS VISIBILITY TO RVR 5500 AND LNAV CATS C/D TO 1 3/8 SM. DISREGARD DME/DME RNP-0.3 NA. PBN REQUIREMENTS NOTE: RNP APCH â?? GPS. DISREGARD WHEN LOCAL ALTIMETER SETTING NOT RECEIVED AND BARO-VNAV AND VDP NA NOTES. WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE GRB ALTIMETER SETTING: INCREASE LPV DA TO 1219 FEET AND ALL VISIBILITIES TO RVR 2600; INCREASE LNAV/VNAV DA TO 1313 FEET; INCREASE ALL MDAS 100 FEET AND LNAV VISIBILITY CAT C 3/8 SM, LNAV VISIBILITY CAT D 1/8 SM, AND CIRCLING VISIBILITY CAT C 1/4 SM. BARO-VNAV AND VDP NA WHEN USING GRB ALTIMETER SETTING. 2604231137-2812031137EST
12/10/25
2334Z
!FDC 5/7606 ATW IAP APPLETON INTL, APPLETON, WI.
RNAV (GPS) RWY 21, AMDT 2F...
LNAV MDA 1340/HAT 461 ALL CATS, VIS CATS C/D 1 3/8. CIRCLING CAT A/B MDA 1400/HAA 482. TEMPORARY CRANE 1033 MSL, 2666FT E OF RWY 21 (2025-AGL-3807-OE).
2512102334-2611072355EST
11/6/25
2150Z
!FDC 5/3496 ATW IAP APPLETON INTL, APPLETON, WI.
RNAV (GPS) RWY 21, AMDT 2F...
LNAV/VNAV DA 1265/HAT 386 ALL CATS.
2511062150-2711062150EST
Yes
ALL
OUTAGAMIE COUNTY
W6390 CHALLENGER DR-SUITE 201
APPLETON, WI 54915
Phone: 920-832-5267
ABE WEBER, AIRPORT DIRECTOR
W6390 CHALLENGER DR-SUITE 201
APPLETON, WI 54914
Phone: 920-832-5267
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
ATW
--
WHEN ATCT CLSD HIRL RWY 03/21 PRESET ON LOW INTST; TO INCR INTST & ACTVT MALSR RWY 03, 30; REIL RWY 12, 21; PAPI RWY 12; HIRL RWY 03/21, 12/30 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High & Low Pressure
Air Freight
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 03/21

8003 ft. x 150 ft.
CONC
Good
GRVD
HIGH

120,000lbs
250,000lbs
524,000lbs
1,043,000lbs
  Runway 03 Runway 21
True Heading 26°206°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 44° 14' 56"N 44° 16' 07"N
Longitude 88° 31' 34"W 88° 30' 46"W
Elevation 888' 878'
Threshold Crossing Height 47 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway 12/30

6502 ft. x 150 ft.
CONC
Good
GRVD
HIGH

120,000lbs
224,000lbs
360,000lbs
835,000lbs
  Runway 12 Runway 30
True Heading 116°296°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 44° 15' 40"N 44° 15' 12"N
Longitude 88° 31' 47"W 88° 30' 27"W
Elevation 918' 858'
Threshold Crossing Height 35 ft. AGL 61 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes
A110-2BIRDS & MIGRATORY WATERFOWL ON & INVOF ARPT.
A110-3SNOW REMOVAL OPNS IN PROGRESS WINTER MONTHS. VEHICLE OPERATORS WILL BE MONITORING CTAF; ACFT LNDG/DEP APPLETON SHOULD USE CTAF WHEN ATCT CLSD.
A110-4US CSTMS AND BORDER PROTECTION. PPR US CSTMS SVC MON-FRI 1300-2100Z (0800-1600 LOCAL) CALL 920-968-2348.
A110-5WHEN ATCT CLSD, FOR CD CTC GREEN BAY APCH ON FREQ, IF UNA CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A110-6PERIODIC LIVE FIRE TRNG SOUTH SIDE OF ARPT.
A110-7COML RAMP DEICING PADS ARE AVBL FOR LIVE ENG RUN OPN DRG DEICING.
A39-03/21PCR VALUE: 1000/R/C/W/T
A39-12/30PCR VALUE: 730/R/C/W/T
A43-03OPERATES CONTINUOUSLY.
A43-21OPERATES CONTINUOUSLY. PAPI RESTRICTED BYD 8.5 DEG RGT OF COURSE.
A43-30OPERATES CONTINUOUSLY.
A81-APTWHEN ATCT CLSD HIRL RWY 03/21 PRESET ON LOW INTST; TO INCR INTST & ACTVT MALSR RWY 03, 30; REIL RWY 12, 21; PAPI RWY 12; HIRL RWY 03/21, 12/30 - CTAF.
APPLETON INTL (ICAO: KATW, IATA: ATW) is a public airport located in APPLETON, WI, US.
