iFlightPlanner



...

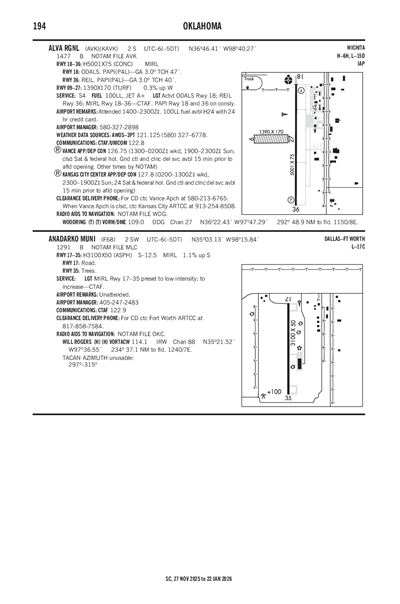

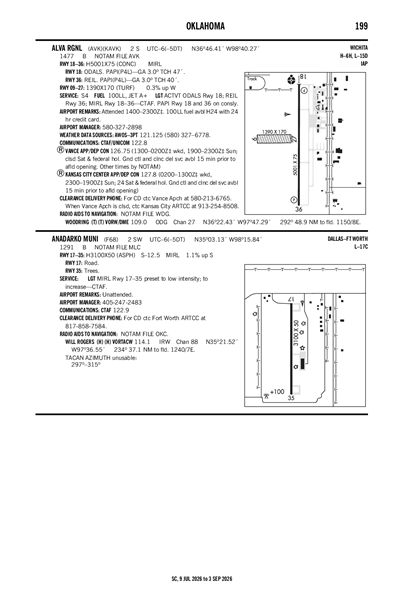

ALVA RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAVK
ALVA RGNL
PublicPUB

2 miles S of ALVA, OK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 46' 25"N 98° 40' 16"W
1477' MSL
2477' MSL
04E
Jet A, 100LL
MC ALESTER (MLC)
WICHITA
KANSAS CITY (ZKC)
4/18/24-5/16/24
KAVK MVFR
12:55 AM CDT
Overcast 4,000'
Broken 2,600'
10sm
66°F
54°F
30.00"Hg
130° 13kts
AO2
KAVK 250555Z AUTO 13013KT 10SM BKN026 OVC040 19/12 A3000 RMK AO2
List Your Business

KAVK FBOs, Flight Schools and Ground Support

Promote Listing
Alva Regional Airport
Freq: 122.8
Phone: (580) 327-2898
Other: (580) 748-2709
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 4/22
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.15
Full Serve 5.15 4.15

KAVK Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KAVK Hotels

No hotels are listed for this airport.

KAVK Restaurants

No restaurants are listed for this airport.

KAVK Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
580-327-6778
 121.125

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KEND (45nm)
Wed, 4/24 9:00 PM CDT
Wed, 4/24 9:00 PM CDT - Fri, 4/26 3:00 AM CDT
VFR
9:00 PM CDT - 12:00 AM CDT
Scattered 10,000'
Few 4,000'
6sm
30.00"Hg
100° 7kts
MVFR
Becoming 12:00 AM CDT - 3:00 AM CDT
Light Showers and Rain and Thunderstorm in vicinity
Broken 3,000'
4.97sm
29.97"Hg
120° 9kts
IFR
Becoming 3:00 AM CDT - 9:00 AM CDT
Mist
Overcast 2,000'
Broken 700'
4.97sm
29.94"Hg
120° 9kts
MVFR
Becoming 9:00 AM CDT - 12:00 PM CDT
Light Showers and Rain and Mist
Broken 2,000'
3.73sm
29.88"Hg
150° 12kts
Gusts 18kts
MVFR
Becoming 12:00 PM CDT - 6:00 PM CDT
Overcast 2,000'
Broken 1,500'
6sm
29.70"Hg
160° 15kts
Gusts 25kts
MVFR
Becoming 6:00 PM CDT - 3:00 AM CDT
Overcast 2,000'
Broken 1,500'
6sm
29.62"Hg
150° 20kts
Gusts 35kts
TAF KEND 250200Z 2502/2608 10007KT 9999 FEW040 SCT100 QNH2999INS
   BECMG 2505/2506 12009KT 8000 -SHRA VCTS BKN030CB QNH2997INS
   BECMG 2508/2509 12009KT 8000 BR BKN007 OVC020 QNH2993INS
   BECMG 2514/2515 15012G18KT 6000 -SHRA BR BKN020 QNH2987INS
   BECMG 2517/2518 16015G25KT 9999 NSW BKN015 OVC020 QNH2969INS
   BECMG 2523/2524 15020G35KT 9999 BKN015 OVC020 QNH2963INS TX25/2521Z TN13/2512Z
KAVK
Domestic
4/4/241054Z !AVK 04/001 AVK OBST TOWER LGT (ASR 1011006) 365155.00N0983857.00W (5.6NM NE AVK) 1768.4FT (318.2FT AGL) U/S 2404041054-2405042359
FDC
10/16/231235Z !FDC 3/6220 AVK IAP ALVA RGNL, ALVA, OK.
RNAV (GPS) RWY 36, ORIG-A...
LNAV/VNAV CATS A/B/C DA 1785/HAT 314.
LNAV CATS A/B/C MDA 1900/HAT 429. VIS CAT C 1 1/4.
VDP 1.22 NM TO RW36.
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE VANCE AFB ALTIMETER SETTING AND INCREASE ALL DA 127 FEET AND ALL MDA 140 FEET; INCREASE LPV ALL CATS AND LNAV CATS C VISIBILITY 3/8 MILE AND LNAV/VNAV ALL CATS VISIBILITY 1/2 MILE.
TEMPORARY RIG, 1585 MSL, 3117FT WEST OF KAVK (2023-ASW-217-NRA).
2310161235-2405271235EST
No
0800-1700
CITY OF ALVA
415 4TH ST.
ALVA, OK 73717
Phone: 580-327-1340
DERRICK COURSON
2875 COLLEGE BLVD.
ALVA, OK 73717
Phone: 580-327-2898
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
AVK
--
ACTVT ODALS RWY 18; REIL RWY 36; MIRL RWY 18/36 - CTAF. PAPI RWY 18 & 36 ON CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
32
1
2
1
0
0
Major
Major
None
None
Crop Dusting
Pilot Instruction
Aircraft Rental

Runway 09/27

1390 ft. x 170 ft.
TURF
Good
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern
Markings
Markings Condition
Latitude 36° 46' 27"N 36° 46' 27"N
Longitude 98° 40' 35"W 98° 40' 17"W
Elevation 1,476' 1,472'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

5001 ft. x 75 ft.
CONC
Good
NONE
MED

--
--
--
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 46' 49"N 36° 45' 60"N
Longitude 98° 40' 13"W 98° 40' 14"W
Elevation 1,477' 1,469'
Threshold Crossing Height 47 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ODALS
Centerline Lights
Runway End Identifier Lights No Yes
A110-1FOR CD CTC VANCE APCH AT 580-213-6765. WHEN VANCE APCH IS CLSD, CTC KANSAS CITY ARTCC AT 913-254-8508.
ALVA RGNL (ICAO: KAVK, IATA: AVK) is a public airport located in ALVA, OK.
