WILKES-BARRE/SCRANTON INTL - Airport Diagram

KAVP

WILKES-BARRE/SCRANTON INTL

PublicPUB

5 miles SW of WILKES-BARRE/SCRANTON, PA

View on Map

Status

Operational

Coordinates

41° 20' 19"N 75° 43' 24"W

Elevation

962' MSL

Pattern Alt

1962' MSL

Mag Variation

11W

Fuel

JET A, 100LL

FSS

WILLIAMSPORT (IPT)

Sectional

NEW YORK

ARTCC

NEW YORK (ZNY)

Data Effective

11/27/25-12/25/25

KAVP MVFR

2:54 AM EST RAW

Overcast 2,600'

Viz

10sm

Temp

15°F

Dew

6°F

Pres

30.22"Hg

Wind

280° 5kts

RMK

AO2 SLP248 T10941144

METAR KAVP 150754Z 28005KT 10SM OVC026 M09/M14 A3022 RMK AO2 SLP248 T10941144

Add Your Business

KAVP FBOs

Promote Listing

Ascension FBO

UNICOM: 122.95

Phone: (570) 457-4485

0 Reviews (Read | Sign In To Write)

Titan

As of 11/25	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	6.94	6.39

KAVP Aircraft Service & Maintenance

Promote Listing

Airport Radio LLC

Phone: (570) 948-9288

Fax: (570) 414-0294

0 Reviews (Read | Sign In To Write)

Your Information

Business

UNICOM 122.95 CTAF --

ATIS

135.75

Approach/Departure

APCH/P DEP/P 280-100	120.95
APCH/P DEP/P 101-279	126.3

Emergency

EMERG

121.5

Ground

GND/P

121.9

Tower

LCL/P

120.1

Other

TRSA 280-100	120.95
TRSA 101-279	126.3

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

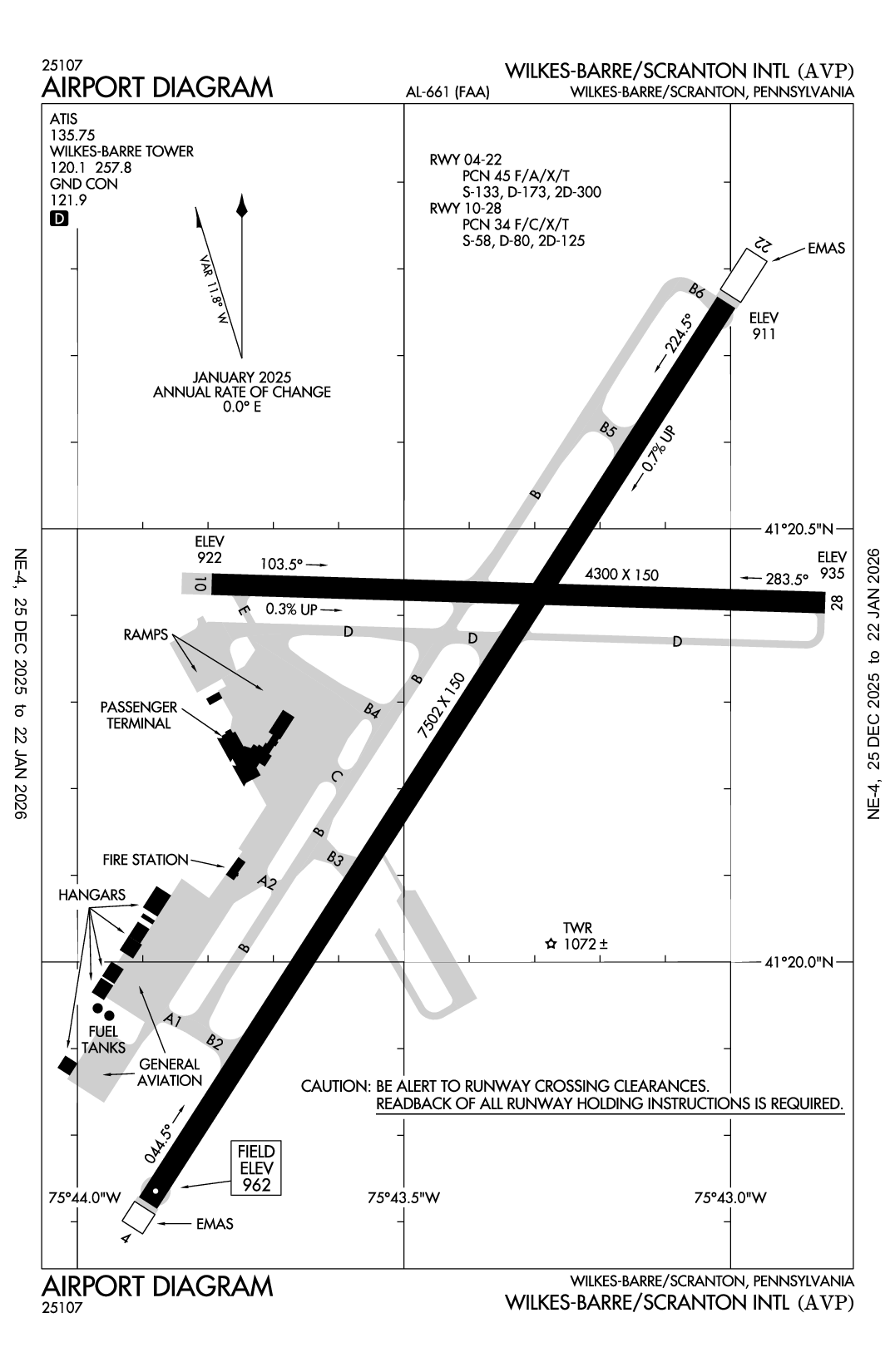

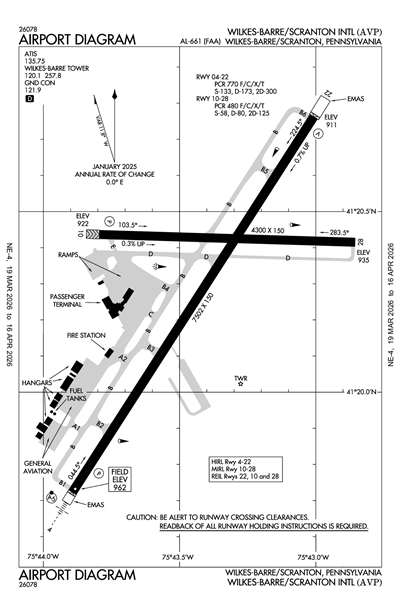

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

SCRANTON EIGHT

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KAVP

RAW

Reported

Mon, 12/15 12:41 AM EST

Valid

Mon, 12/15 1:00 AM EST - Tue, 12/16 1:00 AM EST

MVFR

1:00 AM EST - 8:00 AM EST

Broken 2,800'

Viz

6sm

Wind

300° 9kts

VFR

8:00 AM EST - 3:00 PM EST

Broken 7,000'

Viz

6sm

Wind

270° 8kts

Gusts 18kts

MVFR

3:00 PM EST - 4:00 PM EST

Broken 3,000'

Viz

6sm

Wind

250° 7kts

Gusts 15kts

VFR

4:00 PM EST - 6:00 PM EST

Broken 3,500'

Viz

6sm

Wind

240° 6kts

Gusts 14kts

VFR

6:00 PM EST - 1:00 AM EST

Broken 3,500'

Viz

6sm

Wind

230° 5kts

TAF KAVP 150541Z 1506/1606 30009KT P6SM BKN028
   FM151300 27008G18KT P6SM BKN070
   FM152000 25007G15KT P6SM BKN030
   FM152100 24006G14KT P6SM BKN035
   FM152300 23005KT P6SM BKN035

KAVP

Effective	Expires	Category	NOTAM
Domestic
12/14/25 2012Z	12/15/25 2012Z		!AVP 12/155 AVP APRON CARGO APN FICON PATCHY 1/8IN DRY SN OVER COMPACTED SN OBS AT 2512142012. 2512142012-2512152012
12/14/25 2008Z	12/15/25 2008Z		!AVP 12/154 AVP TWY D FICON PATCHY COMPACTED SN OBS AT 2512142008. 2512142008-2512152008
12/14/25 2006Z	12/15/25 2006Z		!AVP 12/153 AVP TWY B3 FICON PATCHY COMPACTED SN OBS AT 2512142006. 2512142006-2512152006
12/14/25 2003Z	12/15/25 2003Z		!AVP 12/152 AVP TWY B2 FICON PATCHY COMPACTED SN OBS AT 2512142003. 2512142003-2512152003
12/14/25 1520Z	12/15/25 1520Z		!AVP 12/151 AVP TWY C FICON PATCHY 1/8IN DRY SN 24IN SNOWBANKS OBS AT 2512141519. 2512141520-2512151520
12/14/25 1518Z	12/15/25 1518Z		!AVP 12/150 AVP TWY A2 FICON 1/8IN DRY SN 24IN SNOWBANKS OBS AT 2512141518. 2512141518-2512151518
12/14/25 1516Z	12/15/25 1516Z	Runway	!AVP 12/149 AVP RWY 22 FICON 5/5/5 40 PCT 1/8IN DRY SN 24IN SNOWBANKS OBS AT 2512141516. 2512141516-2512151516
12/14/25 1512Z	12/15/25 1512Z		!AVP 12/148 AVP APRON SOUTH GA APN FICON PATCHY 1/8IN DRY SN OVER COMPACTED SN 4FT SNOWBANKS OBS AT 2512141511. 2512141512-2512151512
12/14/25 1508Z	12/15/25 1508Z		!AVP 12/147 AVP TWY B5 FICON PATCHY 1/8IN DRY SN OBS AT 2512141508. 2512141508-2512151508
12/14/25 1506Z	12/15/25 1506Z		!AVP 12/146 AVP TWY A1 FICON PATCHY 1/8IN DRY SN OBS AT 2512141506. 2512141506-2512151506
12/14/25 1503Z	12/15/25 1503Z		!AVP 12/145 AVP TWY B4 FICON PATCHY 1/8IN DRY SN 24IN SNOWBANKS OBS AT 2512141502. 2512141503-2512151503
12/14/25 1459Z	12/15/25 1459Z		!AVP 12/144 AVP TWY B FICON PATCHY 1/8IN DRY SN OVER COMPACTED SN 24IN SNOWBANKS OBS AT 2512141458. 2512141459-2512151459
12/14/25 1456Z	12/15/25 1456Z		!AVP 12/143 AVP APRON TERMINAL APN FICON PATCHY 1/8IN DRY SN OVER COMPACTED SN 24IN SNOWBANKS OBS AT 2512141456. 2512141456-2512151456
12/14/25 1454Z	12/15/25 1454Z		!AVP 12/142 AVP APRON NORTH GA APN FICON PATCHY 1/8IN DRY SN OVER COMPACTED SN 24IN SNOWBANKS OBS AT 2512141454. 2512141454-2512151454
10/30/25 1700Z	2/1/26 2100Z		!AVP 10/097 AVP TWY B NOW 7502FT X 75FT ASPH 2510301700-2602012100
10/30/25 1700Z			!AVP 10/096 AVP TWY B1 COMMISSIONED 212.5FT X 75FT ASPH LGTD 2510301700-PERM
10/30/25 0239Z		Runway	!AVP 10/088 AVP RWY 04 ALS U/S 2510300239-2512262000EST
10/6/25 2111Z	1/6/26 2359Z		!AVP 10/019 AVP OBST TOWER LGT (ASR 1026736) 412606.00N0754334.00W (5.9NM N AVP) 2437.0FT (347.1FT AGL) U/S 2510062111-2601062359
FDC
7/11/24 1104Z			!FDC 4/0459 AVP IAP WILKES-BARRE/SCRANTON INTL, WILKES-BARRE/SCRANTON, PA. ILS OR LOC RWY 22, AMDT 11A... ILS OR LOC RWY 4, AMDT 38... RNAV (GPS) RWY 22, AMDT 1B... RNAV (GPS) RWY 4, AMDT 1B... CHANGE NOTE TO READ: CIRCLING RWY 10, 28 NA AT NIGHT. 2407111104-2607111104EST

ATC Tower

Yes

Attendance

ALL

Owner

LUZERNE AND LACKAWANNA CO
100 TERMINAL DRIVE
AVOCA, PA 18641
Phone: (570) 602-2040

Manager

CARL R. BEARDSLEY, JR.
100 TERMINAL DRIVE
AVOCA, PA 18641
Phone: 570-602-2000

FSS

WILLIAMSPORT FSS (IPT)
Toll Free: 1-800-WX-BRIEF

NOTAM

AVP

Light Schedule

Lights

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Yes

Parking

Hanger, Tie-Down

Int'l Operations

Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Minor

Bottled Oxygen

Low Pressure

Bulk Oxygen

Low Pressure

Other Services

Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 04/22

Dimensions

7502 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

45 /F/A/X/T

Single Wheel

133,000lbs

Double Wheel

173,000lbs

Double Tandem

300,000lbs

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	33°	213°
Traffic Pattern	Left	Right
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	41° 19' 43"N	41° 20' 46"N
Longitude	75° 43' 54"W	75° 43' 00"W
Elevation	962'	911'
Threshold Crossing Height	58 ft. AGL	54 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4R	V4L
Approach Lights	MALSR
Centerline Lights
Runway End Identifier Lights		Yes

Runway 10/28

Dimensions

4300 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

MED

Pavement Class

34 /F/C/X/T

Single Wheel

58,000lbs

Double Wheel

80,000lbs

Double Tandem

125,000lbs

Dual Dbl Tand

	Runway 10	Runway 28
True Heading	92°	272°
Traffic Pattern	Right	Right
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	41° 20' 26"N	41° 20' 25"N
Longitude	75° 43' 48"W	75° 42' 51"W
Elevation	922'	934'
Threshold Crossing Height	43 ft. AGL	--
Visual Glide Path Angle	3°	--
Visual Slope Indicator	P2L	--
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-2	DEER & BIRDS ON & INVOF ARPT.
A110-5	RY 28 UNLGTD HIGH TERRAIN TREES: 1155 FT MSL .91 MI EAST AER 28; 1463 FT MSL 1.49 MI EAST-SOUTHEAST AER 28; 1667 FT MSL 2.25 MI EAST AER 28; 1920 FT MSL 2.84 MI EAST AER 28.
A110-6	UNLGTD TOWER 1130 FT MSL (20 FT AGL) 1.3 MI EAST AER 28; UNLGTD TOWER 1463 FT MSL (20 FT AGL) 1.7 MI EAST AER 28; UNLGTD TOWER 1652 FT MSL (20 FT AGL) 2.4 MI EAST AER 28.
A110-7	FOR FBO SERVICE 0000-0500 LOCAL M-F AND 2100-0000 LOCAL SAT-SUN CALL (570) 457-4485.

WILKES-BARRE/SCRANTON INTL (ICAO: KAVP, IATA: AVP) is a public airport located in WILKES-BARRE/SCRANTON, PA.
