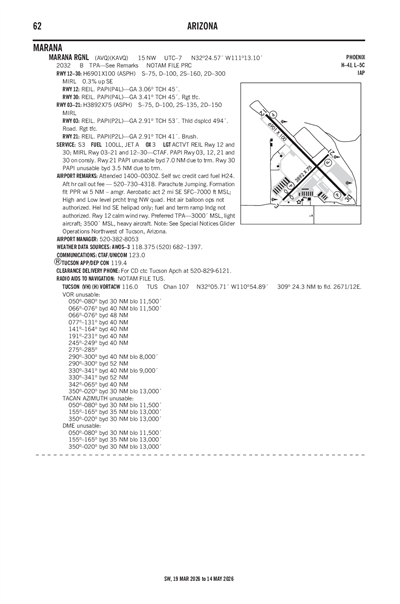

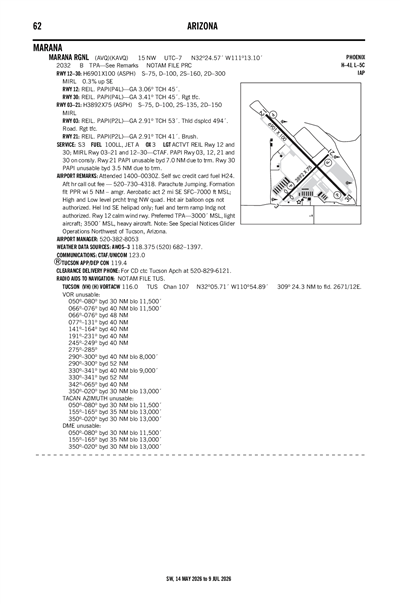

MARANA RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAVQ
ICAO KAVQIATA AVWLocal AVQ
MARANA RGNL
PublicPUB

15 miles NW of MARANA, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 24' 34"N 111° 13' 06"W
Elevation
2032' MSL
Pattern Alt
3032' MSL
Mag Variation
9°E
Declination
12°E
Fuel
JET A+, CILI, 100LL
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
10/1/26-10/29/26
KAVQ VFR
8:55 PM MST
Clear
10sm
81°F
52°F
29.96"Hg
150° 15kts
Gusts 21kts
AO2
METAR KAVQ 030355Z AUTO 15015G21KT 10SM CLR 27/11 A2996 RMK AO2
+ Add Your Business

KAVQ FBOs

Promote Listing
Tucson Aeroservice Center
UNICOM: 123.0
Phone: (520) 682-2999
Fax: (520) 682-3714
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 9/23
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 7.45
Full Serve 8.05 7.65 7.70
Fuel Notes
Prices include tax
Prist (FSII) available on request for $0.10 per gal.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 118.375
(520) 682-1397

Common

CTAF 123.0
ACTVT REIL RWY 12 & 30; MIRL RWY 03/21 & 12/30 - CTAF. PAPI RWY 03, 12, 21 & 30 ON CONSLY.
UNICOM 123.0

Approach

TUCSON APPROACH 119.4

Departure

TUCSON DEPARTURE 119.4

Terminal Area Forecast

KTUS (21nm)
Fri, 10/2 4:37 PM MST
Fri, 10/2 5:00 PM MST - Sat, 10/3 5:00 PM MST
VFR
5:00 PM MST - 9:00 PM MST
Few 8,000'
6sm
110° 17kts
Gusts 27kts
VFR
9:00 PM MST - 2:00 PM MST
Sky Clear
6sm
120° 15kts
Gusts 25kts
VFR
2:00 PM MST - 5:00 PM MST
Sky Clear
6sm
120° 12kts
Gusts 20kts
TAF KTUS 022337Z 0300/0324 11017G27KT P6SM FEW080
   FM030400 12015G25KT P6SM SKC
   FM032100 12012G20KT P6SM SKC
KAVQ
EffectiveExpiresCategoryNOTAM
Domestic
10/8/26
1800Z
10/8/26
2100Z
!PRC 10/017 AVQ AIRSPACE PJE WI AN AREA DEFINED AS 5NM RADIUS OF AVQ SFC-10000FT AGL 2610081800-2610082100
10/6/26
2000Z
10/6/26
2300Z
!PRC 10/016 AVQ AIRSPACE PJE WI AN AREA DEFINED AS 5NM RADIUS OF AVQ SFC-10000FT AGL 2610062000-2610062300
10/5/26
2000Z
10/5/26
2300Z
!PRC 10/015 AVQ AIRSPACE PJE WI AN AREA DEFINED AS 5NM RADIUS OF AVQ SFC-7500FT AGL 2610052000-2610052300
10/3/26
0145Z
10/3/26
0430Z
!PRC 10/018 AVQ AIRSPACE PYROTECHNIC DEMONSTRATION WI AN AREA DEFINED AS .5NM RADIUS OF TUS304023 SFC-300FT AGL 2610030145-2610030430
9/25/26
1708Z
11/9/26
1707Z
!PRC 09/261 AVQ OBST TOWER LGT (ASR 1016538) 321945.00N1110342.20W (9.4NM ESE AVQ) 2858.9FT (650.3FT AGL) U/S 2609251708-2611091707
8/29/26
1258Z
1/1/27
0030Z
!PRC 08/298 AVQ AIRSPACE AEROBATIC AREA WI AN AREA DEFINED AS 322245N1111235W (2.7NM SSE AVQ) TO 322245N1111104W (3NM SE AVQ) TO 322158N1111104W (3.8NM SE AVQ) TO 322158N1111235W (3.6NM SSE AVQ) TO POINT OF ORIGIN SFC-5000FT AGL DLY SR-SS 2608291258-2701010030
1/4/26
1100Z
12/31/26
1100Z
!PRC 01/022 AVQ AIRSPACE SEE ZAB 01/007 PJE 2601041100-2612311100
No
0700-1730
TOWN OF MARANA
11555 W. CIVIC CENTER DRIVE
MARANA, AZ 85653
Phone: 520-382-1999
GALEN BEEM
11700 W. AVRA VALLEY RD, #91 TOWN OF MARANA
MARANA, AZ 85653
Phone: 520-382-8053
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
ACTVT REIL RWY 12 & 30; MIRL RWY 03/21 & 12/30 - CTAF. PAPI RWY 03, 12, 21 & 30 ON CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Minor
High Pressure
None
Pilot Instruction
Parachute Jump Activity
Aircraft Rental

Runway 03/21

3892 ft. x 75 ft.
ASPH
Good
NONE
MED

75,000lbs
100,000lbs
150,000lbs
--
  Runway 03 Runway 21
True Heading 45°225°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 32° 24' 12"N 32° 24' 39"N
Longitude 111° 13' 22"W 111° 12' 50"W
Elevation 2,019' 2,025'
Threshold Crossing Height 53 ft. AGL 41 ft. AGL
Visual Glide Path Angle 2.91° 2.91°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 12/30

6901 ft. x 100 ft.
ASPH
Good
NONE
MED

75,000lbs
100,000lbs
300,000lbs
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 25' 04"N 32° 24' 15"N
Longitude 111° 13' 34"W 111° 12' 38"W
Elevation 2,011' 2,031'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3.06° 3.41°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1AEROBATIC ACT 2 MI SE SFC-7000 FT MSL; HIGH & LOW LEVEL PRCHT TRNG NW QUAD.
A110-13FOR CD CTC TUCSON APCH AT 520-829-6121.
A110-14PREF TFC PAT ALT 3000 FT MSL, LIGHT ACFT; 3500 FT MSL, HEAVY ACFT.
A110-15FRMN FLT PPR WI 5 NM - AMGR.
A110-16SELF SVC CREDIT CARD FUEL H24. AFT HR CALL OUT FEE - 520-730-4318.
A110-17HOT AIR BALLON OPS NA.
A110-9HEL LND SE HELIPAD ONLY; FUEL & TERM RAMP LNDG NA.
A16520-382-2607
A30-12/30RWY 12 CALM WIND RWY.
A43-21PAPI UNUSBL BYD 7.0 NM DUE TO TRRN.
A43-30PAPI UNUSBL BYD 3.5 NM DUE TO TRRN.
A57-03APCH RATIO 50:1 TO DTHR.
A75-HFOR AVBLTY - 520-682-2999.
A81-APTACTVT REIL RWY 12 & 30; MIRL RWY 03/21 & 12/30 - CTAF. PAPI RWY 03, 12, 21 & 30 ON CONSLY.
MARANA RGNL (ICAO: KAVQ, IATA: AVQ) is a public airport located in MARANA, AZ, US.
