KAWG
WASHINGTON MUNI
Public
PUB
2 miles SE of WASHINGTON, IA
View on
Map
Status
Operational
Coordinates
41° 16' 33"N
91° 40' 34"W
Elevation
754' MSL
Pattern Alt
1754' MSL
Mag Variation
01W
Fuel
Jet A, 100LL
FSS
FORT DODGE (FOD)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
4/18/24-5/16/24
KAWG
VFR
3:15 AM CDT
RAW
Clear
Viz
10sm
Temp
39°F
Dew
34°F
Pres
30.23"Hg
Wind
110° 6kts
RMK
AO2
KAWG 250815Z AUTO 11006KT 10SM CLR 04/01 A3023 RMK AO2
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
KAWG FBOs, Flight Schools and Ground Support
Promote Listing
Washington Airport
Freq: 122.7
Phone: (319) 461-0359
0 Reviews
(
Read
|
Sign In To Write
)
Titan
As of
4/18
100LL
Jet
A
Jet
A+
Mogas
UL94
Self Serve
5.20
3.99
Full Serve
KAWG Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
KAWG Hotels
No hotels are listed for this airport.
KAWG Restaurants
No restaurants are listed for this airport.
KAWG Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.7
CTAF
122.7
AWOS-3
AWOS-3
319-653-4149
127.825
FAA A/FD Pages
FAA A/FD Page

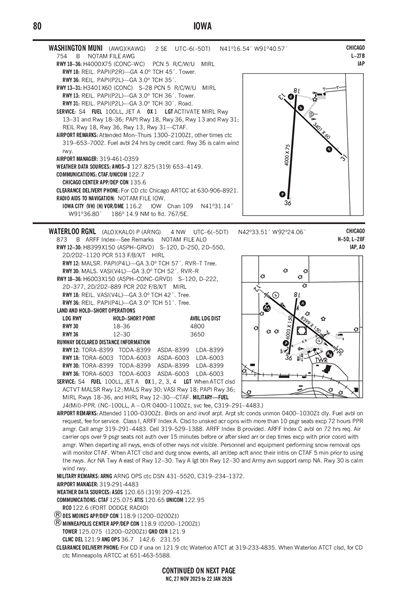

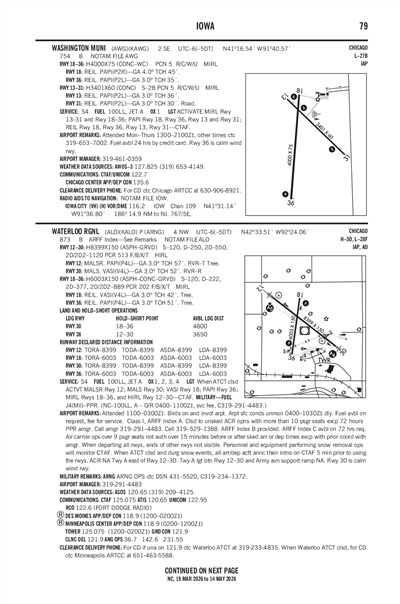

Airport Diagrams
No Documents
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 13
RNAV (GPS) RWY 18
RNAV (GPS) RWY 31
RNAV (GPS) RWY 36
VOR RWY 36
Terminal Area Forecast
KOTM (36nm)
RAW
Reported
Thu, 4/25 12:20 AM CDT
Valid
Thu, 4/25 1:00 AM CDT - Fri, 4/26 1:00 AM CDT
VFR
1:00 AM CDT - 10:00 AM CDT
Scattered 15,000'
Viz
6sm
Wind
110° 8kts
VFR
10:00 AM CDT - 2:00 PM CDT
Broken 15,000'
Viz
6sm
Wind
130° 12kts
VFR
2:00 PM CDT - 1:00 AM CDT
Scattered 15,000'
Viz
6sm
Wind
130° 15kts
Gusts 23kts
KOTM 250520Z 2506/2606 11008KT P6SM SCT150
FM251500 13012KT P6SM BKN150
FM251900 13015G23KT P6SM SCT150
KAWG
Domestic
4/12/24
1312Z
!AWG 04/005 AWG OBST TOWER LGT (ASR 1237376) 412725.20N0915208.70W (13.9NM NW AWG) 1044.9FT (259.8FT AGL) U/S 2404121312-2406122359
4/5/24
1758Z
!AWG 04/004 AWG RWY 18 PAPI UNUSABLE 2404051758-2410072111EST
4/5/24
1436Z
!AWG 04/003 AWG RWY 18 RWY END ID LGT U/S 2404051436-2410072111EST
3/26/24
2048Z
!AWG 03/002 AWG RWY 36 RWY END ID LGT U/S 2403262048-2409272111EST
2/28/24
1128Z
!AWG 02/005 AWG OBST TOWER LGT (ASR 1229383) 411259.30N0913138.40W (7.6NM ESE AWG) 1039.7FT (319.9FT AGL) U/S 2402281128-2406012359
2/22/24
2155Z
!AWG 02/003 AWG OBST TOWER LGT (ASR 1235154) 412727.10N0914304.10W (11.1NM N AWG) 1058.1FT (265.1FT AGL) U/S 2402222155-2405221159
ATC Tower
No
Attendance
MON-THURS 0700-1500
AVAILABLE 24/7 AT 319-653-7002
Owner
CITY OF WASHINGTON
215 E WASHINGTON
WASHINGTON, IA 52353
Phone: 319-461-0359
Manager
KURT KUCERA
1625 SOUTH AIRPORT RD
WASHINGTON, IA 52353
Phone: 319-461-0359
FSS
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
NOTAM
AWG
Light Schedule
--
Lights
ACTVT MIRL RY 13/31, MIRL RY 18/36; PAPI RYS 18/36 AND 13/31 AND REIL RYS 18/36 AND 13/31- CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
No
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
19
# Multi Engine
1
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
None
Bulk Oxygen
High Pressure
Other Services
Aircraft Sales
Runway 13/31
Dimensions
3401 ft. x 60 ft.
Surface Type
CONC
Surface Cond
Excellent
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
5 /R/C/W/U
Single Wheel
28,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 13
Runway 31
True Heading
135°
315°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
41° 16' 51"N
41° 16' 27"N
Longitude
91° 40' 47"W
91° 40' 16"W
Elevation
753'
754'
Threshold Crossing Height
36 ft. AGL
30 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
Runway 18/36
Dimensions
4000 ft. x 75 ft.
Surface Type
CONC
Surface Cond
Good
Treatment
WC
Rwy Edge Lgts
MED
Pavement Class
5 /R/C/W/U
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 18
Runway 36
True Heading
183°
3°
Traffic Pattern
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
41° 16' 46"N
41° 16' 07"N
Longitude
91° 40' 35"W
91° 40' 37"W
Elevation
751'
751'
Threshold Crossing Height
34 ft. AGL
35 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P2R
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
A110-2
RY 36 IS CALM WIND RY.
A110-4
FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
WASHINGTON MUNI (ICAO: KAWG, IATA: AWG) is a public airport located in WASHINGTON, IA.
