KAWO
ICAO KAWOLocal AWO
ARLINGTON MUNI
PublicPUB

3 miles SW of ARLINGTON, WA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
48° 09' 39"N 122° 09' 32"W
Elevation
142' MSL
Pattern Alt
1200' MSL
Mag Variation
15°E
Declination
17°E
Fuel
JET A, 100LL
FSS
SEATTLE (SEA)
Sectional
SEATTLE
ARTCC
SEATTLE (ZSE)
Data Effective
5/14/26-6/11/26
KAWO VFR
2:56 PM PDT
Overcast 3,500'
10sm
61°F
48°F
30.17"Hg
Calm
AO2 SLPNO T01610089 $
METAR KAWO 042156Z AUTO 10SM OVC035 16/09 A3017 RMK AO2 SLPNO T01610089 $
+ Add Your Business

KAWO FBOs

Promote Listing
Arlington Flight Services
UNICOM: 122.72
Phone: (360) 435-5700
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/26
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.85
Full Serve 7.45 7.50 7.61
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 135.625
(360) 435-8045

Common

CTAF 122.725
REIL RWY 11 & 29 OPR SS-SR; PAPI RWY 11, 16, 29 & 34 OPR CONSLY. ACTVT MALS RWY 34; REILS RWY 16; RWY 16/34 EDGE LIGHTS; TWY LGTS CTAF.

Clearance

Clearance Delivery 121.725

Approach

SEATTLE APPROACH 128.5

Departure

SEATTLE DEPARTURE 128.5

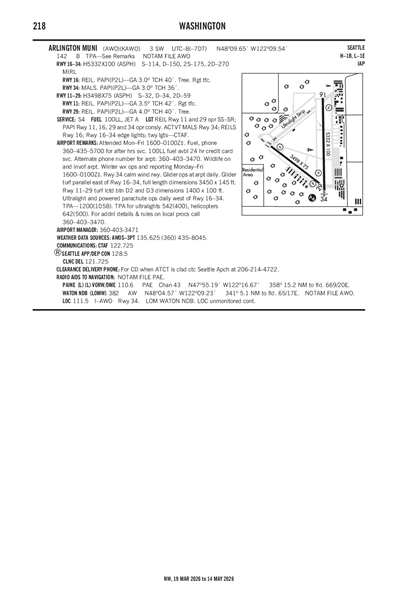

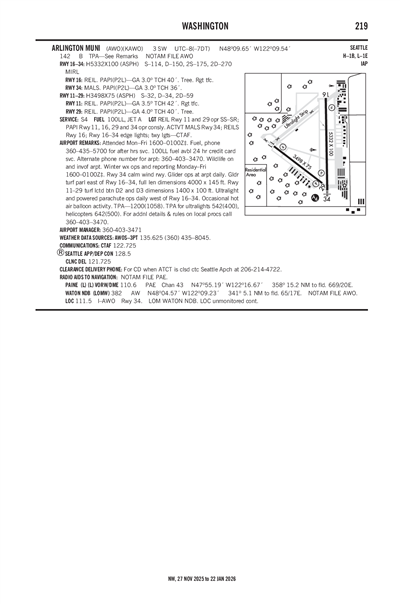

FAA A/FD Pages

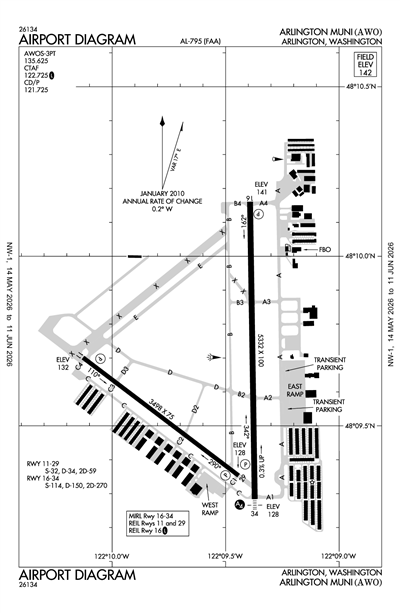

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KPAE (15nm)
Thu, 6/4 12:33 PM PDT
Thu, 6/4 1:00 PM PDT - Fri, 6/5 11:00 AM PDT
MVFR
1:00 PM PDT - 2:00 PM PDT
Mist and Showers in vicinity
Overcast 1,900'
Scattered 800'
6sm
360° 5kts
VFR
2:00 PM PDT - 4:00 PM PDT
Broken 4,000'
Scattered 1,500'
6sm
330° 7kts
VFR
4:00 PM PDT - 7:00 PM PDT
Broken 4,000'
Scattered 2,000'
6sm
320° 7kts
VFR
7:00 PM PDT - 3:00 AM PDT
Broken 20,000'
Scattered 4,500'
6sm
360° 7kts
VFR
3:00 AM PDT - 11:00 AM PDT
Broken 4,000'
Scattered 1,000'
6sm
160° 10kts
TAF KPAE 041933Z 0420/0518 36005KT 6SM BR VCSH SCT008 OVC019
   FM042100 33007KT P6SM SCT015 BKN040
   FM042300 32007KT P6SM SCT020 BKN040
   FM050200 36007KT P6SM SCT045 BKN200
   FM051000 16010KT P6SM SCT010 BKN040
KAWO
EffectiveExpiresCategoryNOTAM
Domestic
6/10/26
1730Z
6/10/26
1830Z
Runway!AWO 06/004 AWO RWY 16/34 CLSD 2606101730-2606101830
6/5/26
1430Z
6/5/26
2000Z
!AWO 06/006 AWO NAV ILS RWY 34 OM U/S 2606051430-2606052000
6/5/26
1430Z
6/5/26
2000Z
!AWO 06/005 AWO NAV ILS RWY 34 WATON LOM U/S 2606051430-2606052000
6/2/26
1612Z
8/31/26
1612Z
!AWO 06/002 AWO OBST TOWER LGT (ASR 1259153) 481211.40N1221100.10W (2.7NM NNW AWO) 524.9FT (111.9FT AGL) U/S 2606021612-2608311612
5/1/26
0058Z
12/31/26
2359Z
!AWO 05/001 AWO NAV ILS RWY 34 U/S 2605010058-2612312359
FDC
6/5/26
1430Z
6/12/26
2105Z
!FDC 6/5755 AWO IAP ARLINGTON MUNI, ARLINGTON, WA.
LOC RWY 34, AMDT 5B...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
WATON (AW) LOM OUT OF SERVICE. 2606051430-2606122105EST
6/5/26
1430Z
6/12/26
2105Z
!FDC 6/5754 AWO ODP ARLINGTON MUNI, ARLINGTON, WA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
WATON (AW) LOM OUT OF SERVICE. 2606051430-2606122105EST
No
M-F 0800-1700
CITY OF ARLINGTON
CITY HALL 238 N OLYMPIC
ARLINGTON, WA 98223
Phone: 360-403-3470
MARTY WRAY
18204 59TH AVE NE, STE A
ARLINGTON, WA 98223
Phone: 360-403-3471
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
AWO
--
REIL RWY 11 & 29 OPR SS-SR; PAPI RWY 11, 16, 29 & 34 OPR CONSLY. ACTVT MALS RWY 34; REILS RWY 16; RWY 16/34 EDGE LIGHTS; TWY LGTS CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Avionics
Cargo Handling
Charter Service
Glider Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying
Glider Towing

Runway 11/29

3498 ft. x 75 ft.
ASPH
Excellent
NONE


32,000lbs
34,000lbs
59,000lbs
--
  Runway 11 Runway 29
True Heading 127°307°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 48° 09' 42"N 48° 09' 21"N
Longitude 122° 10' 08"W 122° 09' 27"W
Elevation 132' 128'
Threshold Crossing Height 42 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3.5° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 16/34

5332 ft. x 100 ft.
ASPH
Excellent
NONE
MED

114,000lbs
150,000lbs
270,000lbs
--
  Runway 16 Runway 34
True Heading 179°359°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 48° 10' 10"N 48° 09' 17"N
Longitude 122° 09' 23"W 122° 09' 22"W
Elevation 141' 128'
Threshold Crossing Height 40 ft. AGL 36 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights MALS
Centerline Lights
Runway End Identifier Lights Yes
A110-1GLIDER OPERATIONS AT ARPT DAILY.
A110-10RWY 11/29 TURF LCTD BTN D2 AND D3 DIMENSIONS 1400 FT X 100 FT.
A110-2ULTRALIGHT AND POWERED PARACHUTE OPS DAILY WEST OF RWY 16/34
A110-4WILDLIFE ON AND INVOF ARPT. ALTERNATE PHONE NUMBER FOR AIRPORT: 360-403-3470
A110-6WINTER WEATHER OPERATIONS AND REPORTING MONDAY-FRIDAY 1600-0000Z.
A110-7FOR ADDNL DETAILS & RULES ON LOCAL PROCS CALL 360-403-3470.
A110-8FOR CD WHEN ATCT IS CLSD CTC SEATTLE APCH AT 206-214-4722.
A110-9GLIDER TURF PARALLEL EAST OF RWY 16/34, FULL LENGTH DIMENSIONS 3450 FT X 145 FT.
A30-16/34RWY 34 CALM WIND RWY.
A70-100LL100L FUEL AVBL 24 HR CREDIT CARD SVC.
A70-APHONE 360-435-5700 FOR AFTER HRS SVC.
A75-HPILOTS PROVIDE OWN ROPES.
A81-APTREIL RWY 11 & 29 OPR SS-SR; PAPI RWY 11, 16, 29 & 34 OPR CONSLY. ACTVT MALS RWY 34; REILS RWY 16; RWY 16/34 EDGE LIGHTS; TWY LGTS CTAF.
E111EXISTED PRIOR TO 1959.
E147TPA FOR ULTRALGTS 542 (400), HELICOPTERS 642 (500).
ARLINGTON MUNI (ICAO: KAWO, IATA: AWO) is a public airport located in ARLINGTON, WA, US.
