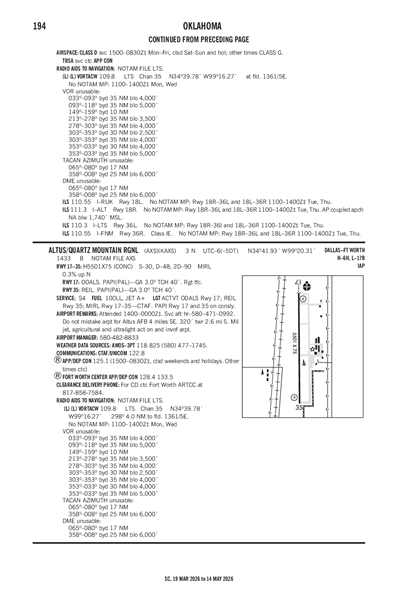

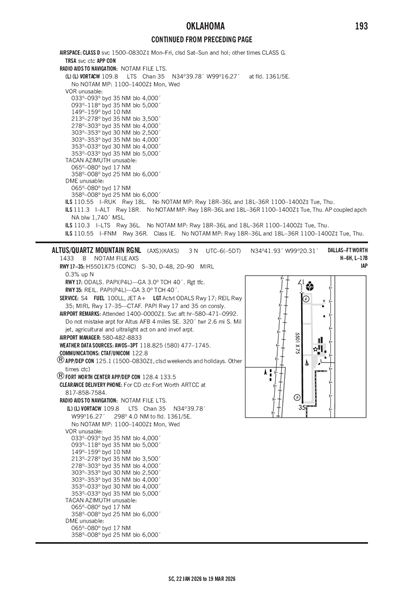

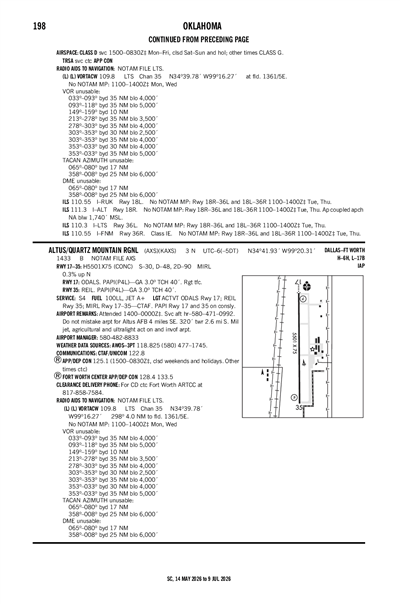

ALTUS/QUARTZ MOUNTAIN RGNL - Airport Diagram

KAXS

ICAO KAXSIATA AXSLocal AXS

ALTUS/QUARTZ MOUNTAIN RGNL

PublicPUB

3 miles N of ALTUS, OK, US

View on Map

Status

Operational

Coordinates

34° 41' 56"N 99° 20' 18"W

Elevation

1433' MSL

Pattern Alt

2433' MSL

Mag Variation

4°E

Declination

5°E

Fuel

JET A (FSII), 100LL

FSS

MC ALESTER (MLC)

Sectional

DALLAS-FT WORTH

ARTCC

FORT WORTH (ZFW)

Data Effective

4/16/26-5/14/26

KAXS VFR

4:35 PM CDT RAW

Clear

Viz

10sm

Temp

82°F

Dew

59°F

Pres

29.68"Hg

Wind

090° 6kts

RMK

AO2

METAR KAXS 242135Z AUTO 09006KT 10SM CLR 28/15 A2968 RMK AO2

Add Your Business

KAXS FBOs

Promote Listing

Altus Quartz Mountain Regional Airport

UNICOM: 122.8

Phone: (580) 482-8833

Other: (580) 471-0992

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 4/1	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	4.50
Full Serve	4.75		5.25

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

AWOS-3PT	118.825
(580) 477-1745

Common

CTAF	122.8
ACTVT ODALS RWY 17; REIL RWY 35; MIRL RWY 17/35 - CTAF. PAPI RWY 17 & 35 ON CONSLY.
UNICOM	122.8

Approach

ALTUS APPROACH

125.1

Departure

ALTUS DEPARTURE

125.1

Center

ALTUS CENTER	128.4
LOW, APCH/DEP SVC PRVDD BY FORT WORTH ARTCC (ZFW) ON FREQS 128.4/269.375 (CLINTON-SHERMAN RCAG) & 133.5/350.35 (WICHITA FALLS RCAG) WHEN ALTUS APCH CLSD.
ALTUS CENTER	133.5
LOW, APCH/DEP SVC PRVDD BY FORT WORTH ARTCC (ZFW) ON FREQS 128.4/269.375 (CLINTON-SHERMAN RCAG) & 133.5/350.35 (WICHITA FALLS RCAG) WHEN ALTUS APCH CLSD.

FAA A/FD Pages

FAA A/FD Page

Airport Minimums

Instrument Approach

Terminal Area Forecast

KLTS (4nm)

RAW

Reported

Fri, 4/24 12:00 PM CDT

Valid

Fri, 4/24 12:00 PM CDT - Sat, 4/25 6:00 PM CDT

MVFR

12:00 PM CDT - 1:00 PM CDT

Broken 2,000'

Viz

6sm

Pres

29.68"Hg

Wind

030° 12kts

Gusts 18kts

MVFR

Temporary 12:00 PM CDT - 1:00 PM CDT

Broken 1,500'

Viz

N/A

Wind

Calm

VFR

Becoming 1:00 PM CDT - 8:00 PM CDT

Scattered 3,500'

Viz

6sm

Pres

29.68"Hg

Wind

030° 12kts

Gusts 18kts

VFR

Becoming 8:00 PM CDT - 12:00 AM CDT

Sky Clear

Viz

6sm

Pres

29.70"Hg

Wind

080° 10kts

Gusts 22kts

IFR

Becoming 12:00 AM CDT - 6:00 AM CDT

Broken 800'

Viz

6sm

Pres

29.70"Hg

Wind

120° 10kts

Gusts 15kts

LIFR

Becoming 6:00 AM CDT - 10:00 AM CDT

Mist

Overcast 100'

Viz

1.99sm

Pres

29.70"Hg

Wind

150° 10kts

Gusts 18kts

LIFR

Temporary 7:00 AM CDT - 10:00 AM CDT

Fog

Obscured

Viz

0.37sm

Wind

Calm

LIFR

Becoming 10:00 AM CDT - 12:00 PM CDT

Mist

Overcast 100'

Viz

1.99sm

Pres

29.65"Hg

Wind

VRB° 6kts

VFR

Becoming 12:00 PM CDT - 6:00 PM CDT

Scattered 12,000'

Viz

6sm

Pres

29.53"Hg

Wind

VRB° 6kts

TAF KLTS 241700Z 2417/2523 03012G18KT 9999 BKN020 QNH2967INS
   TEMPO 2417/2418 BKN015
   BECMG 2418/2419 03012G18KT 9999 SCT035 QNH2968INS
   BECMG 2501/2502 08010G22KT 9999 SKC QNH2969INS
   BECMG 2505/2506 12010G15KT 9999 BKN008 QNH2969INS
   BECMG 2511/2512 15010G18KT 3200 BR OVC001 QNH2971INS
   TEMPO 2512/2515 0600 FG VV001
   BECMG 2515/2516 VRB06KT 3200 BR OVC001 QNH2966INS
   BECMG 2517/2518 VRB06KT 9999 NSW SCT120 QNH2954INS TX26/2421Z TN16/2512Z

KAXS

No NOTAM Available

ATC Tower

Attendance

0800-1800
SVC AFT HR - 580-471-0992.

Owner

CITY OF ALTUS
509 S. MAIN
ALTUS, OK 73521
Phone: 580-477-1950

Manager

DANIEL ADAMS
509 S. MAIN
ALTUS, OK 73521
Phone: 580-482-8833

FSS

MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF

NOTAM

AXS

Light Schedule

Lights

ACTVT ODALS RWY 17; REIL RWY 35; MIRL RWY 17/35 - CTAF. PAPI RWY 17 & 35 ON CONSLY.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Air Ambulance
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 17/35

Dimensions

5501 ft. x 75 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

30,000lbs

Double Wheel

48,000lbs

Double Tandem

90,000lbs

Dual Dbl Tand

	Runway 17	Runway 35
True Heading	180°	360°
Traffic Pattern	Right	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	34° 42' 23"N	34° 41' 28"N
Longitude	99° 20' 19"W	99° 20' 18"W
Elevation	1,433'	1,413'
Threshold Crossing Height	40 ft. AGL	40 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights	ODALS
Centerline Lights
Runway End Identifier Lights		Yes

A110*G	THIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-3	DO NOT MISTAKE ARPT FOR ALTUS AFB 4 MI SE.
A110-4	MIL JET, AGRICULTURAL & ULTRALIGHT ACT ON & INVOF ARPT.
A110-6	320 FT TWR 2.6 MI S.
A110-9	FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A17-H2	SVC AFT HR - 580-471-0992.
A81-APT	ACTVT ODALS RWY 17; REIL RWY 35; MIRL RWY 17/35 - CTAF. PAPI RWY 17 & 35 ON CONSLY.

ALTUS/QUARTZ MOUNTAIN RGNL (ICAO: KAXS, IATA: AXS) is a public airport located in ALTUS, OK, US.
