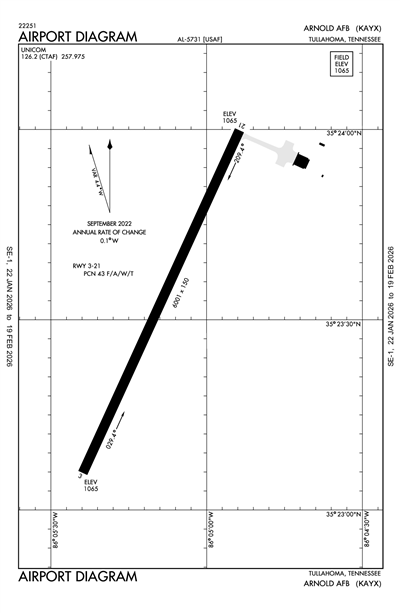

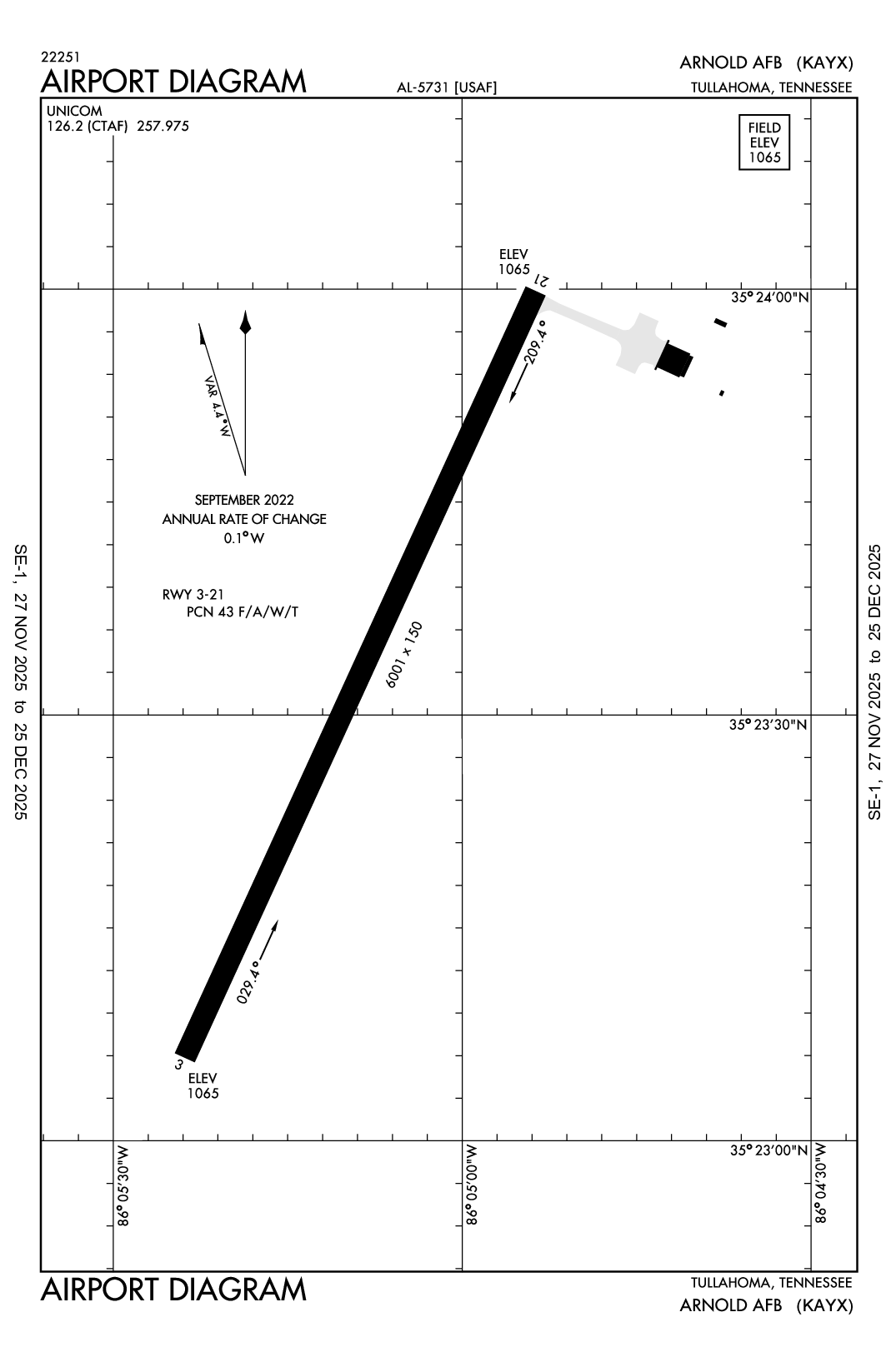

ARNOLD AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAYX
ICAO KAYXLocal AYX
ARNOLD AFB
PrivatePVT

TULLAHOMA, TN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 23' 33"N 86° 05' 09"W
Elevation
1065' MSL
Pattern Alt
2065' MSL
Mag Variation
4°W
Declination
2°W
Fuel
None Listed
FSS
NASHVILLE (BNA)
Sectional
ATLANTA
ARTCC
MEMPHIS (ZME)
Data Effective
2/19/26-3/19/26
KTHA (8nm) VFR
9:35 AM CDT
Broken 4,300'
Scattered 3,200'
10sm
64°F
52°F
29.90"Hg
170° 13kts
A01
METAR KTHA 151435Z AUTO 17013KT 10SM SCT032 BKN043 18/11 A2990 RMK A01
+ Add Your Business

KAYX FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 126.2
UHF 257.975

Airport Diagrams

Instrument Approach

Terminal Area Forecast

KMQY (42nm)
Sun, 3/15 6:20 AM CDT
Sun, 3/15 7:00 AM CDT - Mon, 3/16 7:00 AM CDT
VFR
7:00 AM CDT - 9:00 AM CDT
Scattered 25,000'
6sm
160° 9kts
VFR
9:00 AM CDT - 2:00 PM CDT
Broken 25,000'
6sm
180° 18kts
Gusts 28kts
VFR
2:00 PM CDT - 10:00 PM CDT
Broken 25,000'
Scattered 5,000'
6sm
180° 24kts
Gusts 34kts
IFR
Temporary 10:00 PM CDT - 12:00 AM CDT
Thunderstorm and Rain
Overcast 5,000'
Scattered 2,500'
2sm
Calm
MVFR
10:00 PM CDT - 12:00 AM CDT
Light Showers and Rain and Mist
Overcast 5,000'
4sm
250° 15kts
Gusts 22kts
MVFR
12:00 AM CDT - 4:00 AM CDT
Light Showers and Rain and Mist
Overcast 2,500'
6sm
280° 14kts
Gusts 22kts
MVFR
4:00 AM CDT - 7:00 AM CDT
Overcast 2,300'
6sm
280° 16kts
Gusts 25kts
TAF KMQY 151120Z 1512/1612 16009KT P6SM SCT250 WS020/19045KT
   FM151400 18018G28KT P6SM BKN250
   FM151900 18024G34KT P6SM SCT050 BKN250
   FM160300 25015G22KT 4SM -SHRA BR OVC050
   TEMPO 1603/1605 2SM TSRA SCT025CB OVC050
   FM160500 28014G22KT 6SM -SHRA BR OVC025
   FM160900 28016G25KT P6SM OVC023
KAYX
EffectiveExpiresCategoryNOTAM
Domestic
3/20/26
1300Z
3/20/26
2100Z
!BNA 03/243 AYX AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF AYX SFC-3500FT AGL ACFT CS FLC66
2603201300-2603202100
Military
12/15/25
1349Z
12/31/26
2359Z
Aerodrome!KAYX V0096/25 AYX AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 21 CHANGE CIRCLING MINIMA TO THE FOLLOWING: CAT A 1520-1 455 (500-1); CAT B 1680-1 615 (700-1); CAT C 1700-1 3/4 635 (700-1 3/4); CAT D 1800-2 1/4 735 (800-2 1/4). 2512151349-2612312359
12/15/25
1338Z
12/31/26
2359Z
Aerodrome!KAYX V0095/25 AYX AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 3 CHANGE CIRCLING TO: CAT A 1520-1 455 (500-1); CAT B 1680-1 615 (700-1); CAT C 1700-1 3/4 635 (700-1 3/4); CAT D 1800-2 1/4 735 (800-2 1/4). 2512151338-2612312359
No
Unknown
USAF
ARNOLD AFB
TULLAHOMA, TN 37389
JON HAYWOOD
ARNOLD AFB
TULLAHOMA, TN 37389
Phone: 931-454-7851
NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF
BNA
--
ACTVT AS RQR.
24 HR.
N/A
N/A
No
No
None
No
None
None
None
None
None

Runway 03/21

6000 ft. x 150 ft.
ASPH
Excellent
NONE
HIGH
43/F/A/W/T
--
--
--
--
  Runway 03 Runway 21
True Heading 24°204°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 23' 06"N 35° 23' 60"N
Longitude 86° 05' 24"W 86° 04' 54"W
Elevation 1,065' 1,065'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-10CTN: LDG AT PILOT DISCRETION.
A110-13FOR CD CTC MEMPHIS ARTCC AT 901-368-8238/8234.
A110-14RSTD: MIL ACFT ONLY.
A110-15MISC: NO LCL WIND SENSOR; CTC 128.325 TULLAHOMA RGNL 8 NM W FOR WX.
A110-16UNATNDD. OFFL BUS ONLY; PPR.
A110-4TRANS ALERT: NO MAINT SUPPORT.
A110-7CTN: CTC ARNOLD AIR OPS 15 MIN PRIOR TO LDG FOR ARR INFO & WILDLIFE UPDATE - 127.45.
A110-8CTN: C-130 AIRDROP & HOP INVOF ARPT.
A110-9TFC PAT: OVHD 2500 FT PAT FLOWN W OF RWY; AVOID OVERFLIGHT OF LRG ROCKET TEST FAC 1 NM E & BASE STRUCTURES 2 NM E BLW 2500 AGL.
A35-03/21WT BRG CPTY ST175; RWY 03 FIRST 1000 FT WT BRG CPTY ST121 DDTW425.
A81-APTACTVT AS RQR.
A81-BCN24 HR.
A82126.2 OR UHF 257.975
E100UHF 257.975
ARNOLD AFB (ICAO: KAYX, IATA: AYX) is a private airport located in TULLAHOMA, TN, US.
