KALAMAZOO/BATTLE CREEK INTL - Airport Diagram

KAZO

ICAO KAZOIATA AZOLocal AZO

KALAMAZOO/BATTLE CREEK INTL

PublicPUB

3 miles SE of KALAMAZOO, MI, US

View on Map

Status

Operational

Coordinates

42° 14' 04"N 85° 33' 06"W

Elevation

874' MSL

Pattern Alt

1674' MSL

Mag Variation

6°W

Declination

3°W

Fuel

JET A, 100LL

FSS

LANSING (LAN)

Sectional

CHICAGO

ARTCC

CHICAGO (ZAU)

Data Effective

3/19/26-4/16/26

KAZO VFR

11:53 PM EDT RAW

Overcast 9,000'
Broken 3,600'

Viz

10sm

Temp

49°F

Dew

42°F

Pres

30.11"Hg

Wind

070° 8kts

RMK

AO2 SLP200 T00940056

METAR KAZO 040353Z AUTO 07008KT 10SM BKN036 OVC090 09/06 A3011 RMK AO2 SLP200 T00940056

Add Your Business

KAZO FBOs

Promote Listing

Kalamazoo Pilots Association

UNICOM: 122.95

Phone: (269) 624-4444

Other: (269) 624-4741

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 3/24	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.30
Full Serve

Fuel Notes

Prices include tax
Call ahead for availability and pricing of fuel.

Promote Listing

Duncan Aviation

UNICOM: 122.95

Phone: (269) 343-2548

0 Reviews (Read | Sign In To Write)

Avfuel

As of 3/31	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	6.64	8.60	8.65

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

ATIS	127.25
ASOS	(269) 459-3391

Common

CTAF	118.3
WHEN ATCT CLSD ACTVT MALSR RWY 35; REIL RWY 17, 05, & 23; HIRL RWY 17/35; MIRL RWY 05/23 & 09/27 - CTAF. PAPI RWY 17, 35, 05, & 23 OPR CONSLY.; 11C SPB LCTD 3.6 NM SOUTH. ACFT OPRG AT 11C WILL ANNC INTNS ON AZO CTAF.
UNICOM	122.95

Clearance

Clearance Delivery	121.75
Clearance Delivery	121.2
Secondary - WHEN TWR CLSD THRU CHICAGO ARTCC

Ground

KALAMAZOO GROUND	121.9
0600-2300

Tower

KALAMAZOO TOWER	118.3
0600-2300

Terminal

TRSA	119.2
354-174
TRSA	121.2
175-353

Approach

GREAT LAKES APPROACH	119.2
354-174
GREAT LAKES APPROACH	121.2
Initial Contact - 175-353
GREAT LAKES APPROACH	123.8
Secondary

Departure

GREAT LAKES DEPARTURE	119.2
354-174
GREAT LAKES DEPARTURE	121.2
Initial Contact - 175-353
GREAT LAKES DEPARTURE	123.8
Secondary

Center

GREAT LAKES CENTER	127.55
LOW, APCH/DEP SVC PRVDD BY CHICAGO ARTCC ON FREQS 127.55/307.175 (GOSHEN RCAG) WHEN GREAT LAKES APCH CTL CLSD.

Emergency

121.5

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

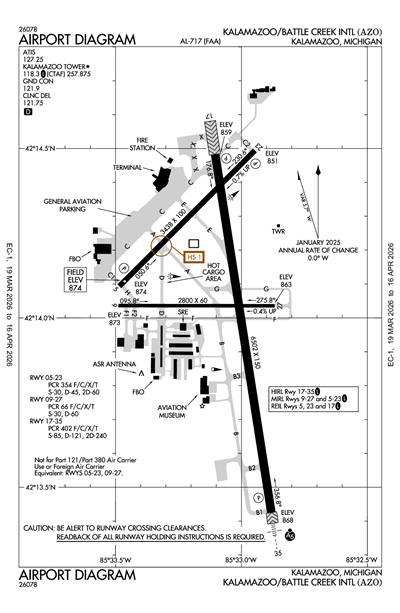

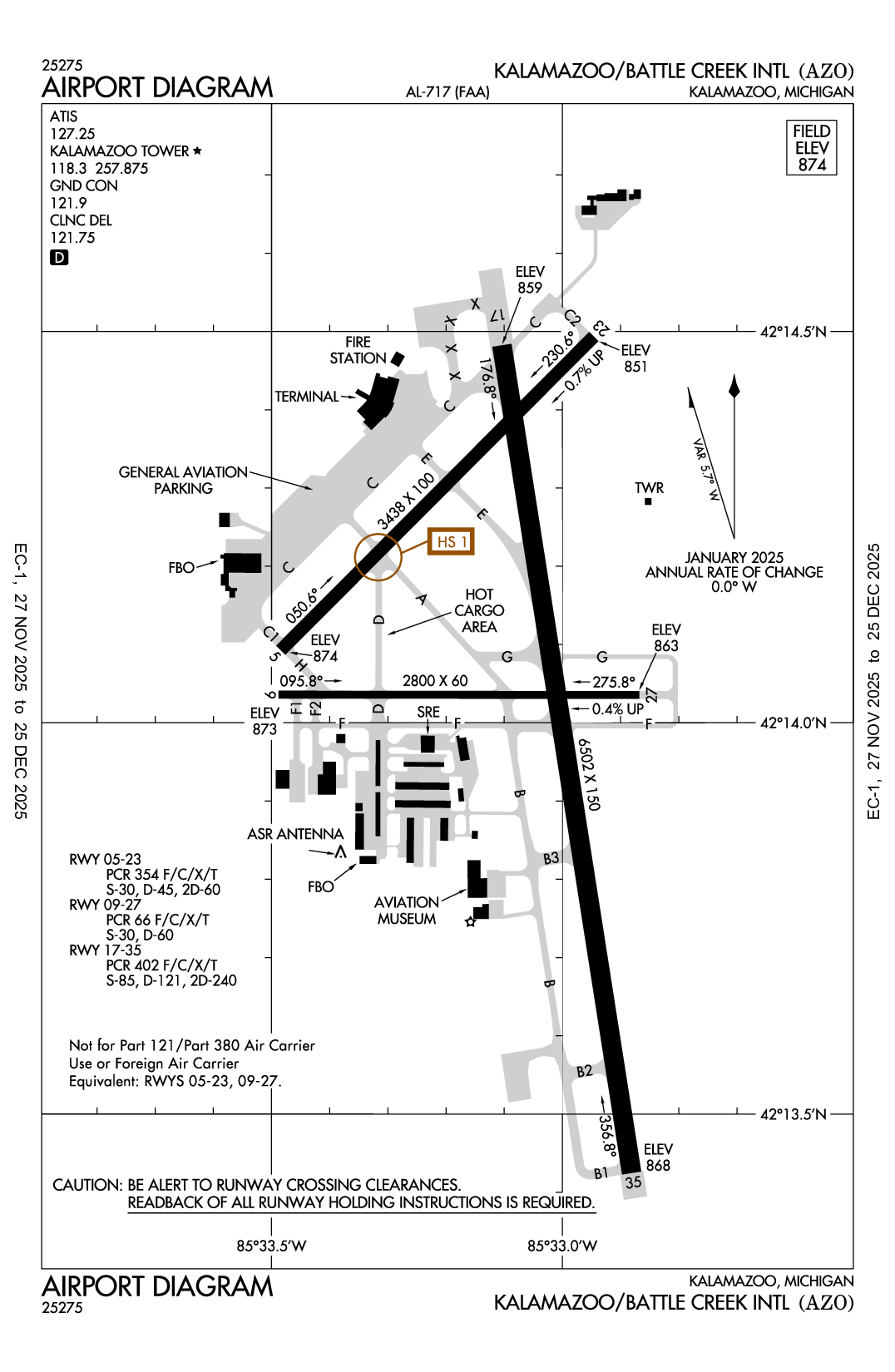

AIRPORT DIAGRAM

Airport Minimums

Instrument Approach

Hotspot

HOT SPOT

Terminal Area Forecast

KAZO

RAW

Reported

Fri, 4/3 7:20 PM EDT

Valid

Fri, 4/3 8:00 PM EDT - Sat, 4/4 8:00 PM EDT

VFR

8:00 PM EDT - 11:00 PM EDT

Broken 20,000'
Scattered 4,000'

Viz

6sm

Wind

300° 5kts

MVFR

11:00 PM EDT - 1:00 AM EDT

Showers in vicinity

Broken 3,000'

Viz

6sm

Wind

070° 8kts

IFR

Temporary 1:00 AM EDT - 3:00 AM EDT

Light Thunderstorm and Rain and Mist

Overcast 900'

Viz

3sm

Wind

Calm

MVFR

1:00 AM EDT - 3:00 AM EDT

Light Showers and Rain

Overcast 1,100'

Viz

6sm

Wind

100° 10kts

Gusts 18kts

IFR

3:00 AM EDT - 9:00 AM EDT

Light Thunderstorm and Rain and Mist

Overcast 500'

Viz

2sm

Wind

Calm

IFR

3:00 AM EDT - 9:00 AM EDT

Light Showers and Rain and Mist

Overcast 600'

Viz

3sm

Wind

120° 10kts

Gusts 19kts

IFR

9:00 AM EDT - 4:00 PM EDT

Light Showers and Rain and Mist

Overcast 800'

Viz

3sm

Wind

180° 10kts

Gusts 20kts

MVFR

4:00 PM EDT - 8:00 PM EDT

Overcast 1,200'

Viz

6sm

Wind

240° 15kts

Gusts 25kts

TAF KAZO 032320Z 0400/0424 30005KT P6SM SCT040 BKN200
   FM040300 07008KT P6SM VCSH BKN030
   FM040500 10010G18KT P6SM -SHRA OVC011
   TEMPO 0405/0407 3SM -TSRA BR OVC009CB
   FM040700 12010G19KT 3SM -SHRA BR OVC006
   PROB30 0407/0413 2SM -TSRA BR OVC005CB
   FM041300 18010G20KT 3SM -SHRA BR OVC008 WS020/17035KT
   FM042000 24015G25KT P6SM OVC012

KAZO

Effective	Expires	Category	NOTAM
Domestic
4/4/26 0348Z		Runway	!AZO 04/041 AZO RWY 23 PAPI U/S 2604040348-2604072000EST
4/4/26 0336Z	4/30/26 2300Z	Runway	!AZO 04/040 AZO RWY 35 HLDG PSN SIGN AT RWY 09/27 RIGHT SIDE LGT U/S 2604040336-2604302300
4/1/26 1250Z	4/10/26 1200Z		!AZO 04/008 AZO OBST CRANE (ASN UNKNOWN) 421327N0853308W (0.2NM W APCH END RWY 35) UNKNOWN (125FT AGL) FLAGGED 2604011250-2604101200
3/11/26 1229Z	4/30/26 2300Z		!AZO 03/106 AZO OBST POLE (ASN UNKNOWN) 422325N0855559W (0.06NM WSW APCH END RWY 05) UNKNOWN (50FT AGL) NOT LGTD 2603111229-2604302300
3/11/26 1228Z	4/30/26 2300Z		!AZO 03/105 AZO OBST POLE (ASN UNKNOWN) 421357N0853339W (.19NM WSW APCH END RWY 05) UNKNOWN (50FT AGL) NOT LGTD 2603111228-2604302300
3/9/26 1840Z	4/30/26 2300Z		!AZO 03/089 AZO TWY C RWY DIRECTION SIGN FOR RWY 17/35 MISSING 2603091840-2604302300
2/25/26 1826Z	4/30/26 2359Z		!AZO 02/894 AZO OBST WATERTOWER LGT (ASN 2014-AGL-8732-OE) 421528N0853112W (2.0NM NE AZO) 1023FT (163FT AGL) U/S 2602251826-2604302359
2/6/26 0319Z			!AZO 02/315 AZO NAV ILS RWY 35 OM U/S 2602060319-2702051700EST

ATC Tower

Yes

Attendance

ALL

Owner

KALAMAZOO CO
5235 PORTAGE RD
PORTAGE, MI 49002
Phone: 269-388-3668

Manager

CRAIG WILLIAMS, AIRPORT DIRECTOR
5235 PORTAGE RD
PORTAGE, MI 49002
Phone: 269-388-3668

FSS

LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF

NOTAM

AZO

Light Schedule

Lights

WHEN ATCT CLSD ACTVT MALSR RWY 35; REIL RWY 17, 05, & 23; HIRL RWY 17/35; MIRL RWY 05/23 & 09/27 - CTAF. PAPI RWY 17, 35, 05, & 23 OPR CONSLY.
ATC-CTL

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Yes

Parking

Hanger, Tie-Down

Int'l Operations

Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

High Pressure

Bulk Oxygen

High Pressure

Other Services

Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 05/23

Dimensions

3438 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

GRVD

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

30,000lbs

Double Wheel

45,000lbs

Double Tandem

60,000lbs

Dual Dbl Tand

	Runway 05	Runway 23
True Heading	45°	225°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	42° 14' 06"N	42° 14' 30"N
Longitude	85° 33' 29"W	85° 32' 57"W
Elevation	874'	851'
Threshold Crossing Height	28 ft. AGL	38 ft. AGL
Visual Glide Path Angle	3°	3.5°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	Yes	Yes

Runway 09/27

Dimensions

2800 ft. x 60 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

30,000lbs

Double Wheel

60,000lbs

Double Tandem

Dual Dbl Tand

	Runway 09	Runway 27
True Heading	90°	270°
Traffic Pattern	Left	Left
Markings	BSC	BSC
Markings Condition	FAIR	FAIR
Latitude	42° 14' 02"N	42° 14' 02"N
Longitude	85° 33' 29"W	85° 32' 52"W
Elevation	873'	863'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	No

Runway 17/35

Dimensions

6502 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

85,000lbs

Double Wheel

121,000lbs

Double Tandem

240,000lbs

Dual Dbl Tand

	Runway 17	Runway 35
True Heading	171°	351°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	42° 14' 29"N	42° 13' 25"N
Longitude	85° 33' 06"W	85° 32' 53"W
Elevation	859'	868'
Threshold Crossing Height	45 ft. AGL	53 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights		MALSR
Centerline Lights	No	No
Runway End Identifier Lights	Yes	No

A110-1	MIGRATORY WATER FOWL ROOSTING AREA 5500 FT APCH END RY 35. BIRDS ON & INVOF ARPT.
A110-10	11C SPB LCTD 3.6 NM SOUTH. ACFT OPRG AT 11C WILL ANNC INTNS ON AZO CTAF.
A110-11	PPR FOR UNSKED ACR OPS GTR THAN 175,000 LB MAX TOG.
A110-12	FICONS UNMON NOV-APR 0000-0300 & MAY-OCT 0000-0400.
A110-3	FOR CUSTOMS CALL 269-965-3349.
A110-4	TWYS F & G E OF RY 17/35 RSTRD ACFT LESS THAN 12500 LBS.
A110-8	RY 09 & RY 05 APCH ENDS ARE CLOSELY ALIGNED. VERIFY CORRECT RY AND COMPASS HEADING PRIOR TO DEP.
A110-9	FOR CD WHEN TWR CLSD CTC GREAT LAKES APCH AT 269-459-3344, WHEN APCH CLSD CTC CHICAGO ARTCC AT 630-906-8921.
A24	GA LDG FEE FOR ACFT WITH MAX LDG WT 8000 LB OR GTR.
A26	PPR FOR UNSKED ACR OPS GTR THAN 30 PAX SEATS - CALL AMGR.
A30-05/23	RWY 05/23 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS. NO PART 121/PART 380 OPS EXC FOR TAX.
A30-09/27	RWY 09/27 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A39-05/23	PCR VALUE: 354/F/C/X/T
A39-09/27	PCR VALUE: 66/F/C/X/T
A39-17/35	PCR VALUE: 402/F/C/X/T
A81-APT	WHEN ATCT CLSD ACTVT MALSR RWY 35; REIL RWY 17, 05, & 23; HIRL RWY 17/35; MIRL RWY 05/23 & 09/27 - CTAF. PAPI RWY 17, 35, 05, & 23 OPR CONSLY.
A81-BCN	ATC-CTL

KALAMAZOO/BATTLE CREEK INTL (ICAO: KAZO, IATA: AZO) is a public airport located in KALAMAZOO, MI, US.
