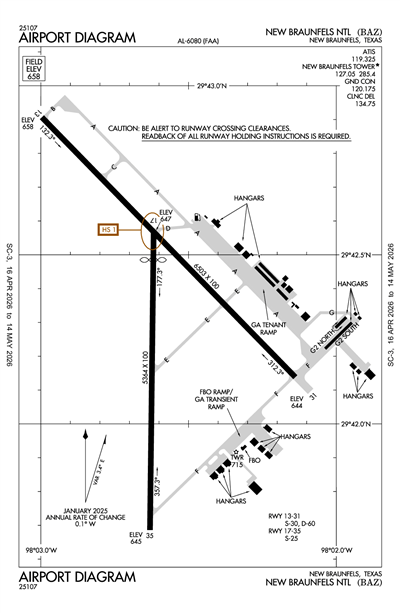

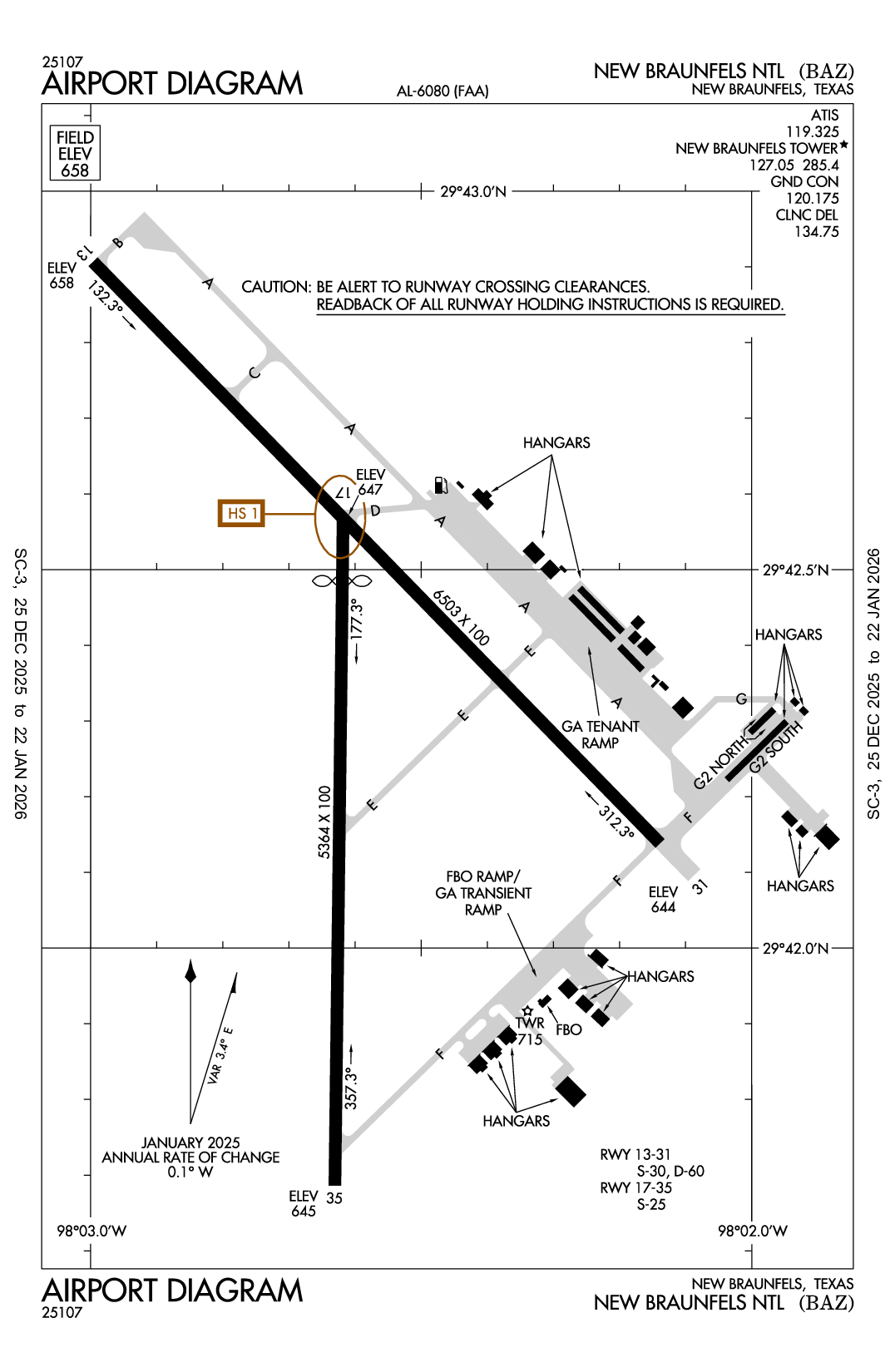

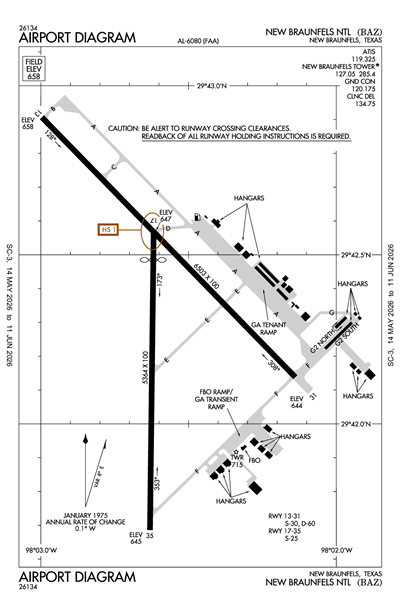

NEW BRAUNFELS NTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBAZ
ICAO KBAZLocal BAZ
NEW BRAUNFELS NTL
PublicPUB

4 miles E of NEW BRAUNFELS, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
29° 42' 21"N 98° 02' 36"W
Elevation
658' MSL
Pattern Alt
1658' MSL
Mag Variation
4°E
Declination
8°E
Fuel
JET A (FSII), 100LL
FSS
SAN ANGELO (SJT)
Sectional
SAN ANTONIO
ARTCC
HOUSTON (ZHU)
Data Effective
10/1/26-10/29/26
KBAZ VFR
8:51 AM CDT
Clear
10sm
63°F
59°F
30.15"Hg
330° 3kts
AO2 SLP204 T01720150
METAR KBAZ 231351Z 33003KT 10SM CLR 17/15 A3015 RMK AO2 SLP204 T01720150
+ Add Your Business

KBAZ FBOs

Promote Listing
New Braunfels National Airport
UNICOM: 122.7
Phone: (830) 221-4290
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 10/2
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 7.46 7.65
Full Serve 8.46 8.15
Fuel Notes
Prices include tax

KBAZ Aircraft Service & Maintenance

Promote Listing
Salty Pelican Aviation
Phone: (830) 837-0823
No Rating Available
0 Reviews (Read | Sign In To Write)
Promote Listing
Crystal Avionics LLC
Phone: (830) 626-3838
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 119.325
ASOS 119.325
(830) 629-7979

Common

CTAF 127.05
ACTVT MIRL RWY 13/31, RWY 17/35 - CTAF.
UNICOM 122.7

Clearance

Clearance Delivery 134.75
Clearance Delivery 134.75
WHEN BAZ TWR CLSD.

Ground

NEW BRAUNFELS GROUND 120.175
0700-1900

Tower

NEW BRAUNFELS TOWER 127.05
0700-1900

Arrival

CRVZA RNAV STAR 125.7
DNKIN RNAV STAR 125.1
POPPO RNAV STAR 125.1
SAT REQUEST BAZ ATIS, 119.325, ADDED TO THIS STAR.
QERVO RNAV STAR 127.1
SAT REQUEST BAZ ATIS, 119.325, ADDED TO THIS STAR.

Approach

SAN ANTONIO APPROACH 124.45

Departure

SAN ANTONIO DEPARTURE 128.05

Terminal Area Forecast

KRND (16nm)
Fri, 10/23 4:40 AM CDT
Fri, 10/23 5:00 AM CDT - Sat, 10/24 11:00 AM CDT
VFR
5:00 AM CDT - 10:00 AM CDT
Sky Clear
6sm
30.09"Hg
310° 3kts
VFR
Becoming 10:00 AM CDT - 12:00 AM CDT
Few 25,000'
6sm
30.00"Hg
140° 10kts
Gusts 15kts
VFR
Becoming 12:00 AM CDT - 4:00 AM CDT
Scattered 4,000'
Few 1,500'
6sm
30.12"Hg
130° 6kts
VFR
Becoming 4:00 AM CDT - 11:00 AM CDT
Broken 4,000'
Few 1,500'
6sm
30.09"Hg
050° 4kts
TAF KRND 230940Z 2310/2416 31003KT 9999 SKC QNH3010INS
   BECMG 2315/2316 14010G15KT 9999 FEW250 QNH3001INS
   BECMG 2405/2406 13006KT 9999 FEW015 SCT040 QNH3012INS
   BECMG 2409/2410 05004KT 9999 FEW015 BKN040 QNH3010INS TX29/2321Z TN15/2312Z
KBAZ
EffectiveExpiresCategoryNOTAM
Domestic
10/22/26
1300Z
10/26/26
0459Z
!BAZ 10/006 BAZ SVC TFC MANAGEMENT PROGRAM ALERT SEE DOMESTIC NOTICE TEXAS, US GRAND PRIX 2610221300-2610260459
10/18/26
0541Z
11/1/26
2359Z
!BAZ 10/007 BAZ OBST TOWER LGT (ASR 1249512) 294307.10N0975734.00W (4.5NM E BAZ) 829.1FT (199.1FT AGL) U/S 2610180541-2611012359
10/7/26
1934Z
2/4/27
1934Z
!BAZ 10/005 BAZ OBST TOWER LGT (ASR 1047932) 293830.40N0980742.40W (5.9NM SW BAZ) 1132.9FT (423.9FT AGL) U/S 2610071934-2702041934
10/2/26
1200Z
1/1/27
0200Z
!BAZ 10/002 BAZ SVC CLR DELIVERY 134.75 U/S DLY 1200-0200 2610021200-2701010200
10/1/26
1200Z
11/16/26
0200Z
!BAZ 09/011 BAZ SVC TWR OPN DLY 1200-0200 2610011200-2611160200
9/23/26
1554Z
10/23/26
2359Z
Runway!BAZ 09/007 BAZ RWY 13 PAPI U/S 2609231554-2610232359
8/23/26
0129Z
11/22/26
2359Z
!BAZ 08/006 BAZ OBST TOWER LGT (ASR 1058554) 294621.00N0975705.00W (6.3NM NE BAZ) 836.9FT (213.9FT AGL) U/S 2608230129-2611222359
8/22/26
1319Z
11/20/26
1419Z
!BAZ 08/005 BAZ OBST TOWER LGT (ASR 1049038) 295008.80N0980114.30W (7.8NM NE BAZ) 1221.1FT (397.0FT AGL) U/S 2608221319-2611201419
8/22/26
1032Z
11/22/26
2359Z
!BAZ 08/004 BAZ OBST TOWER LGT (ASR UNKNOWN) 294626.70N0980306.20W (3.6NM N BAZ) UNKNOWN (668FT AGL) U/S 2608221032-2611222359
7/28/26
2034Z
10/26/26
2034Z
!BAZ 07/007 BAZ OBST TOWER LGT (ASR 1244315) 295051.20N0981123.70W (11.4NM NW BAZ) 1349.1FT (240.2FT AGL) U/S 2607282034-2610262034
6/23/26
1726Z
6/23/27
2359Z
!BAZ 06/009 BAZ OBST TOWER LGT (ASR 1062683) 295115.00N0980647.00W (9.6NM NNW BAZ) 1384.5FT (321.5FT AGL) U/S 2606231726-2706232359
FDC
8/12/26
1728Z
!FDC 6/4388 BAZ IAP NEW BRAUNFELS NTL, NEW BRAUNFELS, TX.
RNAV (GPS) RWY 13, AMDT 1A...
LNAV MDA 1360/HAT 702 ALL CATS. VIS CATS C/D 1 3/4.
CIRCLING MDA 1360/HAA 702 ALL CATS. VIS CAT C 2 CAT D 2 1/4.
VDP 2.03 NM TO RW13.
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE SAN MARCOS ALTIMETER SETTING; INCREASE LPV DA TO 951 FEET, LNAV/VNAV DA TO 1169 FEET; INCREASE ALL MDAS 60 FEET AND VISIBILITY LNAV CATS C/D AND CIRCLING CATS C/D VISIBILITY TO 2 1/2 SM.
TRANSMISSION TOWERS, UP TO 1043 MSL, 5.27 NM NW OF APCH END RWY 13 (2022-ASW-18176 THRU 18188-OE).
2608121728-2808121728EST
7/28/26
1300Z
!FDC 6/9410 BAZ SID NEW BRAUNFELS NTL, NEW BRAUNFELS, TX.
ALISS SEVEN DEPARTURE (RNAV)...
SLENA TWO DEPARTURE (RNAV)...
SNIDR TWO DEPARTURE (RNAV)...
TJANO TWO DEPARTURE (RNAV)...
YODUH TWO DEPARTURE (RNAV)...
DEPARTURE PROCEDURE: RWY 35, FLY HEADING 353 TO 1200 BEFORE TURNING LEFT, TEMPORARY CRANE, 996 MSL, 1.99 NM NORTH OF RWY 35 DER (2026-ASW-5538-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2607281300-2611131016EST
7/28/26
1300Z
!FDC 6/9409 BAZ IAP NEW BRAUNFELS NTL, NEW BRAUNFELS, TX.
RNAV (GPS) RWY 31, AMDT 1...
VOR/DME-A, ORIG-A...
CIRCLING CAT B/C/D MDA 1360/HAA 702. VIS CAT C 2, CAT D 2 1/4.
TEMPORARY CRANE, 996 MSL, 2.21 NM NORTH OF KBAZ AIRPORT (2026-ASW-5538-OE).
2607281300-2611131016EST
7/28/26
1300Z
!FDC 6/9408 BAZ ODP NEW BRAUNFELS NTL, NEW BRAUNFELS, TX.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
DEPARTURE PROCEDURE: RWY 35, FLY HEADING 353 TO 1200 BEFORE TURNING LEFT, TEMPORARY CRANE, 996 MSL, 1.99 NM NORTH OF RWY 35 DER (2026-ASW-5538-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2607281300-2611131016EST
Yes
0700-1900
CITY OF NEW BRAUNFELS
550 LANDA ST.
NEW BRAUNFELS, TX 78130
Phone: 830-221-4000
ROBERT LEE
2333 FM 758
NEW BRAUNFELS, TX 78130
Phone: 830-221-4290
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
BAZ
--
ACTVT MIRL RWY 13/31, RWY 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental

Runway 13/31

6503 ft. x 100 ft.
ASPH
Good
GRVD
MED

30,000lbs
60,000lbs
--
--
  Runway 13 Runway 31
True Heading 136°316°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 29° 42' 54"N 29° 42' 08"N
Longitude 98° 02' 60"W 98° 02' 08"W
Elevation 658' 644'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALS
Centerline Lights
Runway End Identifier Lights Yes

Runway 17/35

5364 ft. x 100 ft.
ASPH
Fair
NONE
MED

25,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 181°1°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 29° 42' 34"N 29° 41' 41"N
Longitude 98° 02' 37"W 98° 02' 38"W
Elevation 647' 644'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3BIRDS INVOF ARPT.
A110-4HIGH PER MIL ACFT OPRG AT RANDOLPH AFB AUX FLD (SEGUIN-SEQ).
A110-5FOR CD WHEN ATCT IS CLSD CTC SAT APCH AT 210-805-5516.
A57-17APCH RATIO 50:1 AT DSPLCD THR.
A70-100LLFUEL 24 HR SELF SVC. FOR FULL SERVE FUEL CALL 830-221-4290; AFT HRS CALL 830-221-4100. CALL-IN FEE.
A81-APTACTVT MIRL RWY 13/31, RWY 17/35 - CTAF.
E111EXISTED PRIOR TO 1959.
NEW BRAUNFELS NTL (ICAO: KBAZ, IATA: BAZ) is a public airport located in NEW BRAUNFELS, TX, US.
